High Quality Good Looking 4x4 Electric Mini Moke Car with Best Price

Product Overview

Description

High Quality Good Looking 4x4 Electric Mini Moke Car with Best Price



1. Company Profile of 4x4 Electric Mini Moke Car  :



1. Our company is focusing on the the vehicle assembling project throughout the world, so far, we have successfully set up several such auto assembling plants in Syria, Ghana, Seychelles, Vanuatu for pickup, SUV, bus, moke assembling. Anyone who is interested, contact us freely, looking forward to your cooperation.



2. Our main products:



1) Pickup (Single & Double Cabin; Gasoline & Diesel Engine; 4x2 & 4x4 drive; LHD & RHD);



2) SUV (off-road vehicle: 5 / 7 seats; Gasoline & Diesel Engine; 4x2 & 4x4 drive; LHD & RHD);



3) Van (7-8 seats, 9-15 seats, Gasoline & Diesel Engine; 4x2 drive; LHD & RHD);



4) Mini Moke (Gasoline & Electric, 4x2 drive, LHD & RHD);



5) Bus (Mini Bus, Middle bus, City Bus, and Long-Distance Bus);



6) Providing the assembling equipments and assembing technology of the above mentioned automobiles (pickup, SUV, Van, Moke and Bus) as well as the complete SKD/CKD parts.

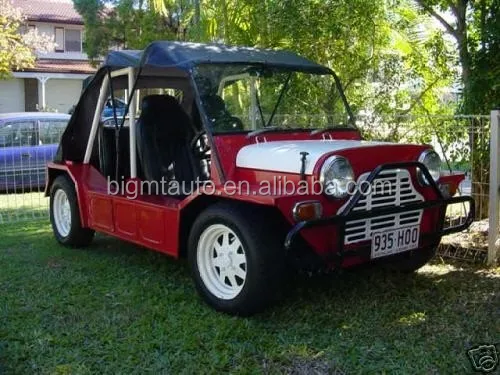

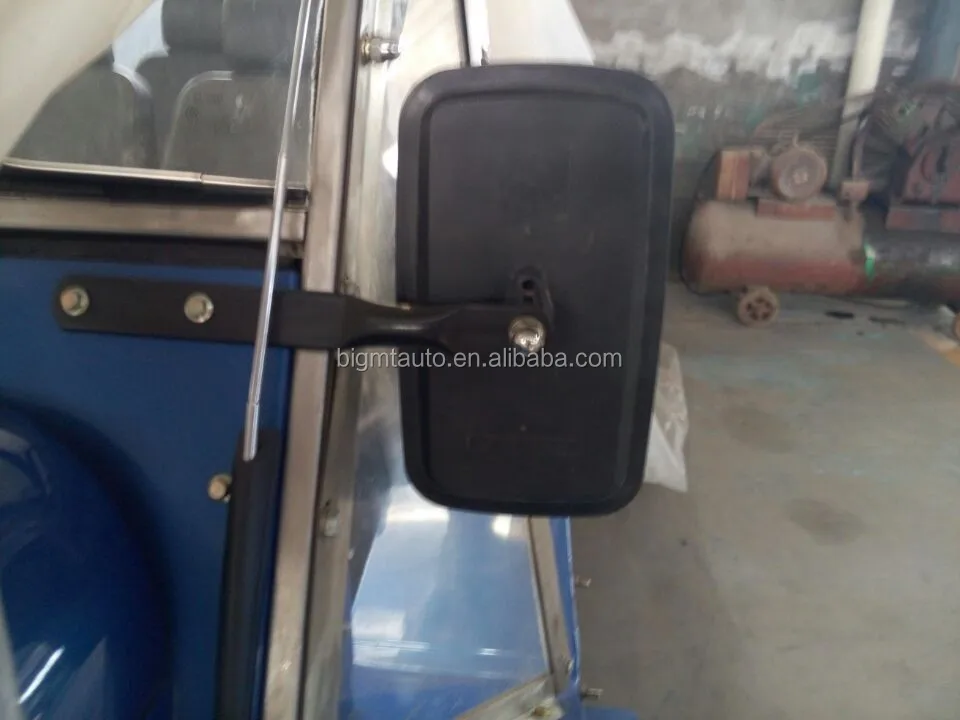

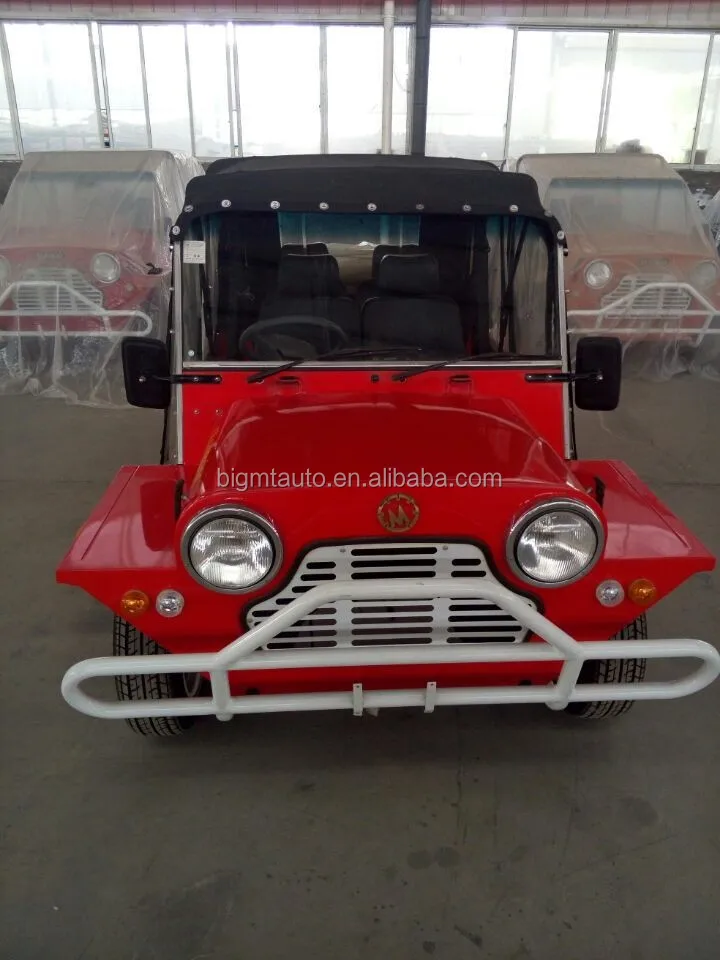

2.Photos of  4x4 Electric Mini Moke Car  :









3.Factory Show of 4x4 Electric Mini Moke Car  :





4.Specification of 4x4 Electric Mini Moke Car  :





Electric power Mini Moke main configuration
Electric devices	48 V ac system, 5 KW: High-efficiency separately-excited winding motor; top speed to 55-60 km/h, maximum mileage 65-70 km
	72 V ac system, 6wk or 7 kw: High-efficiency separately-excited winding motor;top speed to 55-60 km/h,  the maximum mileage of 120 KM  (this configuration cost is better high above term )
	Battery: 6*12V, 210A/H, traction battery with big capacity and deep circulation.
	Charger: Fully-automatic high-frequency pulse charger, input voltage AC 220V, 50Hz; output current 72V, 30A.
	600A  INBOL controller
	Accelerator: induction accelerator 0-12V
	DC Module:72V-12V Direct current converter
Solar battery and charger	Solar battery and charger
Chassis	Frame type, high strength steel structure, both anti-rust treatments of electrophoretic paint and powder spraying
Cover panel	1. Steel boday; streamlined design; 2.Steel frame headlining with imported canvas
Brake system	Disc brakes (F), drume brakes (R ), plus vacuum booster pump
Front suspension system	Two A arms, spring + damper type (or MacPherson front suspension)
Rear suspension system	Towed semi-independent suspension
Steering system	rack-and-pinion steering and EPS system
Lighting system	Headlamp lamp assembly (headlamp, turn signal lamp), Tail lamp assembly (brake lamp, turn signal lamp, everlasting lamp)
Seats	1.Confirming to Human-Machine Engineering Principle, confortable seats; 2. Leather surface, waterproof, impermeable, corrosion resistance, resistance of yellowing, easy to clean;
Tire	165/70  R14  Mini cars' tire
2.  Main technical data
Net Weight	≤ Car 500KG + batteries 250KG = 750KG
L * W * H	3110mm *1520mm *1600mm                                                                     Adding front and rear bumpers:3140mm *1520mm *1600mm
Wheel base	2200 mm
Front wheel track	1250mm
Rear wheel track	1270mm
Min. turning radius	2.5m
Load capacity	350kg(including driver, passenger, and cargos)
Full charge endurance	(IF install High-power li-ion battery power)    150 km
Min. ground clearance	200mm
Brake distance	≤4m (60km/h)
Climbing capacity	≤28%
Max. noise	≤ 50dB
Max forward speed	Client have two select:  60 km/h ; 80 km/h
Max. backward speed	8-10km/h
Driving gear	4 + 1 or 5 + 1
Body/headlining color	Black / Green / Camouflage hide-and-seek
Seats	4
Note: 1. The above parameters for reference only, and the specific technical indexes to factory state shall prevail. 2 this vehicle priority for ordering customers, satisfy customer individual requirements. Custom-made period for 45-60 days







5.Our Auto Overseas SKD Project in Nigeria:





6.Our Services:



Our company is focusing on the overseas automobile assembly project, including Mini Truck, Pickup, SUV, Van, Mini Car, Sedan, and Bus, now let me introduce you the automobile assembly project as below



Brief Introduction of the automobile assembly project in local (suitable for any country, whose customs duty difference between CBU and SKD / CKD is large, i.e., at least 30% or so):



1) save customs duty, this is the most important factor, usually, in most of the countries, the customs duty rate for the KD parts (knocked down auto parts) is much less than the rate for the complete vehicle, the government wants to protect or develop their own industry, for example, in Nigeria, the tax rate on CBU (complete vehicle) is 35%, while only 5% for SKD, and zero percentage for CKD, this is a very good policy;



2) save other taxes in your country for assembling such a vehicle in KD parts instead of importing the complete vehicle, for example, to exempt the VAT for 10 years at least in some countries, etc.;

3) save shipping cost, for promote this automobile Assembly Project to the world, it can save the shipping cost, why? To take this small passenger car as an exampl, with CBU term (complete built unit), one 40HQ container can only load 4 units, but with KD parts, in bulk with large quantities, 6-10 units on average can be loaded in a 40HQ container.



4) Earn your own Intangible Assets: with the automobile assembly project, you can develop and have your own auto brand and logo, and you can also enlarge your markets to your neighboring countries by making use the preferencial tariff policies among your communities.





What about After-Sales Service?







We propose and provide "REPAIR & MAINTENANCE" After-Sales Service:



1) Found a professional "Repair & Maintenance" service company to ensure the After-Sales Service;



2) Car spare parts supply;



3) Driving & repairing training guidance;



4) Technical advisory and training;



5) Market data feedback and disposing;



6) The most important - Technology Support.





  Join us you will see how to work with us on this business. we can also help you establish assembling plant in local if you are interested, supplying both complete set of coaster mini bus parts and assembling technology. We hope for a cooperation with you !
