Harbin Hildebrand wood drying equipment, timber drying kiln for sale

Product Overview

Description

Specification:

1. Suitable for drying both hardwood and softwood.

2. Economical and energy efficient.

3. Reliable performance

4.New kilns for refurbishing existing ones.

5. Quick delivery times.

6. Tailored solutions.

Technical Information:

Maximum drying temperature	110°C
Kiln Housing	Stainless Steel or All Aluminum or Masonry
Insulation	Fiber Giass 100mm to 200mm
Gate System	Sliding lifting kiln door
Control System	LIGNOMAT Fully Automatic Control System
Wood Probes	Wirebound and Wireless
Fans	Axial Fans 800mm/1200mm,Reversible
Heating Source	Hot Water or Steam or Thermal Oil
Kiln inner dimensions:	Width 25680mm
	Depth 9300mm
	Height 5700 mm
Stack dimensions:	Width 25000 mm
	Depth 7300 mm
	Height 4500 mm
Kiln capacity:	Approx 300m3/corresponding to 25mm of thickness of material to be dried and 25mm stickers
Type of door:	Lift-sliding door
Way of loading:	Forklift
Performance Data: Model LDFJ-400
Bearing structure:	Aluminum alloy
Heating medium:	Hot water 90C
Humidification medium:	Water 20C
Number of fans:	20 units
Diameter of fan:	800mm
Volume of circulating air:	30,000 m3 /h
Motor:	3kw, class IP55
Electricity demand:	18kw
Voltage & Frequency:	380v, 50Hz
Snow Loading:	150 Kg/m2
Wind loading:	120 km/h





Photos of Drying Kilns:

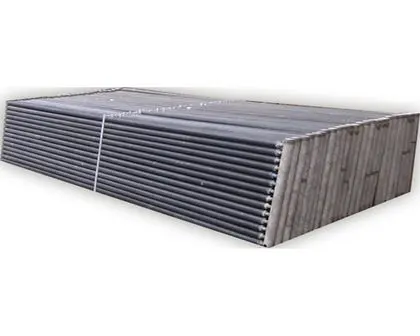

Heating Coil

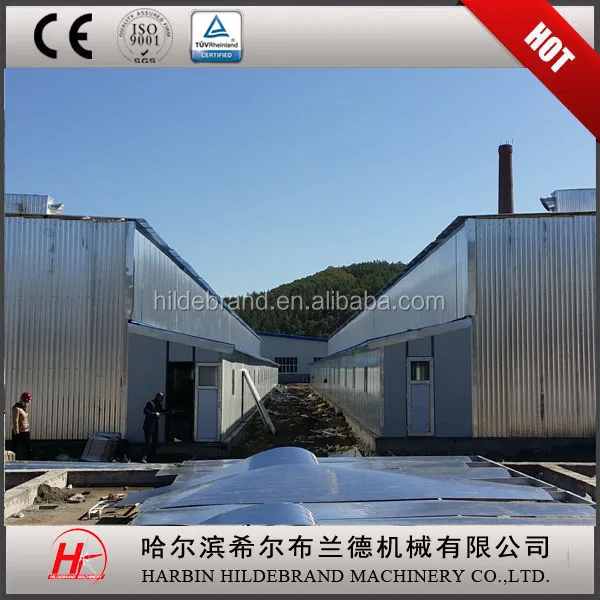

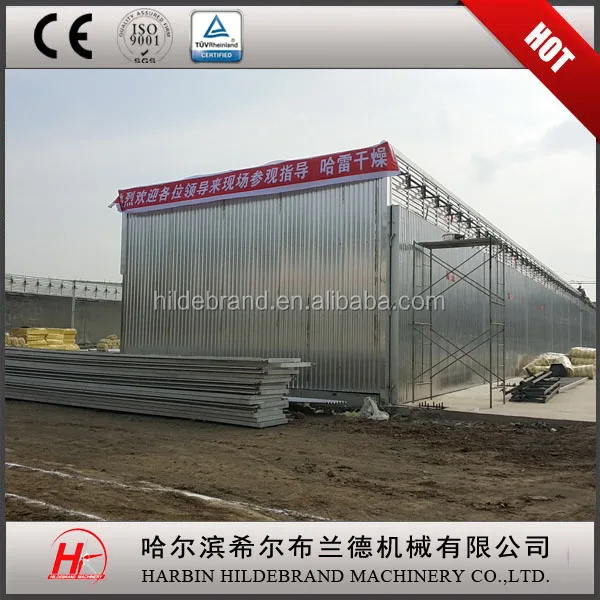

Installation Photos:

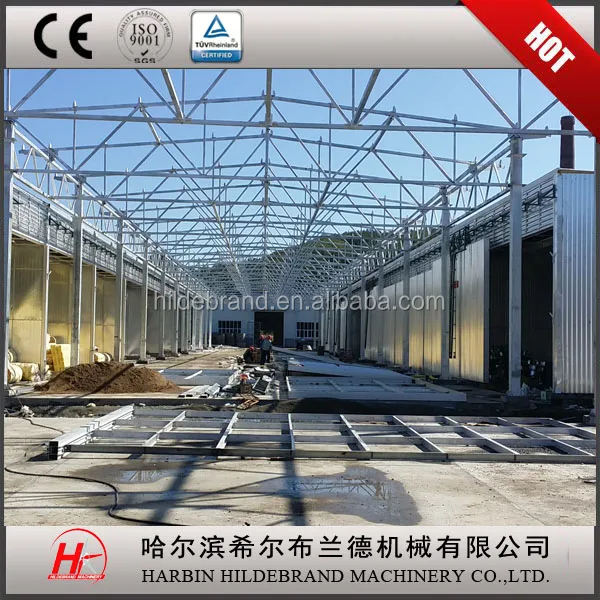

Kiln Building Structure

The kiln is built in all aluminum and stainless steel constructon for corrosion resstance and is installed on a concrete foundation. The construction consists of an aluminum inner wall and outer wall with fiber glass insulation in between. The multi-layer kiln structure can effectively balance expansion and shrinking stresses caused by temperature differences between the inside and the outside of the kiln while in operation. This ensures that the kiln stays prperly sealed. In cold area like syberia, we adopt 150mm thicknes profile and 35x35mm corrugated ceiling, which can afford 200KG snow load.

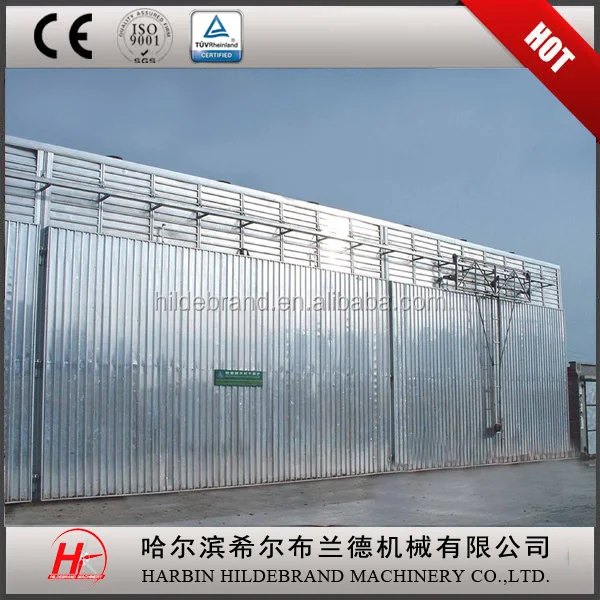

Door and Door Carriage

International popular one-piece kiln door is in all aluminum suspension rail style. The whole kiln door is prefabed with fiber glass insulation to thoroughly prevent thermal bridge effect and to optimize inslulation performance. Particular high temperature resistant PVC insulation gasket strips are not aging in high temperature condition for a long time and will keep kiln door closely sealed. Door carriage adopts international popular style, stable movement, convenient to lift. Single wheel main door bracket is easy to operate, stable lifting and dropping, flexible slide, 13m main door can be handled by only one single person.





Heat Exchanger

Patented technology, enegy conservation.



LIGNOMAT Fully Automatic Control System:

-All the products and technology from Lignomat are on basis of German HILDEBRAND drying techology.

-After over fifty years of improvement and renovation, Lignomat has received great support and reliance from European, North and South American, Southeastern Asia and African clients.

-Most advanced self-detect and alarm system.

-More than 5000 kilns are running safely and efficiently under control of Lignomat KCS.

-Accurate reading, easy operation and maintenance, online consultation and diagnosis, automatic generation of detailed analysis report nd chart.

-Fast drying time, less energy consumption, high lumber quality.

-Besides effective and reliable automatic wirebound systems, exclusive automatic digital wireless systems are available, no probe cable, no noise problem.

About Our Company:

HARBIN HILDEBRAND MACHINERY CO.,LTD is a joint venture enterprise between HARBIN HA LEI DRYING, the first timber dry kilns manufacturer in China ( established in 1985)

and Mr. Ulrich Heimerdinger, Mr.Hildebrand's descendant and used to work as HILDEBRAND's

engineer. We are dedicated to developing andmanufacturing high quality, hightech timber dry kilns for

the world market.hildebrand MachineryCo., Ltd. passed ISO9001 quality management system

certification. Our joint venture adopts advanced drying equipment, drying technology and manufacturing

methods from German, and we have introduced allaluminum ramproof dry kilns, energy saving heat

exchanger , stainless steel assembly dry kilns, for hardwood and softwood dry kilns, and we use LIGNOMAT fully automatic control

system with most advanced and exclusive wireless probes in the world. The high quality of our products enjoy a high reputation among home and abroad market.
