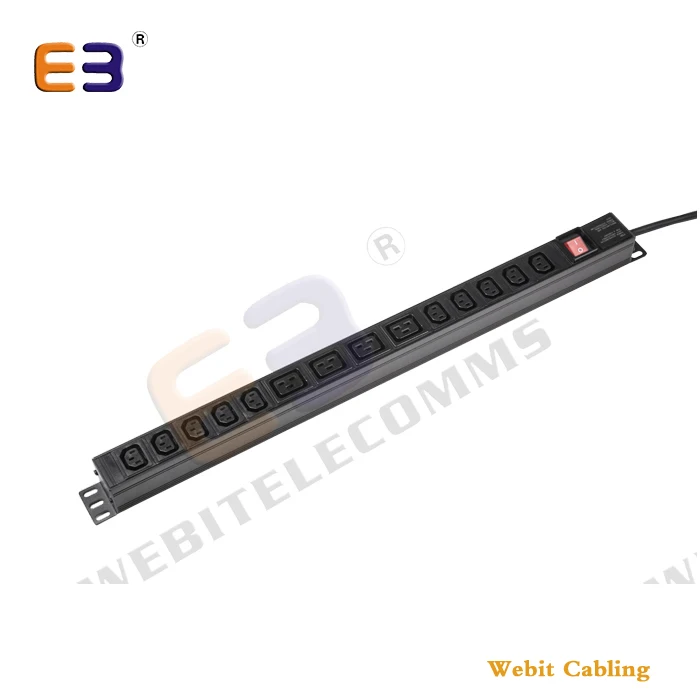

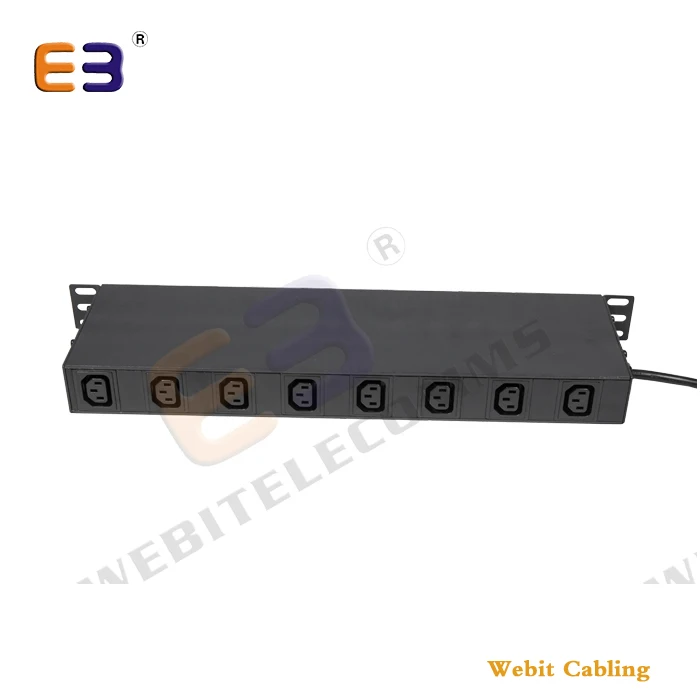

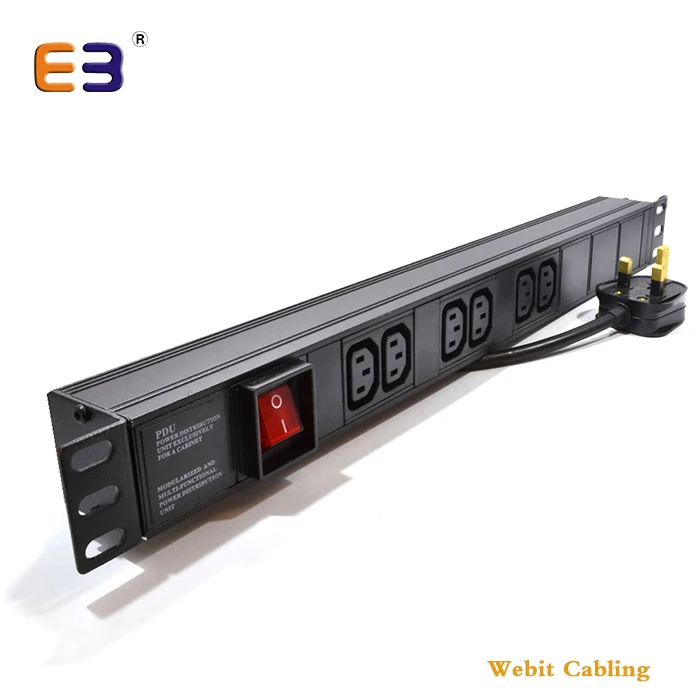

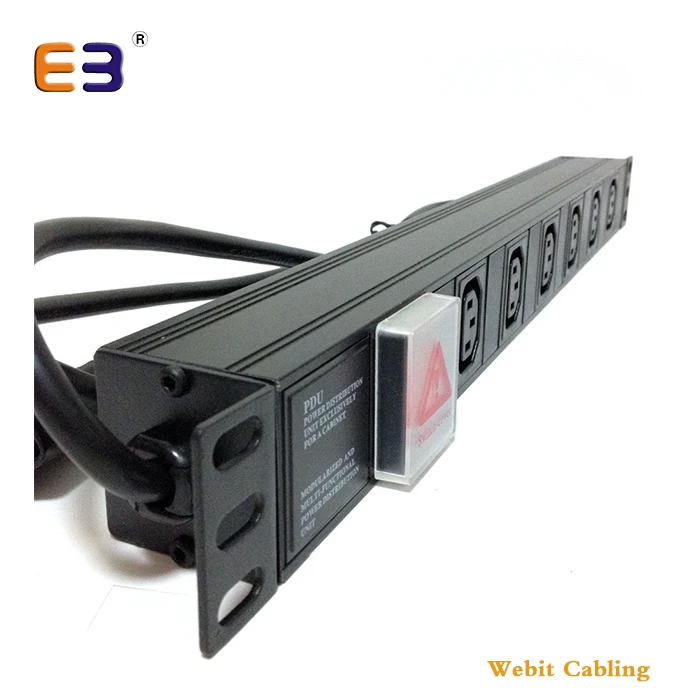

IEC C13 1U 19' 6 Way Rackmount Power Distribution Unit Network Cabinet C13 PDU
- Category: >>>
- Supplier: Ningbo Hi-Tech Zone Webit Telecommunication Equipments Co. Ltd.
Share on (60233317042):
Product Overview
Description
IEC C13 1U 19'' 6 Way Rackmount Power Distribution Unit Network Cabinet C13 PDU

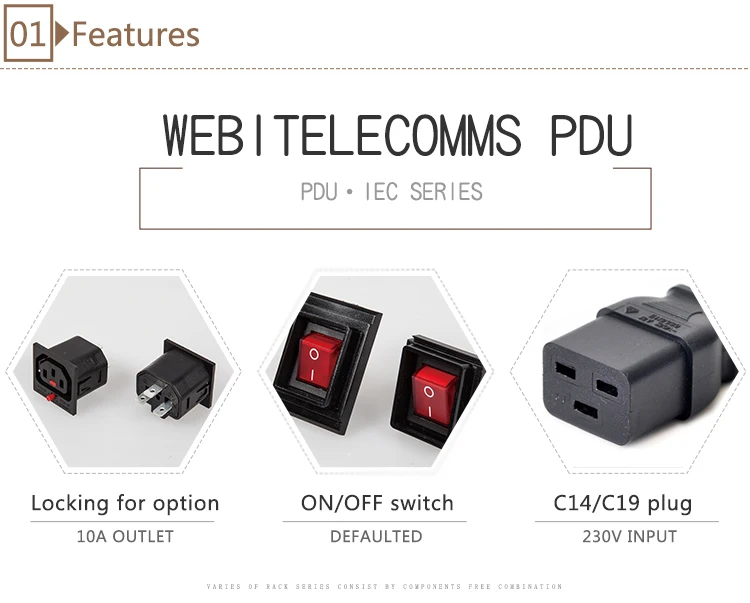

Features

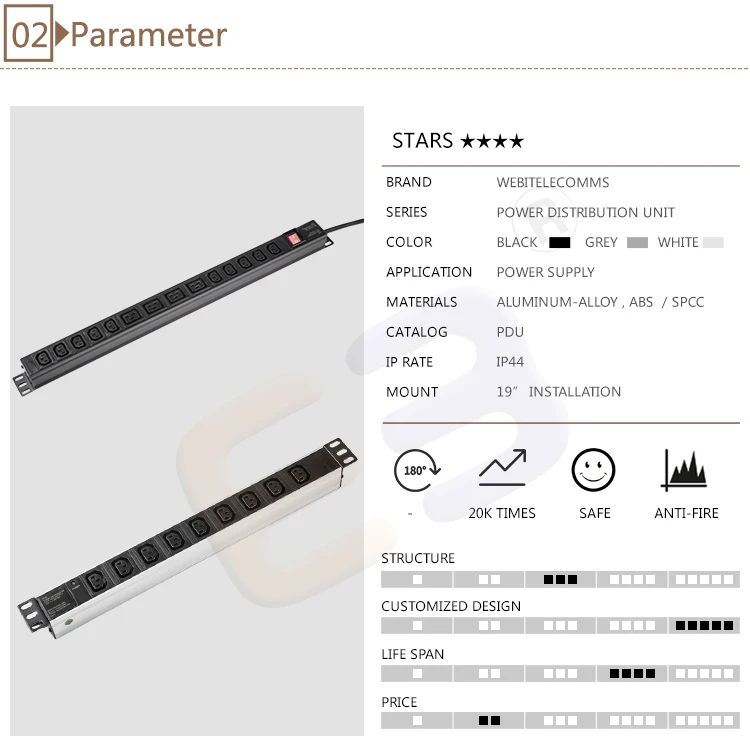

Parameters

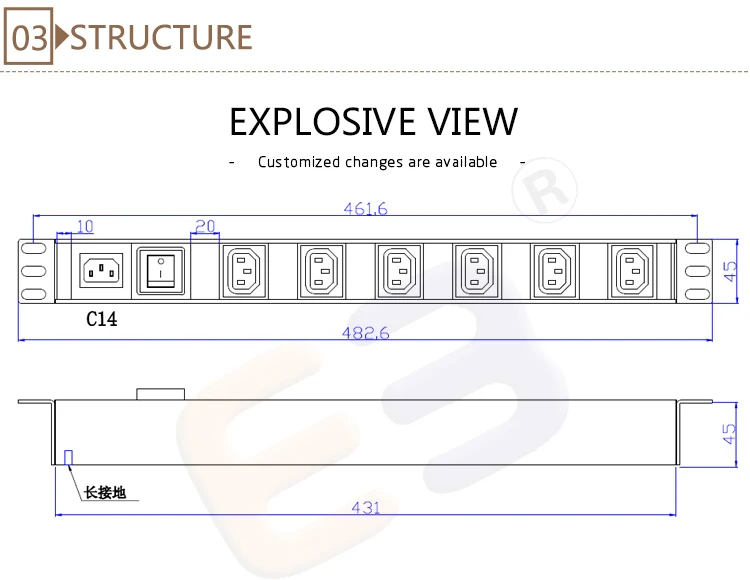

Structure
Aluminum-alloy shell,made from block burn PC,Guage:3G 14AWG+UL plug
According to customer request, we could add AC or DC display
Color: Black or silver
Children safty protect.
Braker protection, and fused
Specifications
Rated current | 10A Max |
Rated load | 2500W Max |
Rated voltage | 250V |
Household voltage | 230V |
Number of sockets | 3 to 48 ways |
Size | 19" 1U or 1.5U |
Shell material | Uninflammable PC module, Aluminium alloy shell |
Type of cable | 3G*1.5mm2*2m |
Type of plug | C13 | C14 | C19 | C20 |
Degree of protection against electric shock | IP20 |
Provision for earthing | With earting contact |
Method of connecting the cable | Non-rewirable |
Type of connections | Welded-solder |
Degree of protection against electric shock | Normal protection |
Existence of shutters | With shutters |
Method of application-mounting | Portable type |
Packing
