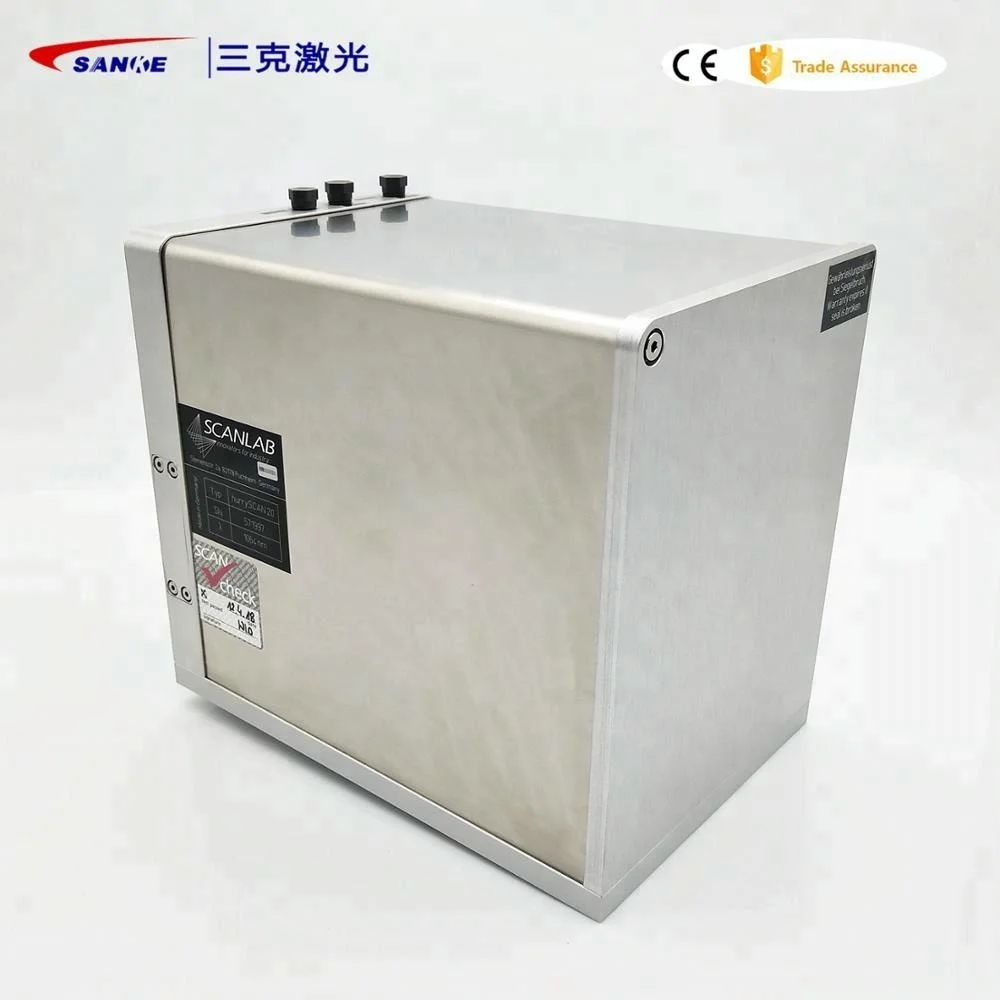

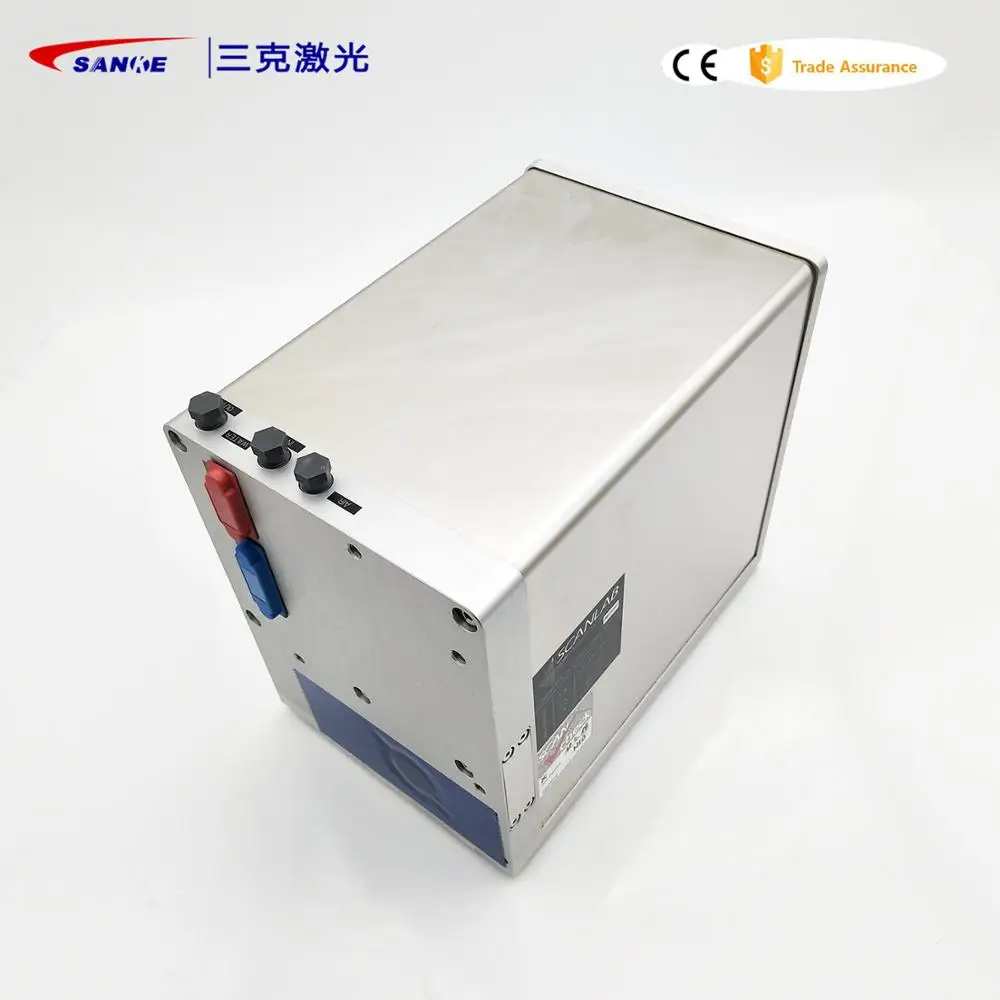

A whole laser marking head (or called laser scanner) consists of two scan mirrors, two galvanometers (or called galvo-scanner motor) & drive cards, a XY mount, a scanning lens (f-theta lens), an interface card (or called D/A card), a set of marking software and a DC power supply. Two types of scanning optics for CO2 and Nd:YAG lasers are available.
Basics of 2-axis laser scanners
A laser beam is reflected from two scan mirrors in turn, and directed through a focusing lens. The mirrors are capable of high speed deflection about a rotation axis, being driven by a galvo-scanner motor. In most cases the maximum deflection angle of the mirror is ±12.5° (often ±10° is a safer limit) either side of the non-deflected incidence angle of 45°.
Note that, for best performance, the lens will appear to be ‘the wrong way round’ when compared with a standard meniscus lens used in conventional focusing of a laser beam.

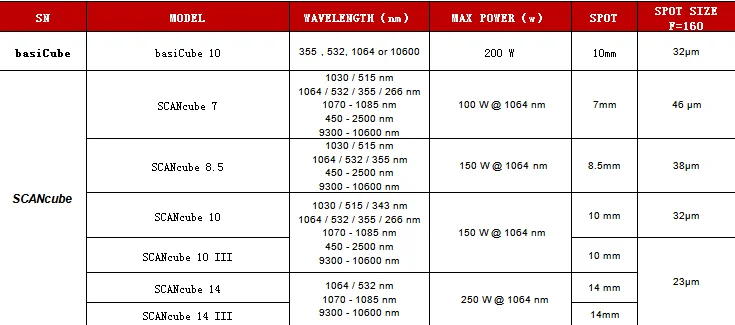

Different model:
Factory Display
Packaging & Shipping
standard export wooden case(free charge) ,suit for freight by sea or air,express ,stretch film to resist moisture.
7 work days after payment.
Our Services
pre-sale service :before you buy,you can send samples to us for test,and then we would send you picture and video of the samples for reference,So you can know whether our machine is perfect fou your goods.Free technical training free traning by VCD ;we will supply the machine with (trainong VCD),(User's manual) and (instruction book)_in English for installing ,operation,maintenance and trouble-shooting.and shall give technical guide by E-mail ,telephone,MSN and so on,when you meet some problems of installation,using or adjusting .
Free Trainingin 3K Laser's Factory:You can sent operator to 3k laser Laser factory for free training. 3k laser Laser will offer professional guide for free. It is direct and effective face-to-face training. Here we have well-assembled equipments, all sorts of tools and testing facility.
After-sale service:Our engineer can do a door-to-door instruction training service at your local site.
quality assurance cooperative partner:IPG, RAYLASE,SCANLAB,DELL ,SYNRAD,RAYCUS ETC.
EFFICIENT SERVICE
our engineers provide 24 hours of online service,no matter when and where,timely solutions would be offered you .
