Automatic mobile truck tyre changer fot truck tire emergency service

Product Overview

Description

Automatic mobile truck tyre changer fot truck tire emergency service



Product introduction:

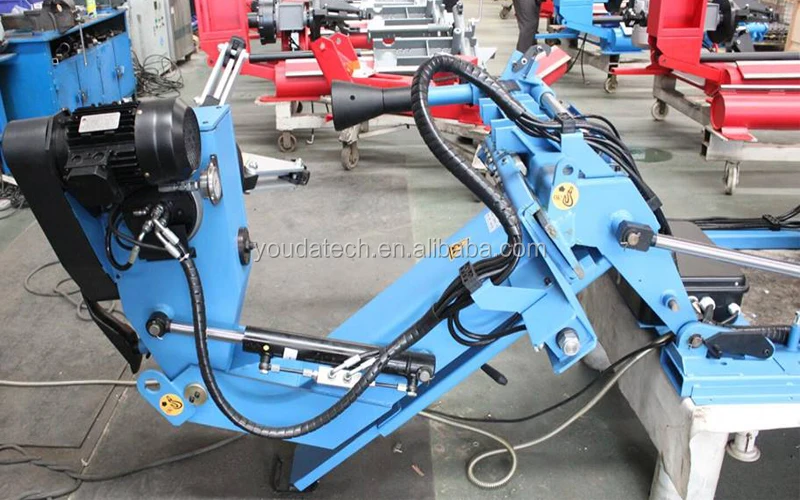

ELECTRO HYDRAULIC TRUCK TYRE CHANGER FOR TRUCKS, BUSES, AND TRACTORS

Equipment with an optional power generator and air compressor



Machine can be run in the workshop and is suitable for tire emergency service
With CE certification.





Technical data:
Rim diameter: 13" to 26"
Max. wheel weight: 700kg
Max. wheel width: 600mm
Max. tyre diameter: 1300mm
Hydraulic pump motor:1.1kw
Gearbox motor: 1.1kw
Bead breaker borce: 2500kg
Power: 220V/440V 50/60HZ 1P/3P optional



Dimensions of Van‘s door:
Min. height of machines chassis to the top of the door: 1450mm
Min. width of inner van: 1650mm
Min. width of door: 980mm
Thick of van: ≤160mm
Chassis of the van to floor: ≈ 700mm



Weight &Packing Size:
Gross weight: 580KG
Outside size:1180x1000x1550mm (LxWxH)









Optional power generator and air compressor

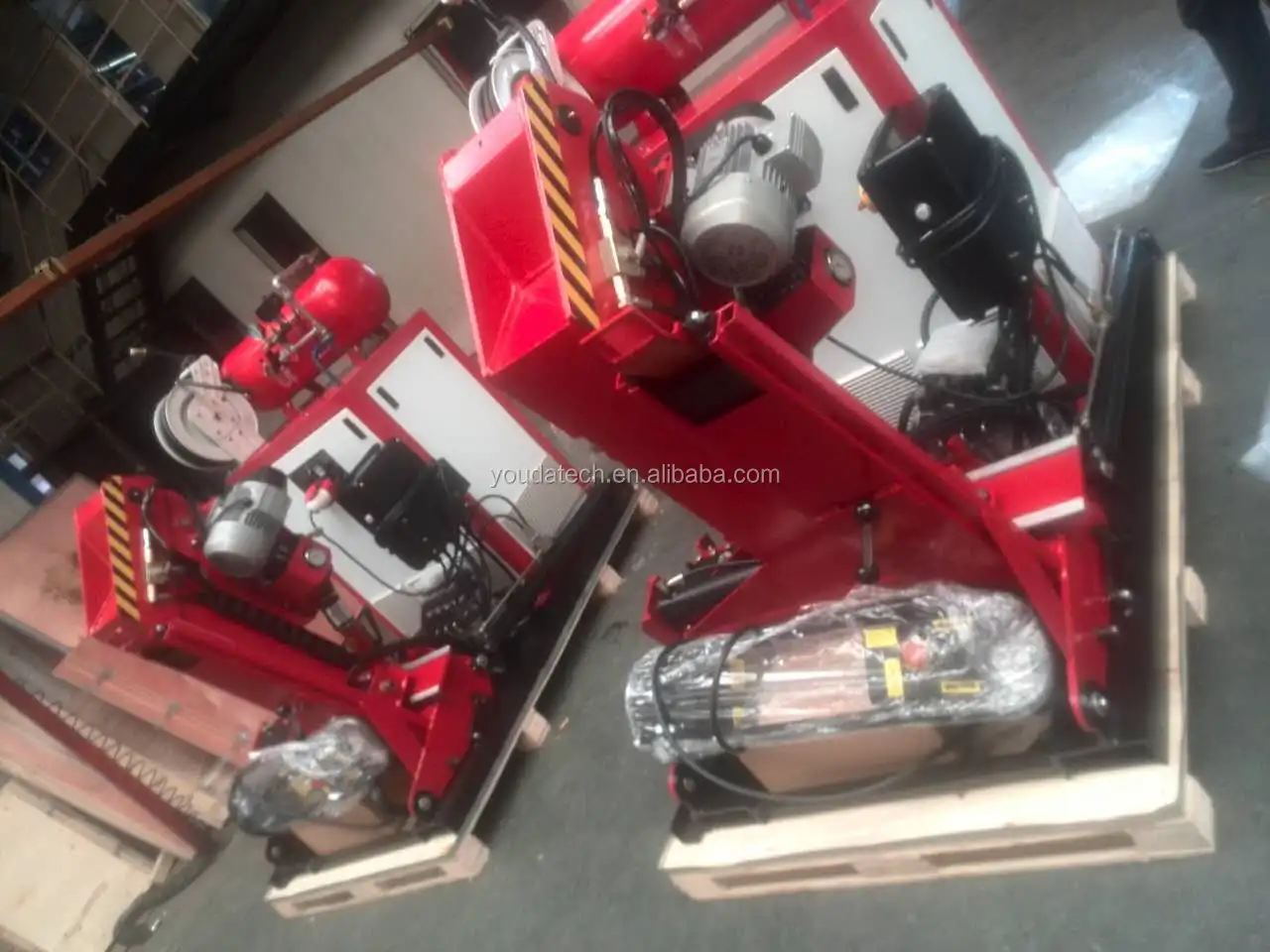

More photos
