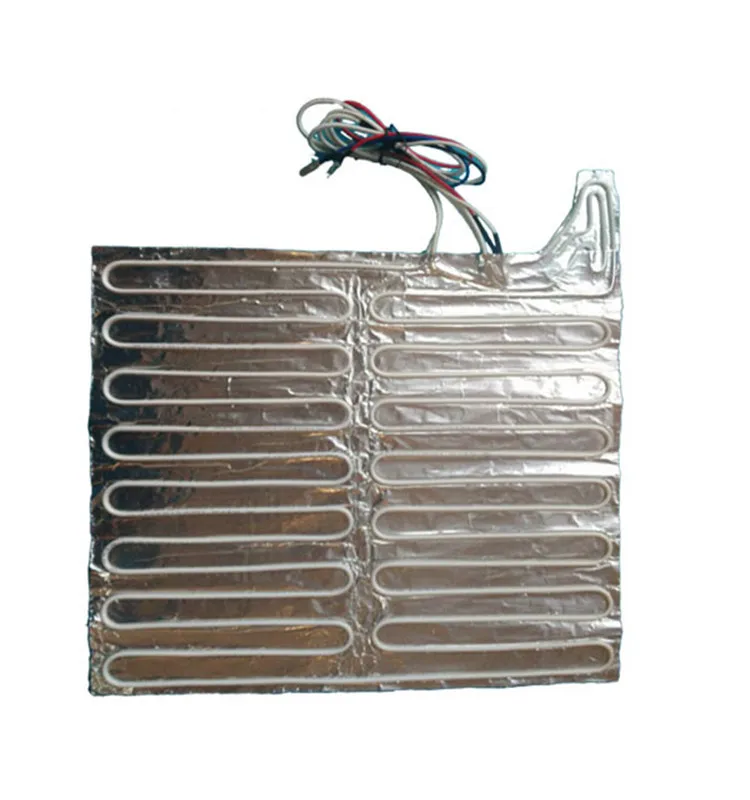

Single Layered Aluminum Foil freezer refrigerator defrost heater
Product Structure:

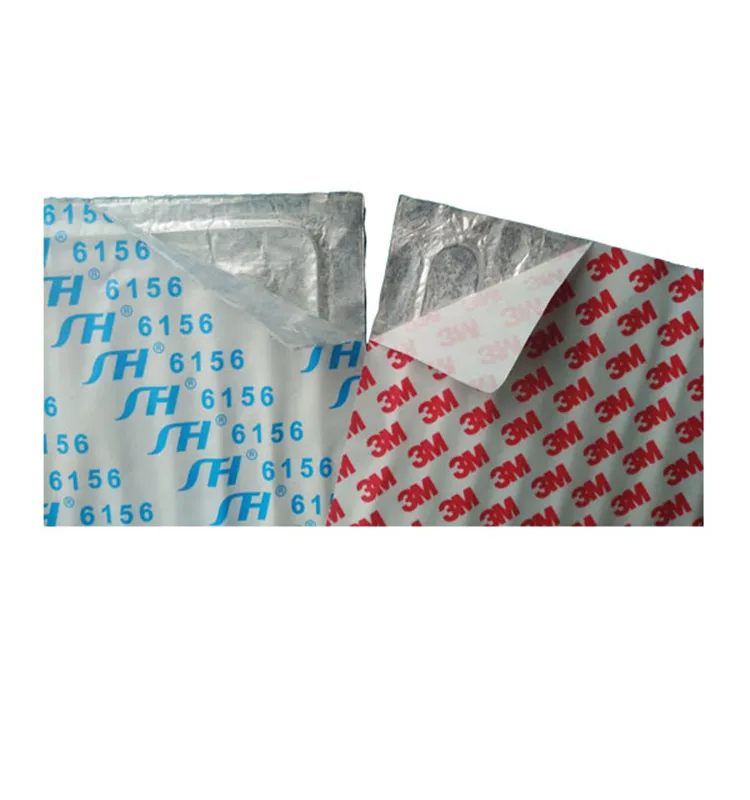

The heating element can be either high temperature PVC or silicone insulated heating cable. This cable is placed between two aluminum sheets. The aluminum foil element has adhesive backing as standard for quick and easy fixing to the area requiring temperature maintenance. Cut outs in the material are possible, allowing for perfect fitting to the part on which the element will be mounted.
Product Application:
Defrost or freeze protection of refrigerator or ice box
Freeze protection of plate heat exchangers
Temperature maintenance of heated food counters in canteens
Anti-condensation of electronic or electric control boxes
Hermetic compressors heating
Anti-condensation of bathrooms mirrors
Anti-condensation of refrigerated display cabinets
Domestic appliances, medical
Technical Data Sheet:
RLPV
RLPG
Electrical insulation
105℃PVC
Silicon rubber
Dimension
Any dimension on request
Voltage
Any voltage on request
Output
Up to 2.5KW/m2
Tolerances
≤±5% on resistance
Insulation resistance in normal temperature
≥100 MΩ
Dielectric strength in normal temperature
1800V 2S, No flashover and break down
Leakage current in working temperature
≤0.02 mA/m
Connect strength
Heater wire and lead wire
≥36N 1min
Lead wire and terminal
≥58.8N 1min
Heater and Al-foil
400g/ 1min
Note: Temperature control Cut out the hole in aluminum foil Earthing of the aluminum foil
