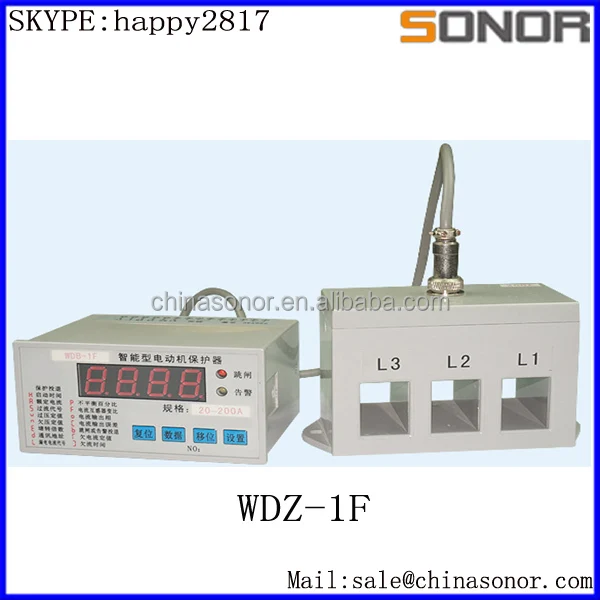

WDZ 1F 3 phase monitoring of short circuit, locked rotor protector
- Category: >>>
- Supplier: Yueqing Sonor Imp. & Exp. Co. Ltd.
Share on (60234781433):
Product Overview
Description
Product Description
WDZ-1F Three-phase monitoring of short-circuit, locked rotor,over current, under current, phase loss, phase unbalance,over voltage,under voltage
Features
Separate structure, panel mounted LED part
Built-in LED and keypad afford a precise,digital setting
Three-phase monitoring of short-circuit, locked-rotor,over current, under current, phase loss, phase unbalance,over voltage,under voltage
Earth fault (should couple with ZCT)
Fault recording
RS-485 communication port (optional)
4-20 ma analog output (optional)
2 C/O output contacts, one for trip,one for alert Characteristics
Technical data
Type | WDZ-1F |
Rated voltage | 220VAC,380VAC , 50/60Hz |
Current range | 1-10A,5-50A,10-100A,20-200A |
Protective functions | short-circuit, locked-rotor, over current, under Current, phase loss, phase unbalance,over voltage,under voltage, earth fault |
Optional functions | RS-485 communication port |
Indicators | LED indicating voltage,current,operation status |
Output contacts | 1 C/O for trip |
Contact capacity | 3A 380VAC |
Dimensions (H × W × D) | 101×54×77mm(LED part) |
Mounting | panel mounted and screw fixing |
Contact us
| Angela /Sales Manager |
| ******************************************* |
| YueQing Sonor Imp&Exp Co.,LTD |
| Add:Liushi-Beibaixiang Town,Yueqing City,Zhejiang,China,325603 |
Phone:0086 577 62873250 / Skype: janny20014 whatsapp:0086 18066287511 Wechat:snr879 |
| //www.chinasonor.com |
