ultrasonic filter bag welding machine Supplier ,CE Approved

Product Overview

Description



ultrasonic filter bag welding machine Supplier ,CE Approved







Parameters:

Output power : 2500W

Power Input : 220V/50Hz

Output frequency : 15KHz

Working temperature : -10-28C

Working speed : 0-20m/min

Equipped pattern mould : 0-100 mm

Size of machine ( L * W * H ) :1300*650*1500 mm

Weight of machine : 140 Kg

 Characteristics of filter bag welding machine:
1. Horn fixed suspension structure;
2. Double-motors speed adjustment system;
3. Pneumatic roller lifting system;
4. Variety of roller patterns, other roller designs available according to customer requirements;
5. Four times faster than sewing machines, minimal operator training required.

Functions:
1. Trimming: Straight or curvilinear edge cutting and edge treatment for melting,so smooth, no rough edges;
2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting,sealing and embossing to make production in one time.

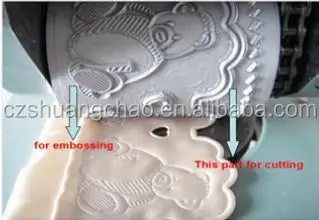

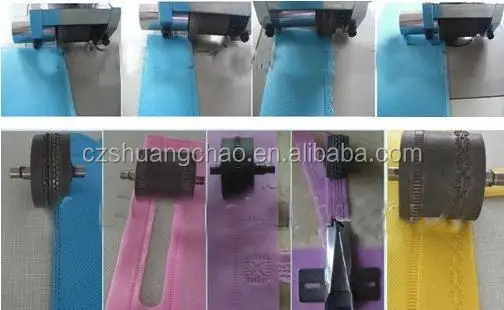

Samples of filter bag welding machine :
