Bentonite Mat Clay Liners

Product Overview

Description

Bentonite Mat Clay Liners



 Product Description    Bentonite Mat Clay Liners

GCLs are high performance environmental liners comprised of a layer of lowpermeability

sodium bentonite combined with geosynthetic carriers, such as woven and/or nonwoven

geotextiles, and in some cases polymer geomembranes. GCLs have been proven to provide

better engineered performance and durability than several feet of compacted clay with a total

composite thickness of less than one quarter of an inch.



Technical Parameter       Bentonite Mat Clay Liners

1	Item		Specification
			GCL-ZC	GCL-FM	GCL-JZ
2	size deviation   %	length	-1%	-1%	-1%
		width	-1%	-1%	-1%
3	Unit weight   g/m2		≥4000	≥4000	≥4000
4	Run voiume swelling bentonite mixture of ml/g		≥24	≥24	≥24
5	Tensile strength N/10cm	longitudinal	≥600	≥700	≥600
		transverse	≥500	≥600	≥600
6	The maximum load elongation %	Longitudinal	≥10	≥10	≥8
		Transverse	≥8	≥8	≥8
8	CBR mullen bursting KN		≥1.5	≥2.0	≥1.0

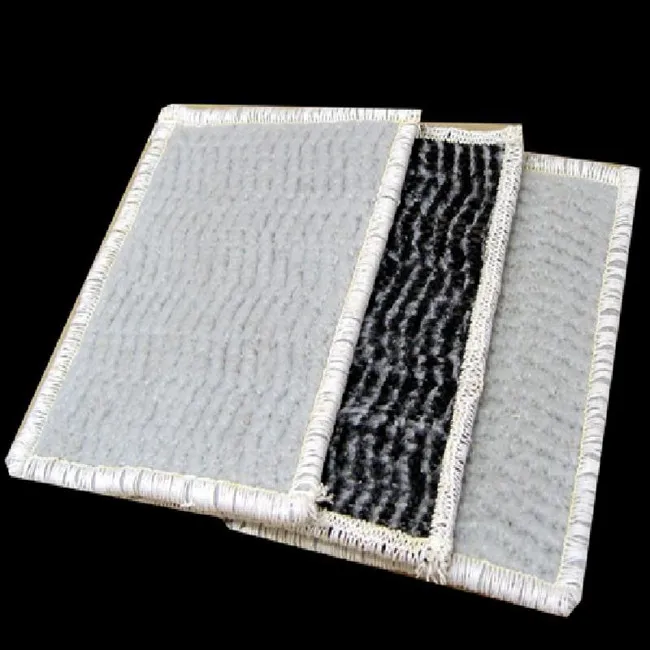

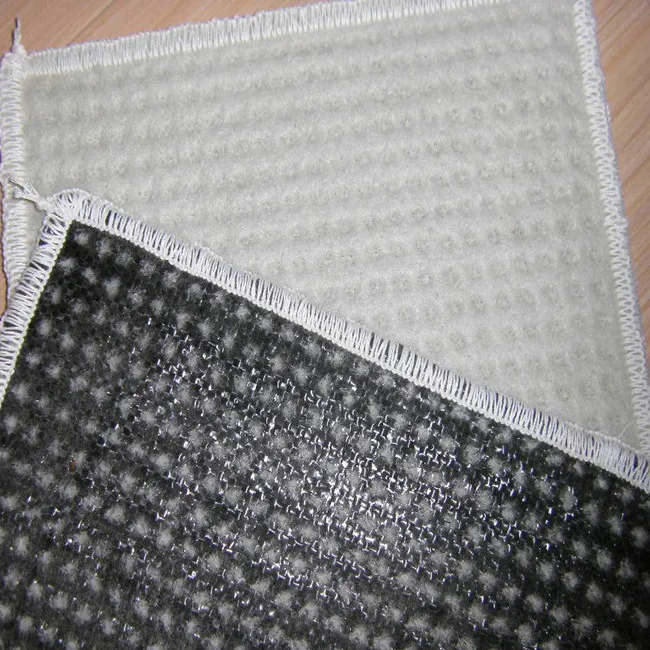

Product pictures       Bentonite Mat Clay Liners





Advantage      Bentonite Mat Clay Liners

1. An economic and environmentally sound alternative to synthetic liners or to bituminous products.

2. Dense and slim with high bond and shear strength.

3. Superior to conventional compacted/puddled clay lining

4. High puncture and tear resistance - the bentonite clay has a high swelling capacity and low permeability

 offering good system integrity.

5. Self-sealing.

6. Long-term protection against ground water seepage



Features      Bentonite Mat Clay Liners

1.  Improved leakage performance

2.  Permanent waterproof performance

3. Simple construction and short time limit for a project.

4. Not influenced by air temperature.

5. A kind of green material and good to environmental protection.

6. More versatile than compacted clay

7. Increased airspace and liner efficiency

FAQ

1. What's are the MOQ?

We can according to your condition to set the MOQ. And we can provide you samples for quality inspection

before the mass production.

2. Do you charge for the samples?

Accordeing to our company policy, the samples are free, we only charge the freight fee.

3. Can you produce according to customers' design?

Sure, we are professional manufacturer, OEM and ODM are both welcome.

4. Can you tell me your main customers?

That's our customers' privacy, we should protect their information. At the same time, please rest assured that

your information is also safe here.



Why choose us

Standard Certification

We have advanced equipment and professional examination,and certified by ISO9001 and ISO14001,

also identified as high-tech enterprise by relevant department in China.

If you are interested in our geosynthetic clay liner, please feel

free to contact us wityhout any hesitation.
