Product Overview

Description



Product Description





HYM750 UHF RFID reader module uses R2000 chip, which complies with ISO18000-6C/ISO18000-6D protocol, with LBT function.It supports dense reader working mode(DRM). With standard 12dBi antenna,the reading distance can reach 24 meters, maximum identifying speed can reach 400/S; with simple power supply and interface circuit, a high-performance RFID system can be established. It is suitable for logistics, apparel, medical industry, and complex assets management, etc.



Detailed Images

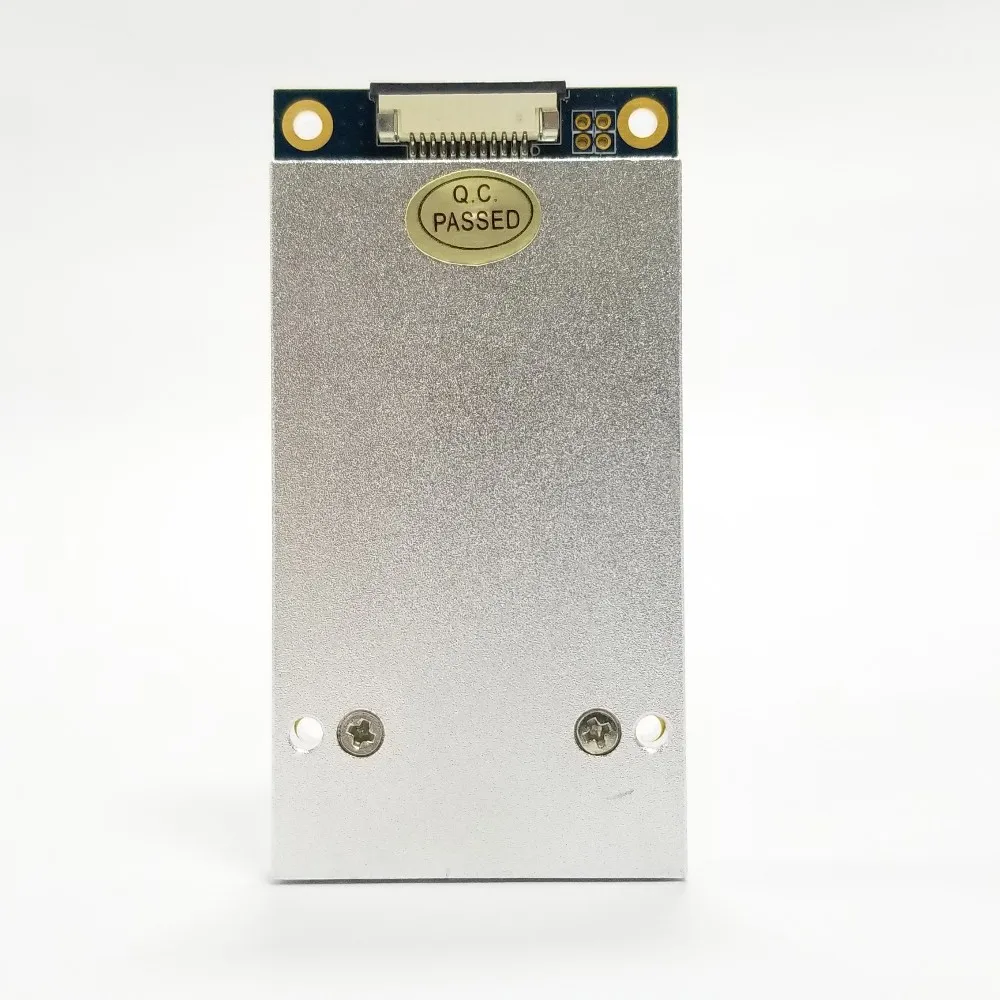

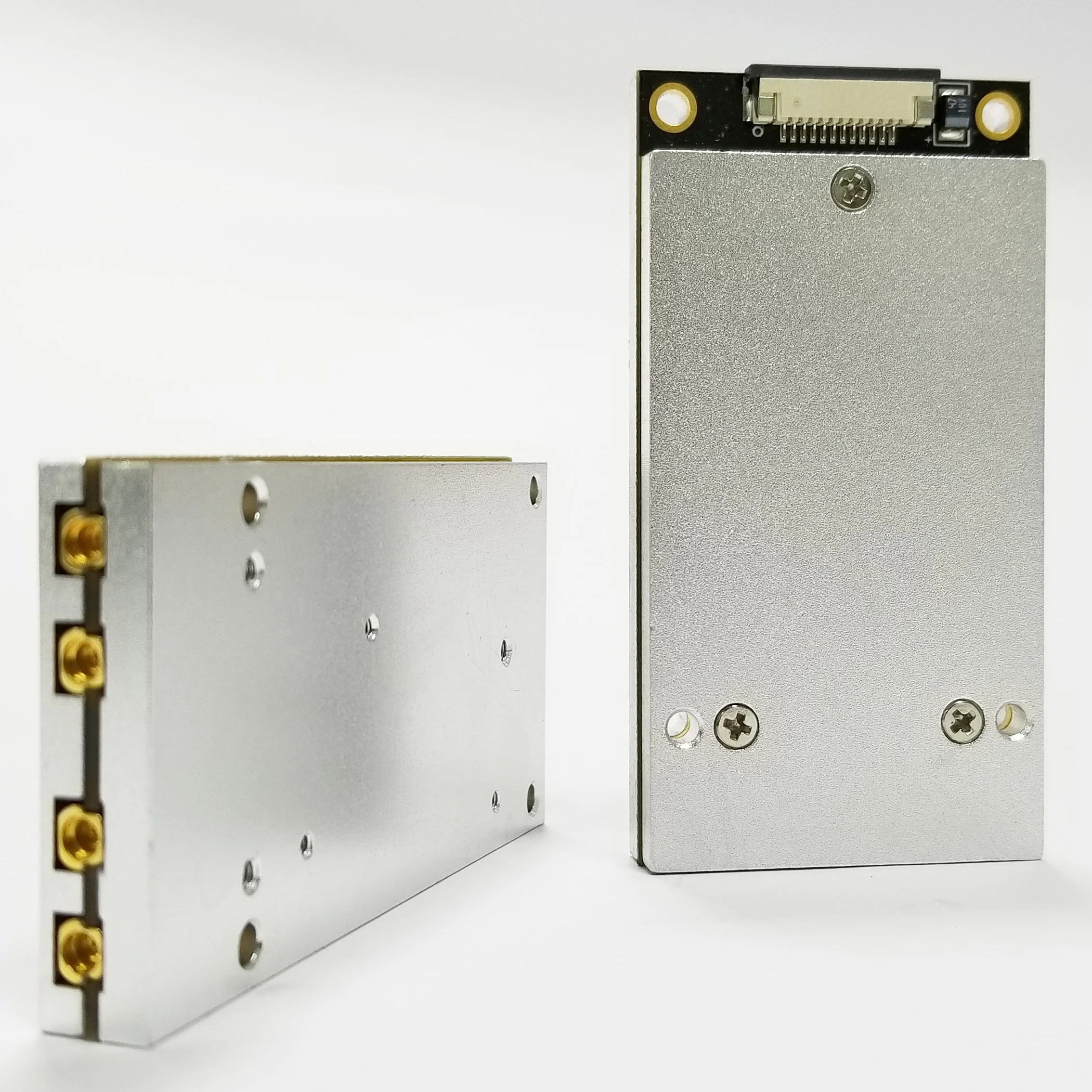

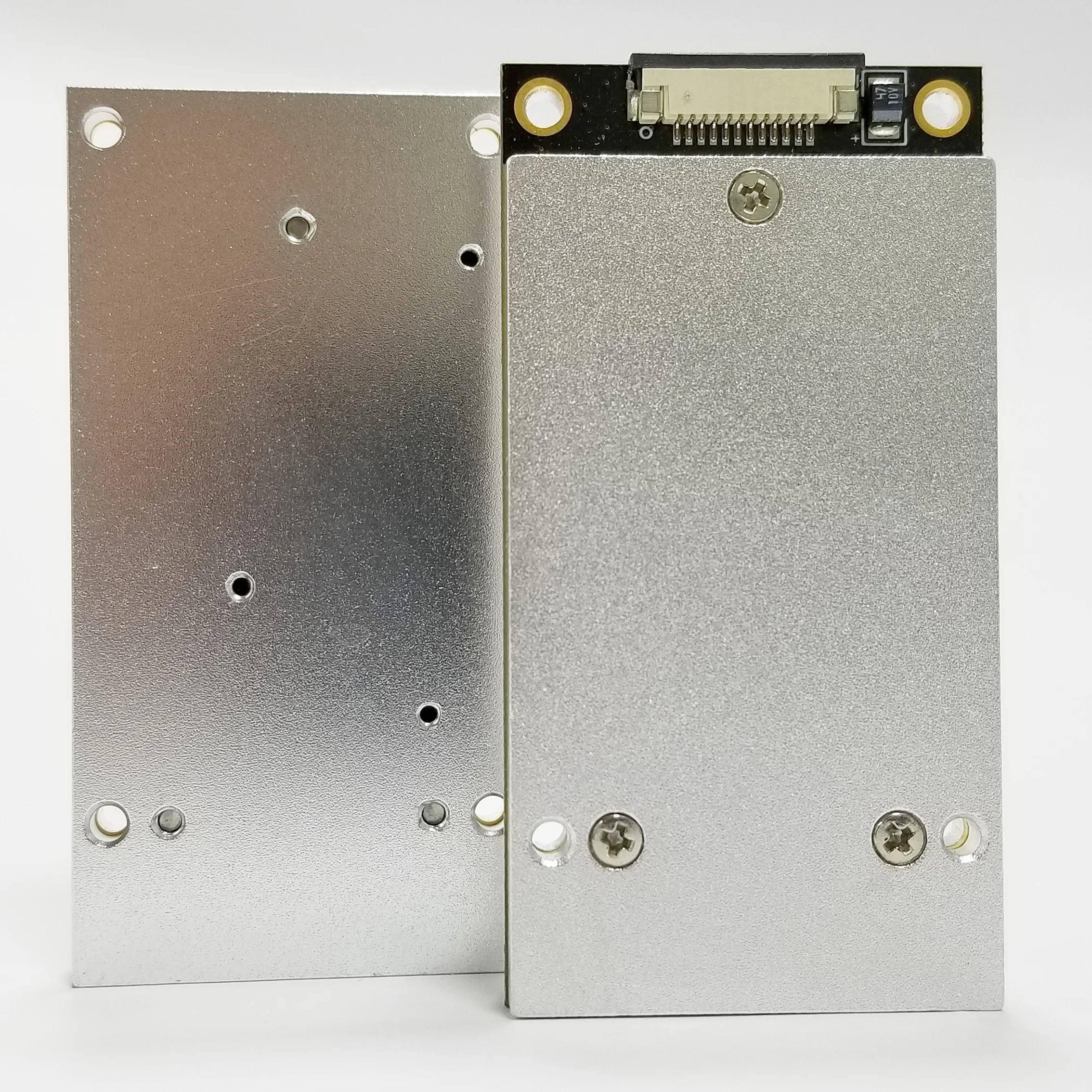

R2000chip uhf rfid reader module





 high performance for DIY uhf rfid reader

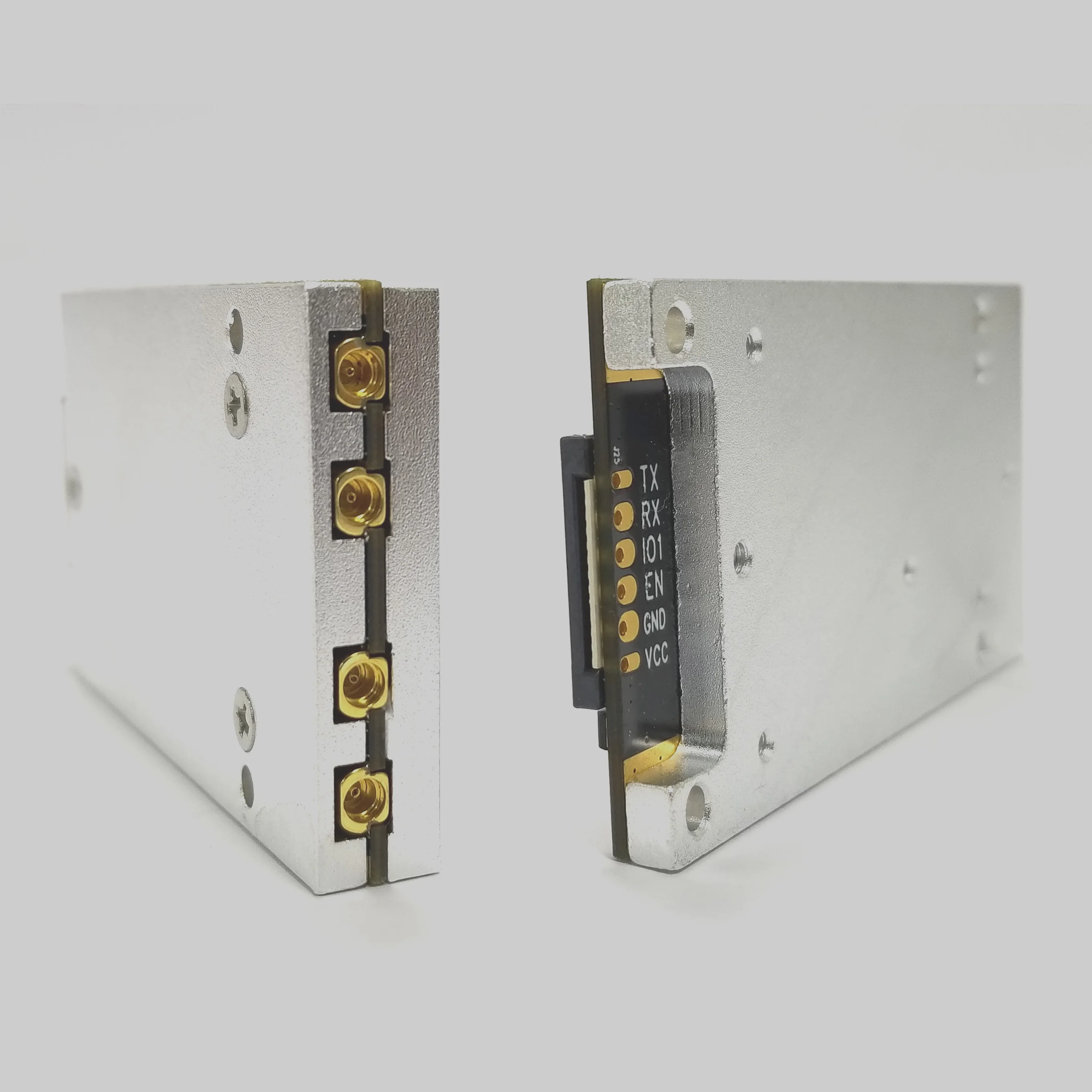

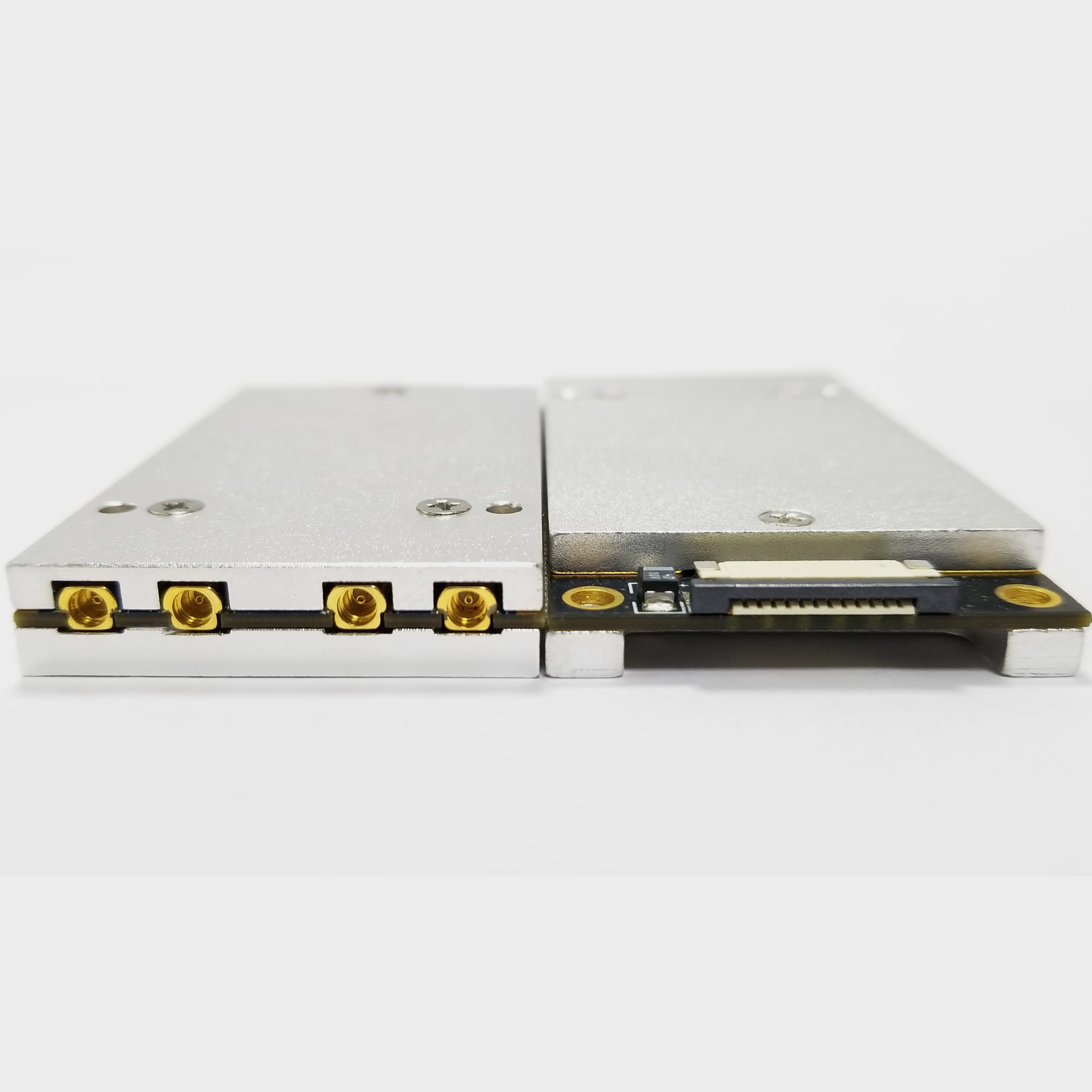

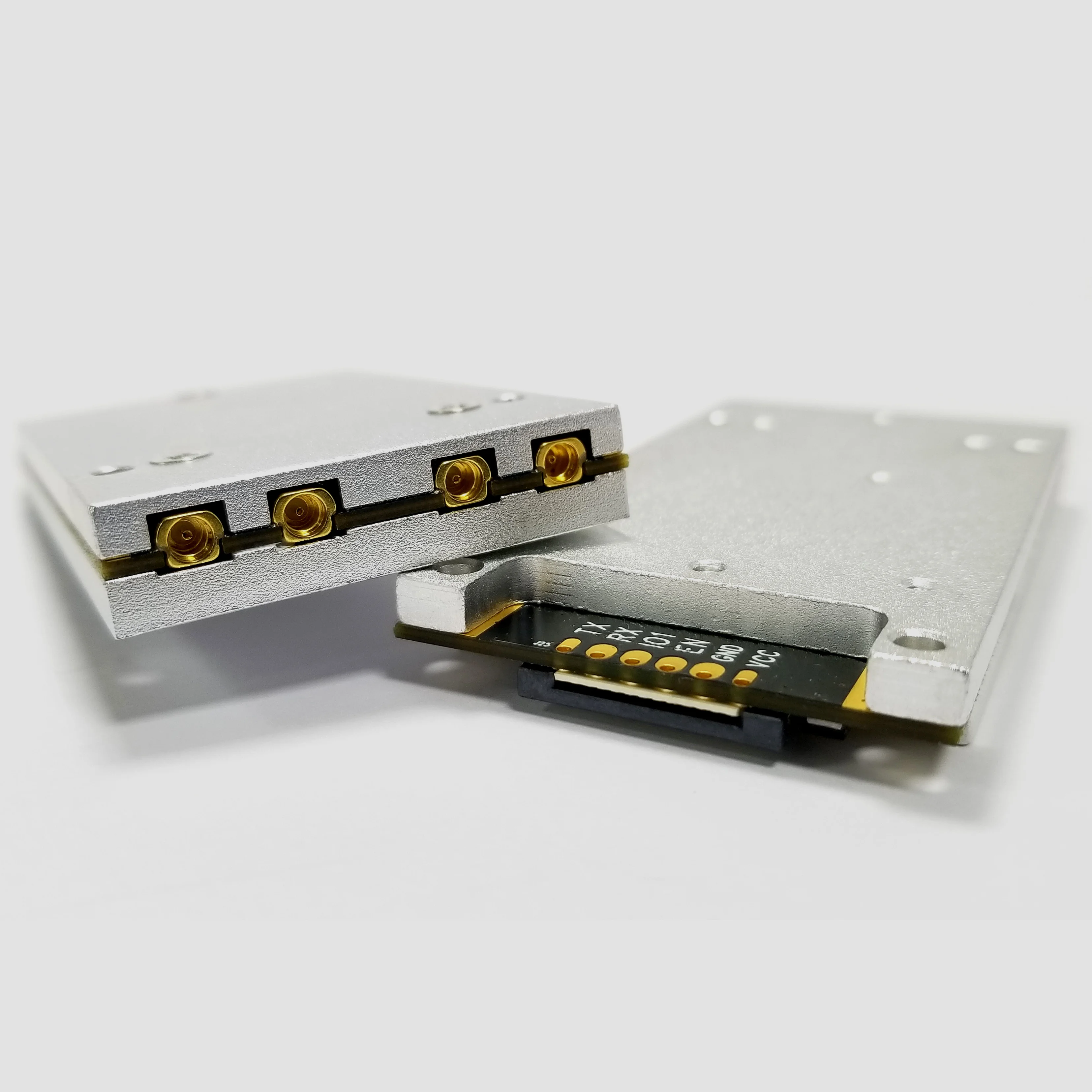

Four antenna ports,mmcx ports





 Demo board for testing



Technical data


No
Item
Technical data
Unit
Remark
1
Fixed current
1.2
A
Max power output
2
Standby current
≤1
mA
EN pin low level
3
Frequency range
840~960
MHz
4
Default working frequency
Frequency hopping
MHz
Frequency interval 250KHz
5
Channel bandwidth
≤250
KHz
6
Frequency hopping speed
≤2
s
7
Fixed power
30
dBm
8
Stepping interval
1~2
dB
5~30dBm,adjustable by software
9
Label protocol
ISO18000-6C

/ISO18000-6D
10
Communication protocol
Asynchronous serial ports protocol
11
Starting time
≤50
ms
12
Radio-frequency power rising time
≤500
μs
13
Radio-frequency power dropping time
≤500
μs
14
Adjacent channel power leaking ratio
≤-40
dB
±1CH
≤-60
dB
±2CH
15
Frequency stabilizing ratio
±10
ppm
-25℃~+40℃
±20
ppm
-40℃~+60℃
16
Max reading range
24
m
12dBi antenna
17
Multi-tags
>400/s

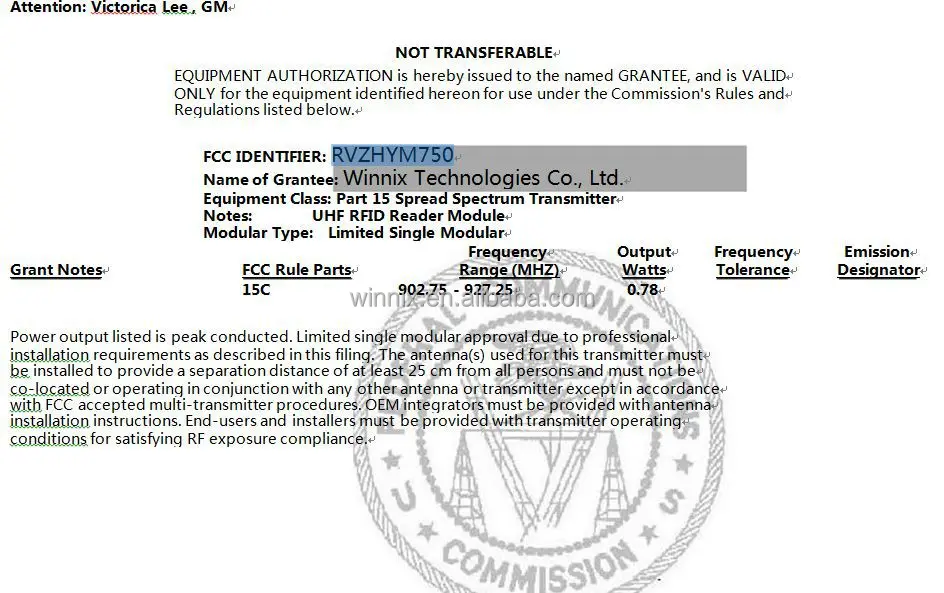

Certificates




Our Company




Packing & Delivery




Development Kit




9dbi antenna





 demo board





 demo software
