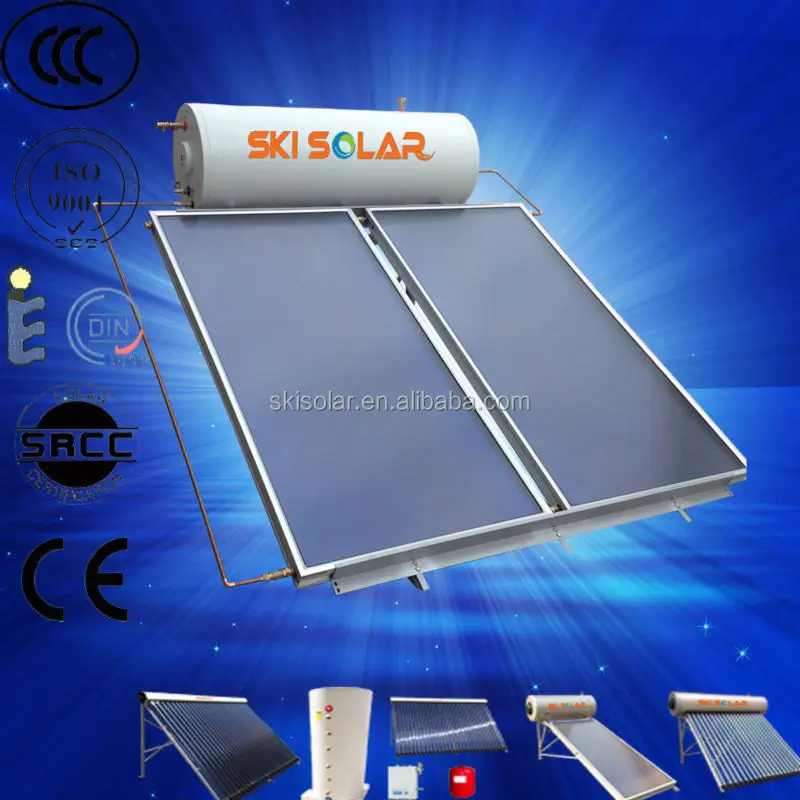

2015 china supplier 300L flat plate pressurized china enamel solar water heaters with blue TI coating for cold area (SKI PJF)

Share on (60235427997):


Price:RUB 15,412.98 - RUB 38,532.45

Quantity:


Product Overview

Description

PRODUCTS SHOW

PJF1

PARAMETERS



solar water heater with flat plate collector(enamel jacket inner tank)
Modelflat panel

Absorbing

Area(square meter)

Total Capacity(L)Loading Quantity (Sets)

size

(mm)

       Qty/Set  (pcs)20' GP40' GP40'HQ
PJF-150L1000 x 2000 x 8012.001504593109
PJF-200L1000 x 2000 x 8024.00200326475
PJF-300L1000 x 2000 x 8036.00300234653





SPECIFICATIONS

Jacket waterTank:                                                                                                                                                                                                                                  1)Inner Tank:  BTC340R 2mm&enamel coat  0.5mm

  jacket  thickness:1.2mm,   Diameter:360mm/450mm

2)Outer tank:  colored steel, 0.4mm thickness, 540mm dimension

3)Insulation:   polyurethane, 45mm, 40Kg/m

4)Connection Seals :  No Weld Technolgoy

Flat Plate Solar Collector:

1)Full Plate:    Laser Welding aluminium absorbor plate, 0.4mm thickness

2)Coating:  Blue Tiox coating

3)Absorptance:  93%   Emmittance:6%

4)Insulation: Rock wool thickness:40mm

5)Sealing: EPDM sealing strip

5)Sealing: EPDM sealing strip

7)Flowing tube: copper Φ10 x 0.5mm  Heading tube: copper Φ22 x 0.6mm

8)Cover Glass: Textured tempered glass  thickness: 4mm

9)Back sheet: Galvanized Steel  thickness: 0.4mm

Stand Part:

1)Material: Aluminium Alloy  thickness: 1.5mm

2)Angle: 30 or 38 or 45 degrees

Accessories:

1)T/P Vale, Mg Anode, 1.5KW electrical heater, sensor and one way valve

Hot Sale Area






Notes And Caution



Installation and Matters of 1.5KW Electric Heater

1. The electric heater is the auxiliary heater of solar water heater.

2. Before installation, please check if the specification and technical parameters of the electric heater in accordance with your requirement.

3. Make sure professional electrician operate during installation. “L” or red wire is Fire Wire. “N” or blue wire is Zero Wire. “” or yellow-green wire is ground wire. It is prohibited to use without grounding, and make sure use the ALCI (Electric leakage protection plug).

4. This product is for water heating design, the heating media is water. It is prohibited to heat without water or heat any other liquid or gas. The company shall not be responsible for the product fault and related accident caused by these reasons.

5. Please store the electric heater in the dry environment. Cut off the power when you take a bath. This product is guaranteed for one year.





Company History







"Creat a better life "is our eternal pursue.The company will persevere in creating a beautiful future for the customers.

Hold the SKI Solar,hold the beautiful future.Enjoy the sunshine,enjoy the life.

  The main business scope of the company incudes heat pipes,glass vacuum tubes,integrated preesurized solar water heaters,separated pressurized solar water heaters and solar collectors and so on.In solar light and heat areas,the company successfully developed and launched the inner tank with porcelain enamel coating technology,which cooperates with the most advanced polyurethane foam technology,leading solar light and heat industry into a "new insulation age"and becoming the pioneer in the industry.








Certificates






Production Process







FAQ



1- What is your Delivery Time?

LCL order:7-10days. Full container order:15-20days.

2- What is your Guarantee Time?

3years; Provide you with some accessories,

3- Can you accept OEM and ODM ?

YES, printing your LOGO on the package.

4- What is your payment term?

We accept T/T or L/C.

5-What is your MOQ?

1 sets

6-How do you pack?

LCL order in plywood case Full container order in high quality export carton

7-What is your FOB port?

Shanghai port.

8-What is your monthly production capacity?

1000 sets

9-What is your shipping term?

By sea/Air/Rail/Truck

10-Do you any additional services?

YES!

We offer free spares according to your order quantity. Such as Vacuum Tube, tube holders, dusting rings, silicon rings, screws etc. And we can offer logo design, Products Advertising Design etc services free.
