18650 3.7V 3450mAh 10A Lithium ion High Drain Battery Cell Sanyo NCR18650GA

Product Overview

Description

18650 3.7V 3450mAh 10A Lithium ion High Drain Battery Cell Sanyo NCR18650GA



Specifications



NO.	Item	Specifications
1	Nominal Voltage	3.6V
2	Nominal Capacity	3450mAh std. 3350mAh min.
3	Standard charge	Constant Current: 1475mA
4	Charging Time	Std. 270 min.
5	Max. Charge Voltage	4.20 ± 0.05 V
6	Max. continuous discharge	10A
7	Discharge cut-off voltage End of discharge	2.5V ( 2.5V discharge cut-off is better in cycle life )
8	Cell weight	48.0g max.
9	Cell dimension	Height :  65.3mm max. Diameter :   18.5 mm max.
10	Operating temperature (surface temperature)	Charge : 10 to 45 (recommended recharge release < 45°C) Discharge: -20 to 60 (recommended re-discharge release < 60°C)









Applications



Suitable for most elcetronic devices, especially power tools such as e-bike and drill, e-cigarettes and power tools.



Discharge Rate Characteristics

Discharge Temp. Characteristics



Cycle Characteristic

Advantages

• Genuine Grade A lithium battery cells from Sanyo (Pana.-sonic) brand new


• Light weight and high performance with 10A continuous discharge at the most capacity



• Small internal resistance


• High energy density, low self-discharge


• Pollution free, long cycle life


• No memory effect


• Existing stock for short delivery time.


• OEM orders are available (battery pack, battery with spot welding ect,)\\



Safety instructions

When using the application equipped with the battery, refer to the user’ s manual before usage.
Please read the specific charger manual before charging.
Charge time should not be longer than specified in the manual.
When the cell is not charged after long exposure to the charger, discontinue charging.
Battery must be charged at operating temperature range 0 ~ 45℃.
Battery must be discharged at operating temperature range -20 ~ 60℃.
Please check the positive(+) and negative(-) direction before packing.
When a lead plate or wire is connected to the cell for packing, check out insulation not to short-circuit.
Battery must be stored separately .
Battery must be stored in a dry area with low temperature for long-term storage.
Do not place the battery in direct sunlight or heat.
Do not use the battery in high static energy environment where the protection device can be damaged.
When rust or smell is detected on first use, please return the product to the seller immediately.
The battery must be away from children or pets
When cell life span shortens after long usage, please exchange to new cells.

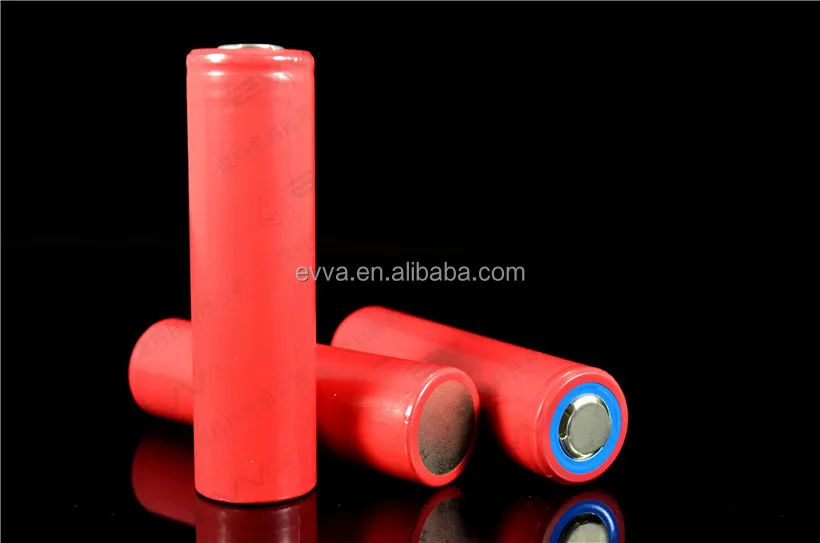

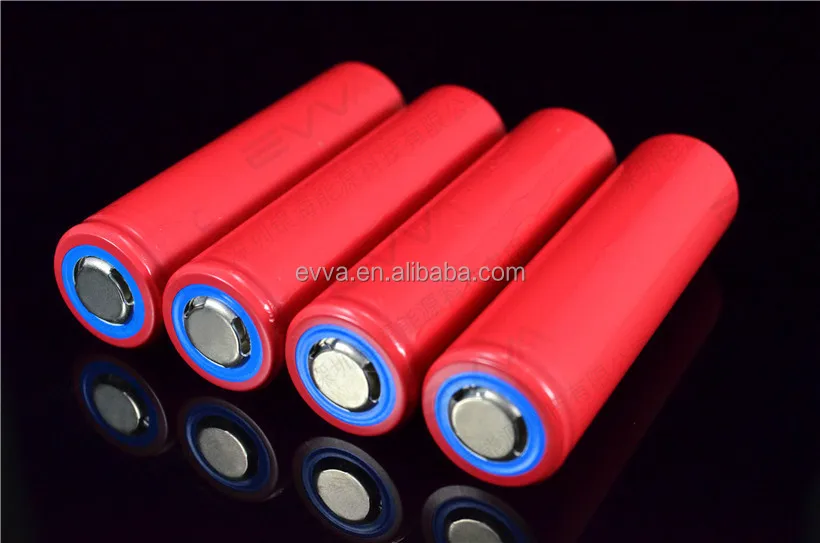

Cell Show
