China Hight Quality Conventional Lathe Machine Price
US $3850-$4520

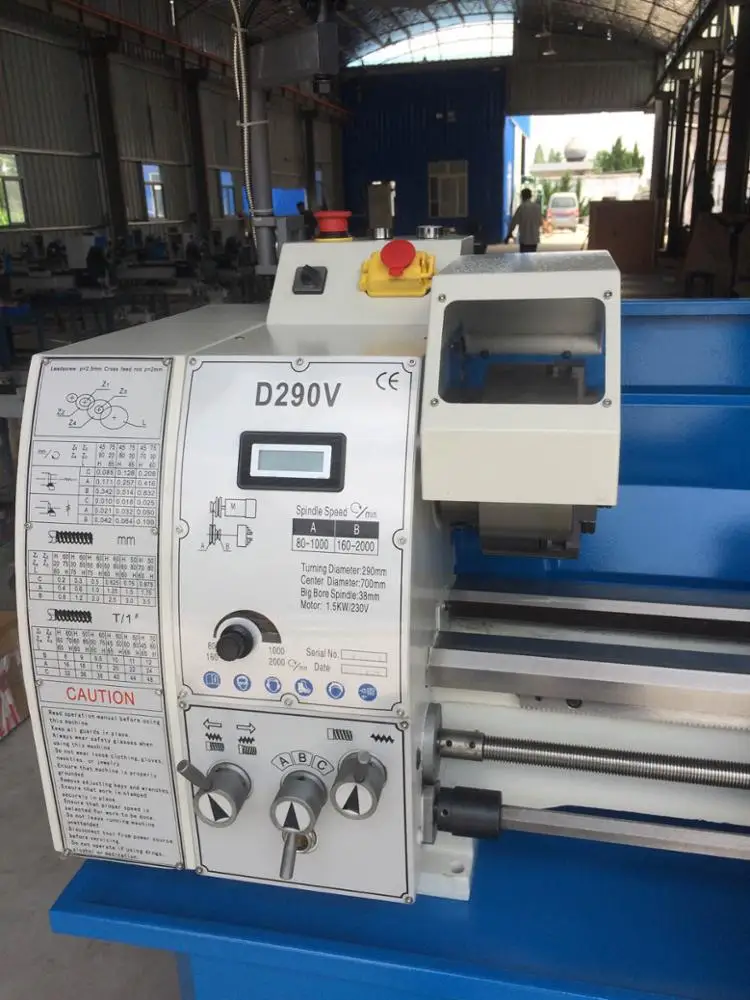

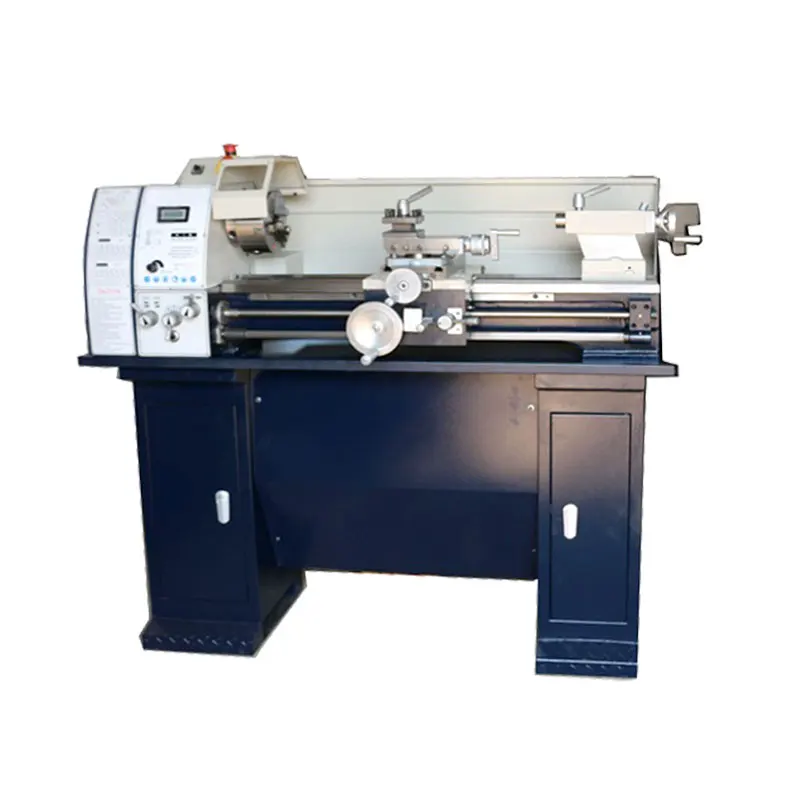

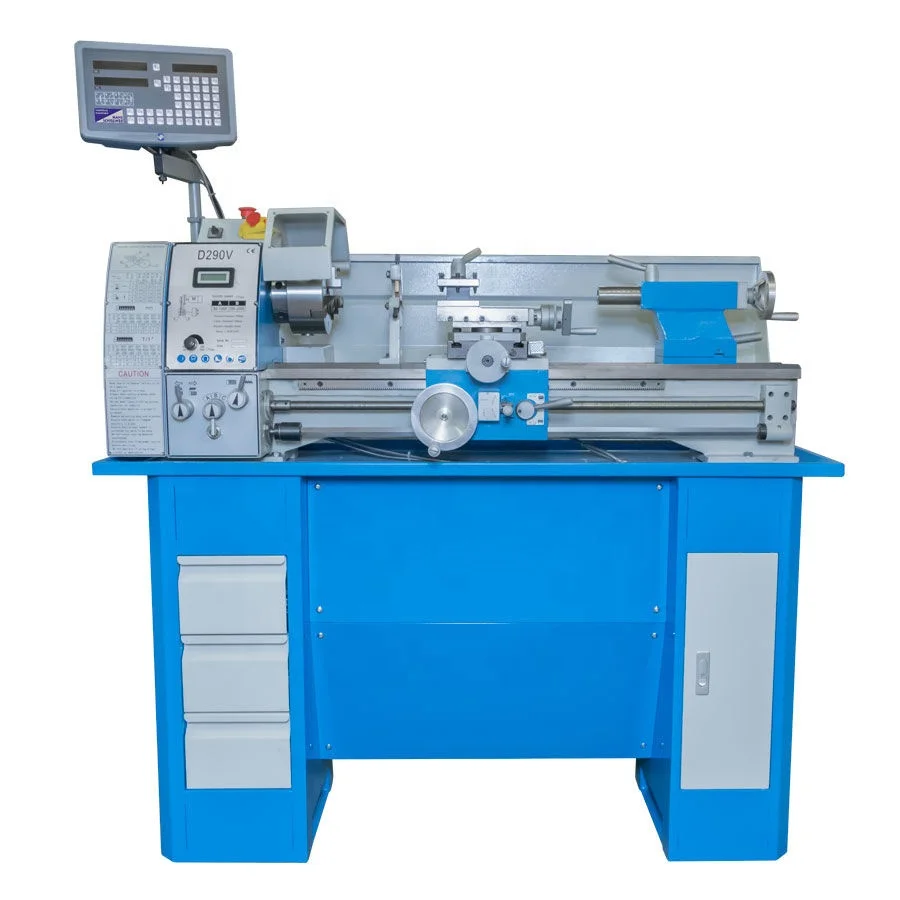

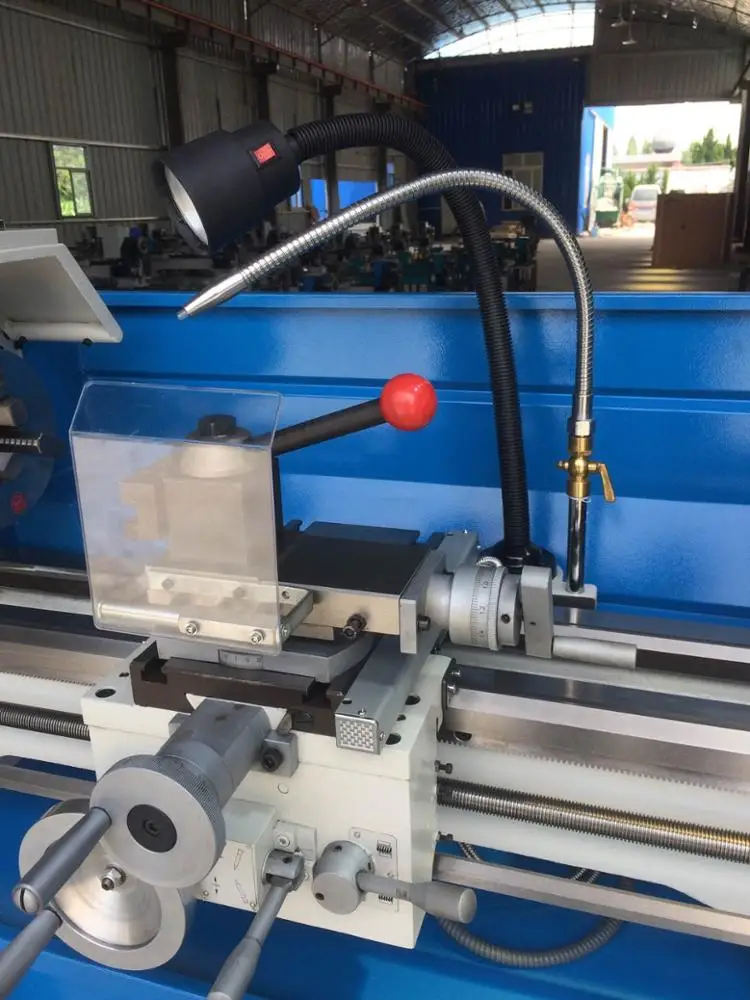

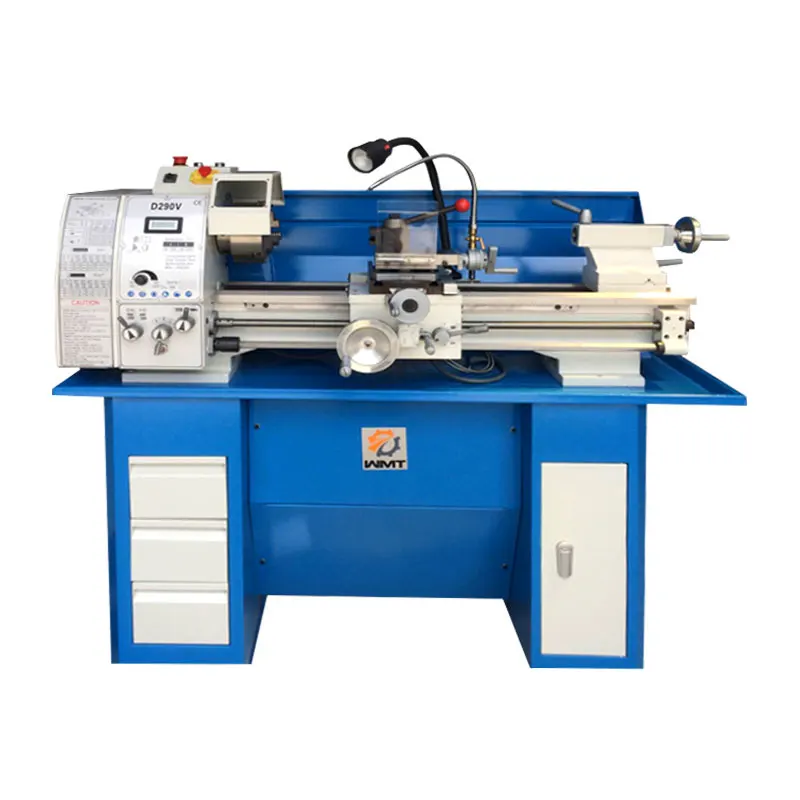

manual lathe D290V mini metal lathe machine with variable speed
- Category: Manual Lathe >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (60235573825):
Product Overview
Description
Product Description
Specification | D290V |
Distance between centers | 700mm |
Swing over bed | 290mm |
Swing over cross slide | 180mm |
Width of bed | 182mm |
Taper of spindle bore | MT5 |
Spindle bore | 38mm |
Number of spindle speed | Variable speed |
Range of spindle speed | 80-2000r/min |
Range of cross feed | 0.01~0.10mm/rev |
Range of longitudinal feed | 0.085~0.832mm/rev |
Range of imperial thread | 8~56 T.P.I. |
Range of metric thread | 0.2~3.5mm |
Top slide travel | 70mm |
Cross slide travel | 160mm |
Tailstock quill travel | 70mm |
Taper of tailstock quill | MT3 |
Main Motor | 1.5KW |
Packing size | 1450X700X680mm |
Net weight | 260Kg |

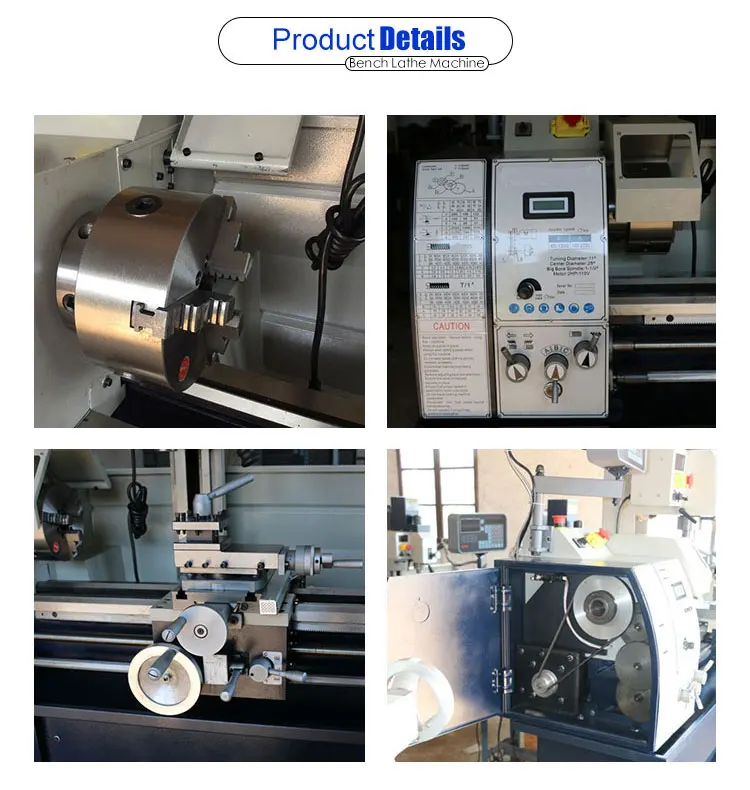

Detailed Images
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
