IP Camera Display 3.5" HD LCD Monitor For CCTV /IP CAM Tester
- Category: CCTV Monitor >>>
- Supplier: Guangzhou Wanglu Technology Co. Ltd.
Share on (60235820612):
Product Overview
Description
Product Description

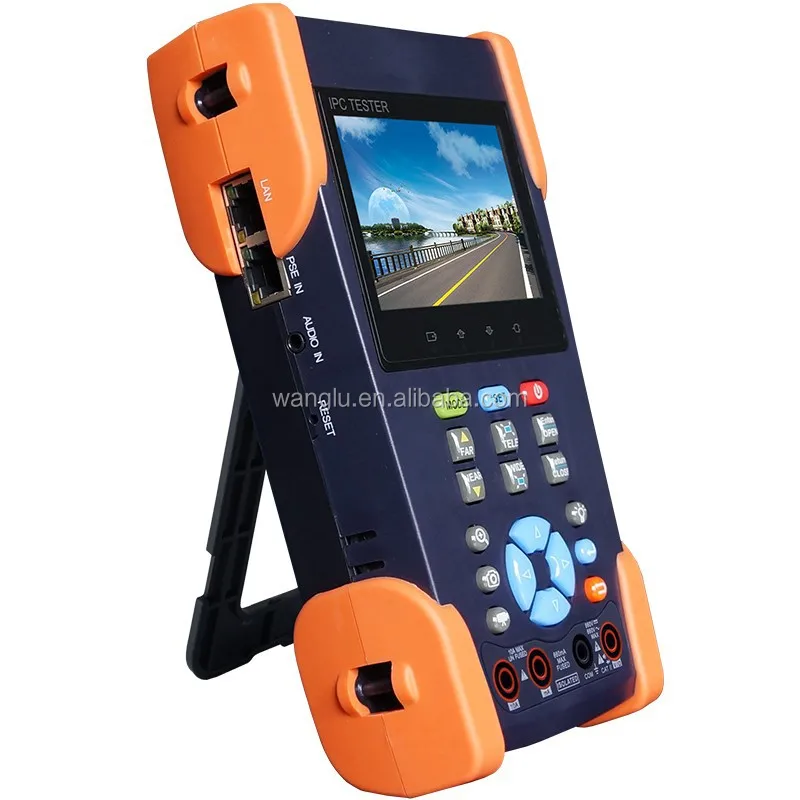

New Multifunction 3.5 inch IP camera tester
Support ONVFI IP camera/1080P camera /Support Analog camera
Basic model: IPC-3500
FULL function model :
IPC -3500MOTLC / IPC-3500MVSLC / IPC-3500MOSLC / IPC-3500MVTLC
optional function :
1. Digital multimeter * M
2. Optical Power Meter * O
3. Visual fault locator * V
4. TDR cable test * T
5. SDI camera test * S
6 .Video level meter* L
7. Cable tracer * C
Pls Note :
"TDR " and " SDI " function , can't be added at the same time .two choose one .
"VLF" and "OPM " function , can't be added at the same time , two choose one .
Specification :
|
Model |
IPC-3500[*]models optional |
|
Display |
3.5 inch Capacitive touch screen , resolution 4800(RGB)x 320 |
|

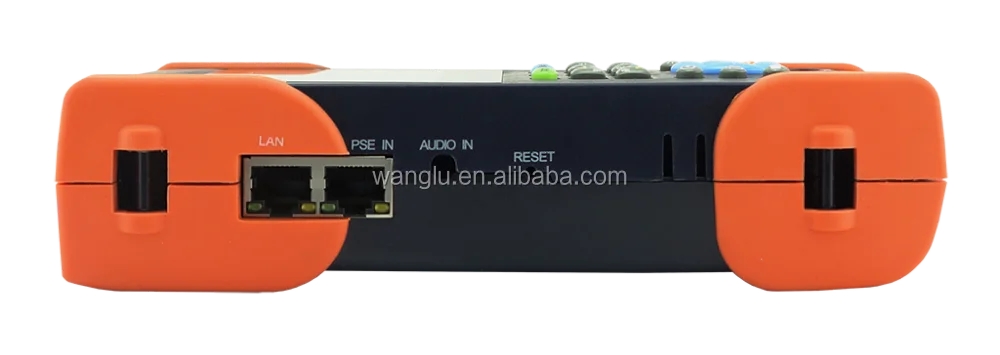

Network port |
10/100M auto adapt,RJ45 |
|
SDI camera test (Optional) * |
1 channel SDI IN BNC Input ,Support resolution 720p 60fps / 1080p 30fps /1080i 60fps |
|
WIFI |
Built in WIFI,speeds150M,display wireless camera image |
|
IP camera type |
ONVIF,ACTi,DH IPC-HFW2100P,Hikvision,DS-2CD864-E13,Samsung SNZ-5200,Tiandy TD-NC9200S2,Kodak IPC120L,Honeywell HICC-2300T,Aipu-waton IP5000-BC-13MP/IRS06-13MP,fine-Tida IPC,FSJ BY-1080Q,WEISKY IPC camera etc. Customized welcome |
|
Video input/output |
1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
|
Video Level Test: |
Video signals measured in IRE or mV |
|
Video level meter (optional)* |
PEAK video signal level, SYNC signal level, Color bar chroma level measurement |
|
Zoom Image |
Support Analog camera and IP camera image zoom /move |
|
Snapshot, Video record and playback |
Image Screen snapshot, record ,save ,view and record and play back |
|
12V/1Apower output |
Output DC12V/1A power for camera |
|
Audio test |
1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
|
PTZ control |
Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
|
Video Signal Generator |
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
|
color bar generator |
Local side PC can login the tester, send the signal by network ,test network connection communication whether normal |
|
UTP Cable tester |
Test UTP cable connection status and display on the screen. Read the number on the screen |
|
Data monitor |
Captures and analyzes the command data from controlling device,also can send hexadecimal |
|
Network test |
IP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address |
|
Cable tracer * |
Search the cable by the audio signal |
|
PoE test |
Measurement POE switch or PSE power supply voltage and cable connection status |
|
Digital Multi-meter (optional)* |
AC/DC Voltage,AC/DC current,Resistance,Capacitance,Data hold,Relative measurement,Continuity testing . Testing speed: 3 times/ seconds,Data range -6600~+6600. |
|
Optical power meter (Optional)* |
Calibrated Wavelength(nm) :850/1300/1310/1490/1550/1625nm Power range(dBm) :-70~+10dBm |
|
Visual fault locator (optional)* |
Test fiber’s bending and breakage ( SM and MM fiber) |
|
TDR cable test(optional) * |
Cable length and short circuit measurement(BNC cable, Coaxial cable, Cat5/6, telephone cable) |
|
POWER |
|
|
External power supply |
DC 5V(1.5A ) |
|
Battery |
Built-in 3.7V Lithium polymer battery ,.3500mAh |
|
Rechargeable |
After charging3~4 hours, normal working time8hours |
|
Parameter |
|
|
Operation setting |
Capacitive touch screen, OSD menu,Chinese/English |
|
Auto off |
1-30 (mins) |
|
General |
|
|
Working Temperature |
-10℃---+50℃ |
|
Working Humidity |
30%-90% |
|
Dimension/Weight |
194mm x 112mm x 48mm / 540g |
"*" sign means the optional function

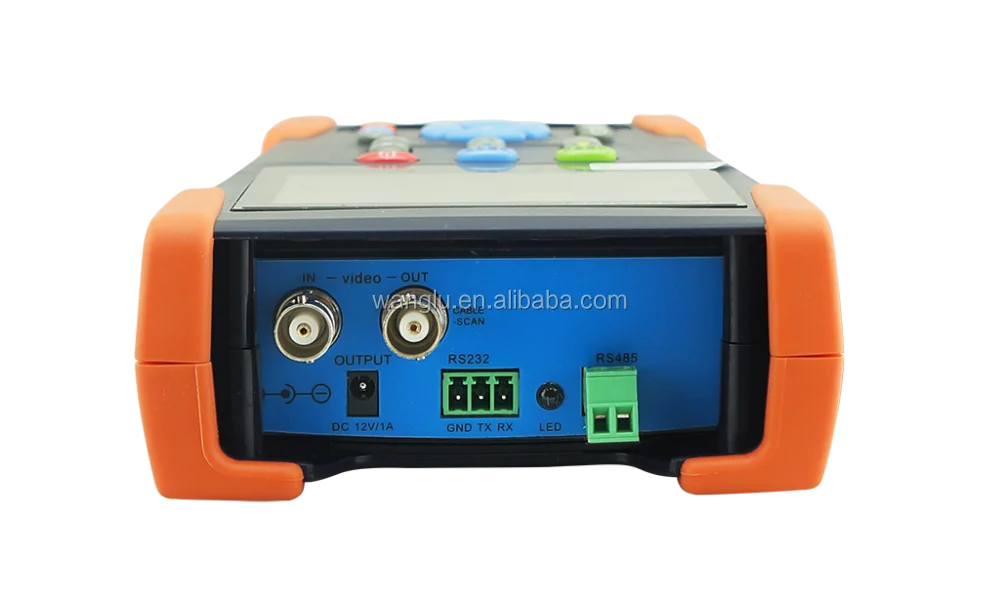

DC 12V 1A output and Video in / out function :
Packaging & Shipping
OEM customized packing
color box
We have strong cooperation with DHL, UPS, FEDEX, EMS, TNT,etc .
You also can choose your own shipping forwarder
Our Services
1.soon reply , Any inquiries will be replied within 24hours
2.Professional manuafacurer and wholesaler more than 10 years.
3.OEM available:
1)Customized logo or color box
2)Any your idea on camera, we can help you to design and put it into production
4.High quality, fashion design, reasonable&competitive price
5.After-sale service:
1) All products will have been strictly Quality checked in workshop before packing
2) All products will be well packed before shipping.
3) All our products have 1 year warranty, and we are sure our products will be free from maintenance
within warranty period in general.
6.Fast delivery:
Sample order in stock; 50~100pcs: 2~4 days; 5~7 days for bulk order
7.Payment:
You can pay for the order via: T/T,Western Union/ paypal
