1.0  GENERAL

A.  Fans is 4-72 Series Centrifugal Fan manufactured by Shandong GRAD Group Co., Ltd,China.and of the size and capacity as indicated on the following specifications.

B.  Fans got CCC & ISO 9001, 14001 18001 Certificate, our fans will be tested before leaving factory and have  the testing report.

C.  Fans has the profermance of high efficicency,low noise and low revolution.

2.0  FAN MODEL

A. We have many models of the centrifugal fans. Please provide us the air flow, pressure, motor power and speed for choosing the correct model.

Parts of our fan parameter table are listed below.

3.0  FAN MOTOR AND DRIVE

A. Voltage, frequency & materials could be customized.

B. Motor power & RPM as the following specification schedule.

C.The fan is not appended bearing support, impeller and motor drive directly.

4.0  APPLICATIONS

a.General Ventilation     b.Process ventilation     c.Contaminated Air Streams

d.Mining Ventilation      e. Air-conditioner          f.Fumes duct or smoke removal

Part of the fan models and specifications

Features and technology of T4-72 centrifugal fan

The gas conveyed by the centrifugal fan is air or other gas that is not spontaneously combustible, non-volatile, harmless to humans, and non-corrosive to steel materials. At the same time, the gas must not contain viscous substances, and the dust and hard particles shall not exceed 150mg/m3 , And the gas temperature must not exceed 80°C.

Use of T4-72 centrifugal fan

T4-72 centrifugal fan (centrifugal fan) is generally used for ventilation in factories or larger buildings. It can input and output gas.

The main technical parameters

No.	speed	Kw-P	air volume	pressure
2.8A	2900	670w	1131m³/h	994
		720w	1319m³/h	966
		710w	1480m³/h	933
		740w	1659m³/h	887
		770w	1828m³/h	835
		790w	2007m³/h	770
		810w	2177m³/h	702
		80w	2356m³/h	606

For3.2A,3.6A,4A,4.5A,5A,6A model centrifual fan parameters ,plz contact us for catalog

The 4-72 centrifugal fan can be used for indoor ventilation in general factories and large buildings, conveying air and other unnatural, harmless to humans, and non-corrosive gases to steel. The B4-72 type fan can transport the most volatile gas, but the temperature should not exceed 80°C.No.2.8~6 are all made into one type when leaving the factory, and the user can install it in the required position according to the requirements. The specifications and models of the Yunnan centrifugal fan do not need to be noted when ordering. Tangshan 4-72 centrifugal fan, No2.8 air outlet location The adjustment range is 0°~225°, and the interval is 45°. No.3.2~6 The adjustment range of air outlet position is 0°~225°, the interval is 22.5°. No.8~12 The adjustment range of air outlet position is 0°~225°, the interval is 45°. No16 and 20 air outlet positions are made into fixed three types of 0°, 90°, 180°, which cannot be adjusted, and must be noted when ordering.

There are four transmission modes of the fan: A, B, C, and D.

Among the 4-72 type fans, the performance parameters of the high-pressure centrifugal fan are A-type transmission for No. 2.8-6, C and D-type transmission for No. 8-12, and B-transmission for No. 16-20.

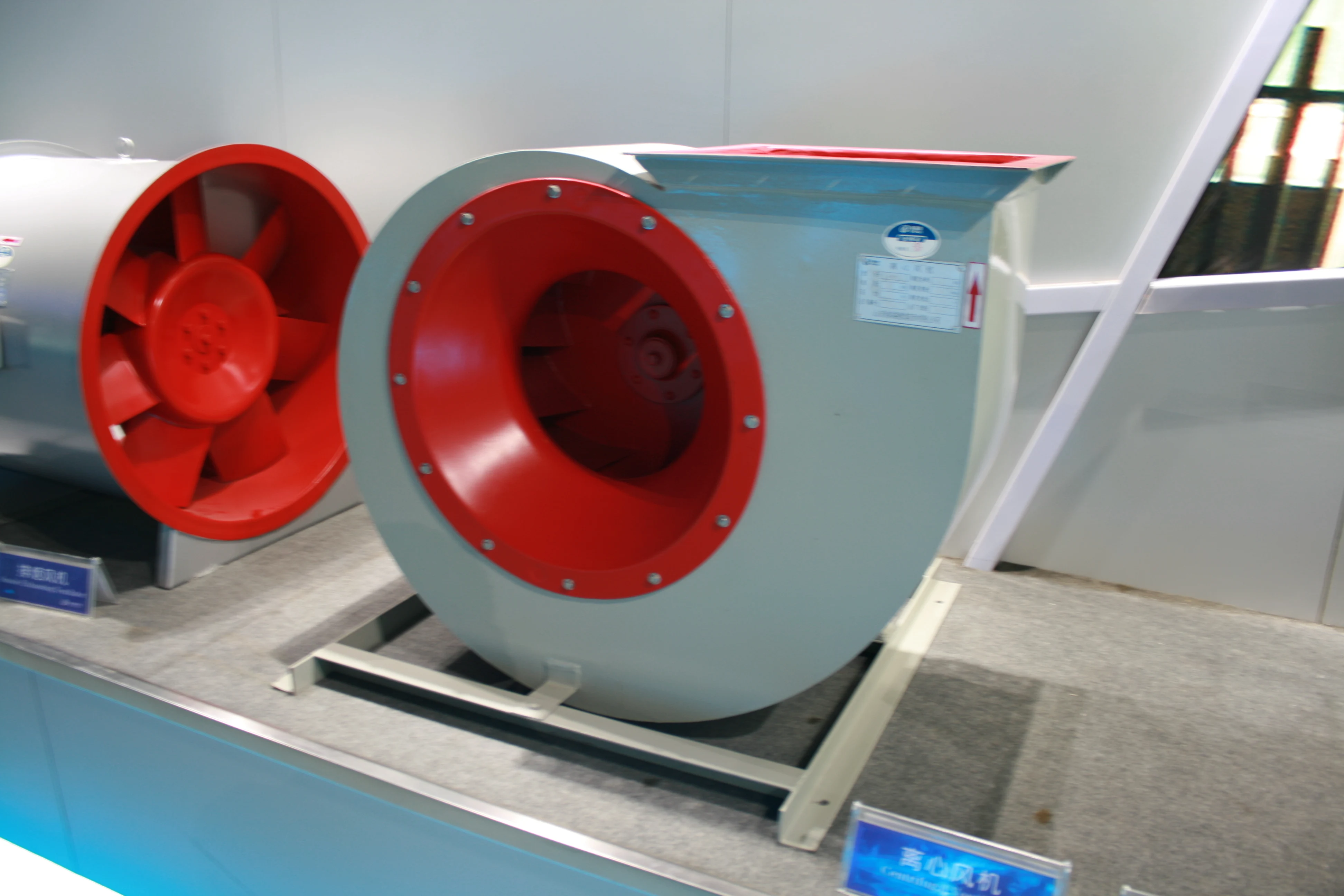

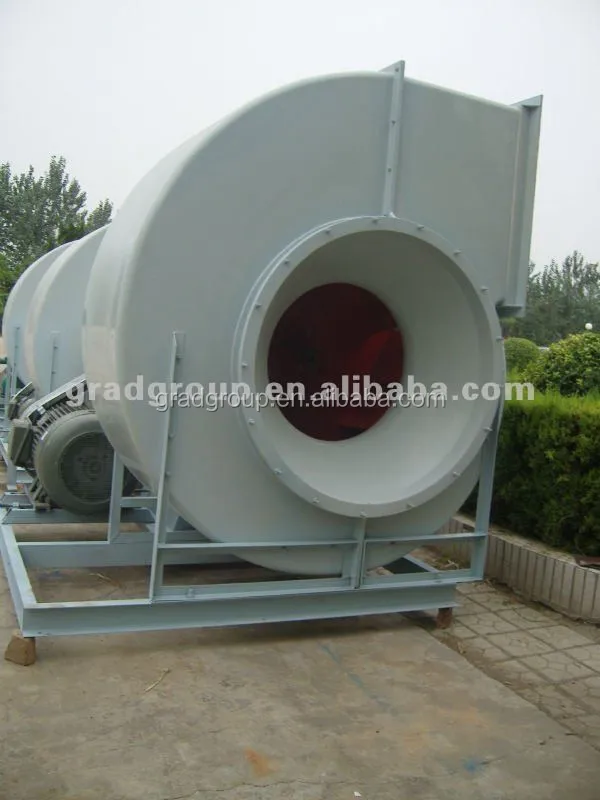

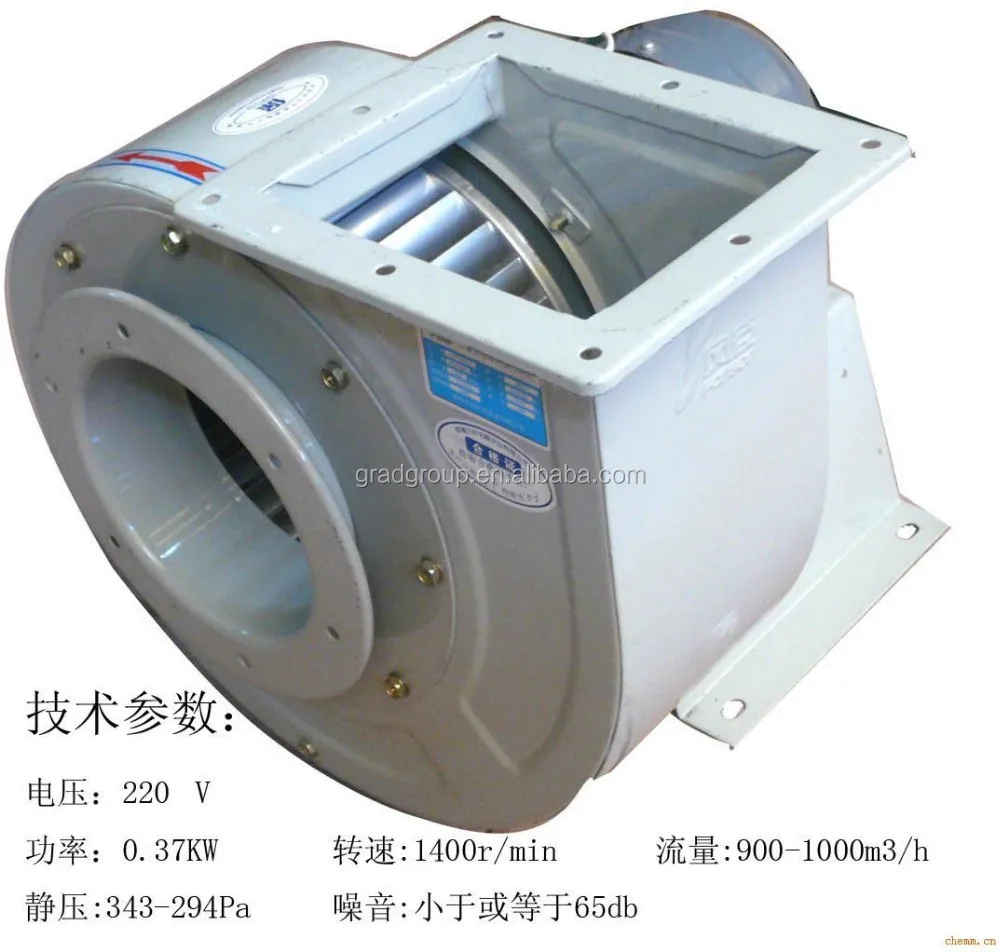

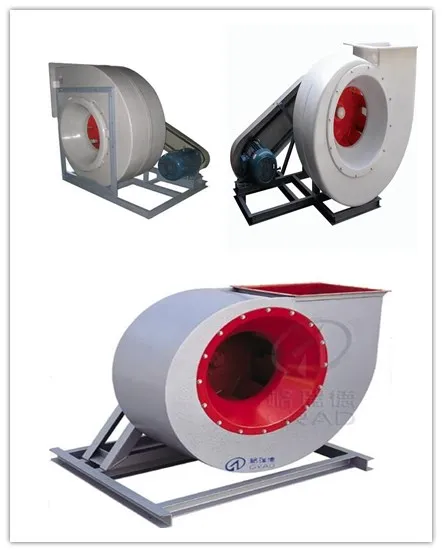

Fan pictures

   Usually we use plywood package or naked package. Some of the products like fan coil unit or table tennis board have standard carton package. The shipping terms are LCL, 20’ container, 40’ container.

We provide good quality service for our clients. If you need sample for testing or showing to your clients,we can deliver the sample by international express.You should pay the sample and express cost.

We can also design the product according to your specific requirement.

We can provide you installation guide.If parts are damaged in the quality insurance period because of our quality,we can change the damaged parts free of charge.

Shandong GRAD Group Co., Ltd. is located in Dezhou city, Shandong Province,covering an area of 450,00 square meters. It is a large modern enterprise group with central air-conditioning, ventilation, FRP products research development, design, production, sales, installation and maintenance.It is the backbone enterprise of "Dezhou • Central air-conditioned city" named by China Refrigeration and Air Conditioning Industry Association(CRAA).

GRAD Group products include: central air conditioning series products(chillers, air conditioners, fan coils, cooling towers, ventilators and accessory products), FRP series products (FRP winding pipes and storage tanks), SMC moulding products (water tanks, table tennis boards, basketball boards, manhole covers, etc) . All products have been inspected by the national quality inspection department.

Centrifugal fan specifications and models, fan installation and use

Before installation: A comprehensive inspection should be carried out on the components of the fan, whether the components are firmly connected, and whether the transmission components operate flexibly.

During installation: the connection of the inlet and outlet pipes of the fan should be adjusted so that they fit naturally, and must not be forcibly connected. If necessary, a soft connection can be used.

After installation: 1) Manual cranking should be performed to check whether the fan is running flexibly and whether there is any collision before trial operation.

2) In order to prevent the motor from being burnt due to overload, the fan must be started under no load when starting, and the load should be gradually increased if the condition is good.

Operation of the fan:

1) The air inlet should be closed before the fan is started.

2) Check whether all parts of the fan are normal.
