Yujiapu ETFE cushions tensile membrane station

Advantage of using ETFE material

•Transmits more light

•Insulates better

•Is only 1/100 the weight of glass

•ETFE is strong enough to bear 400

times its own weight

•ETFE can be stretched to three times

its length without loss of elasticity

•ETFE can be repaired by welding

patches over tears

•ETFE has a nonstick surface that

resists dirt

•ETFE is expected to last as long as 50 years

Features

1.Cost-effective:  About  1/3 to 1/2 lower than conventional structures on costs .
2. Short construction time: Half time is saved compared to the traditional buildings.
3. Various shape: Changeful supporting structure can make lots of different shapes of membrane structure with flexible membrane.
4. Security: Membrane structure can keep the good stability under the action horizontal load such as earthquake.
5. Self-Cleaning: The rain get into water to down on the surface of membrane and clean itself.
6. Fireproof: Fireproof performance of the membrane structure can fill requirements of US. French, Germany, Japan and other countries.
7. Large span: The largest span of tension membrane structures can exceed to 200m.

Applications

This kind of tension membrane structures can be widely used in seasonal or permanent structures for indoor sports and recreational facilities as gymnasiums, stadiums, swimming pools, cafeterias and exhibition and conventional centers canopies and vehicle parking,  etc.

Terms

 *Payment: T/T(30% prepaid as deposit)

 *Package: As per customer's detail required.

 *Loading: Loaded in to 40OT,40GP,20GP or as per the order

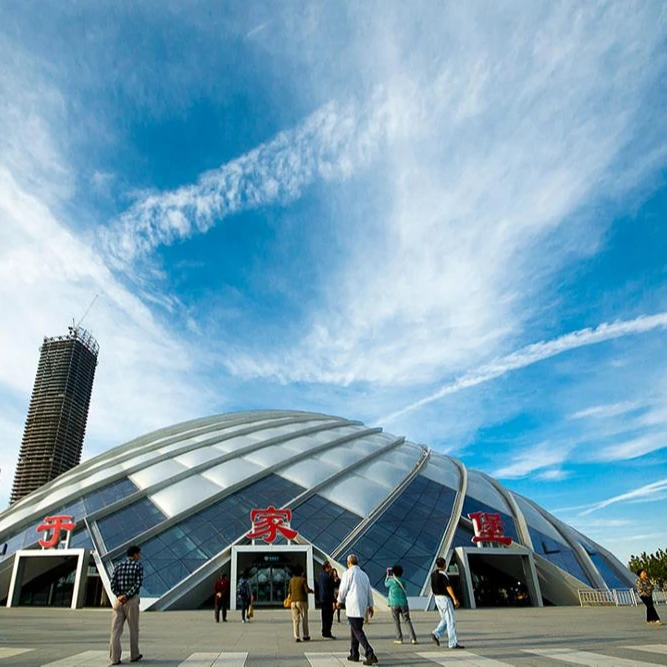

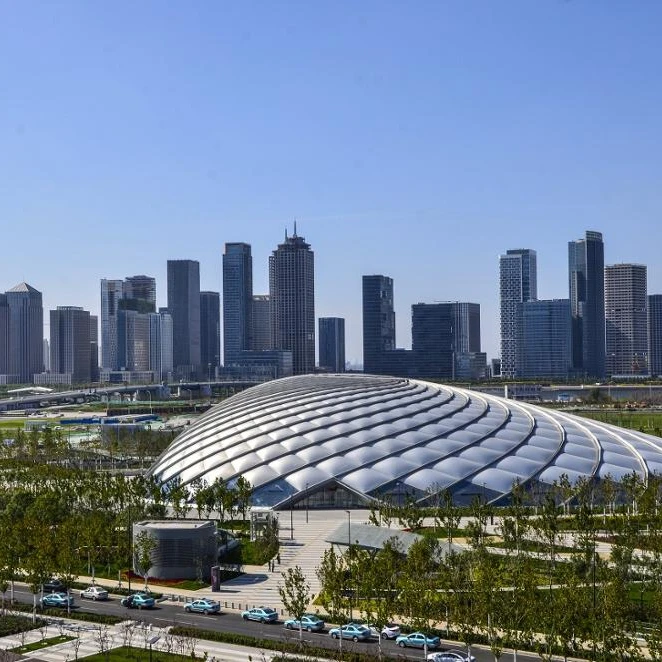

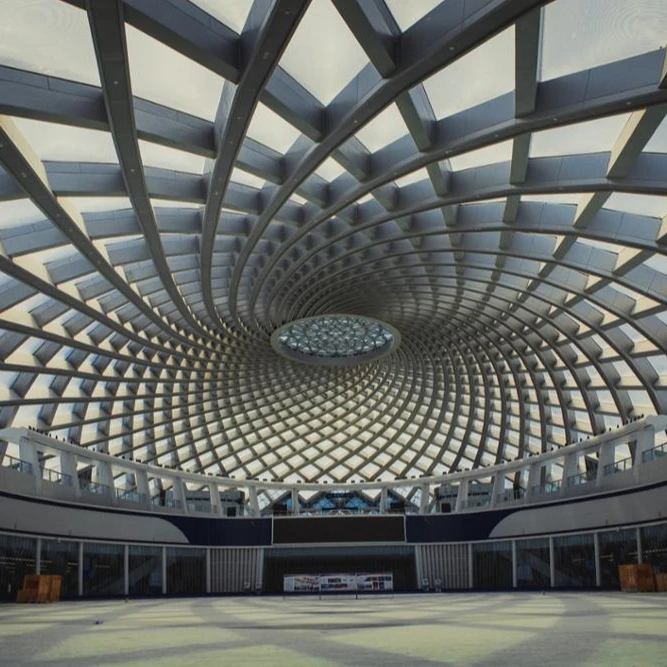

Yujiapu ETFE cushions project is the largest single shell project in international with 143m long and 80m wide. This project includes 783 ETFE cushions with different sizes. The difficulty of this project is instantiated in the application of new material, new technology and structure analysis and construction.

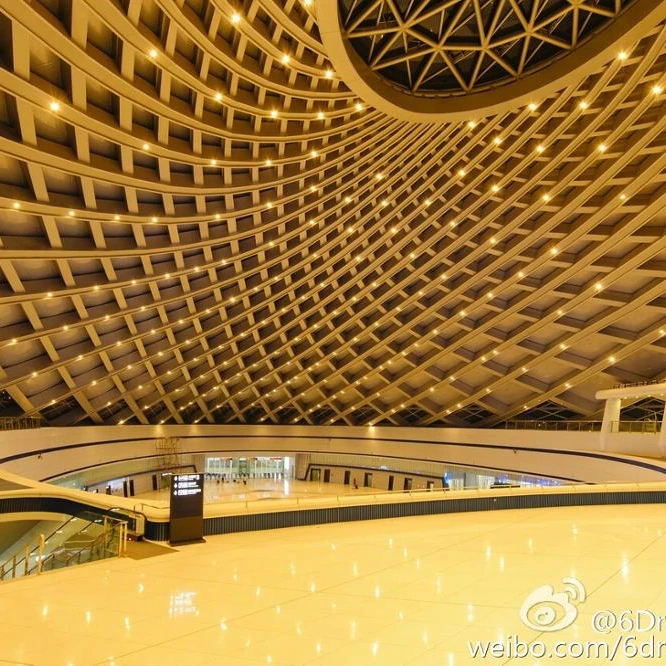

The only exposed part of this station is a double helix dome. This dome looks like a beautiful shell and it likes a pearl in Binhai new area. This dome adopts the design of combination of steel structure and membrane structure and using the new fabric-- ETFE –for construction to meet the requirement of energy conservation and environmental protection. Furthermore, it can also reach the effect of rain-proof and anti-seismic.

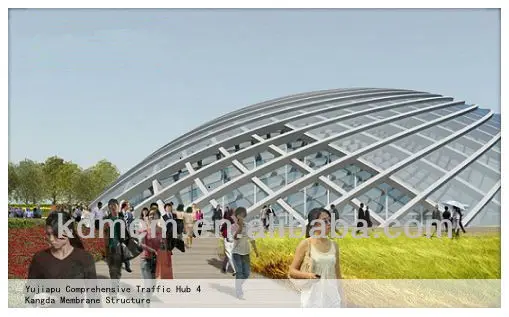

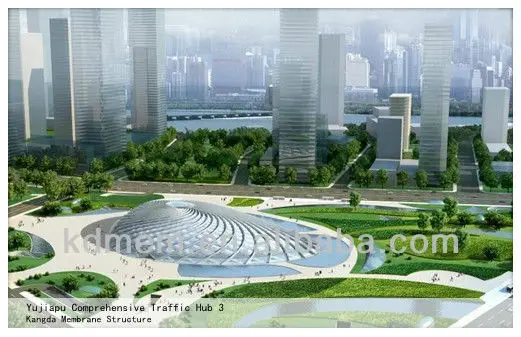

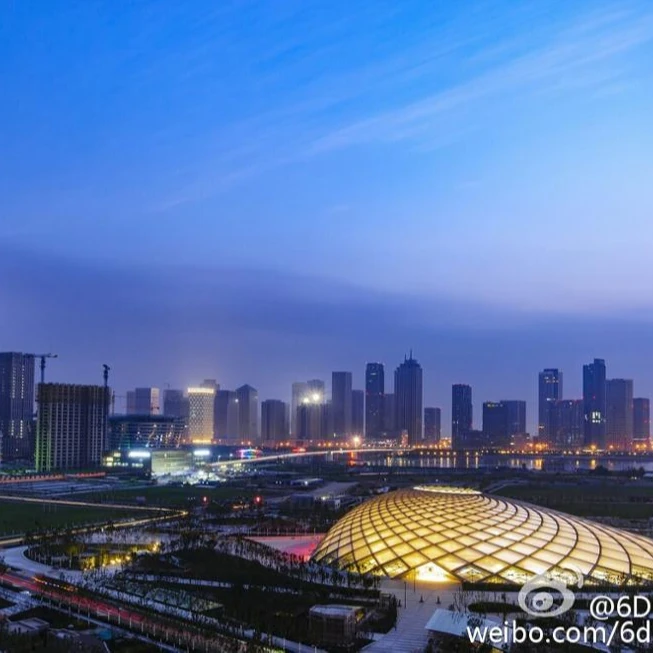

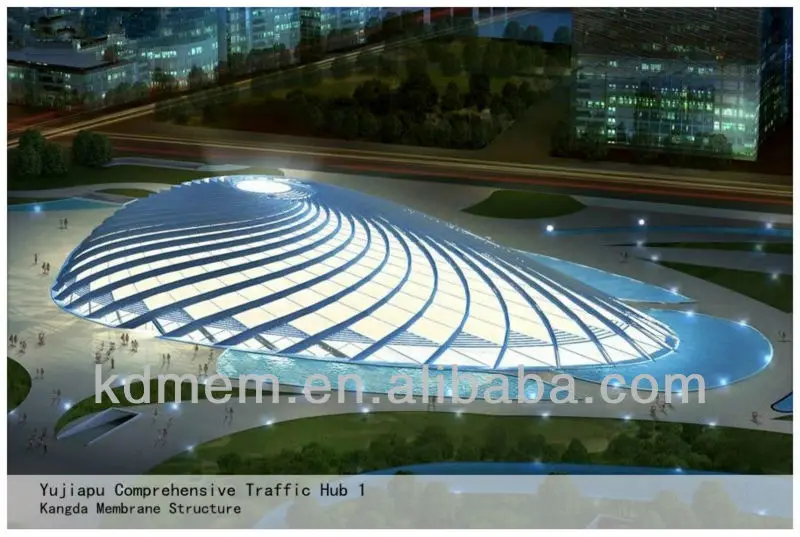

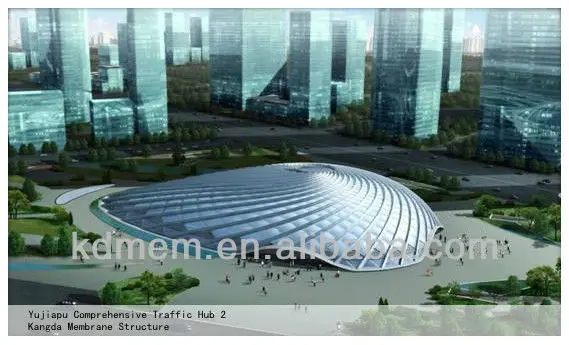

Below shows the comparison of the effect drawing and the actual photo of this very project.

Our Services

We can provide you with design, processing and installation of the best- quality tension membrane structures, as well steel frame membrane structures for architectural shelter solutions that are practical ,appealing and of exceptional quality.

We are dedicated to the design, manufacturing, fabrication and after-sale services to cater to the needs of different overseas customers.

We have undertaken the National Stadium of Beijing Olympic Games (inner membrane in east part) and the wharf awning of 2010 Shanghai World Expo. Besides, we also undertake the Platform project of light railway in Saudi Arabia, commercial street of Singapore River, the Yujiapu station membrane project of Beijing-Tianjin inter-city line extension and Jiayuguan Stadium, China and Africa stadium and other membrane structure projects in home and abroad, winning several awards.

We have the Foreign Operation Qualifications that awarded by Chinese Ministry of Commerce. We established joint venture partnership order with America, Saudi Arabia, Singapore, Russia and so on. And now, we are embarking on setting up joint venture factory in Jeddah, Saudi Arabia and joint venture company in Singapore.

Contact us

If you are interested in our company products, please contact us freely. We will give you more professional informations of membrane structure.
