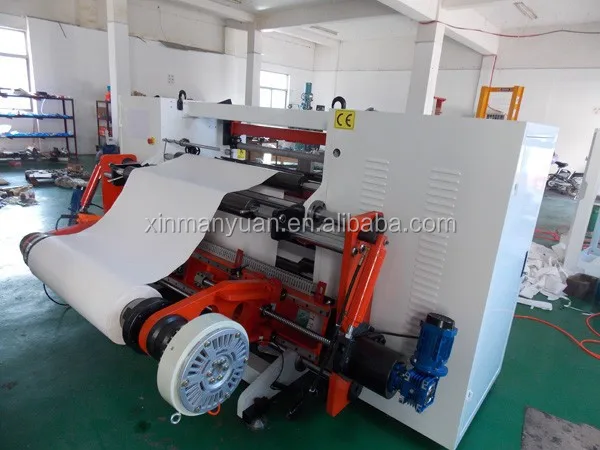

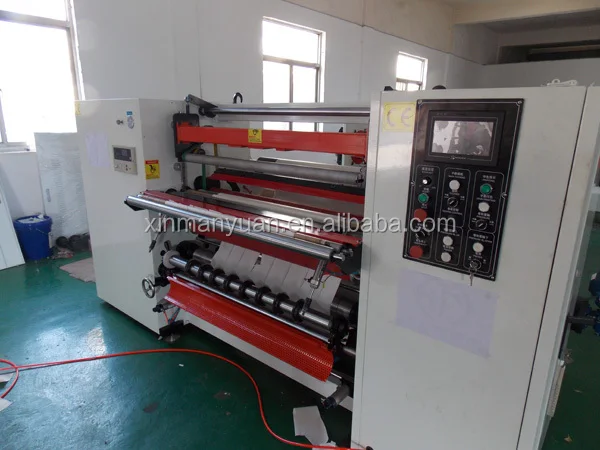

Automatic atm/cash/thermal/bill/movie tickets/small paper cutting machine

Product Overview

Description

Description:

XMY-FQ1000  Automatic atm/cash/thermal/bill/movie tickets/small paper cutting machine



Application:

Thermal Paper, Cash Register Paper, Fax Paper, ATM Paper, Bond Paper, Nonwoven Cloth Caronless Paper,Concern Paper,Queuing Paper,Air Ticket Paper,Boarding Paper,Movie Paper,etc



Main parameters



Model	XMY-FQ1000
Effective width	500mm-1600mm
Max rewinding diameter	200mm
Max unwinding diameter	1000mm or as requests
Min slitting width	20mm
Paper core I.D	0.5",1",1.5",2"or as request
Max Speed	200M/min
Motor	5Hp





The superior of this machine  :



1) All the parts are processed by CNC lathe,which will be with high precision.



2) All transmission rollers have been dynamic/static balance treated.



3) It is with Airtac cylinder and SMC air pressure valve,it will avoid overlap problem.



4) Automatic loading system is for loading heavy jumbo onto unwinding stand,save time and reduce labor intensity.



-Main Functions



1.Main motor: driven by one A.C motor with 2 stages type length counter to make machine stops accurately.



2.Rewind device: Rewind controlled by 3 surface rollers, and surface tension is adjustable for different materials and request.



3. Electricity Device: Equipped with 2 stage preset length counter, which provide machine stops accurately and smoothly.



4. Rewind Mode: Equipped with separated shaft type unwind base, auto web guide and auto unwind tension controlled.



5. Unwind Base: Separate type with hydraulic core chunk can be equipped for effcient and quick performance on jumbo roll change.



-Optional Parts



1.Unwind Pick Up Lift : for loading jumbo roll on the machine quickly and time saving.



2.Slitting Device: Able to be equipped with air score knife and trim removable unit for trimming at both side and size slitting.







Certification:



After-service:

1. Warranty for machines is 12 months and lifetime maintence.
2. A promptly reply within 24 hours.
3. Free usage training before delivering machines in factory.





 More details,pls contact us freely !



Power part:

Back view:

Slitting part:

Side view:

Electrionic carbit

 Front view:



Side view:
