smart handsfree phone call kit module connect with car radio

Product Overview

Description

Blue-tooth smart phone call kit blue-tooth smart module connect with car radio



*Main Features :

1. Plug and play :  Installed via original CD changer port , perfectly integrated with car.
2. Hands-free phone call ( HFP ) : Supports answer/ hang up etc., via car radio buttons .
3. Wireless A2DP playback : Easy streaming music of blue-tooth devices into car stereo system .
4. Blue-tooth AVRCP control : Controls prev/next track,pause/play,fast foward/backward via car radio buttons
5. Aux input : Supports 3.5mm auxiliary input ,connect any external aduio sources.
6. Easy charge : Offers 5V/1A usb changing port .
7. Hi-Fi sound quality : Connect to car stereo via wireless , rivaling original cd sound .

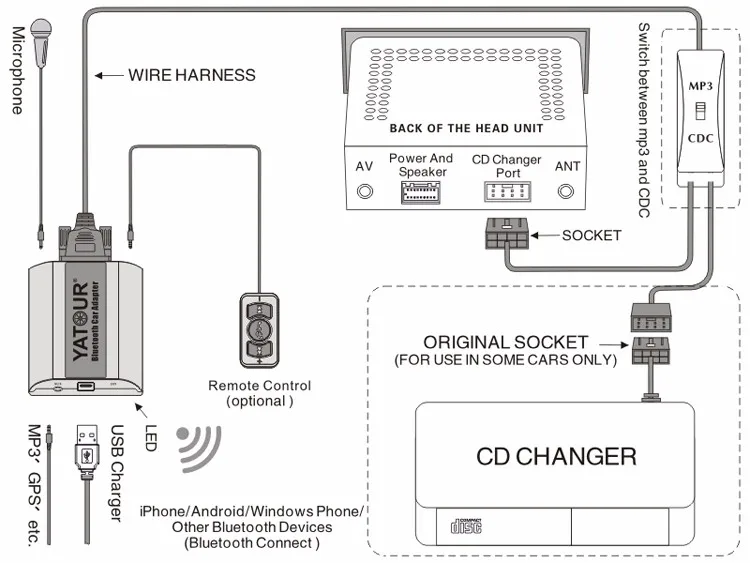

* Installation Diagram:

This device is only suitable for vehicles whose Head Unit (either Original or Refitting)with CD Changer Port.

Note :  Mp3 / CDC Swith cable is optional , available for some vehicles only.





*Specifications :

Voltage input:11v~14.6v DC	Operational current: 600mA
Standby current : 20mA	Operating Temperature : -35 °C~+75 °C
DAC resolution : 20bit	Total harmonic distortion : 0.05%
SN ratio : 90dB	Frequency response : 20Hz-20KHZ





*Compatible car :

Toyota / BMW / Peugeot / Citroen / Ford / Suzuki / Volvo / Nissan / Mecedez / Smart /

Fiat / Alfa / Opel / Lancia / Scion / Lexus / Honda / Acura / VW / Skoda / Audi /

Lamborghini / Mazda / Hyundai / Kia / Mitsubisi / Outlander...etc

Retrofit Audio :

Sony / Alpine / Clarion / Pioneer / Panasonic / Sanyo / Blaupunkt...etc



PS: For you choicing the right one , please contact us for further detailed vehicle models.

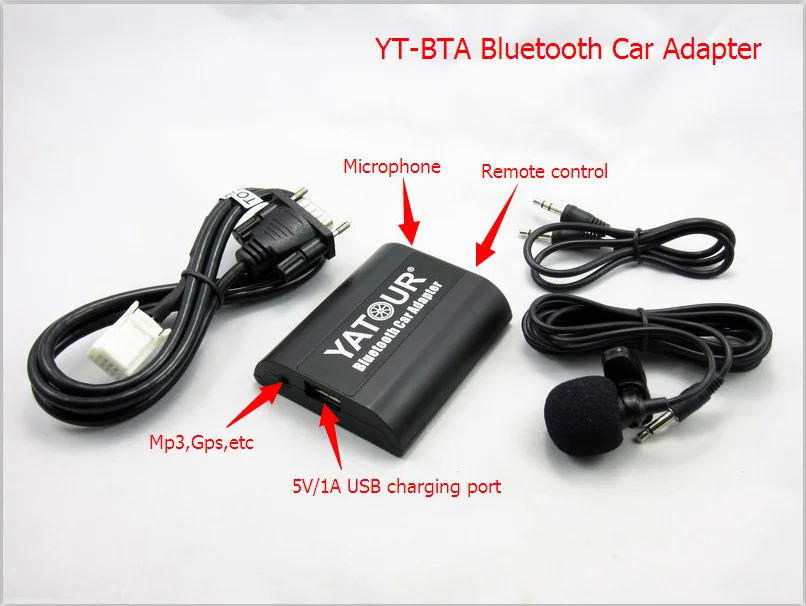

*Accessories:

1 pc Module , 1pc Main cable , 1pc Microphone , 1pc 3.5mm aux cable , 1 pc user manual

*Optional Accessories:



*Package:

• Standard packing box : 210 x 150 x 60 mm

• Middle-size packing box : 142x 96 x 64 mm

• Module weight : 90g

• Gross weight : 260g~440g .
