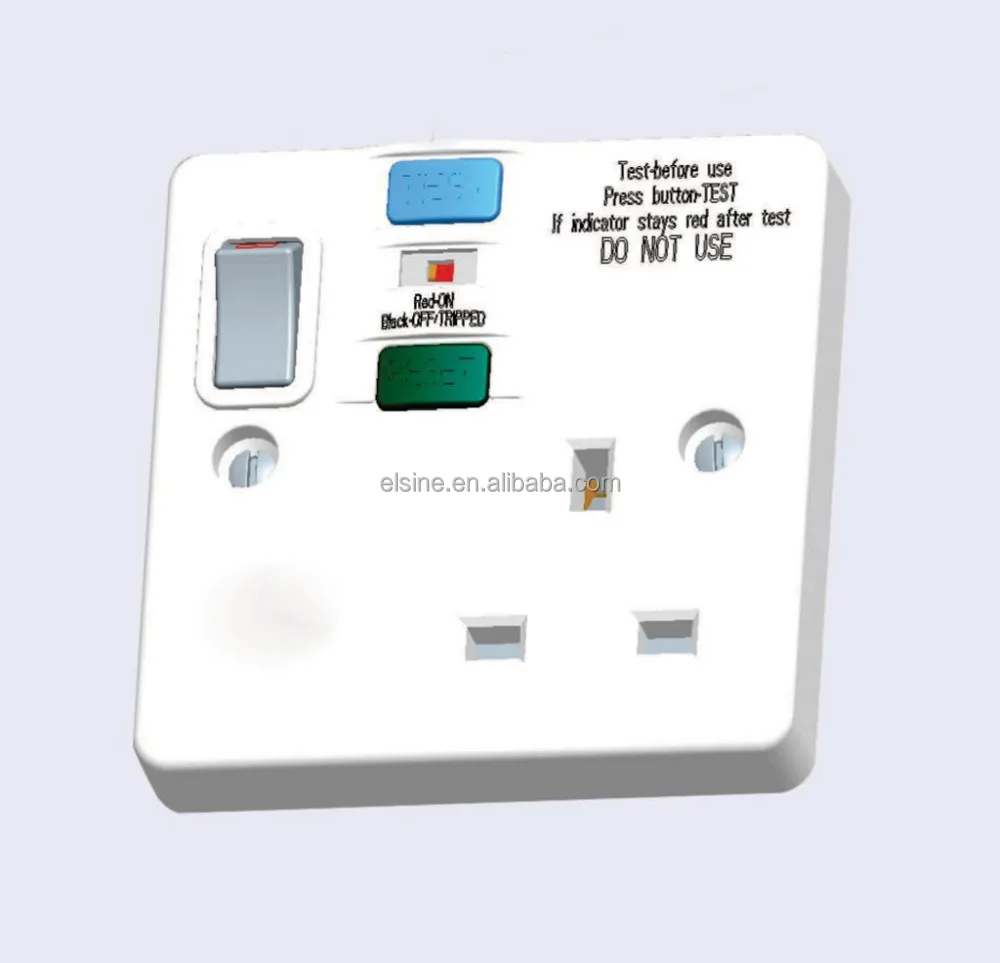

13A Single RCD switched socket 30mA &10mA RCD0130SPD

BS standard socket outlet for protect the appliance user against earth faults evev in the situation where the Live and

Neutral have been reveresd.

30mA RCD, ideal for anywhere where personal protection is required when using electrical appliances and equipment,

minimising the risks of fatal electric shocks to people. Perfect in the household environment, especially in the kitchen, bathroom, and other high usage areas.


10mA RCD, ideal for anywhere where protection of sensitive equipment and appliances is needed.Commonly used in hospitals, medical centres, and nursing/retirement villages.

Rated Voltage:  240VAC

Rated Current:  13A max

Frequency:  50Hz

Tripping current:  10mA & 30mA

Maximum Tripping Time:  40mS

Voltage Surge: 4K (100KHz Ring Wave)

Endurance: 3000 Cycles min

Hit-Pot Test: 2000V/1 Minute

Approval: CE&BS

Standard: BS7071 BS7288 and BS1363

Body Material: PC

Cable capacity:3X2.5mm2

IP Rating:IP4X

Dimension:86X86mm

  Latching Passive Type, No Need To Reset After Power OFF manually after Power OFF and ON.

Latching RCD (Sometimes called Passive) When the power is lost due to an earth fault, the RCD trips out and isolates the circuit it is protecting. Latching RCD’s do not trip during power cuts so they are great for fridges and freezers and also for protecting remote/unmanned areas.

This would also make them ideal for protecting some heating equipment set to “Frost Protection”, fish tanks, battery charging, and the protection of remote or unmanned areas.

Non-Latching RCD (Sometimes called Active) – When the power is lost due to earth fault or power cut, the RCD isolates the circuit that it is protecting and remains off until it is manually reset. A must for protecting circuits supplying rotating machinery or some heating apparatus for example.
