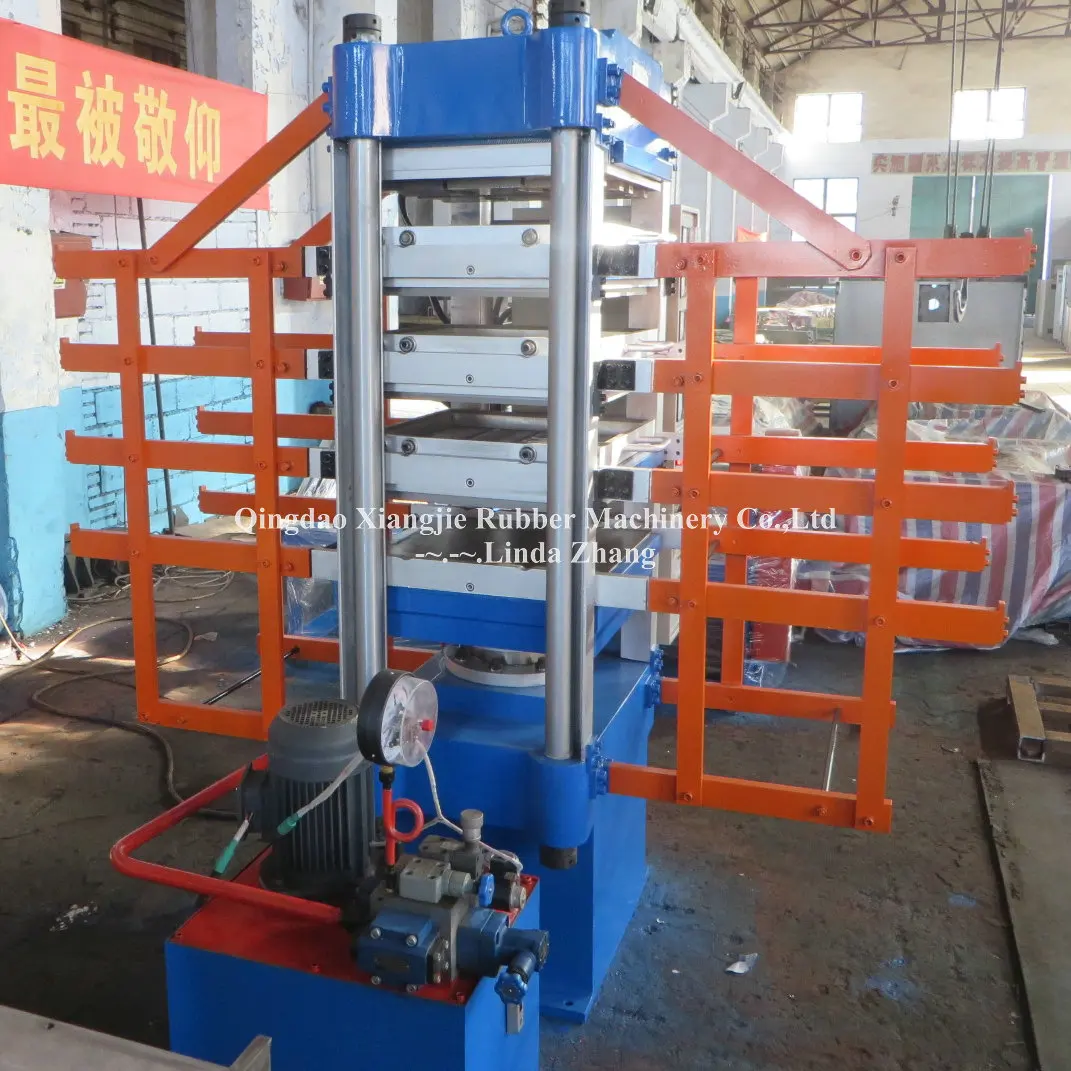

250T 1000* 1000 rubber tile hydraulic press for curing rubber tile floor
- Category: >>>
- Supplier: Qingdao Xiangjie Rubber Machinery Co. Ltd.
Share on (60236308494):
Product Overview
Description
rubber tile hydrauic press
Warmly welcome Qingdao Xiangjie Rubber Machinery Co.,ltd, more than 21 years experience,all machines have passed CE BV and ISO9001:2008 certificate.
Product Description
How to do rubber tile and how to operate rubber tile machine:
1.conching: Put the rubber granulates and stain into the stirring barrel to stir, and then put into the adhesive to stir.this process requires for 4-6 minutes ( because the adhesive is easy to cure, so stir it when use ).
2. Weighing raw materials: weight the rubber granulates stirred, according to the granulates' thickness requirement of the tiles .
3. Paving and pressing: Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.
4. Vulcanization molding: Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 3-8inutes finished. After that, Mold separate automatic, then remove floor tile on the shelves to dry.
5. Inspecting: Inspect the surface of the floor tiles formity, no aberration, no flaw, line with the product quality
We can offer all kinds rubber mould for you, also can design other different shape mould as your request
Advantage of rubber mat press machine
1. This kind of vulcanizing machine is multi-functional beacuse it is suitable to be used for top opening double or triple mold plates.
2. High force employs dual pressure , and each oil system is designed seperately w
makes it stable ,quiet and low frequency of malfunction when working. Two sides can be operated simultaneously.
3. The electric system adopt PLC programming control , which is easy to be operated.
4. Automatic in/out mold and ejector device, low labor strength.
5. Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.
6. It is possible to adjust the speed of opening/closing the mold. It is very accurate and reliable.
7. Molds can be positioned precisely. A 100% safty design for position is avaliable to prevent molds from damaging
We can offer the 550*550*4/50T and 1100*1100*2/200T rubber tile machine. We aslo design the other size machine as your requests.
Company Information
Our mian products:
Rubber plate vulcanizing press, EVA foaming press machine, rubber tile production line,rubber sole machine, rubber mat,floor,press machine, conveyor belt production line,open mixing mill, kneader and bale cutter etc.
Besides we can design and manufacture non-standard rubber machines according to customers requirement
Our machine have been exported many countries, such as America, France, Canada, Australia, and Southeast Asia, Middle-east, etc . Depending on first class management system , top quality and best sales service , our company has gained good reputation and trust in domestic and foreign customers in the world.
The Packing and shipping to the over the world
Our Services
Guarantee & After-sale service:
♥One year guarantee for whole machines
♥24 hours technical support by email
♥Calling or door - to -door service.
♥Provide videos for each machine.
we will send one engineer to your factory to guide installation and test running the production line, until you can operate the machine skilled
Contact information:
Skype: lindamouth
Email : xiangjie.qd at gmail com or
lindamouth at hotmail com
Te: +86-15192075706
Warmly welcome your inquiry
