Bucket elevator conveyor belt for sale
Introduction
TDTG Series Bucket Elevator is applicable for continuous and vertical elevating of materials in shape of powder, granule and small piece. It can be widely used in the industries of feed, cereal, oil, food, chemicals, building materials, grain depot, port and pier.

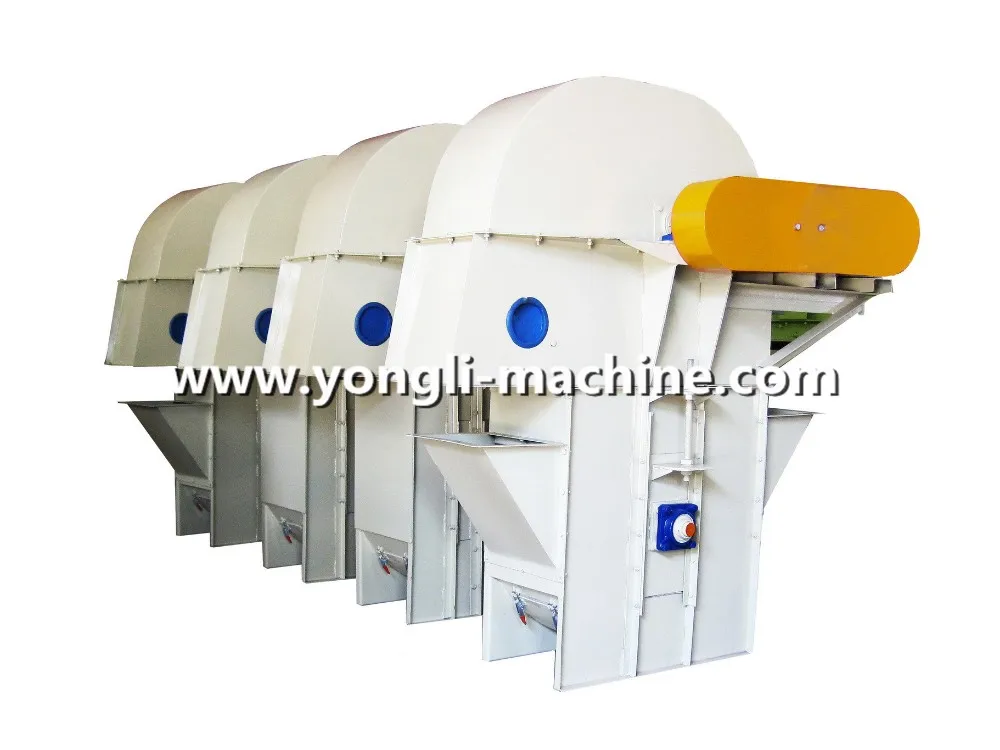

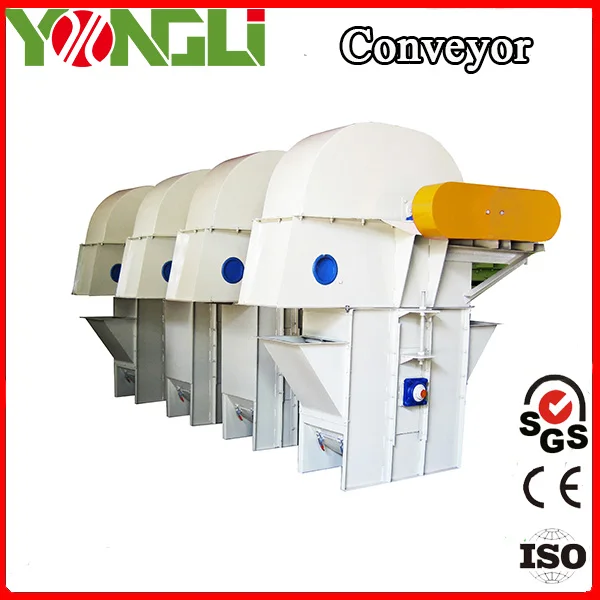

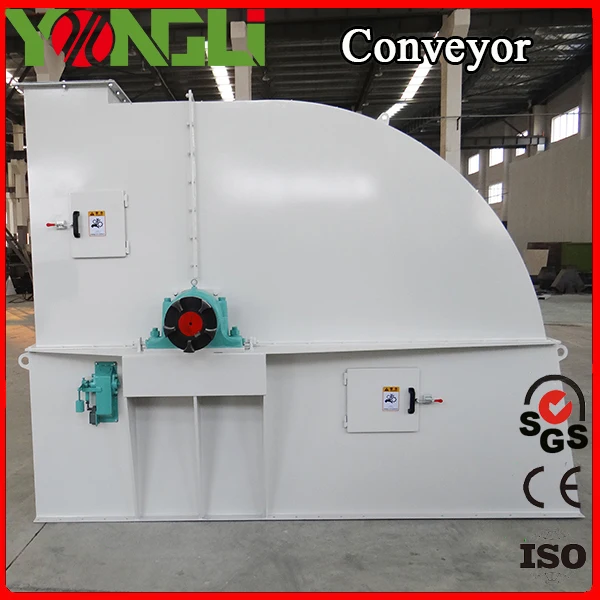

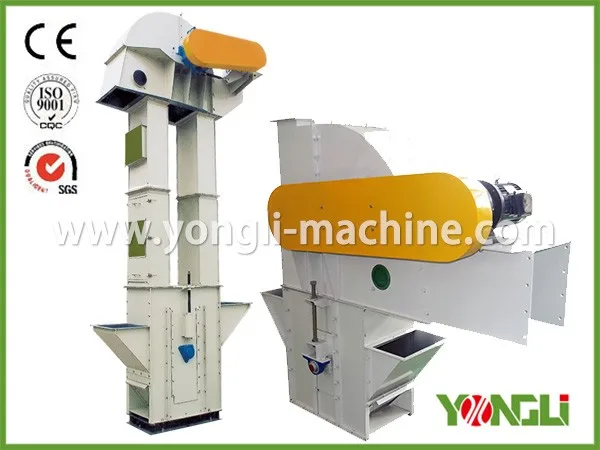

Bucket Elevator Show
Features
1.Bucket Elevator is equipped with explosion relief port,prevent dust explosion,safe and reliable.
2.Adopt anti-back device,which prevent product blockage caused by equipment stoppage.
3.Adopt EP belt,low extendibility,endurable and reliable.
4.Feeding could be in both shaft-end and upwards direction.
5.Adjusting plate adopts sealing treatment,no leakage of product when tensioning the belt by screw device.
6.Middle casing adopts specialized edge-meshing combination process,with high strength and good sealing.
7.Optional with off-tracking alarm and speed monitor system.
8.Compact structure, beautiful appearance,high output and high conveying capability.
9.Rubber covering technology is adopted for head pulley to increase friction coefficient
and prevent belt from slipping.
Main Technical Parameters:
Parameters
Model | Head Pulley Dia. (mm) | Conveying Amount | Bucket Number (pc/m) | Rotational Speed (rpm) | Max. Elevating Height (m) | |
Granular Materials(t/h) | Powder Materials(t/h) | |||||
TDTG36/13 | φ360 | 5-8 | 4 | 4 | 80 | <25 |
TDTG36/18 | φ360 | 10 | 6 | 4 | 80 | <25 |
TDTG36/23 | φ360 | 10-15 | 8 | 4 | 80 | <25 |
TDTG36/28 | φ360 | 27 | 10 | 4 | 80 | <25 |
TDTG40/18 | φ400 | 14.5 | 8 | 4 | 80 | <25 |
TDTG40/23 | φ400 | 26 | 11 | 4 | 80 | <25 |
TDTG40/28 | φ400 | 30 | 18 | 4 | 80 | <25 |
TDTG48/28 | φ480 | 32 | 20 | 5 | 90 | <30 |
TDTG50/18 | φ500 | 35 | 14 | 5 | 84 | <45 |
TDTG50/23 | φ500 | 62 | 24 | 5 | 84 | <45 |
TDTG50/28 | φ500 | 76 | 30 | 5 | 84 | <45 |

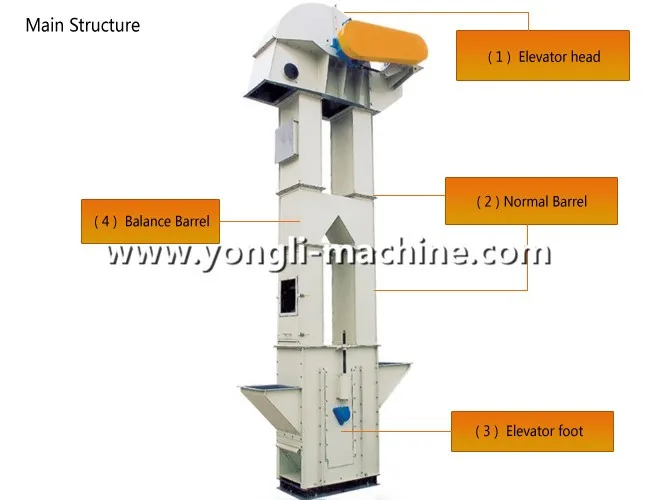

General Structure
TDTG Series Bucket Elevator mainly consists of elevator head, elevator housing, bucket, bucket belt, elevator foot and drive. Elevator head, elevator tail and elevator housing flanges are connected with bolts and sealed with sealing gasket. Buckets are fixed to the bucket belt with special-purpose bucket bolts.
Working Principle and Working Process
After being turned on, motor drives the head pulley through sprocket and chain and transmits power to bucket belt. Buckets move from bottom to top circularly along the housing together with bucket belt. When buckets full of materials pass the head pulley, materials, under the action of centrifugal force and gravity, are thrown out of the buckets and discharged from the outlet along the housing.

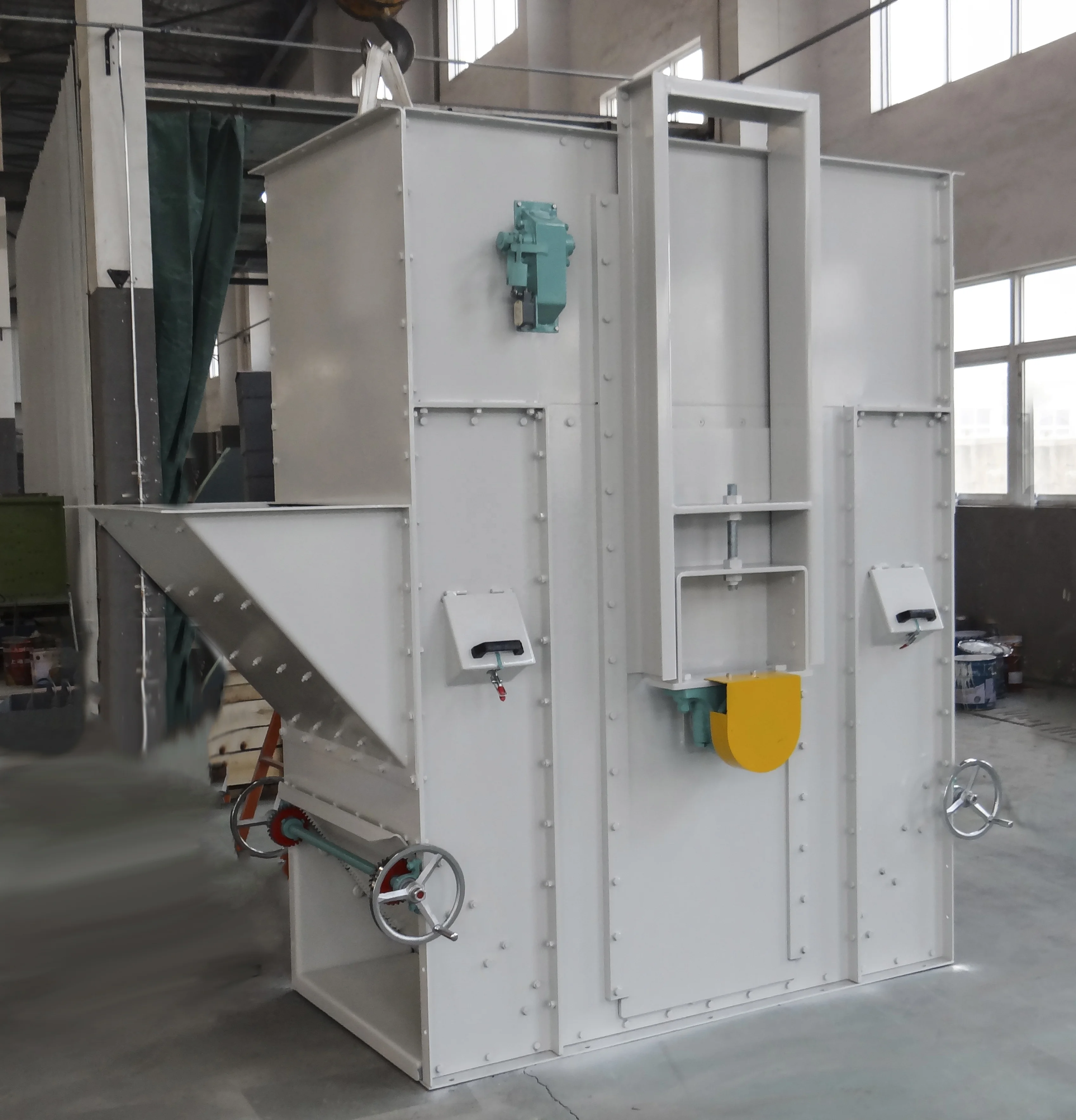

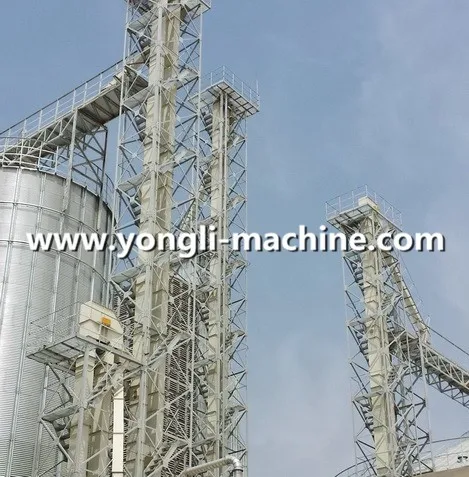

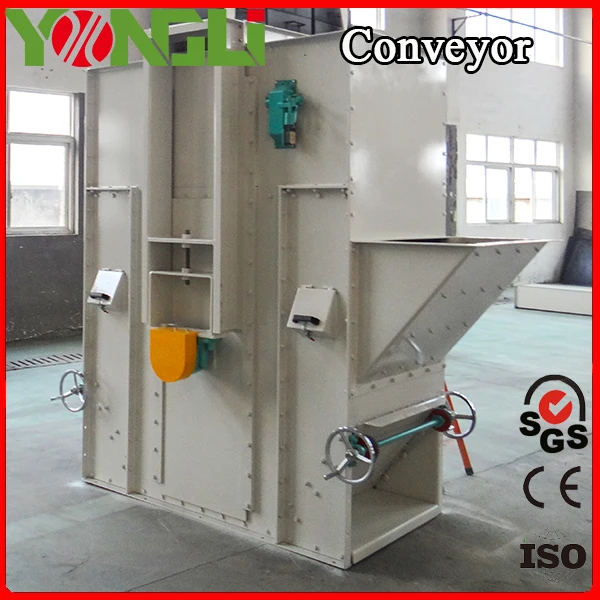

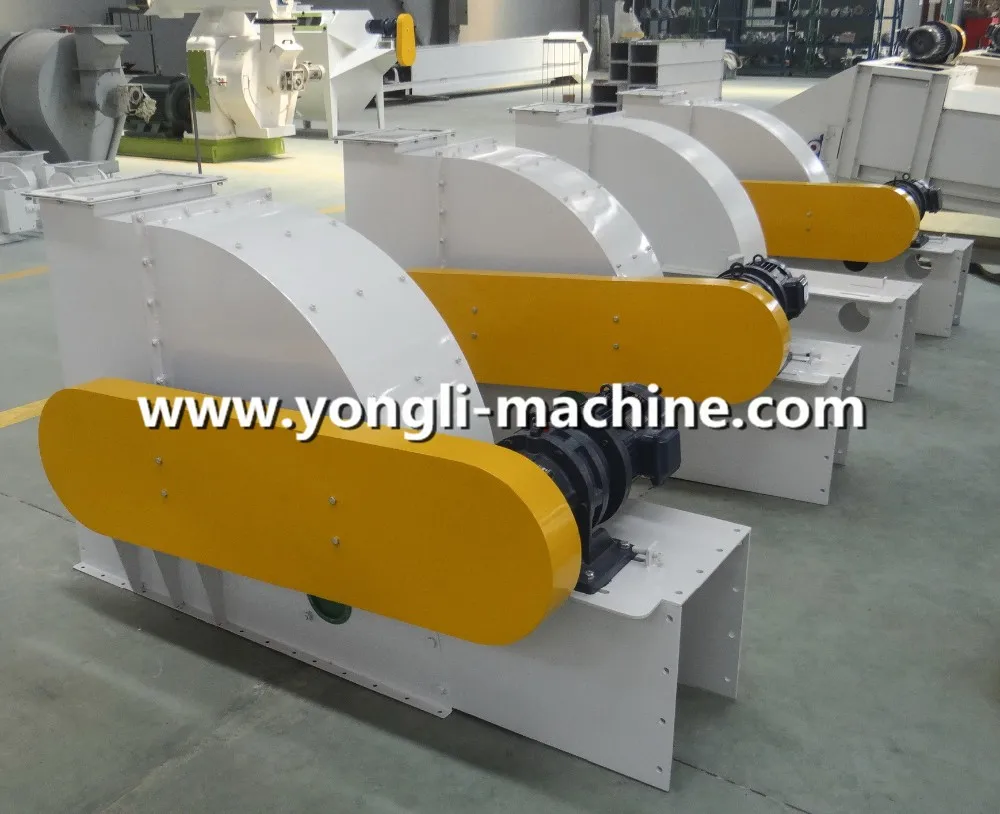

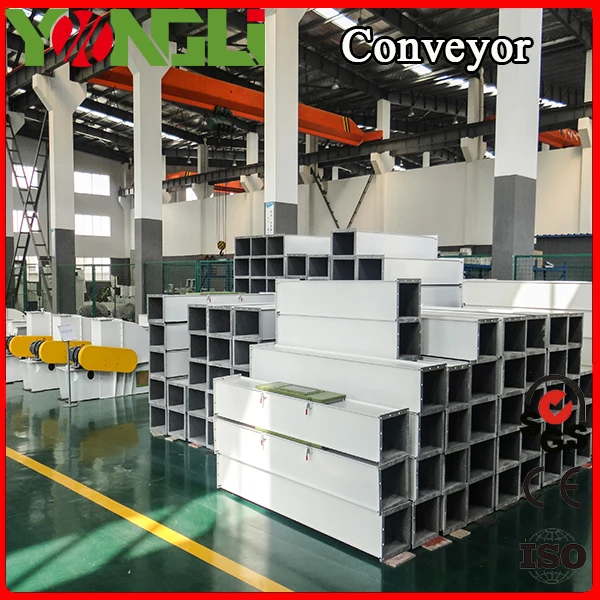

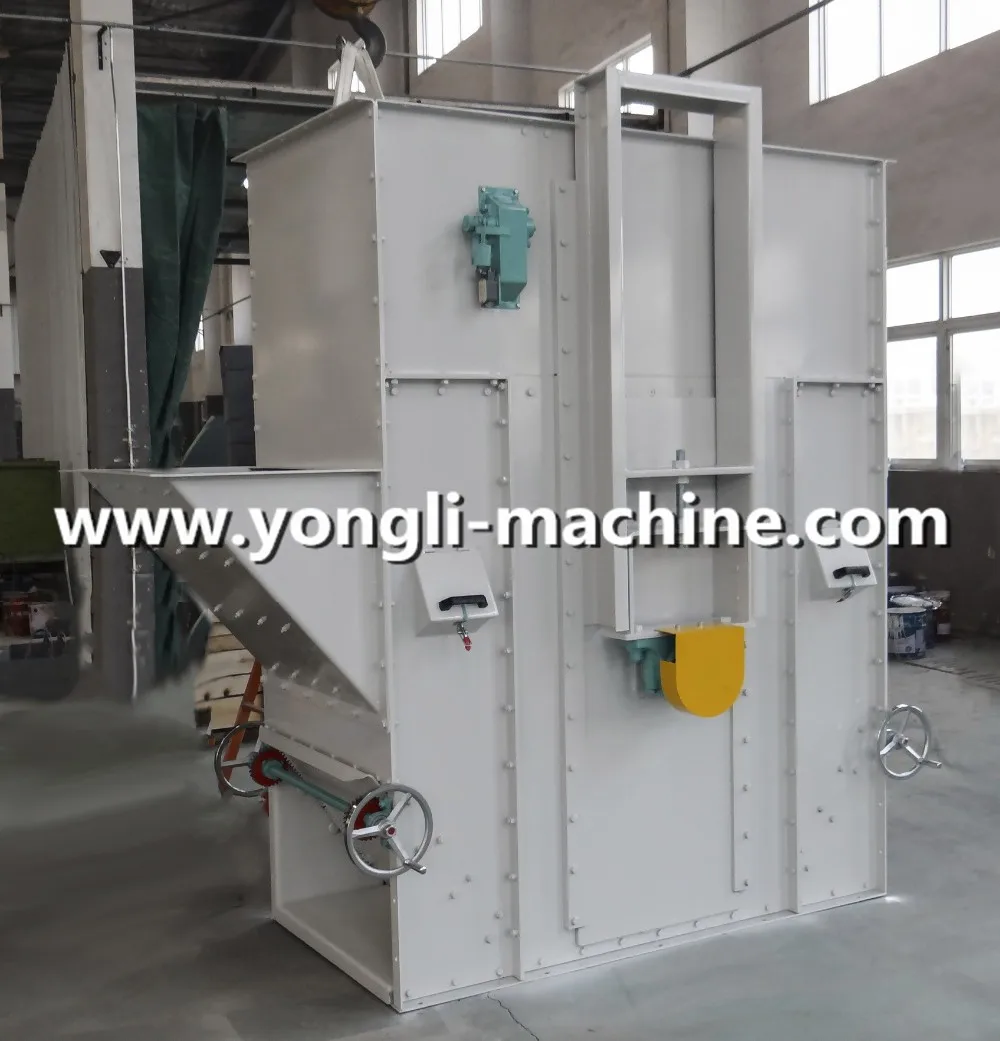

Products Photo Show

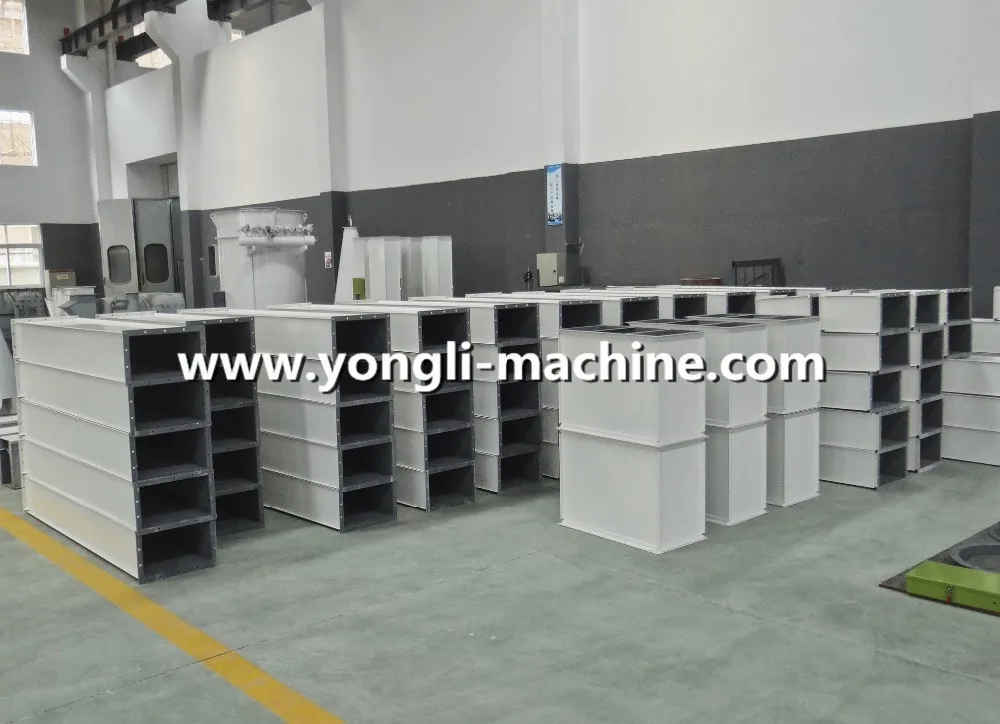

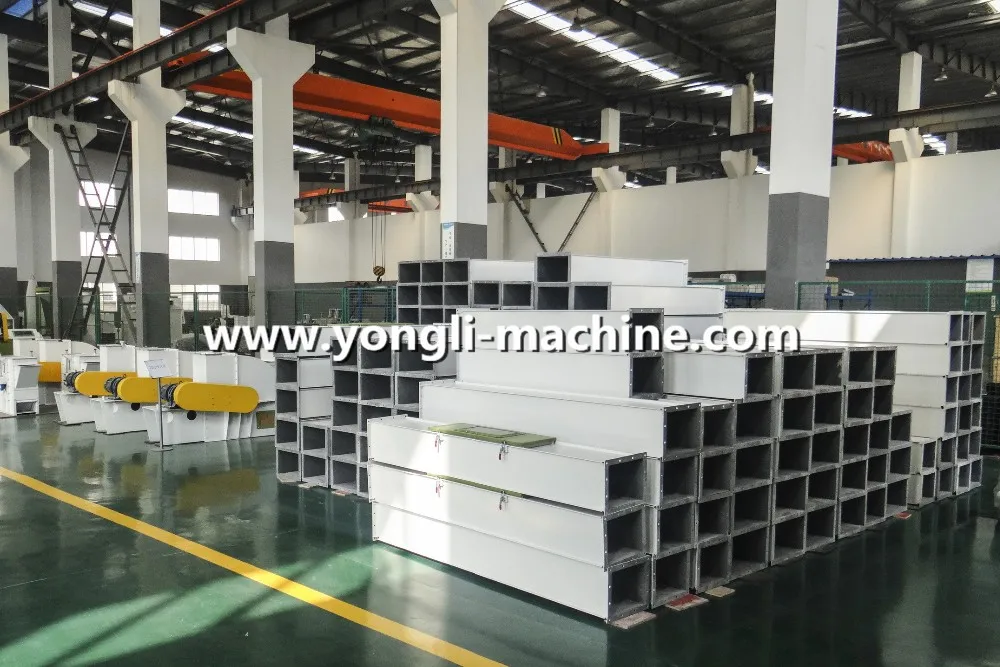

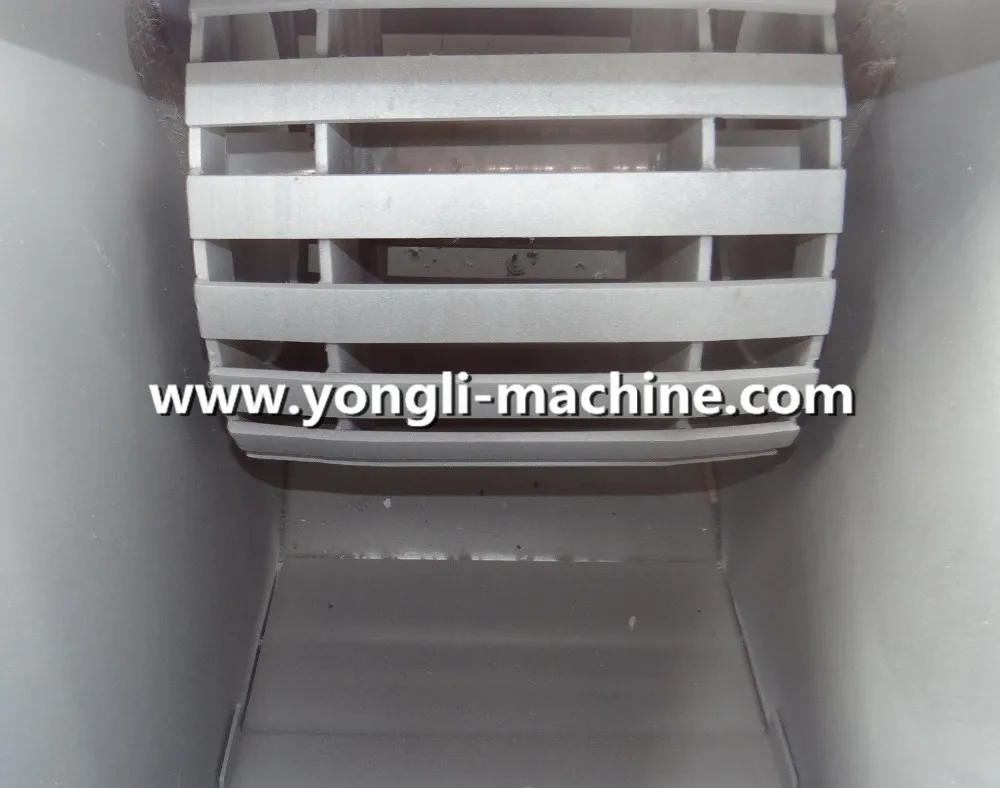

Spare parts
