Jiangsu Pengfei 1500tpd cement plant professional manufacturer in China
Product Description(cement plant)
Cement production line is the production line construction project composed by a series of corollary equipments which are used for product cement.It is mainly composed by crushing equipment,homogenize equipment,raw material preparation equipment,drying equipment,preheat and predecomposition equipment,the clinker sintering equipment,cooling equipment,grinding equipment,packaging equipment,conveying equipment,environmental production dust collection equipment etc.The jiangsu pengfei group supply process design,civil construction,complete equipment,installation and trial run,technical services,the general contracting.
Parameters : During the process of cement production,it needs grinding three tons materials for product one tone portland cement (including all kinds of raw materials,fuels,clinkers,compound material,gypsum).According to the statistics,the cement dry process production line grinding operation needs to consume 60% power of the the whole plant, among it the raw material grinding occupy above 30%,the coal grinding occupy about 3%,the cement grinding occupy about 40%.Therefore, we should reasonable select grinding equipment and technological process,optimize technological parameters,proper operation,control work system. And this will have great significance on ensuring production quality and reduce energy consumption.
Method: For different raw material preparation method,the production line can be divided into dry process and wet process.
Equipment: The main equipment of cement production line including: rotary kiln,cyclone preheater,cooling machine,Crusher, vertical mill, roller press, cement mill, coal mill, dryer, dust collector, packaging machines, bulk machines, conveyors, electrical control etc.
No | project name | Main equipment name | Capacity (t/h) | Number of units | annual utilization rate (%) |
1 | The limestone crushing | Heavy-duty plate feeder | 200~350 | 1 | 25.51 |
Single-stage Hammer crusher | 250 | 1 | 25.51 | ||
2 | Homogenization of limestone | material piling machine | Stacking capacity: | 1 |
|
3 | Raw meal grinding | vertical mill | 130 | 1 | 60.90 |
4 | Kiln, grinding waste gas processing | humidifier tower |
| 1 | 82.19 |
high temperature fan | flow: 400000m3/h | 1 | 82.19 | ||
2350DIBB24 high temperature fan: c.BS930 Cottrell: | Airflow: 300000m3/h Airflow: 400000m3/h | 1 | 82.19 | ||
kiln tail exhaust gas fan | flow: 420000m3/h | 1 | 82.19 | ||
5 | sintering kiln tail | Five cyclone preheater and calciner system | 62.50 | 1 | 82.19 |
6 | kiln | rotary kiln:Φ3.5×54m | 62.50 | 1 | 82.19 |
7 | Kiln head clinker cooling | Air girder grate cooler | 62.50 | 1 | 82.19 |
8 | cement grinding | tube mill:Φ3.5×13m | 50 | 2 | 58.59 |
powder concentrator | flow:1500m3/min | 2 | 58.59 | ||
9 | Cement packaging | Eight mouth rotary packing machine | 90 | 2 | 34.18 |
Company Information
The advantage of the position
Pengfei group has the important location, and it is the largest production & export base of large size rotary equipment in China’s coastal area. The advantage of the position: Jiangsu Pengfei Group Co., Ltd locates the main transportation county in the middle of Jiangsu province Haian county. It takes two hours from the company to the international cosmopolis Shanghai City. The international Nantong port and Shanghai port which locates in the Yangtse River Estuary make the large sized equipment export from our company very convenient.
Scope of business
1, It has the great comprehensive ability to provide best quality service on turn-key basis with technology design, complete plant, erection and debugging, commissioning for the new type dry process rotary kiln cement production enterprise under the daily capacity of 10000T.
2, It supplies complete equipments and technical services of grinding, calcination, oil extraction, crushing, dust collecting, conveying and lifting for the metallurgy, the chemical industry, the electrical power, the mine, the coal, the oil, the environmental protection enterprises, etc.
General introduction of the company
The company has the six subsidiary companies such as the mechanical plant, installation plant, electronic plant, casting plant, installation plant, the new type construction material plant, etc. it covers an area of 350000m2 , and has 0.82billion RMB of total assets. There are 1500 personnel and 450 engineers and technicians, the annual manufacturing capacity reaches 300000t. Pengfei has already reached the capacity to manufacture 400 sets of large ball mills, 300 sets of roller press, 260 sets of pre grinding equipments and 150 sets of large rotary kiln per year.
Many thanks for your enquiry and would submit with pleasure in private order.
JiangSu Pengfei Group Co.,Ltd
contact preson(sales manager):Sally Wang
tel:+8615962769091
skype:wang.sally98
whatsapp:+8615962769091

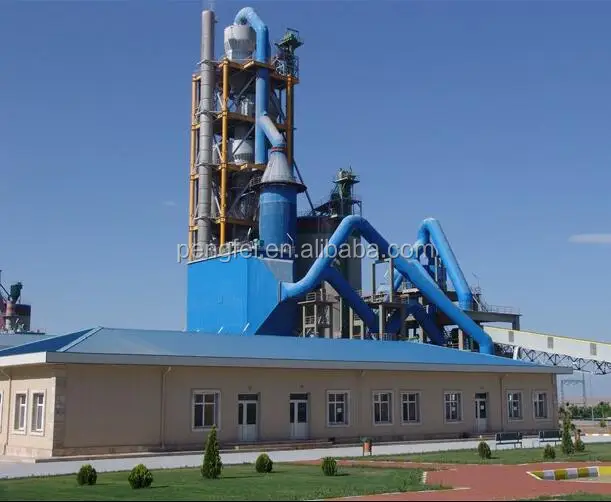

Cement Plant

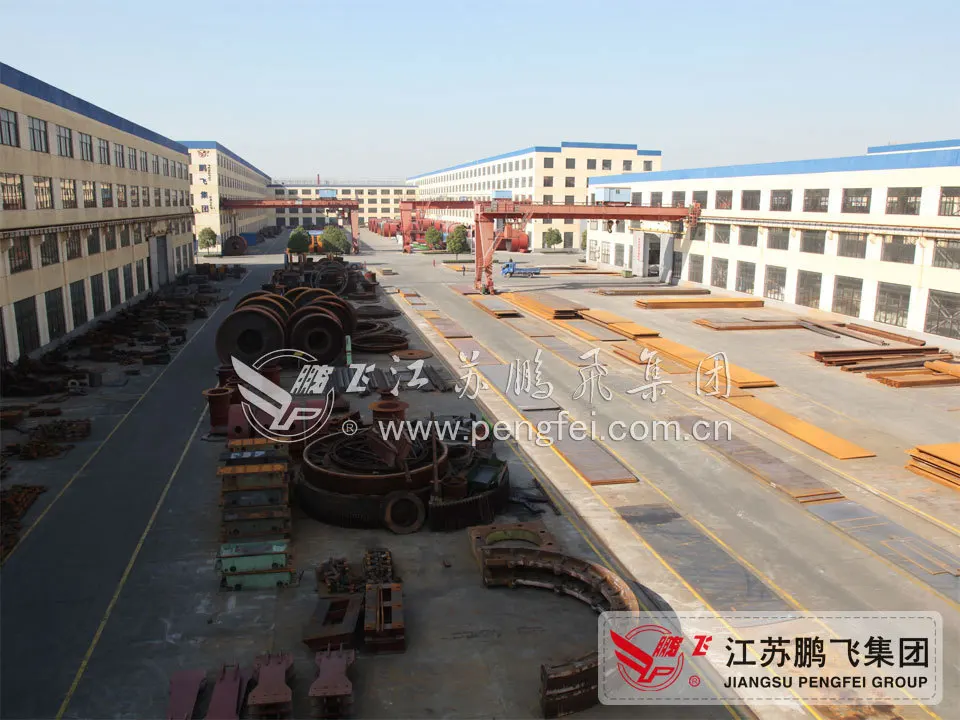

Cement complete sets of equipment production export base
