Product Overview

Description

Rubber Engine Mounting Making Machine

Machine Features

1, Four-column structure ensures machine durability.

2, Multistep setting of injection pressure and speed;

3, Precise measurement of metering stroke;

4, To realizing precise metering by slowing down plasticizing screw speed before ending metering;

5, PID control vulcanizing temperature and time.

6, protect mould by closing mould in low pressure;

7, Three stages of mold open and close to change pressure and speed setting;

8, Automatic eject and mold sliding function(optional).



Series Main Technical Parameters



Parameter Name	HYZ-200A
Injection Volume(cm3)	2000
Clamping Force(KN)	2000
Platen Size(mm)(W*L)	550*550
Dimention Btwn Tiebar(mm)	650*360
Space of Platens(mm)	570
Max.Clamping Stroke(mm)	500
Min.Mold Thickness(mm)	80
Nozzle Diameter(mm)	φ5.5
Arc Radius of Nozzle(mm)	SR19
Heating Power(KW)	12
Total Power(KW)	28
Machine Dimension(L*W*H)(m)	3.2*2.1*3.9
Machine Weight(Ton)	7.2

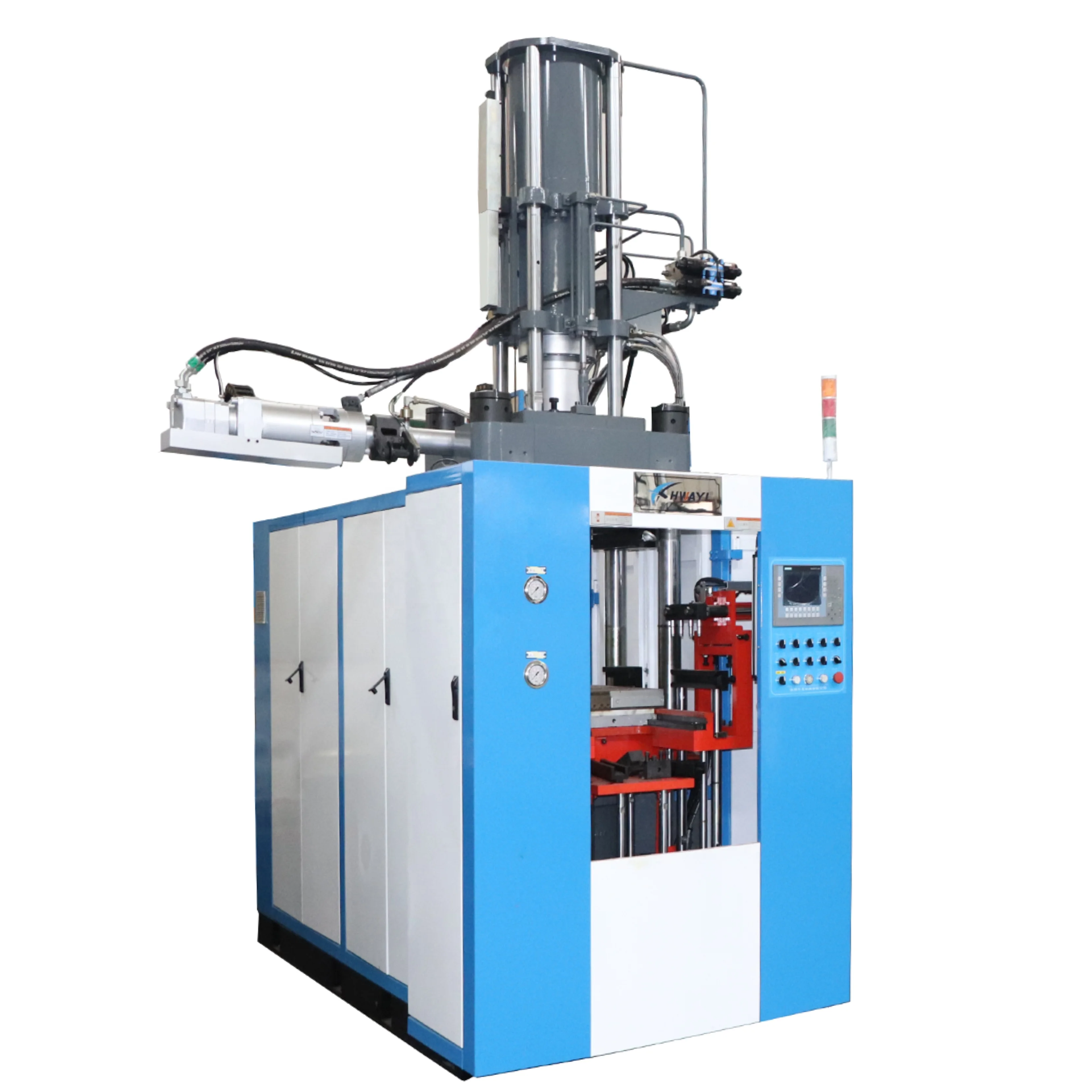

Machine appearance showing

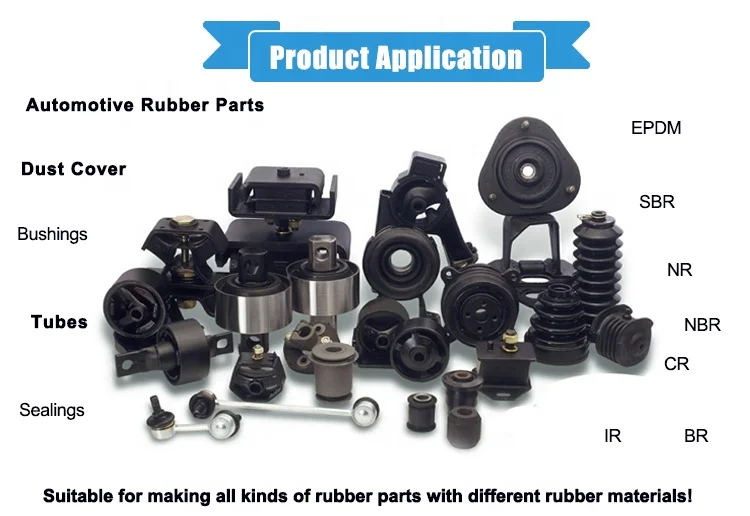

Machine Moulded Parts







Exhibition showing

We provide you with optimum solution for automotive rubber moulded parts, rubber metal parts, anti-vibration mounts, etc.
