Multi function marble ground washing machine, floor cleaning scrubber machine

Product Overview

Description

Multi-function self-propelled ground washing machine, floor cleaning scrubber

machine







 Applications



WZ-X3 push-type floor scrubber:

High performance floor scrubber can meet the clean request of higher standards. And the products apply to smaller area. Besides, the floor scrubber not only flexible but also have the standard spatial structure. With three types of wire, brush driver and self-propelled, please choose freely.



Features:



–The type can be used in the noise-sensitive environment, and lower noise than similar products by 55%.

–The fuselage structure is solid. And the design of body engineering prevents fatigue and makes cleaning a snap.

–The circular design of squeegee system can full reclaim the sewage in the case of 180°turn.

–The perfect cleanout view and simple control panel enable the operators to concentrate on cleaning up the environment.

–The skirt-board of brush effectively prevent the water and detergent spill chaos and 50% of them saved.

–The squeegee blades can be changed quickly without tools, wear-resistant and durable.

–The dexterous and compact design makes the machine can be used fluently even in a crowded environment.



Technical data

Technical Data	WZ-X3e (wire)	WZ-X3d (Assistant brush)	WZ-X3b (Drive)
Recovery Tank Capacity	57L/43L	57L/43L	57L/43L
Solution Tank Capacity	Brush	Brush	Drive motor 24VDC
Drive System	/	/	73m/min
Productivity rate	2200m2/h	2200m2/h	2450m2/h
Cleaning path width	500mm	500mm	500mm
Brush pressure	22.7kg-40.8kg	22.7kg-40.8kg	22.7kg-40.8kg
Squeegee width	763mm	763mm	763mm
Brush motor	0.75kw	0.746kw 200rpm	0.746kw 200rpm
Vacuum motor	1000w	0.373kw	0.373kw
Batteries	—	2 × 12v   110ah/20h	2 × 12v  110ah/20h
Run Time Per Charge	—	2.5-3hours	2-2.5hours
Voltage DC	230VAC	24VDC	24VDC
Noise level	66.5dba	66.5dba	66.5dba
Max climbing capacity	Cleaning mode 5%(3°)	Cleaning mode  5%(3°)	Cleaning mode  5%(3°)
	Transporting mode 8%(5°)	Transporting mode 5%(3°)	Transporting mode 5%(3°)
Net Weight	93kg	170kg	170kg
Volume(L x W x H)	1300×560×1093mm	1300×560×1093mm	1300×560×1093mm

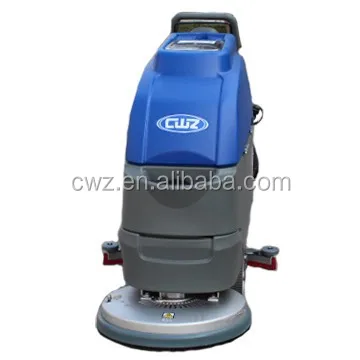

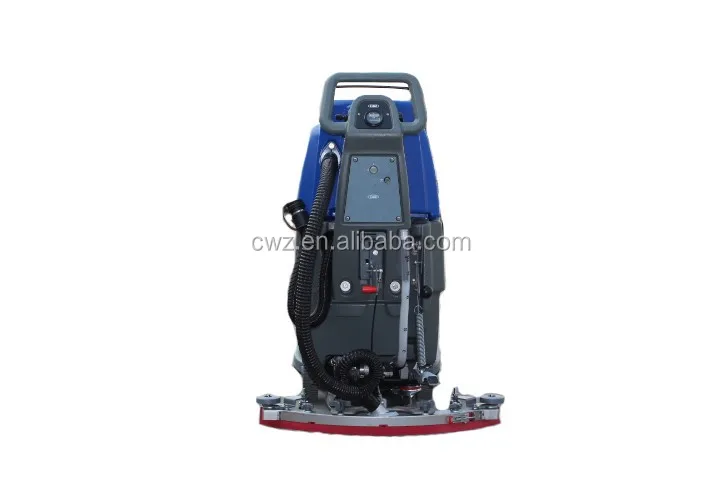

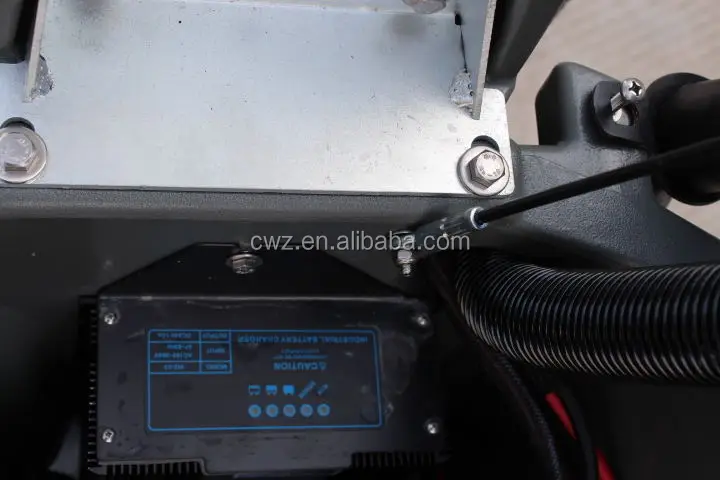

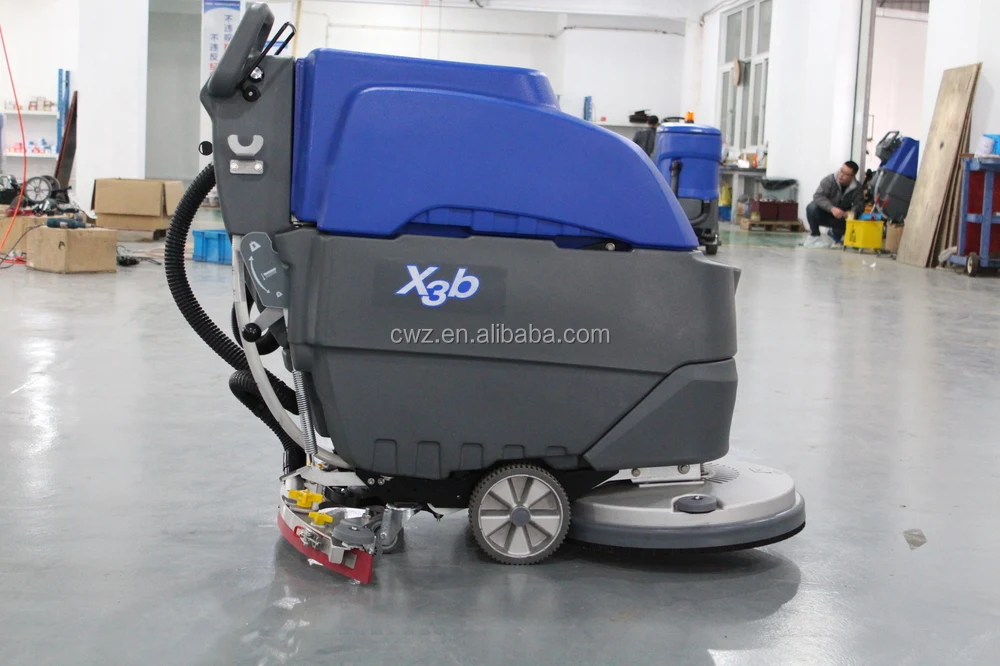

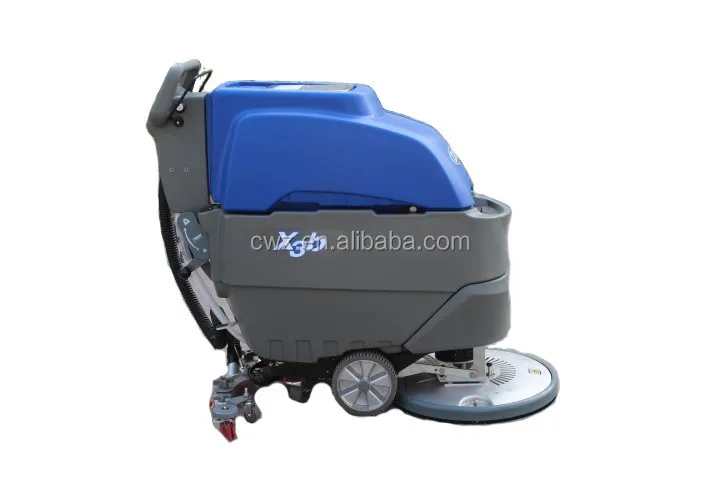

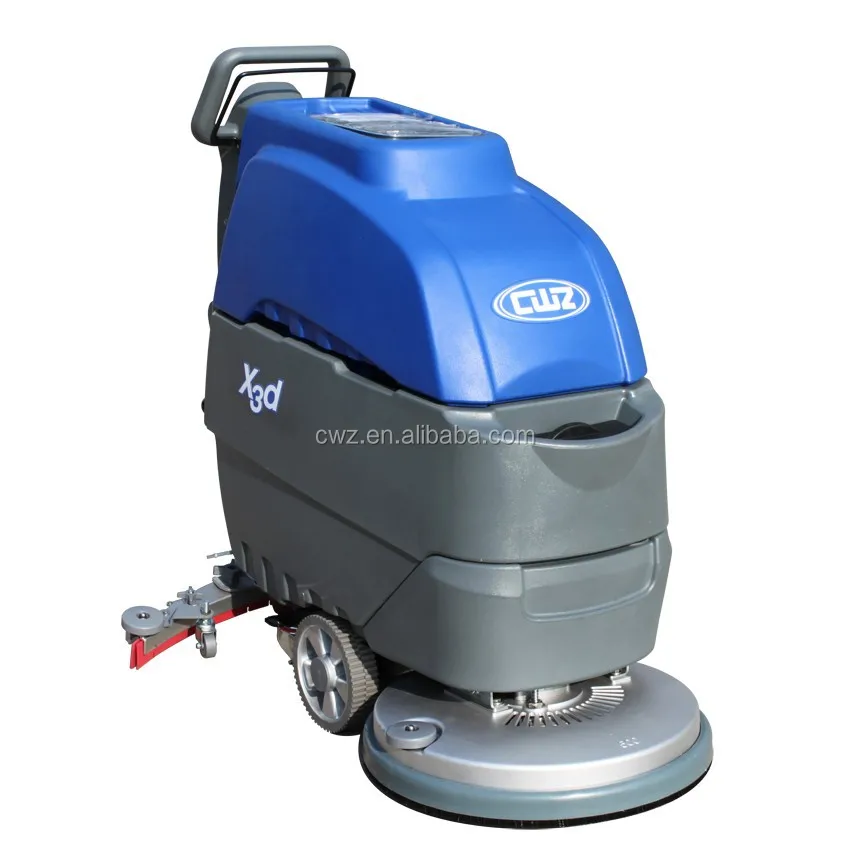

Product pictures
