Custom etching encoder disc with high quality
- Category: >>>
- Supplier: Shenzhen Xinhaisen Technology Limited
Share on (60236845755):
Product Overview
Description

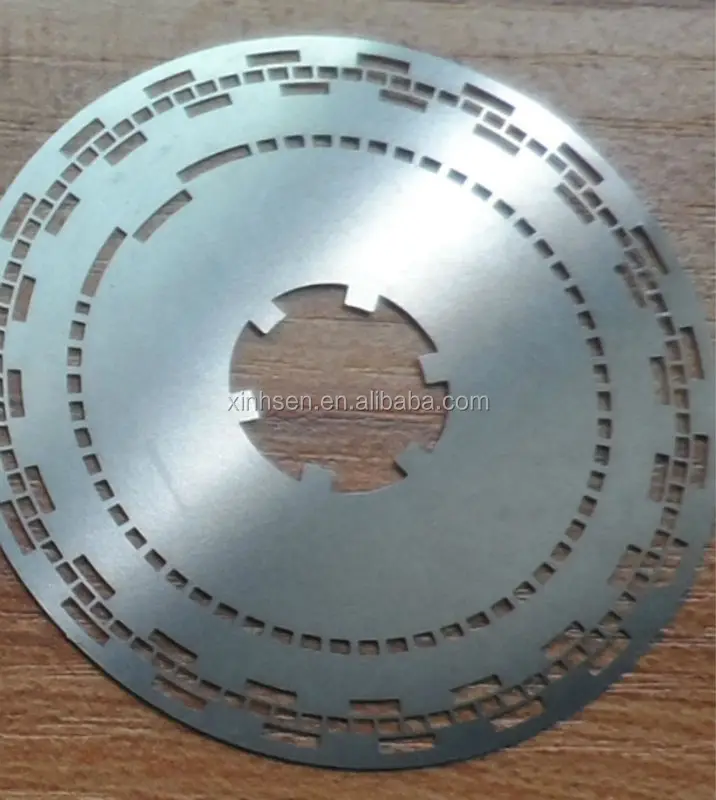

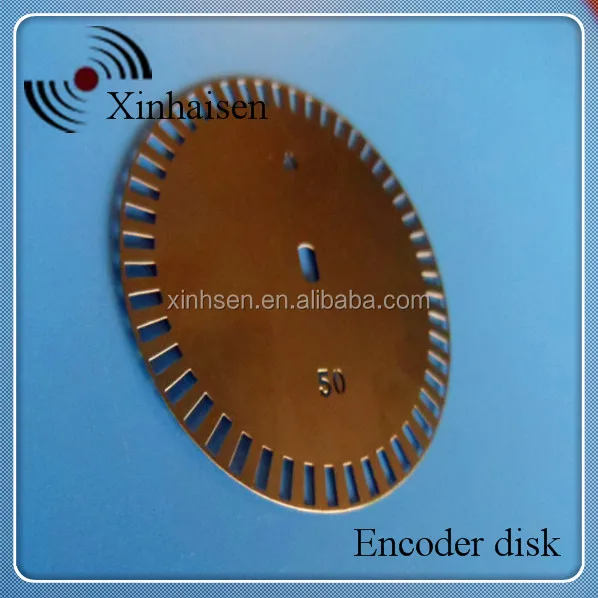

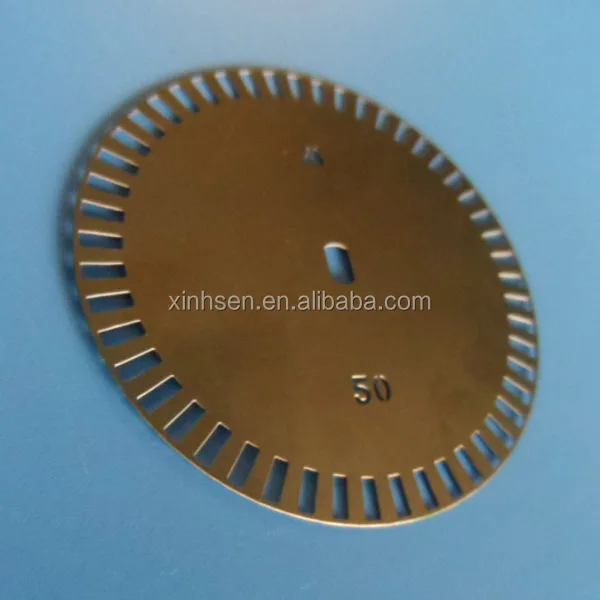

Custom etching encoder disc with high quality
encoder disc 1024 pulse code
1,High precision,good flatness
2,custom design available
3,stable output and prompt delivery
We are professional in Photochemical etching for 8 years, can make various encoder disc for elevators according to your demand, Please feel free to send us an inquiry for more details, We will do our best to help.
Item | Custom etching encoder disc 1024 pulse code |
Material | Stainless steel ,brass |
Color | Silver/ gold/tin plating |
Process | Etching |
Size | Diameter:15cm,20cm...... |
Logo | can add your own logo |
Usage | for gifts,premimus,christmas decorations |
Thickness | 0.5mm,0.8mm.... |
MOQ | 500 pcs, negotiable |
Price | Based on size,thickness,quantity... |
Shipping | DHL,UPS,TNT,Fedex... |
Payment | By paypal,T/T .... |
Please make a drawing include this information ,Then we can quote for you asap .
Encoder disc |
| Material |
| Slit width |
| Spacing |
| Slit length |
| Number of slits |
| Slits to edge of disk |
| Disc thickness |
| Diamter of disc |
| Diameter of centre hole |
Technique ability:
The Min. Size | 1mm*1mm |
The Max. Size | 700mm*600mm |
Thickness | 0.03mm-1.5mm |
Thickness Tolerance | +/-0.005mm |
The Min. Opening precision | Φ 0.02mm |
The smallest diameter | 0.01mm |
Dimension Tolerance | +/-0.008mm |
Elastic line tolerances | +/-0.005mm |
The shallowest depth | 0.01mm |
Depth accuracy tolerance | +/-0.005mm |
Special Technique | Second on the bit,No connection point,etching and stamping |
Payment & Shipping Terms of our encoder disk:
Price: |
Please send your drawing to us for quotation |
Place of Origin | ShenZhen, China (Mainland) |
Brand Name | XHS |
MOQ | 500 pcs,negotiable |
Packaging options | 1.Left in sheet
2.detachedd
3.Bulk packed
4.Box in foam layers
5.PE, Boxes |
lead Time | For samples:3-7 days; For mass production:7-15days |
Delivery methods | DHL, EMS, FedEx,TNT.... |
Payment Terms | by T/T, Paypal, Western Union |
Supply Ability | 100000 Piece/Pieces per Week |
Technical Data:
Machining Type | Chemical etching / photo etching, Laser cutting, stamping |
Material Capabilities | Metal/Glass/Film (Thickness from 0.03 mm up to 1 mm) |
Product Dimension | 600*600 mm |
Smallest open hole | D= 0.1mm when Thickness range from 0.03mm to 0.05mm 1.5*Thickness |
Centre to Centre for holes | 1.5*Thickness |
Smallest line width | 0.05mm. |
Product precision | ± 0.01mm (common difference). It’s generally 20% of material thickness. |
Surface treatment for choice | Silver/Gold/Tin plated, Matt finish, paint, |
Specification | |
Part Name: | metal etched disc |
Application: | Used for car |
surface | No burring, the surface is clean |
Unit price: | Negotiate, price quoted based on material, thickness, tolerance and your quantity |
Production capacity: | By using reel to reel etching,can achieve 1000 square meters per day |
Lead time for mass production: | Usually 7 working days |
Final inspection: | 2D Gauge |
Please note that the above figures are given as a guideline. Should your component design fall outside these parameters please talk to one of our Technical Sales team who will be happy to talk through you requirement. | |
Warranty
Warranty is available based on the following points:
1.The products are guaranteed for one year and half.
2.If the item you purchase from our company are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3.If the items is defective, please notify us within 3 days of delivery.
4.Any items must be returned in their original condition to qualify for a refund or replacement.
5.The buyer is responsible for all the return shipping cost incurred.
