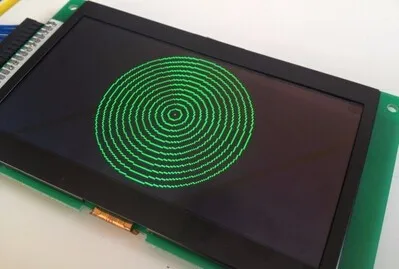

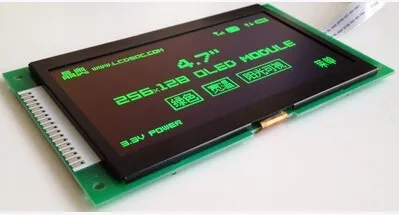

4.7 inch graphic display module SSD1322 256x128 oled module
Diagonal Size
4.7 "
Color
Green
Type
Monochrome with 16 Gray Scales
Pixel Number 256x128
Pixel Size (mm) 0.385x0.4
Module Size (mm)
134.7 × 78.8 × 8
Active Size (mm)
108 × 57
Driver IC SSD1322 (Two)
Interface
4-wire SPI (default), 8 parallel port
Supply Voltage
3.3V
Voltage Range 1.65V ~ 3.3V
Max Voltage 4V
Min Voltage
1.65V
View Angle
> 160 degree
Contrast Contrast
> 10,000: 1
Brightness (cd / m2)
85 (Typ) at 12V
Life time life at 85cd / m2
60000 hour
Weight (g) Weight
TBD
Power
By a lit pixel decision:
VCCIN = 3.3V 30% pixel is lit up
480mW
VCCIN = 3.3V 50% pixel is lit up
600mW
VCCIN = 3.3V 100% pixel is lit up
780mW
Operating Temperature Operating temperature
-40 To 85
Assembly
10Pin 1.0mm FPC Connector OR 2.54mm Metal pins
Specification
