Hot Sale Low Price bldc motor 72 volt, 72v 5kw dc electric motor

Product Overview

Description

Hot Sale Low price bldc motor 72 volt, 72v 5kw dc electric motor

 Hot Sale Low Price bldc motor 72 volt, 72v 5kw dc electric motor

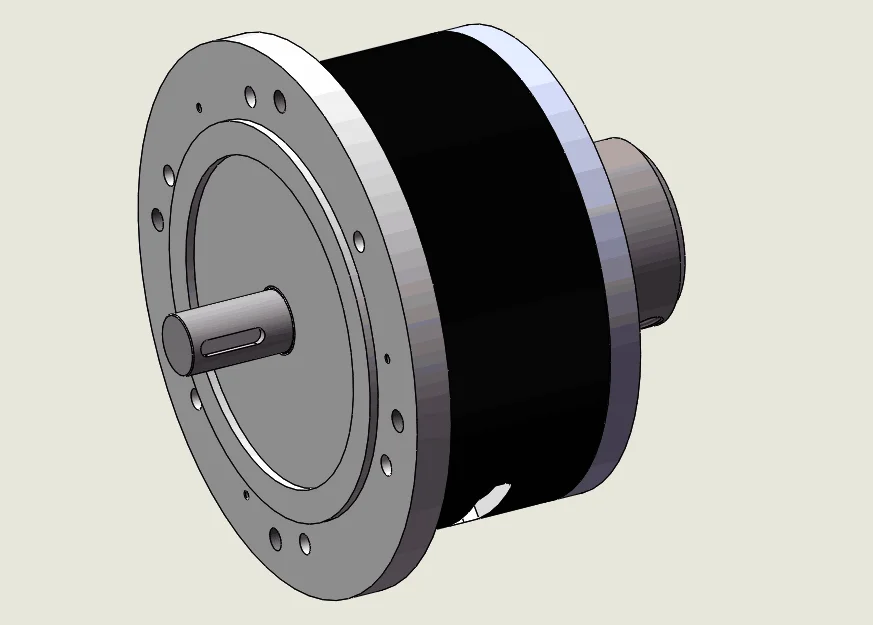

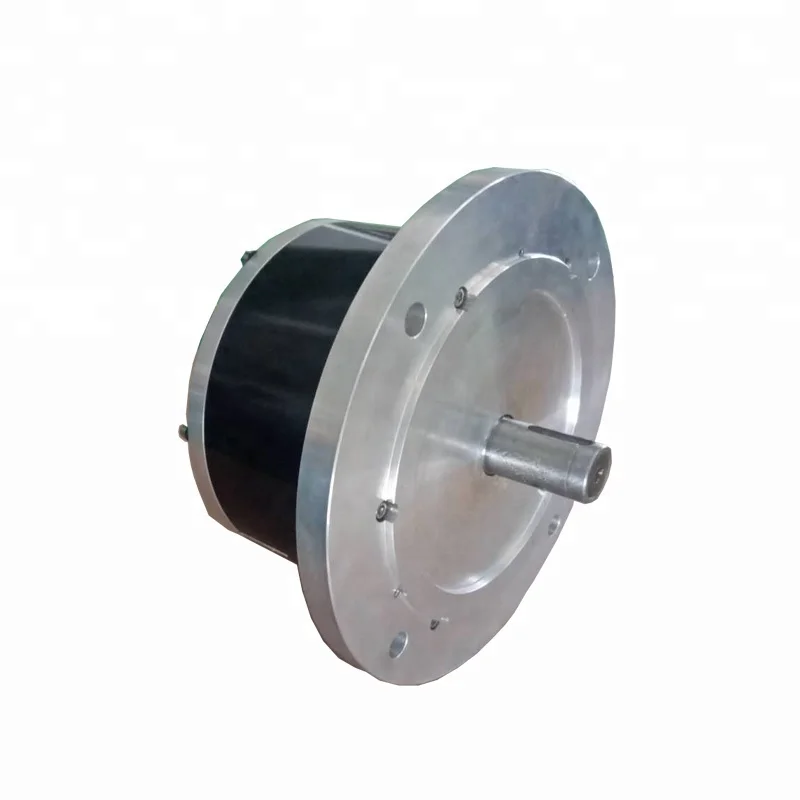

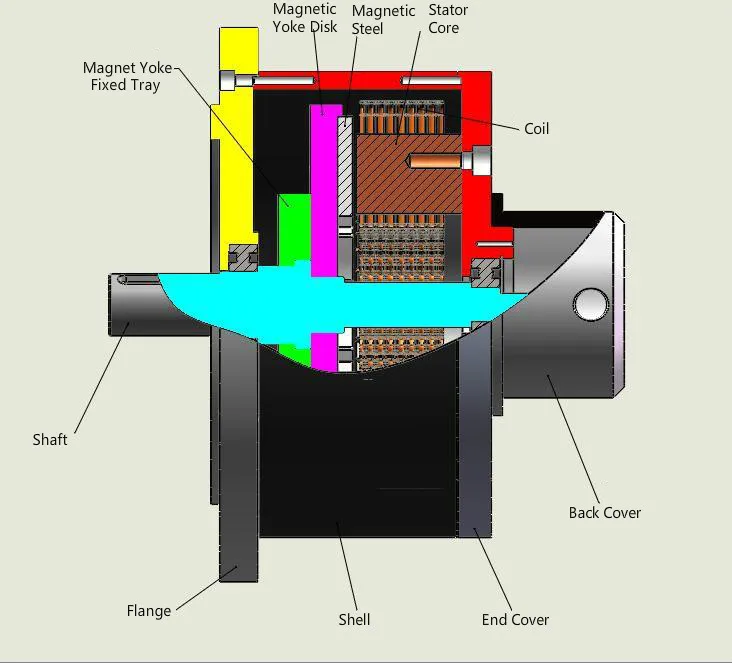

The motor is a brushless DC motor, mainly comprising a stator, rotor and drive cover and other components.
The motor is divided into the fully open and closed types and others. The fully closed type can prevent
foreign body, dust and water and other substances from entering.
The wire and commutator of the armature are welded by TIG, and are connected reliably and can be
applicable to various harsh working environments.

dc motor 72 volt is suitable for variety of electric vehicle such like forklifts, transport vehicle,boat and pump etc.

a.DC indcates DC BRUSHELESS Motor,

b.72 volt indicates rated voltage.

c.5kw indicates rated power.

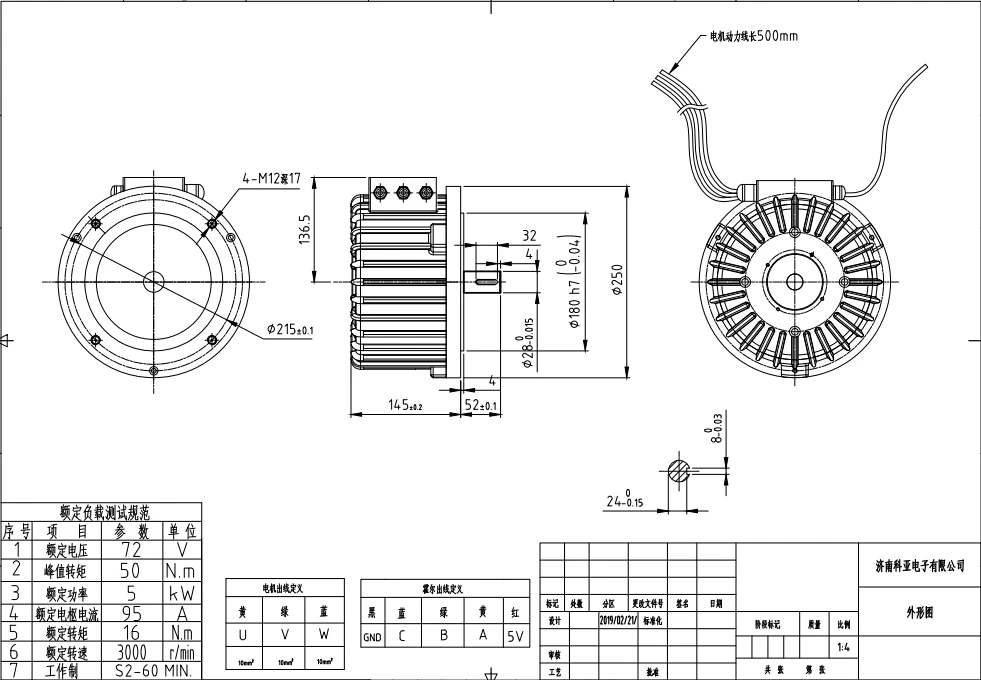

d.Mounting Model: Flange mounting

e.we have a series of 5kw motor , detailed technical parameters are as follows:



Model	Volt	Power	Speed	Torque	Encoder	Brake
KY190BL0202-15	24V	2KW	1500RPM	12.7N.M	NO	NO
KY190BL0202-15B	24V	2KW	1500RPM	12.7N.M	NO	YES
KY190BLS0202-15	24V	2KW	1500RPM	12.7N.M	YES	NO
KY190BLS0202-15B	24V	2KW	1500RPM	12.7N.M	YES	YES
KY210BL0404-15	48V	4KW	1500RPM	25.4N.M	NO	NO
KY210BL0404-15B	48V	4KW	1500RPM	25.4N.M	NO	YES
KY210BLS0404-15	48V	4KW	1500RPM	25.4N.M	YES	NO
KY210BL0404-15	48V	4KW	1500RPM	25.4N.M	YES	YES
KY210BL0705-30	72V	5KW	3000RPM	15.9N.M	NO	NO
KY210BL0705-30B	72V	5KW	3000RPM	15.9N.M	NO	YES
KY210BLS0705-30	72V	5KW	3000RPM	15.9N.M	YES	NO
KY210BLS0705-30B	72V	5KW	3000RPM	15.9N.M	YES	YES







































Should you have any other questions, feel free to contact me.It would be my pleasure to answer for you.



Hot Sale Low Price bldc motor 72 volt, 72v 5kw dc electric motor

Frame	190BLS0202-15B	210BL0404-15B
Rated Voltage	24VDC	48VDC
Rated Power	2KW	4KW
Rated Speed	1500RPM	1500RPM
Rated Torque	12.7N.m	25.5N.m
Peak Torque	38 N.m	75 N.m
Rated Current	110A	104A
Rotor Inductance	0.065mH	0.26mH
Torque Constant	0.115N.m/A	0.241N.m/A
Roter Inertia	4.47X10 -3Kg.m2	1.17X10 -2Kg.m2
Mechanical Time Constant	5.78ms	5.84ms
EMF constant	12V/Krpm	25.3V/Krpm
Pole	4P	4P
Level of protection	IP54	IP54
Working system	S2 60min	S2 60min
Temperature classification	H	H
Environmental temperature	-20—60°	-20—60°
Type of cooling	natural cooling	natural cooling
Brake mode	power off brake	power offer brake
Installation	vertical mount	vertical mount
Feedback	Hall/Encoder	Hall/encoder
Weight	13KG	17KG



The company has adtoped ISO9001:2008 quality management system certification, some products have passed CE certification and won good reputation from our customers at home and abroad.



 Hot Sale Low Price bldc motor 72 volt, 72v 5kw dc electric motor



Equipment of  dc motor 72 volt

Jinan Keya Electronic science and technology Co. has been in research and development, manufacturing and sales of DC motors for nearly 15 years with more than 100 employers and a lot of advanced eqipment.

4.Production of  dc motor 72 volt

We adhering to the"Quality to survive, technology for future" as guiding ideology, take "serving for customers" as service concept, pursue excellence and brave in innovation which enable all kinds of our products have high performance and quality. Hot Sale Low Price bldc motor 72 volt, 72v 5kw dc electric motor



5.Packaging of  dc motor 72 volt

We pay high attention to the products packaging, adopt polyfoam packing and then fill them to carbon to protect the controller, this series of complete packing enable you receive good products.

The products are widely used in electric folk-lift truck, electric rail car, electric sightseeing car and so on.
