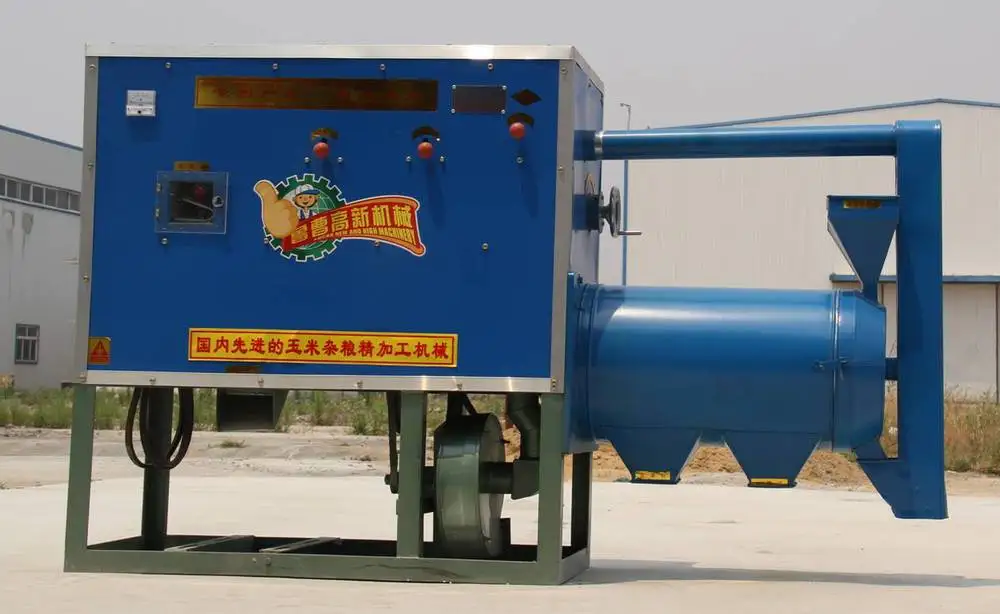

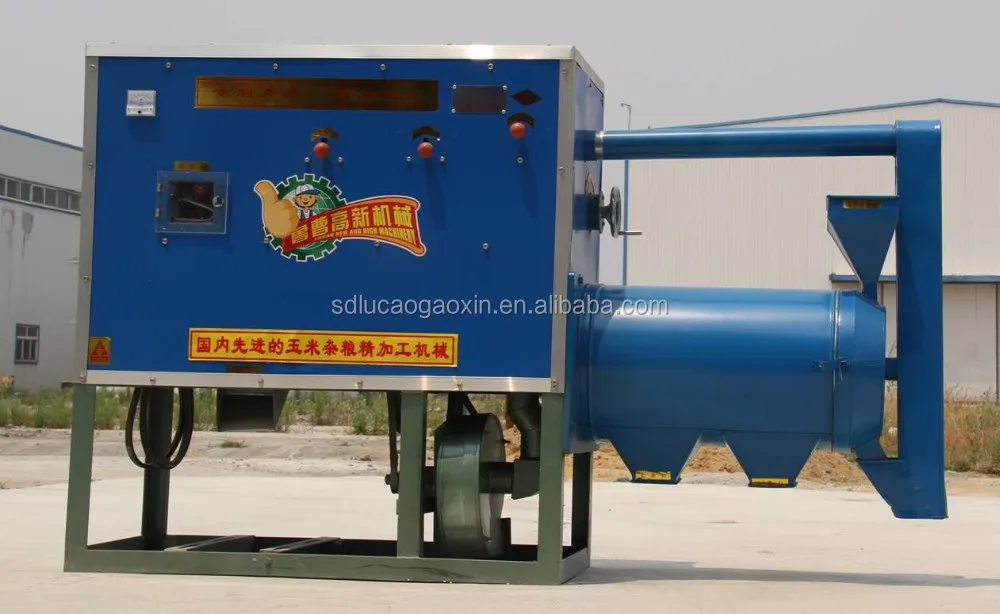

Multi-function small scale compact flour and semolina mill
Product Description
Function:
Cleaning, peeling, crushing, polishing and sieve classifying into flour, grits as per customer's different request.
Main features:
1.it's our unique and patented machine with unique peeling and milling technology.
2.Unrivaled peeling efficiency, removing corn skin, corn germ, root and black hilum, final output is in consistent color without any black dot.And the corn grits comes from the hard or horny Endosperm, corn flour comes from the soft or floury Endosperm.
3.You can adjust the Fineness wheel on the right of the machine to get more than 22 sizes of corn grits from half corn seeds to corn flour.
Technical data:
Capacity: 400~500kg/hour.
Motor power: 11kw, 380v, 50hz.
Outer dimensions: 2200 x 500 x 1300mm.
Machinery product ,plant show
Working processing of corn grits milling machine:
~Corn grits and flour are very important material for producing snack food, and in many parts of the world,corn flour or fine corn grits are the important staple food for people daily life.
~How to produce the good quality of corn flour and grits ? Most important way is to make corn well peeled.
To peel corn not only to remove corn outside skin, but also remove corn germ, corn root andcorn hilum(the black part).
~6FW-D1can help customers peel corn well clean to get best material before further making corn flour and grits.
Main feature of corn grits milling machine:
1. Dry or wet way peel system to remove corn seeds skin, germ, root, black hilum and other impurities, Final peeled corn with same golden yellow color.
2. Equipped with adjusting smashing system that means the corn seeds can be smashed into any sizes as per the desire of customers,
according to our record final product more than 22 sizes from peeled corn to corn grits and flour can be smashed.

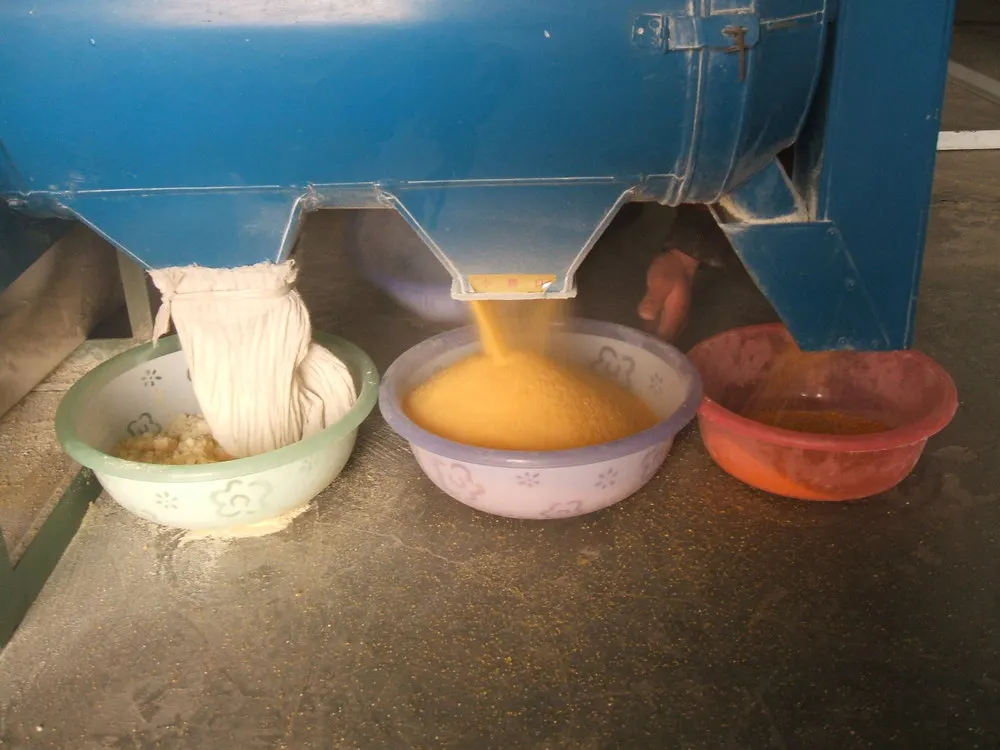

3. Sifting system to sift smashed corn into three final product, one outlet is corn flour, another two outlet will output small corn grits and big corn grits respectively.
Uses of Corn Grit:
Extruded snack food Industry Beer industry Flaking Grits for Corn Flakes industry Corn breads(confectionaries) and muffins Corn Chips and Doritos Sweets manufacturing

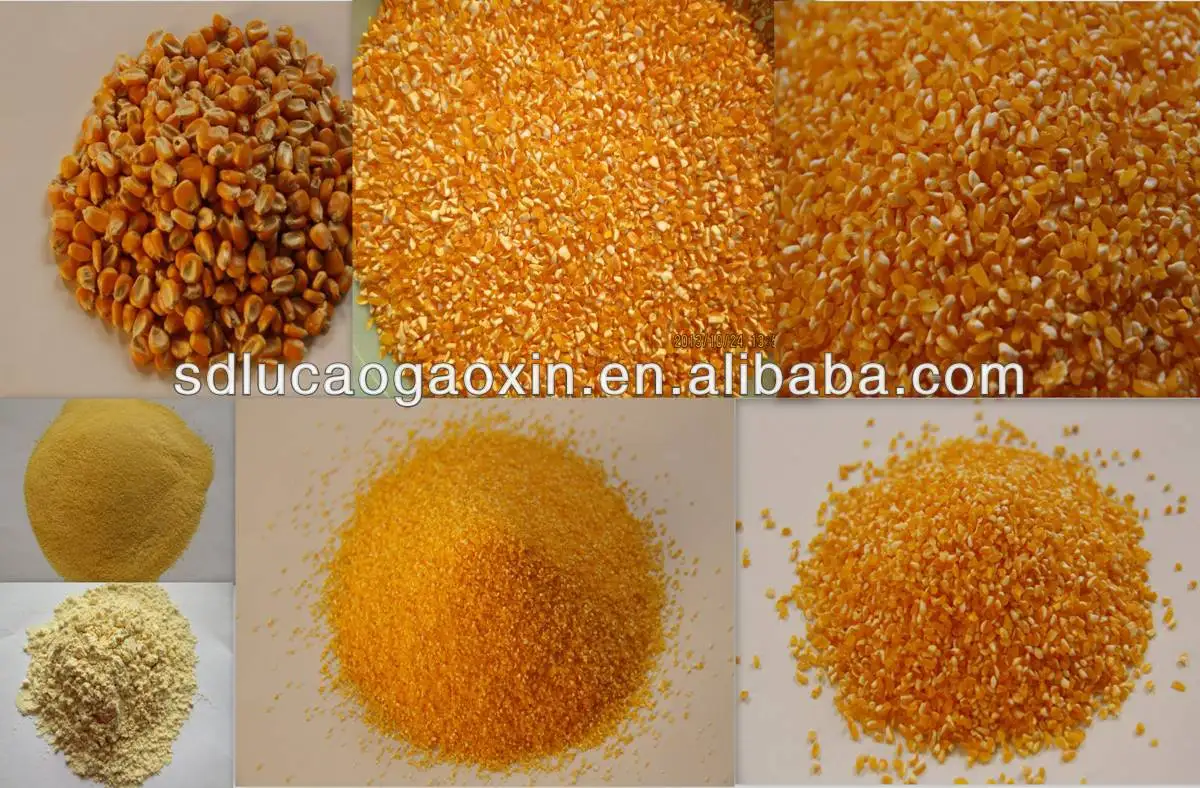

Maize peeled, maize grits, maize flour photos:

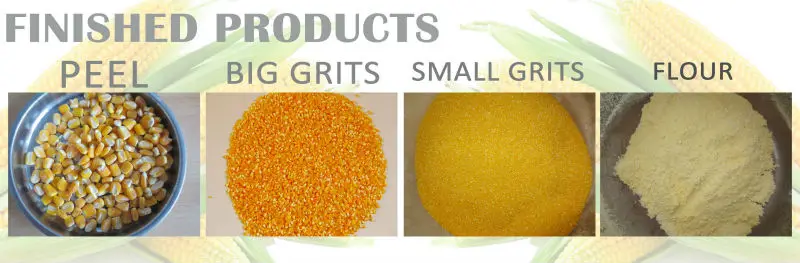

one size maize flour and more than 22 sizes of maize grits can be grinded:
Other models for single maize grinding mill machine:
Model
Production capacity
Electric motor power
Outer dimension
6FW-D1
400-500kg/hour
11kw-4p
2000*500*1100mm
6FW-D1A
400-500kg/hour
11kw-4p
1900*550*1200mm
6FW-H
450-550kghour
11kw-4p
2200*600*1300mm
6FW-D2
8tons/day
15kw-4p
1950*500*1600mm
Company Information
Caoxian Lucao High Tech Machinery Manufacturing Co., Ltd
Initially started business in 1982, formally registered in 2001, we devote to producing corn and cereal grains processing equipments for over 30 years. We take technical innovation as fundamental, and offer different perfect and scientific solution as per market orientation. In 2012, we moved to our new factory with area 105 thousand s.q.m. We have obtained 22 national technical invention patents so far and have control over heart technology in corn & beans peeling and grit making area. We drafted the national technical standards of this industry, and develop to be a famous and reputable supplier. Step by step, we are growing into a high tech enterprise of the state.
We have developed more than fifty varieties covering the whole corn and cereal industrial area. Most machines are sold with patents protection. Proud to say machines are accepted by market extensively because of their excellent functioning and unique design.
1.Dry way corn peeling machines for corn grit & flour, animal feed, and alcohol brewery, etc.
3. Dry way beans peeling machines for soya beans, green peas, lima beans, black beans, gram beans, lentil beans, etc.
We have export and import license. Machines have been shipped to Europe, Asia, Africa, Middle-east and South-east Asia, to countries including Spain, Austria, France, New Zealand, Sri Lanka, Kenya, Nigeria, Congo, Zambia, Tanzania, Bolivia, U.S, Dubai, Myanmar, Thailand, etc.
Diligence wins future, and innovation fulfills dreams. All LUCAO staff are working hard with enthusiasm, courage and profession. Sticking to professional product route, we are ready to climb the peak of this industry, and strive for“Make First Class Product, Create a 100-year Company”.

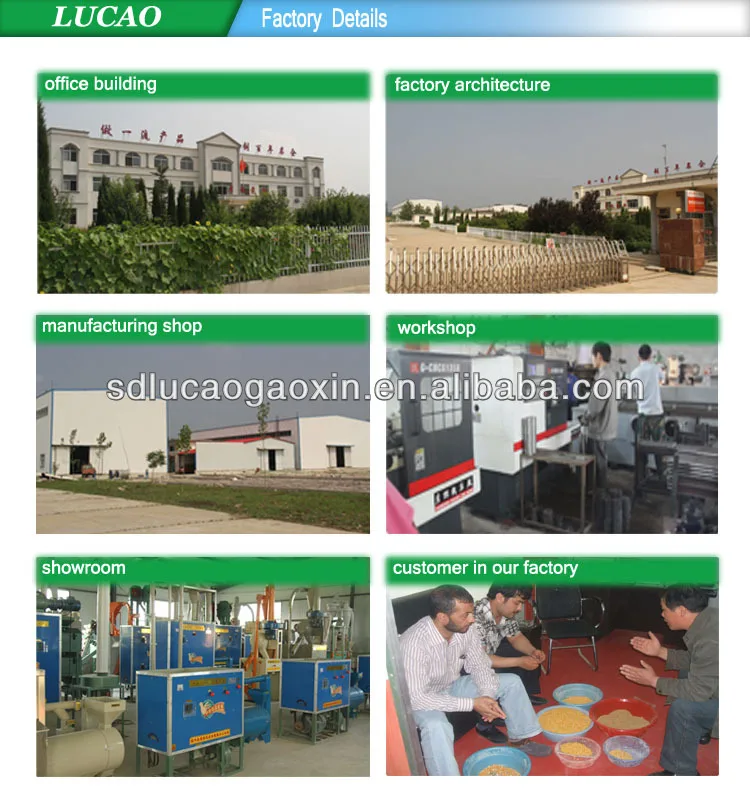

Factory view:
Our company in canton fair
Agriculture machinery fair in china:
Our Services
Pre-sale service:
1.recommend the most suitable machine for customer,or design the machine specially according customer's demand.
2.Strictly control each production link,to ensure the quality. 3.Test machine before delivery,to ensure machine function well.
After sale service: 1.1 year warrenty. 2.lifelong free technical support and spare parts support. 3.Take initiative to eliminate the troubles rapidly.
Packaging & Shipping
Packing and load into container :
FAQ
If you are new in this project, when choosing machines, recommend you consider and compare from following aspects
1. Grits quality
a. whether grits are in even size
b. whether grits are with black dots (from hilum, not peeled well)
c. how grits are polished
2. Bran/loss rate
a. Traditional emery roller peeling technology will result in a lot loss as they can not peel very one time.
3. Price and cost
a. Machine price is important, but after-sale operation cost is also very important, such as motor power, labor cost.
b. Our machines have very little wear parts, the peeler and the miller can work long time.
4. Installation
a. Ship ready machine, commissioning before shipment, saves installation cost.
Model
Produciton capacity
Electric motor power
Funciton
Food grains applicable
6FW-C1
250~400kg/hour
7.5kw-4p
Cleaning, skin peeling, corn grit and corn flour at the same time.
