MoPao series metallographic sample polishing machine
- Category: >>>
- Supplier: Laizhou Weiyi Experimental Machinery Manufacture Co. Ltd.
Share on (60237517708):
Product Overview
Description
Product Description

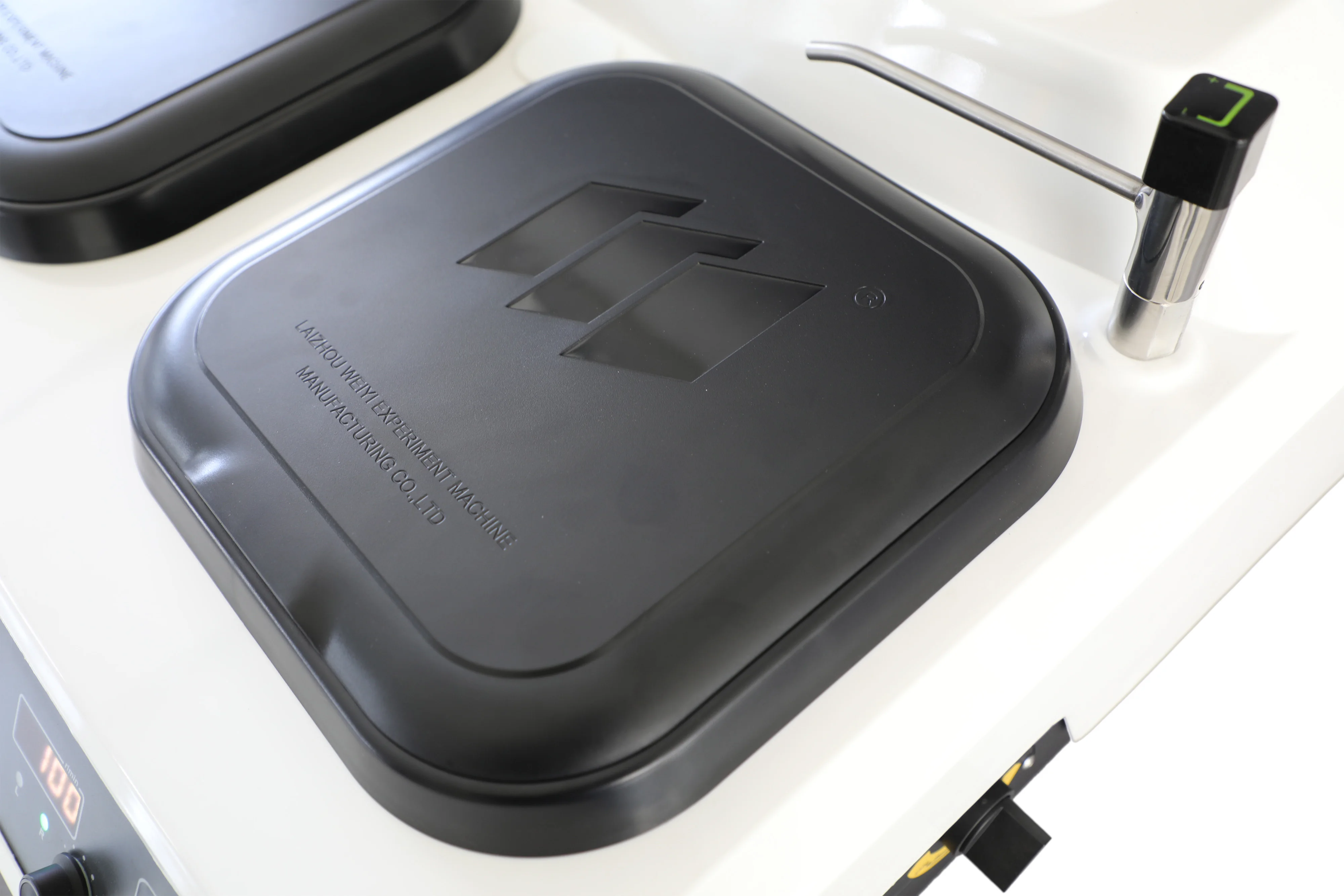

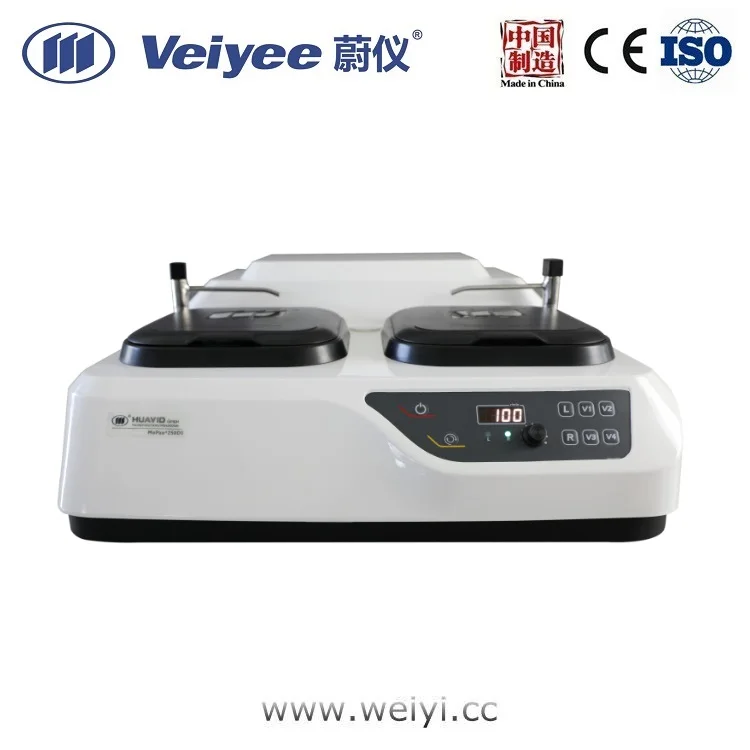

Metallographic grinding/polishing machine MoPao®200DE/250DE
Applications

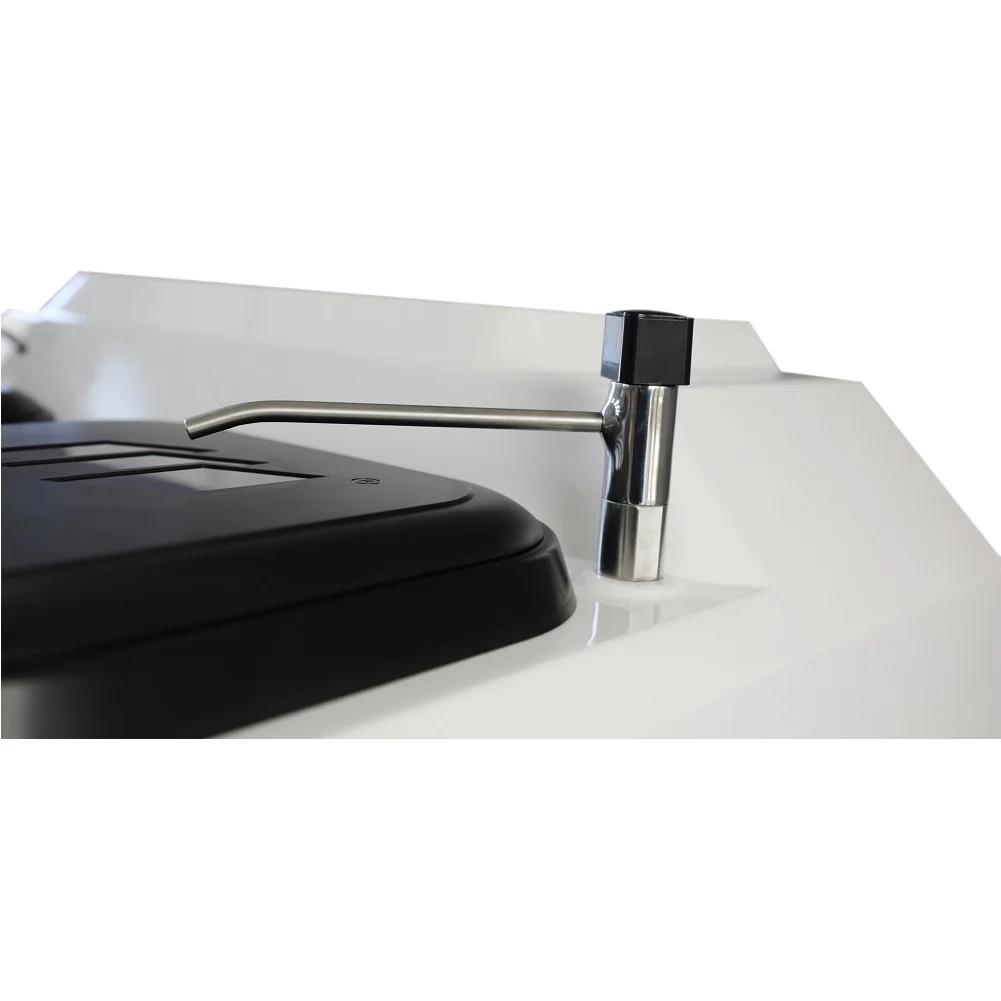

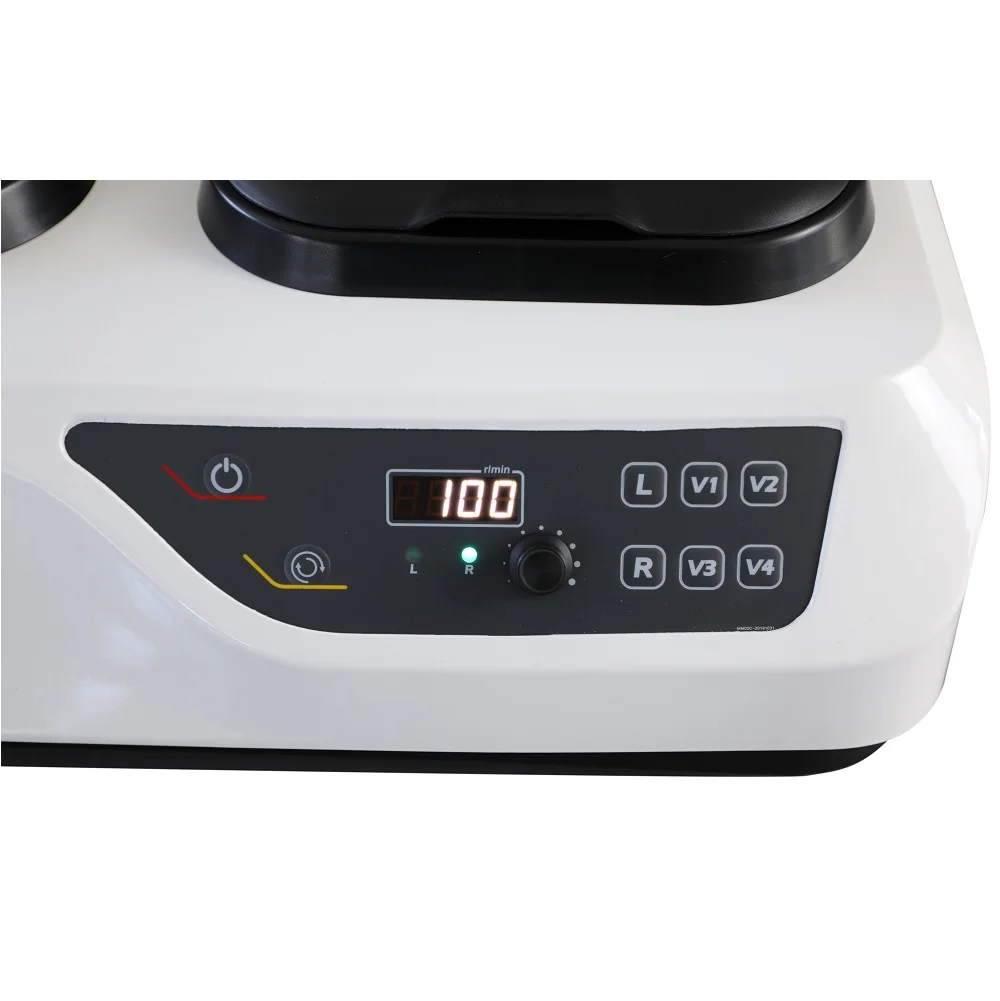

This grinder polisher is double plate. It is suitable for pre grinding, grinding and polishing metallographic specimens. Since the machine is speed-adjusted by microprocessor, it can run at a revolution of 0 to 1000rpm/1400rpm,which favors the machine with wide applications. The machine is equipped with cooling system that can cool down the specimen during pre grinding so as to prevent overheating and damage the metallographic structure. Featuring easy operation and reliable performance, it is an indispensable device for the factories, research institutions and college labs to prepare metallographic specimen.
Technical Parameters
Model | MoPao®200DE | MoPao®250DE |
Wheel diameter | Φ203mm | Φ250mm |
Rotational speed | 0-1400r/min | 0-1000r/min |
Constant speed | 150 r/min ,300 r/min,600 r/min,1000 r/min | |
Grinding polishing disc control | Double, there is two motors | |

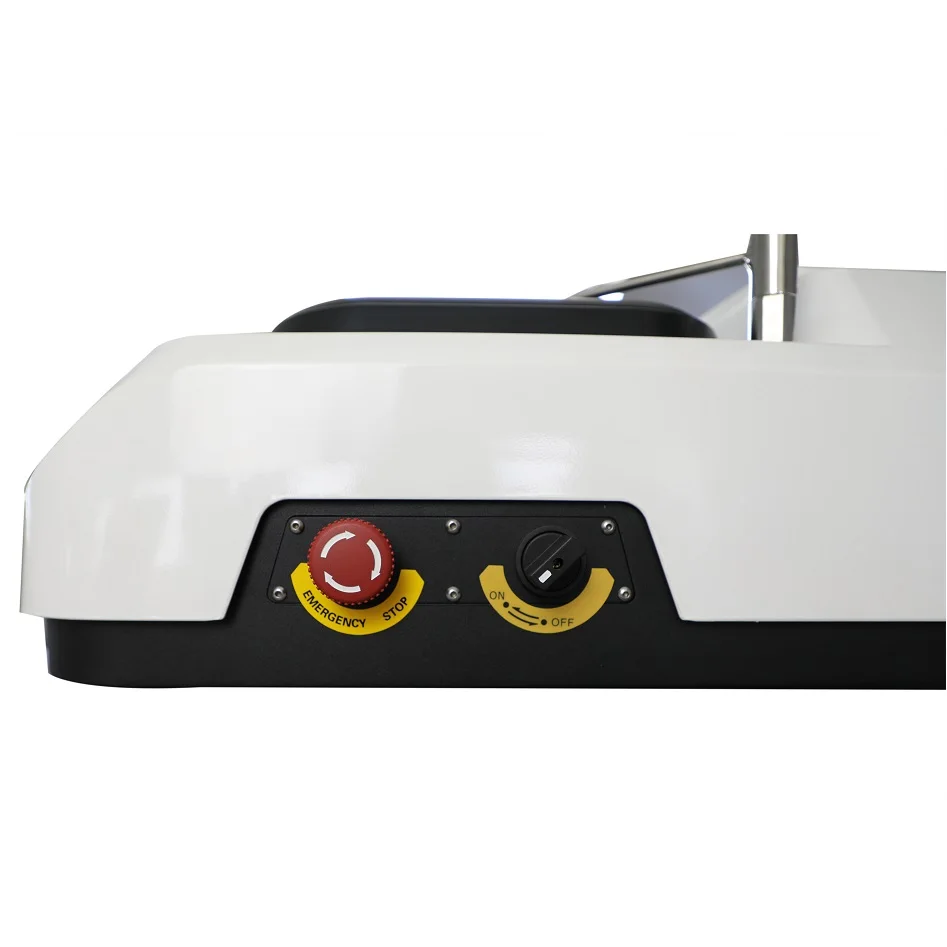

Emergency stop | YES | |
Rotational direction | Clockwise or anticlockwise | |
Input voltage | AC220V 50Hz | |
Wheel quantity | 2PC | |
Input power | 1.5KW | |
Dimension | 758mm x785mm x310mm | |
Net weight | 50kg | |
Related Products
Model: HRS-150S HR-150A DHB-3000 HV-1000SPTA HV-5SPTA
Enter to Related website on Alibaba by Clicking product models
Model: MoPao 3s MoPao 200DE MoPao 200DE MoPao 200 MoPao 3
Enter to Related website on Alibaba by Clicking product models
Model: Iqiege7160s LDQ-350A Iqiege6100Z Iqiege 50S Iqiege 160Z
Enter to Related website on Alibaba by Clicking product models
Model: Ixiang-5 Ixiang-5S VIM-1 ZXQ-2 XQ-2B
Enter to Related website on Alibaba by Clicking product models
Laizhou Weiyi experimental machine manufacturing Co.,Ltd.
was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .
In 2004 the company passed the ISO9001 quality management system certification,
in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.
Our Product range is following,kindly let me know which model do you need.
Metallographic grinding polishing machine
Metallographic specimen cutting machine
Metallogrphic mounting press
Hardness tester(Rockwell,Brinell ,Vickers,Multifunctional ,Shores)
Spin coater
Diamond wire saw
Contact Person: Ichuka Lang
Skype: ichuka.lang
Mobile: 86 133 2515 5105 (We Chat and Whatsapp)
Email: sales(@weiyi.cc)
