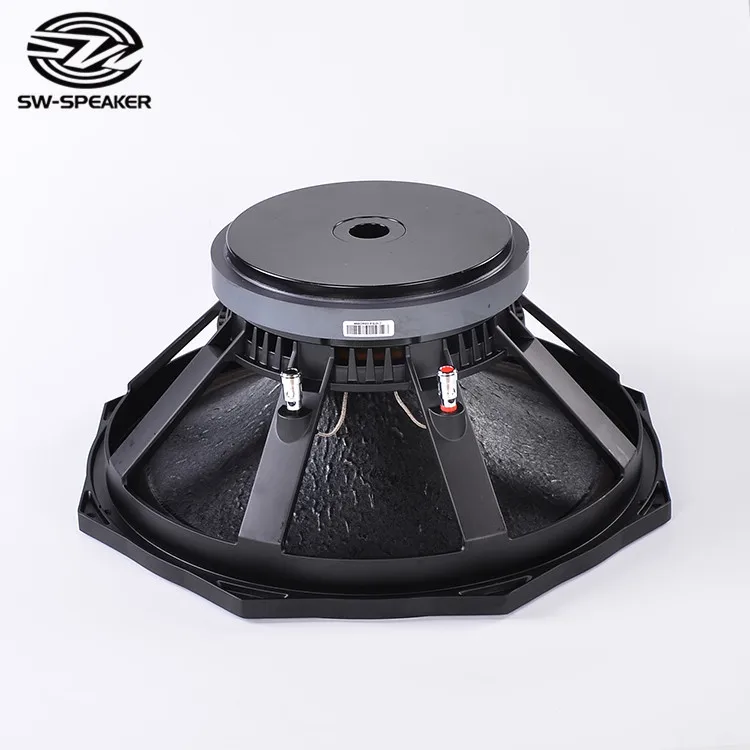

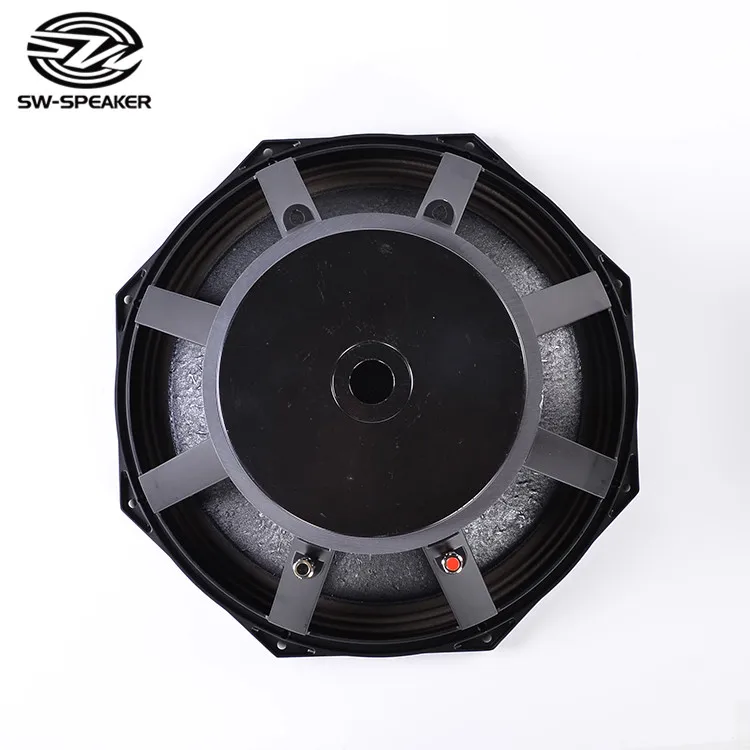

5050 500W 98db active speakers

Product Overview

Description



5050 500W 98db active speakers



 What's the details of our speaker driver 5050?

a).15 inch  voice coil Diaphragm,

b).4 Ohm rated impedance

c). 500Watt power AES

d).98dB sensitivity

e).40-2000H frequency range

f). Environmental with standing outdoor



What's the specifications of our speaker driver?

Model	5050
Typical Characteristics
Rated impedance	Z	4	8	Ω
Reference efficiency (1W@1m)	–	98	98	dB SPL
Usable frequency range	–	40-2000	40-2000	Hz
Power handing Capacity (AES)	–	500	500	W
Max Sound Pressure Level	SPLmax	121	121	dB SPL
Min.impedance modulus	Zmin	6.2@240Hz	3.1@250Hz	Ω
Voice-coil inductance @ 1kHz	Le1K	1.47	0.73	mh
Voice-coil inductance @ 10kHz	Le10K	0.61	0.31	mh
Bl Product	Bl	23.4	16.4	N/A
Moving mass	Mms	0.109	0.109	kg
Thiele-Small Parameters:Typical (QC Limits)
Resonance frequency	Fs	38(±5)	38(±5)	Hz
DC resistance	Re	5.6(±0.5)	3.0(±0.3)	Ω
Mechanical quality factor	Qms	4.3	4.3	1
Electrical quality factor	Qes	0.27	0.29	1
Total quality factor	Qts	0.25	0.27	1
Mechanical suspension compliance	Cms	160	160	10-6m/N
Effective piston area	Sd	0.0892	0.0892	m2
Equivalent Casair load	Vas	0.18	0.18	m3
Max.linear excursion	Xmax	±7.0	±7.0	mm
Linear displacement volume	Vd	0.624	0.624	10-3m3
Half-space efficiency		3.6	3.3	%
Unity load volume	Vas Ots2	11.3	13.3	10-3m3
Absolute maximum patings
Short term max.input voltage 7	Vmax	125	90	V
Max. excursion before damage	Xdam	14	14	mm
Ambient operating temperature			-10 to +50	℃
Sttorage temperature 8			-20 to +70	℃
Environmental conditions 9			outdoor
Application Information
Air volume occupied by the driver 10		4.3	4.3	10-3m3
Speaker net mass		9.1	9.1	kg
Recommended reflex box	Vb /Fb                                 75/44              L/Hz
Recommended reflex box	A positive voltage applied on the red terminal produces forward cone motion
