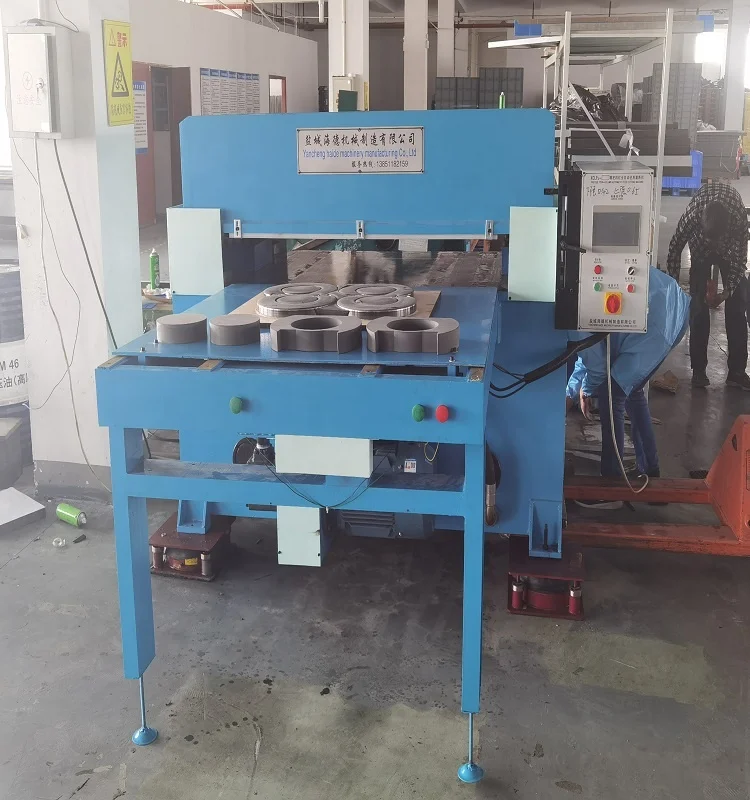

automatic Automobile sound insulation cotton die cutting machine

Product Overview

Description

Product Features:
• This machine is suitable for continuous blanking of multiple or single layer of sheet material, for example, it can be used in the industries of blister, foam, floor, felt, etc.
• Double oil cylinder, precise four-column automatic balancing two-link mechanism,

• When the cutting head is pressed down, it will automatically slow down before contacting the cutting tool 10mm. Two-stage pressure is applied. When the upper working plate is pressed down to the cutting tool, it will turn to be flexible and cut off, thus reducing the size error between upper and lower layers when cutting multi-layer materials.
• Single and double-sided automatic feeding mechanism and automatic lubrication system, PLC computer touch screen program control, simple operation, less failure rate, uniform cutting force, can improve work efficiency.
• Using imported hydraulic system and Taiwan, Japan electrical appliances matching, power saving, low noise, simple operation.

Product application:
sandpaper, medicine, plastic, foam, floor, felt, car interior, PP,PE,EVA,EPE,EPP,EPS, sponge, rubber, bubble film, double-sided glue, advertising paste, magnetic paste, insulation cotton, pearl cotton, computer accessories, paper, mat, Xuan paper, fan, seal, protective clothing, film, jigsaw puzzle, chocolate, filter material, sound-absorbing cotton, corrugated board, clean cloth, non-woven cloth, leather, seat cover, foot pad, umbrella, mouse pad, carton, cup, tablecloth, simulation flower, raincoat, hat, ear cover, mask, glove, insole, coaster  Loofah cloth, blanket, cork, plaster, nuts, soundproof cotton,
Product data:

Model No.	Cutting force	Stroke Range	Area of Work Table	Main Motor Power	Driving power	Dimension
XCLP3-300	30T	50-190mm	1600*500mm	2.2KW	1.5kw	2250*1000*1400
XCLP3-350	35T	50-190mm	1600*610mm	2.2KW	1.5kw	2250*1000*1400
XCLP3-400	40T	50-190mm	1600*700mm	3KW	1.5kw	2230*1100*1400
XCLP3-500	50T	50-190mm	1600*800mm	4KW	1.5kw	2250*1200*1450
XCLP3-600	60T	50-159mm	1600*900mm	5.5KW	1.5kw	2350*1300*1500
XCLP3-800	80T	50-190mm	1800*1500mm	7.5KW	2kw	2600*1900*1500
XCLP3-1000	100T	50-190mm	2000*1400mm	7.5KW	2kw	2800*1800*1500
XCLP3-1500	150T	50-190mm	2100*1100mm	11KW	2kw	2950*1500*1550
XCLP3-2000	200T	50-190mm	2600*1800mm	18.5KW	2.5kw	2950*2600*1690
XCLP3-2800	280T	50-190mm	3200*2400mm	18.5KW	3kw	4050*3250*1710
XCLP3-3000	300T	50-190mm	2800*1600mm	18.5KW	2.5kw	3550*2280*1710
XCLP3-3500	350T	50-190mm	3900*2700mm	22KW	3kw	4680*3560*1750
XCLP3-4000	400T	50-190mm	4600*3500mm	22KW	3kw	5600*4380*1750

 If the above table does not have the size of the cutting machine you need, we can remake it for you.

REMARK: MY FACTORY CAN MAKE THE MACHINE ACCORDING YOUR ORDER, FOR EXAMPLE, THE CUTTING FORCE, CUTTING AREA, FEEDING DEVICE, SPECIAL STROKE ETC

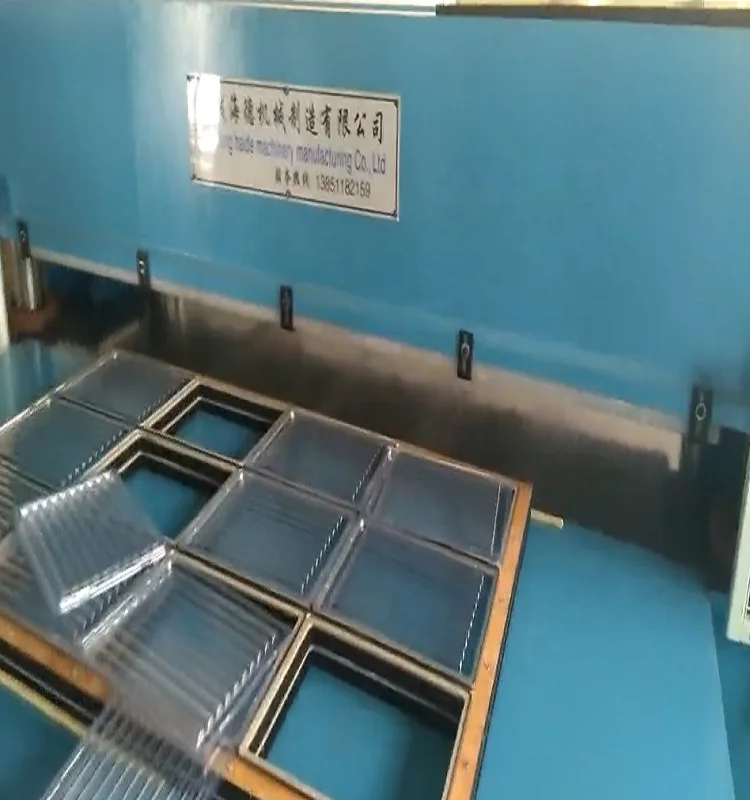

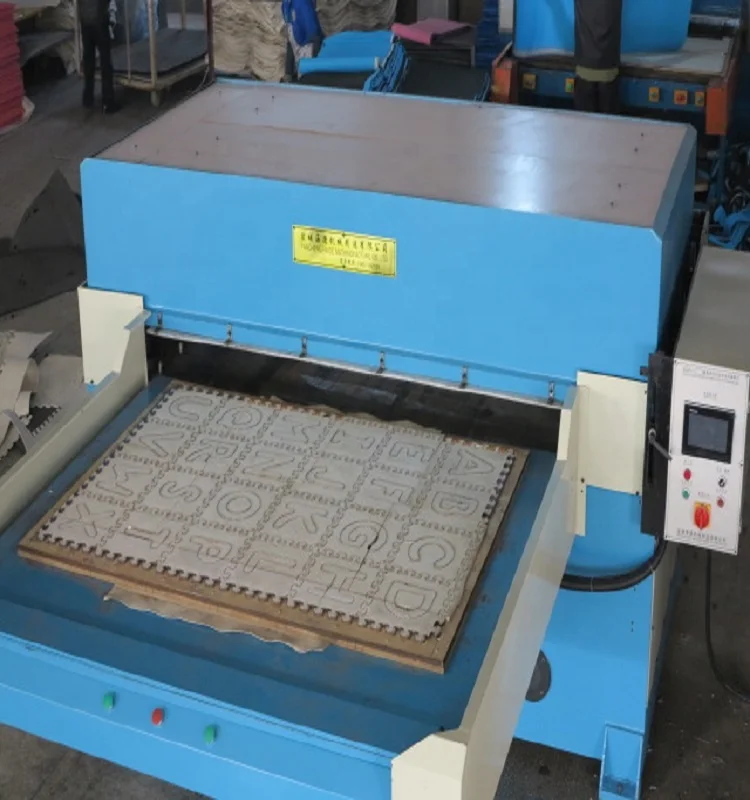

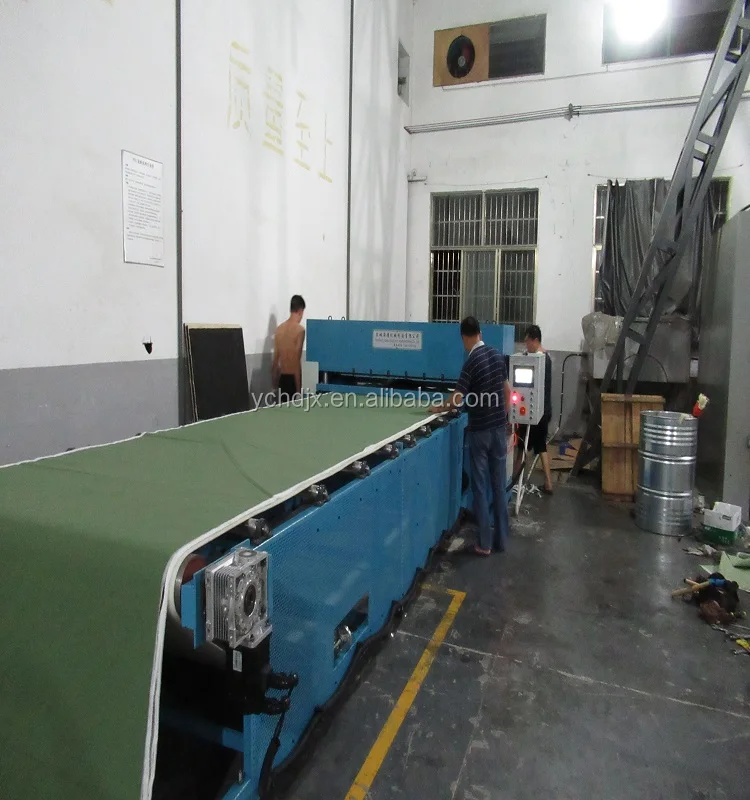

Product Application Case:

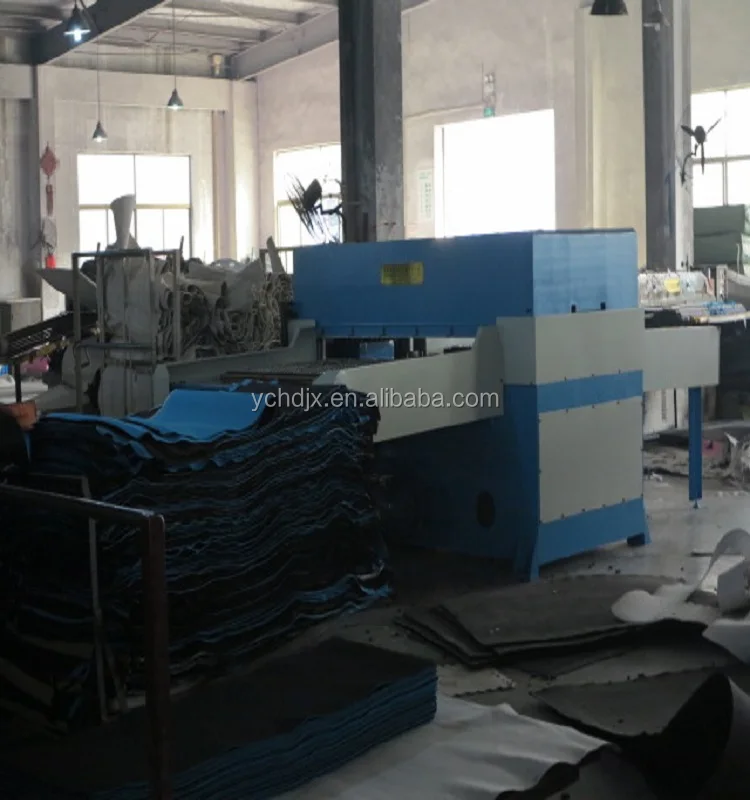

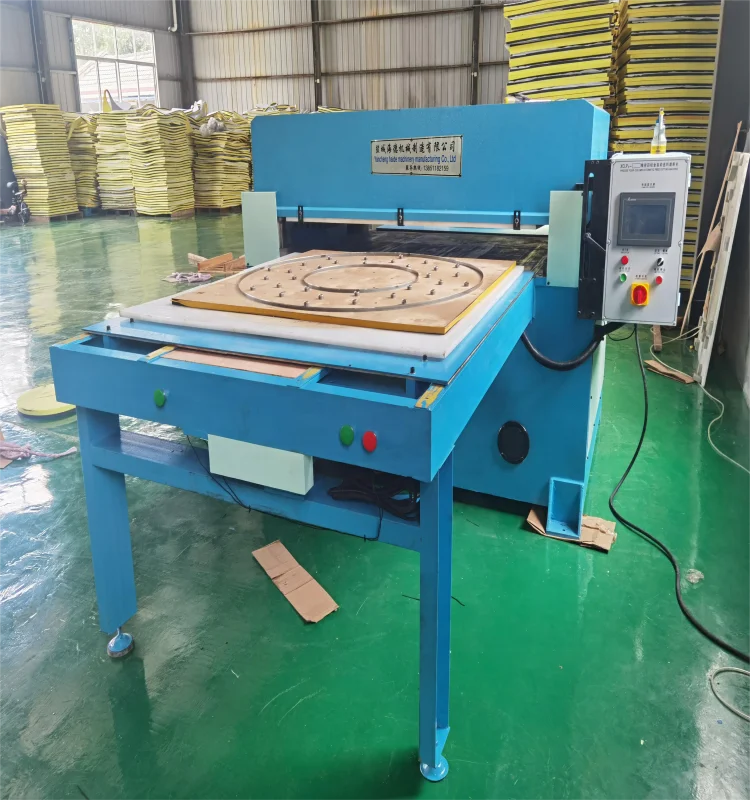

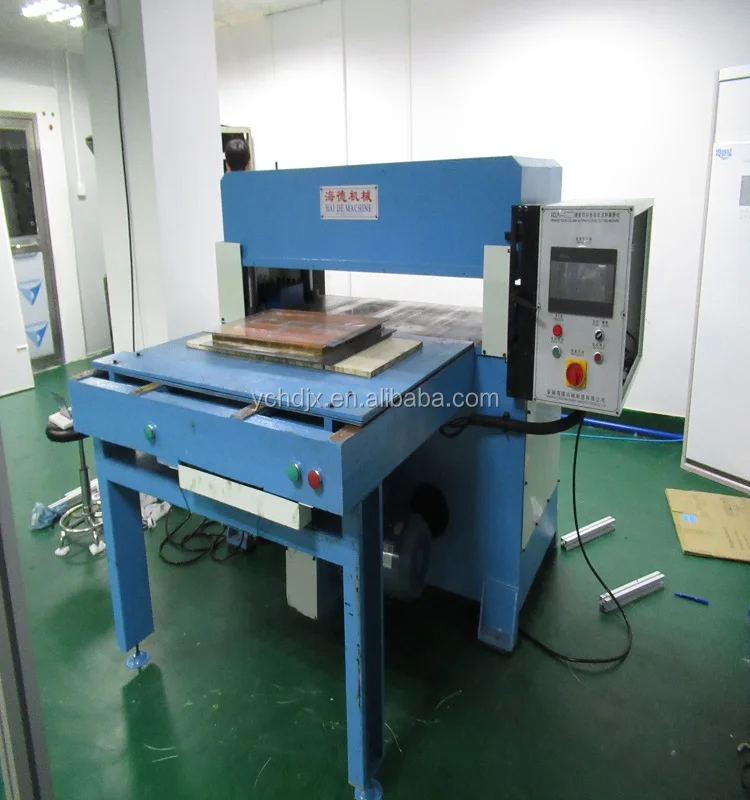

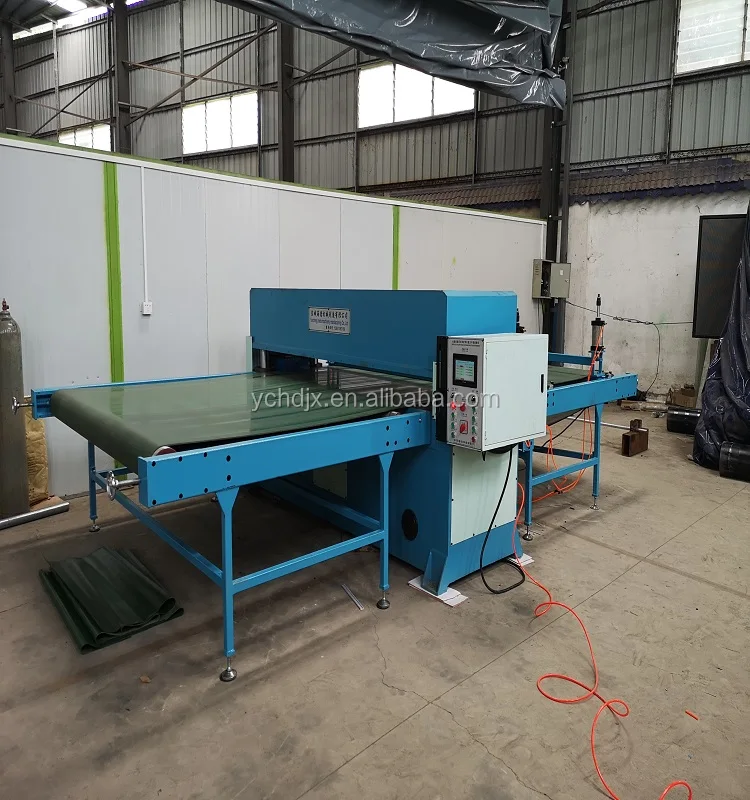

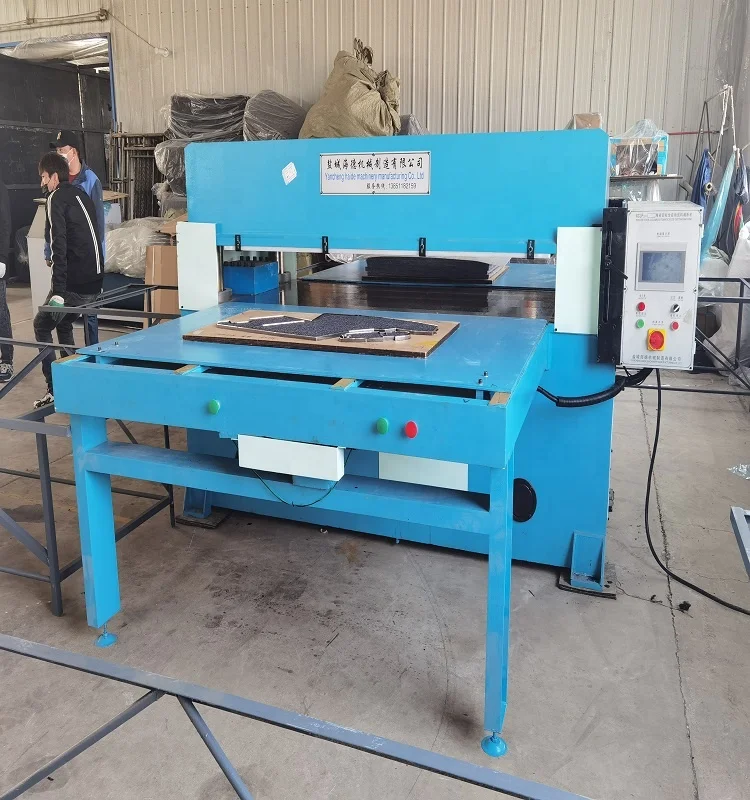

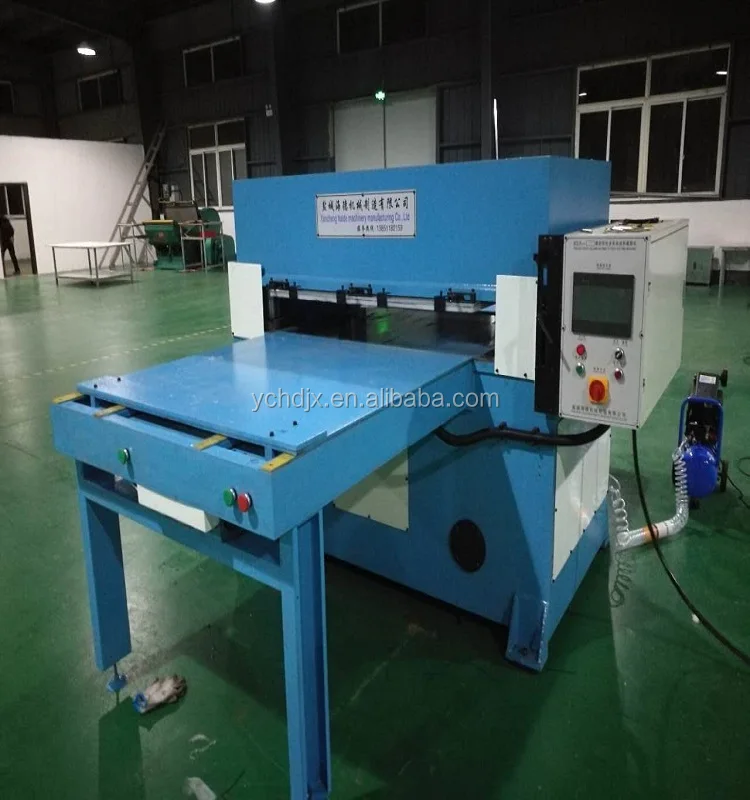

Product picture:





















Product packaging picture:

Product Certificates and Qualifications:

WHY CHOOSE HAIDE MACHINERY?

 1.More than 20 years experience in the field of die cutting machine.
2.Strictly Quality control

(Comparing with other company Hai De has our own quality control team, every product will be checked again and again before delivery according to standard.)

3.Reasonable price and quick delivery time

(We are the directly manufacturer of cutting machine and with full experience, the price is competitive and we have our big factory working house and many experience workers can ensure the delivery time)

 4.OEM and ODM service.

(We have OEM for many oversea customers and we have our own ODM team can produce product on your demand accordingly )

 5.Professional salesman and good service

(All of our foreign sale man have to pass the strictly professional production knowledge training before their start to communicate with customer, and we will reply your inquiring asap no later than 24 Hours)

FAQ
1. Q: Are you a factory or trading company?
    A: Yes,we are a factory. welcomed to visit us

2. Q: Where is your factory located? How can I visit there?
    A: Our factory is located in Yancheng City,China. It takes about 1 hours from Shanghai by plane

3. Q: What is the lead time?
    A: It depends on your order quantity

4. Q: Where is your Loading Port
    A: Shanghai. port, China or otheres as you request

5. Q: What are your payment terms?
    A: T/T 30% deposit and balance paid before shippment.
