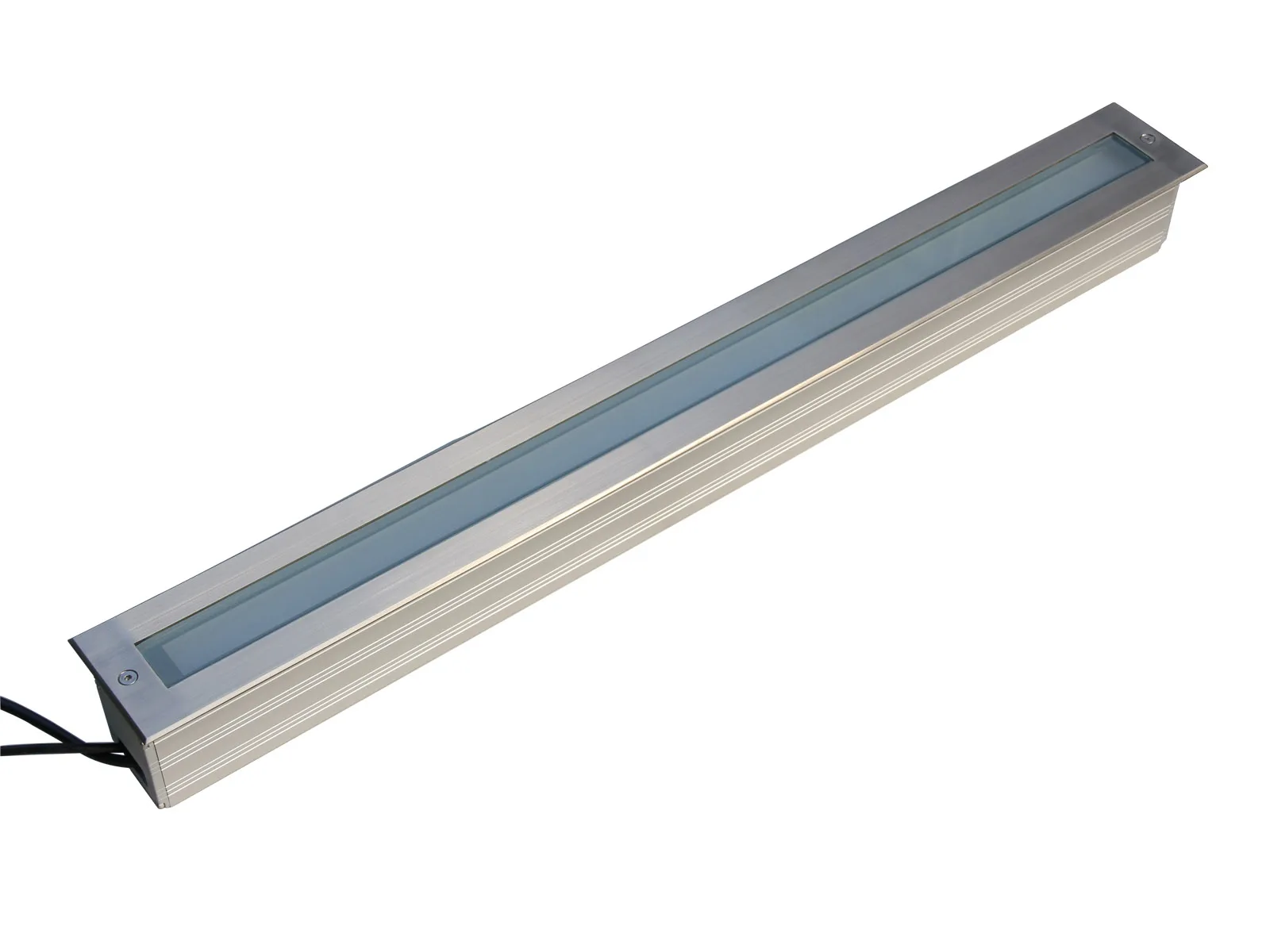

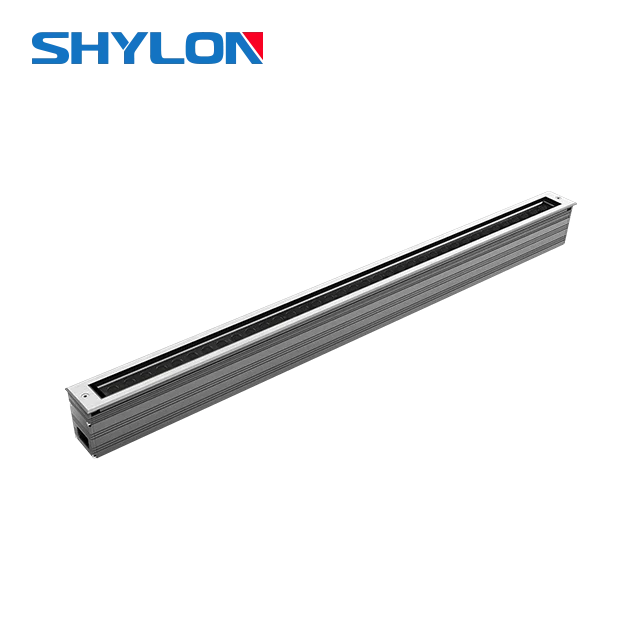

IP67 21W wall washing outdoor led linear inground lights
- Category: >>>
- Supplier: Beijing Bestpower Technology & Engineering Co. Ltd.
Share on (60237853709):
Product Overview
Description
Product Details
Characteristics
Characteristics

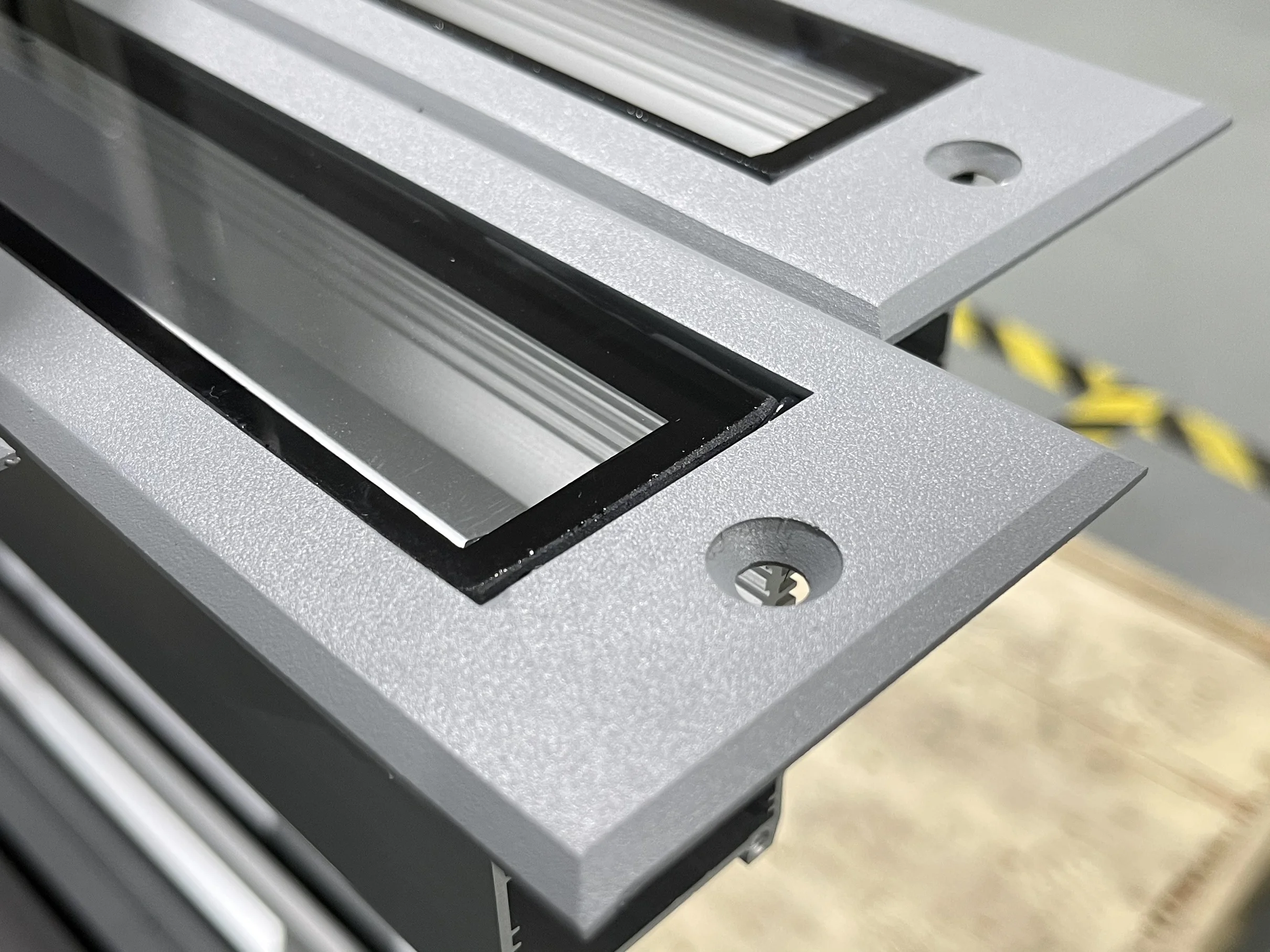

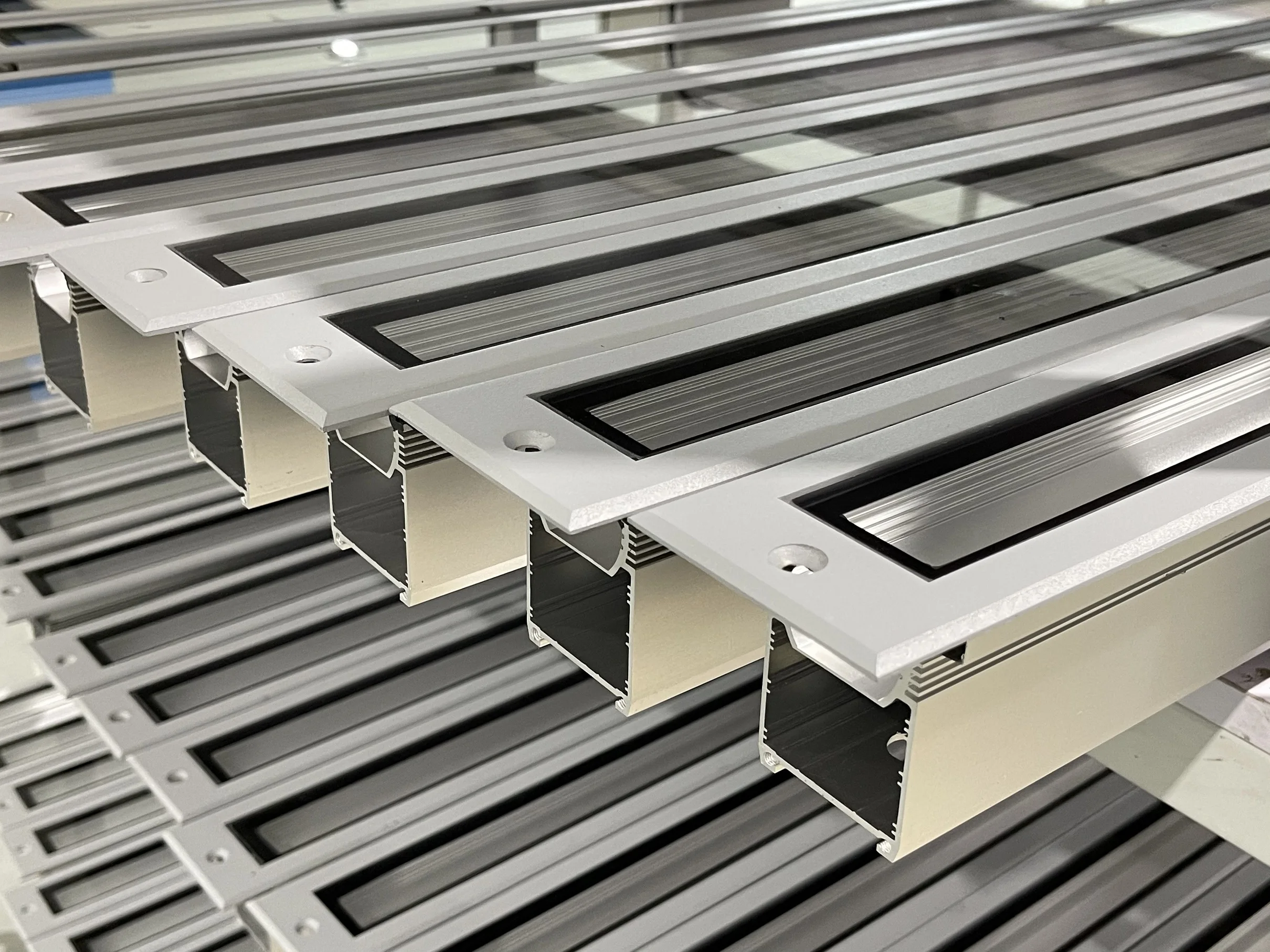

Housing: Extruded #6063 aluminum housing with die-casting aluminum caps complete with silicone gaskets. Surface with anodizing treatment; The top of the optical assembly is closed by a 4mm thickness high strength toughened glass, fixed with silicone.
Housing color: Aluminum silver Mounting: inground/underground mounted
Model: SL2306A-18
LED Chips: 18pcs CREE chips.
Light distribution: use optical PMMA secondary light distribution technology, viewing angle, light-gathering effects can be adjusted by various lens according to demands.
Protection grade: IP67
LED Chips: 18pcs CREE chips.
Light distribution: use optical PMMA secondary light distribution technology, viewing angle, light-gathering effects can be adjusted by various lens according to demands.
Protection grade: IP67
Specification
Input Voltage: DC24V/AC100-240V, 50/60Hz
Rated Power: 21W
Color Temperature: single/RGB
CRI: 80
Efficiency: >70lm/W (white)
Control: CC/DMX512
Beam Angle: 5°/8°/12.5°/20°/30°/45°/ 60°/15X30°/10*60°
Operating Temperature: -25℃-50℃
Life span: 50000h
Warranty: 2 years for whole light
Color Temperature: single/RGB
CRI: 80
Efficiency: >70lm/W (white)
Control: CC/DMX512
Beam Angle: 5°/8°/12.5°/20°/30°/45°/ 60°/15X30°/10*60°
Operating Temperature: -25℃-50℃
Life span: 50000h
Warranty: 2 years for whole light
Model | SL2306A-36 | SL2306A-24 | SL2306A-18 | SL2306A-9(0.5m) | SL2306A-7(0.3m) | SL2306H-24 | |||||
LED Quantity | 36pcs | 24pcs | 18pcs | 9pcs | 6pcs | 24pcs | |||||
Rated Power | 42W | 28W | 21W | 11W | 7W | 48W | |||||
Input Voltage | DC24V/AC100-240V, 50/60Hz | DC24V | |||||||||
Color Temperature | RGB/Single | RGB/Single | RGB/Single | RGB/Single | RGB/Single | RGBW | |||||
Beam Angle | 5°/8°/12.5°/20°/30°/45°/ 60°/15X30°/10*60° | 20°/40°/60°/ 15X60° | |||||||||
Control Mode | DMX512/CC | DMX512 | |||||||||
Protection Grade | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | |||||
Ambient Temp. | -25℃-50℃ | ||||||||||
Installation Instructions
Certifications
Our Wall washer light series has gotten EMC(CE), LVD(CE), RoHS certificate, and passed IP67, EN62471 and EMF test.
Relalted Products

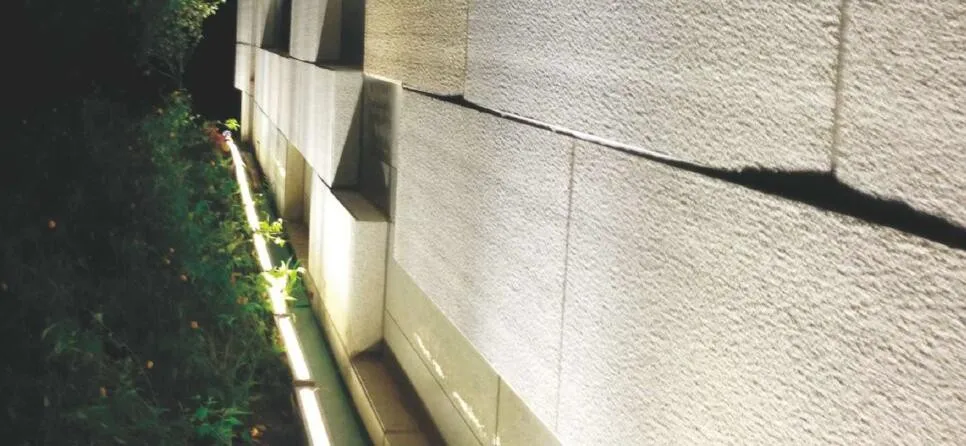

Project Reference
About Us
About Us
Our factory covers an area of 33000 m2, total 212 employees, producing over 5000 sets daily. In 2019, our total sales amount to USD 24 million. We have established provincial-level standard testing center, which owns distribution photometer, spectral protocol, optical detection apparatus and etc. All products are tested in our laboratory to ensure that they meet the highest standards of performance, light quality and longevity. We pursue win-win and international cooperation, ‘While our lights are developed and produced carefully and with an eye on the future by our team’. Let’s start our win-win cooperation from now.
Exhibition
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available, and 10pcs for mass order.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
