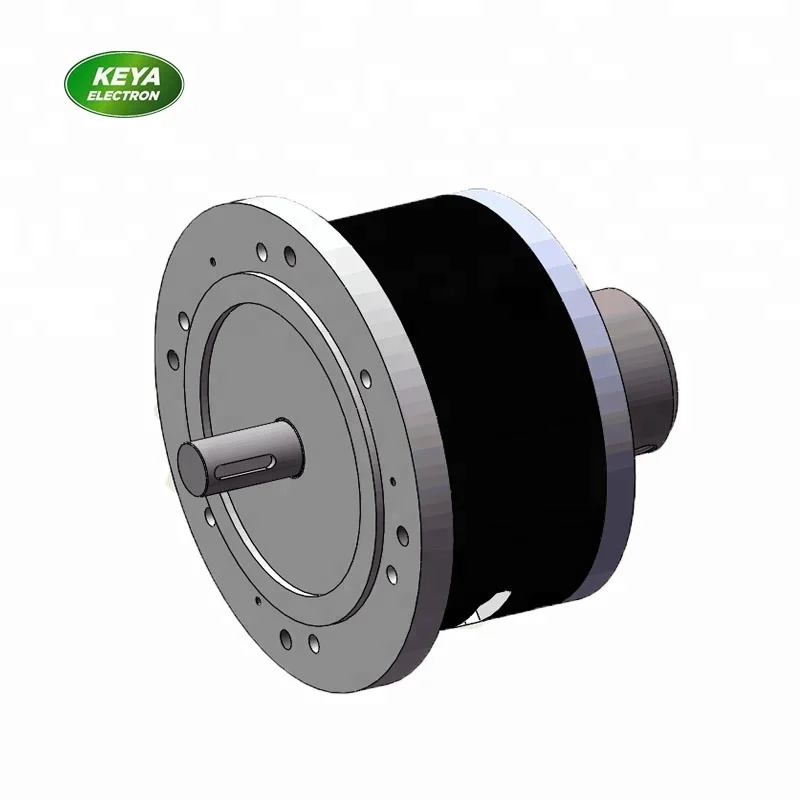

48V4000W Electric Rail Vehicle Brushless DC Motor,Pancake motor
- Category: >>>
- Supplier: Jinan Keya Electron Science And Technology Co. Ltd.
Share on (60237942098):
Product Overview
Description
48V 4KW Electric Rail Vechile Brushless DC Motor
Model | Volt | Power | Speed | Torque | Encoder | Brake |
KY190BL0202-15 | 24V | 2KW | 1500RPM | 12.7N.M | NO | NO |
KY190BL0202-15B | 24V | 2KW | 1500RPM | 12.7N.M | NO | YES |
KY190BLS0202-15 | 24V | 2KW | 1500RPM | 12.7N.M | YES | NO |
KY190BLS0202-15B | 24V | 2KW | 1500RPM | 12.7N.M | YES | YES |
KY210BL0404-15 | 48V | 4KW | 1500RPM | 25.4N.M | NO | NO |
KY210BL0404-15B | 48V | 4KW | 1500RPM | 25.4N.M | NO | YES |
KY210BLS0404-15 | 48V | 4KW | 1500RPM | 25.4N.M | YES | NO |
KY210BL0404-15 | 48V | 4KW | 1500RPM | 25.4N.M | YES | YES |
KY210BL0705-30 | 72V | 5KW | 3000RPM | 15.9N.M | NO | NO |
KY210BL0705-30B | 72V | 5KW | 3000RPM | 15.9N.M | NO | YES |
KY210BLS0705-30 | 72V | 5KW | 3000RPM | 15.9N.M | YES | NO |
KY210BLS0705-30B | 72V | 5KW | 3000RPM | 15.9N.M | YES | YES |
Technical Parameter
Frame | 190BLS0202-15B | 210BL0404-15B |
Rated Voltage | 24VDC | 48VDC |
Rated Power | 2KW | 4KW |
Rated Speed | 1500RPM | 1500RPM |
Rated Torque | 12.7N.m | 25.5N.m |
Peak Torque | 38 N.m | 75 N.m |
Rated Current | 110A | 104A |
Line Resistance | 0.017Ω | 0.029Ω |
Rotor Inductance | 0.065mH | 0.26mH |
Torque Constant | 0.115N.m/A | 0.241N.m/A |
Mechanical Time Constant | 5.78ms | 5.84ms |
EMF constant | 12V/Krpm | 25.3V/Krpm |
Insulation Resistance | 50MΩ | 50MΩ |
Pole | 4P | 4P |
Noise | 65dB | 65dB |
Level of protection | IP54 | IP54 |
Working system | S2 60min | S2 60min |
Temperature classification | H | H |
Environmental temperature | -20—60° | -20—60° |
Type of cooling | natural cooling | natural cooling |
Brake mode | power off brake | power offer brake |
Installation | vertical mount | vertical mount |
Feedback | Hall/Encoder | Hall/encoder |
Weight | 13KG | 17KG |
