silicone watch rubber vulcanizing making machine silicone vulcanize rubber
- Category: >>>
- Supplier: Qingdao Huicai Machine Manufacture Co. Ltd.
Share on (602379564):
Product Overview
Description
1. High speed open/close mold, high production efficiency, low mold-locking speed, protect mold.
2. Adopt new sealing material, excellent seal and long life.
3. Matching-advanced oil way reduces energy consumption.
4. Structure is simple; application is wide and easy to be operated
Type | XLB-D(Y)350x350x2 | XLB-D(Y)400x400x2 | XLB-D(Y)500x500x2 |
(MN)Nominal mounding power | 0.25 | 0.5 | 0.6,0.8 |
Working layer number | 2 | 2 | 2 |
(mm)Piston stoke | 250 | 250 | 250 |
(Mpa)Plate pressure | 2.04 | 3.13 | 3.2 |
(KW)Main moter power | 1.5 | 2.2 | 2.2 |
(mm)Plate chearanle | 125-200 | 125-200 | 125-200 |
Calefaction manner | Electricity (Oil) | Electricity (Oil) | Electricity (Oil) |
Configuration | Column, Frame | Column, Frame | Column, Frame |
(KW)Electric pipe heating power | 1.8 | 2.7 | 3.0 |
(V)Voltage | 220or as requirement | 220or as requirement | 220or as requirement |
Control mode | Manually or automatically | Manually or automatically | Manually or automatically |
|
Type | XLB-D(Y)450x450x2 | XLB-D(Y)500x1000x2 | XLB-D(Y)750x850x1 |
(MN)Nominal mounding power | 1.00 | 1.00 | 1.60 |
Working layer number | 2 | 2/4 | 2 |
(mm)Piston stoke | 300 | 300 | 300 |
(Mpa)Plate pressure | 4.94/2.78 | 2.00/2.08 | 2.51/2.50 |
(KW)Main moter power | 2.2 | 2.2 | 2.2 |
(mm)Plate chearanle | 125-250 | 125-250 | 125-250 |
Calefaction manner | Electricity (Oil) | Electricity (Oil) | Electricity (Oil) |
Configuration | Column, Frame | Column, Frame | Column, Frame |
KW | 2.7/3.6 | 5.4/4.8 | 4.8/4.8 |
We can also design and produce according to customer’s requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time
Notice:According to the different models have different price, please send your need to type and quantity of the product.

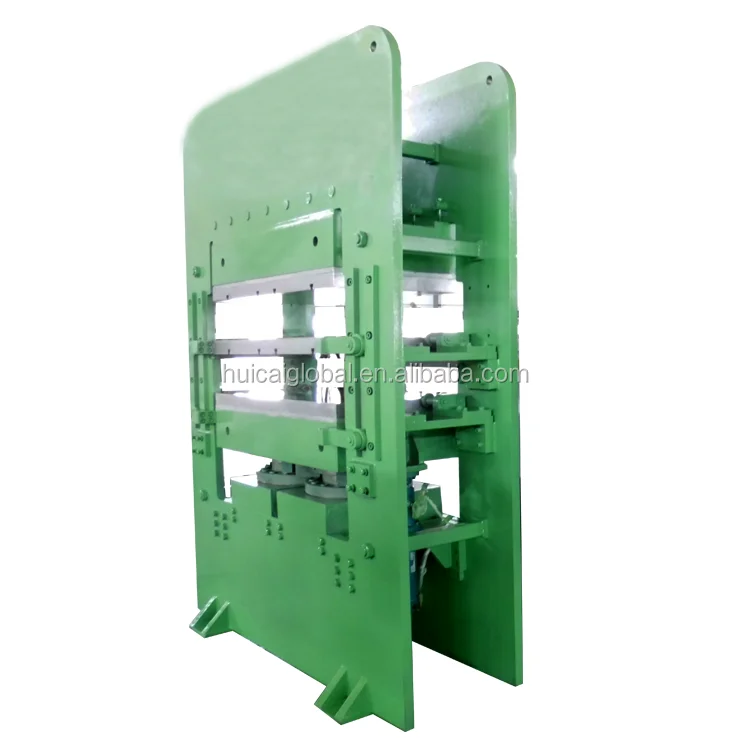

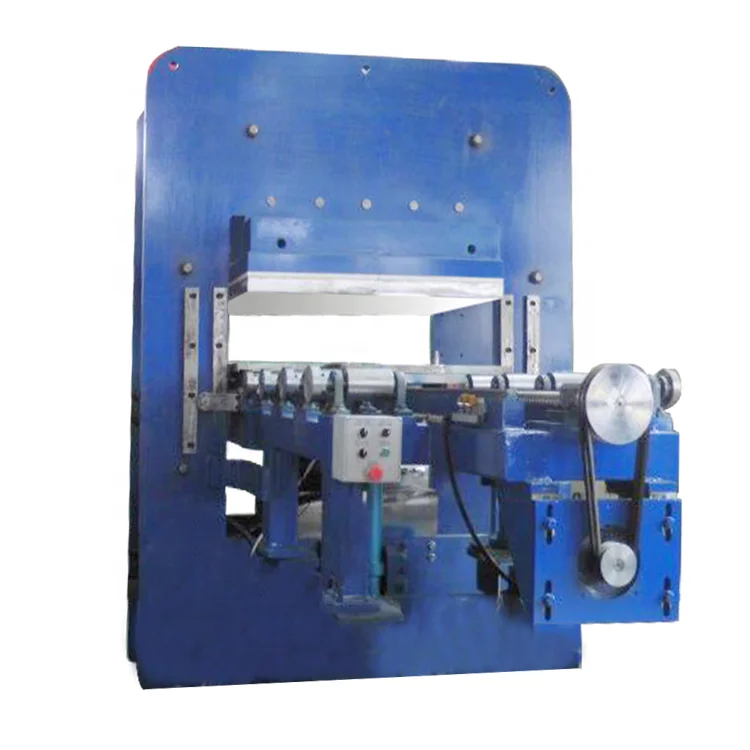

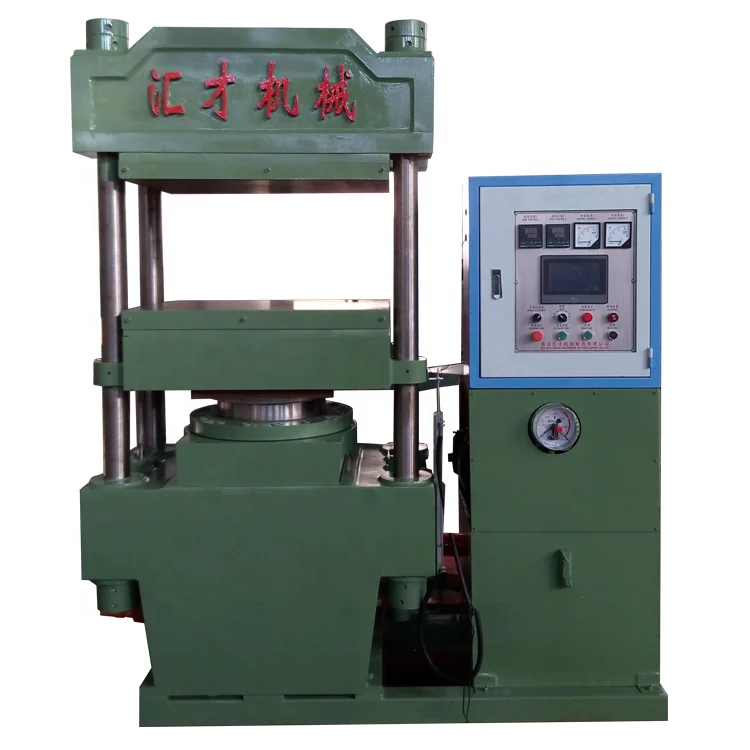

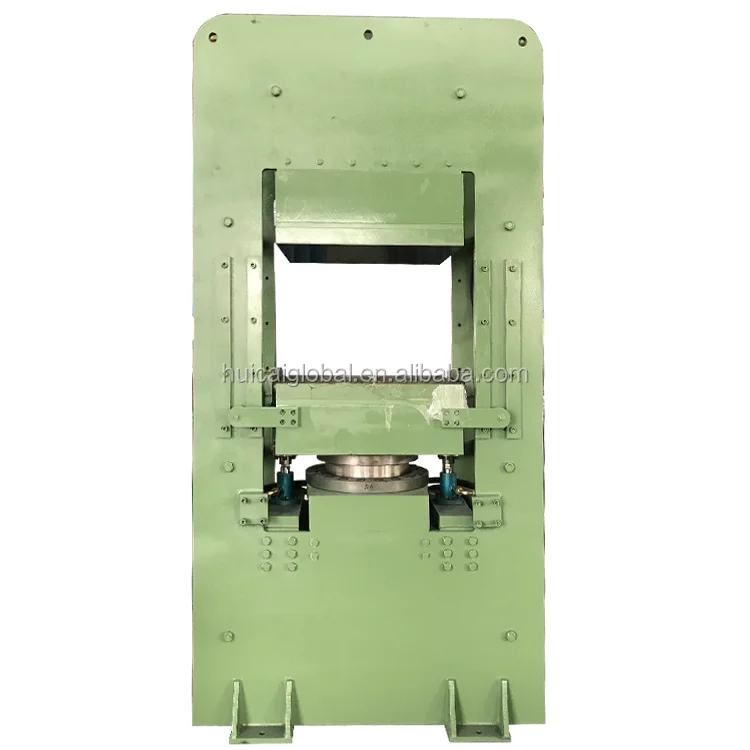

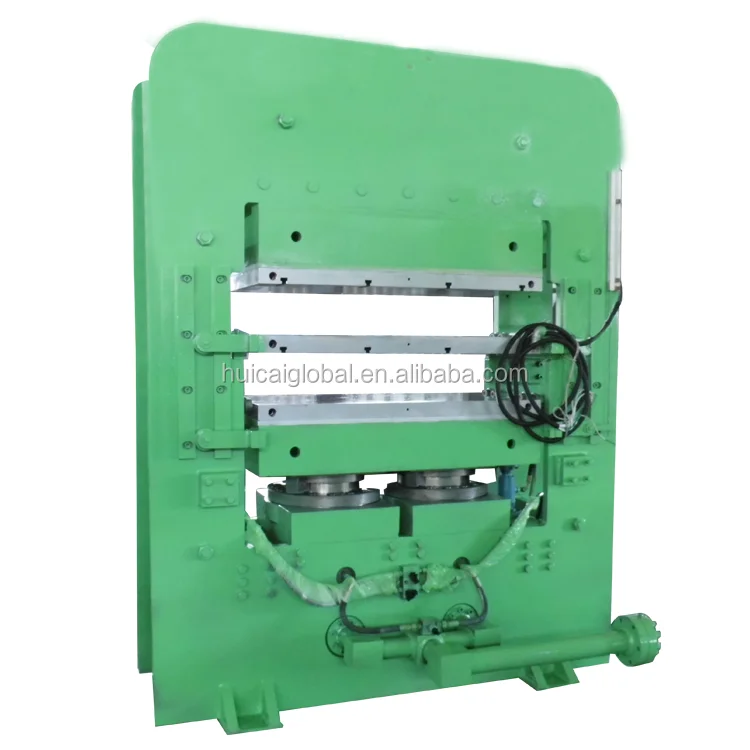

Detailed Images
We are looking forward to cooperating with you!
