Product Overview
Description
1550nm DWDM Fiber Optical Amplifier EDFA
Products Description
Overview:

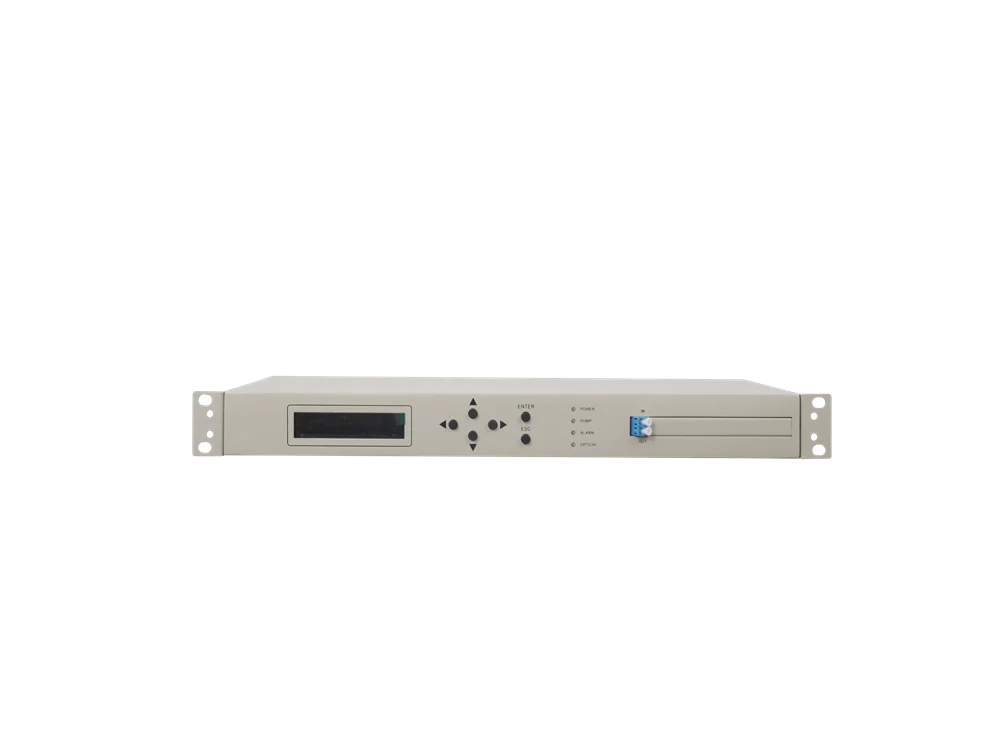

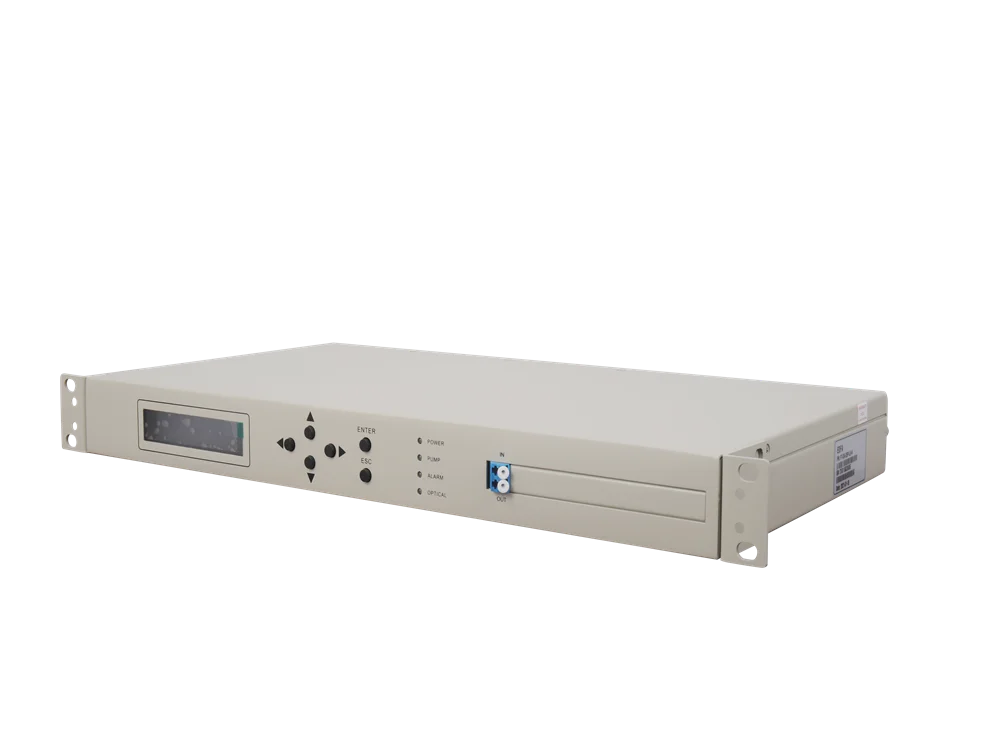

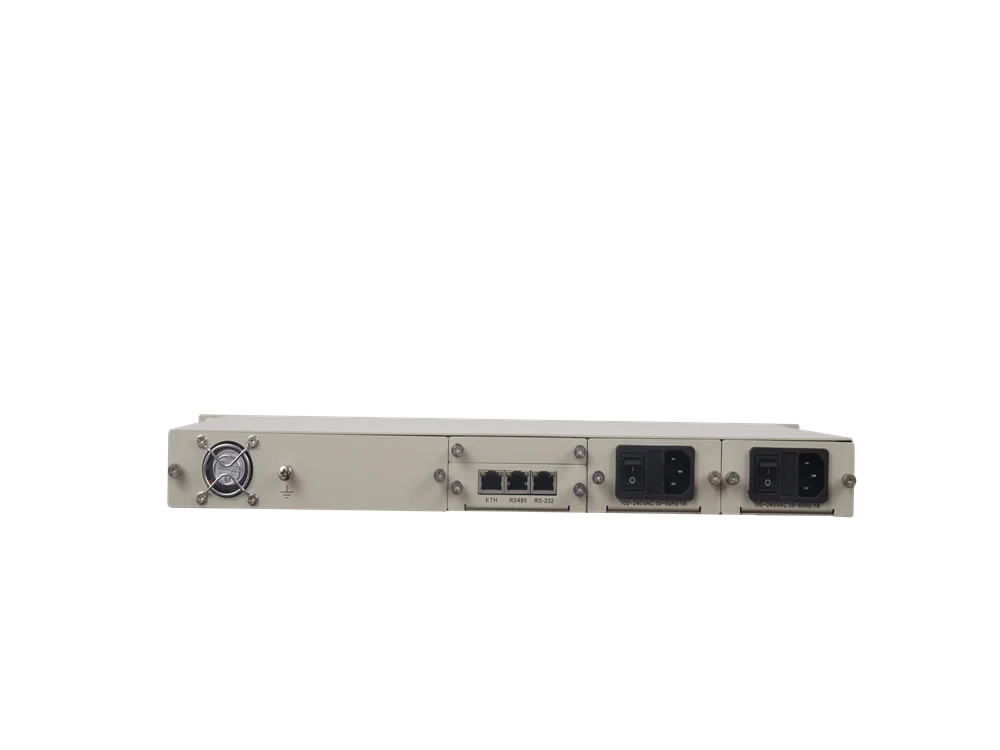

This product is a 1U rack series erbium-doped fiber amplifier. It uses a highly stable microprocessor to enable the amplifier to amplify in the C-band. The maximum output power can reach 24dBm, and it has good noise performance.
Features:
1. Low noise distributed amplification
2. Simple and convenient operation
3. Suitable for DWDM system
4. Support L-band amplifier
5. The maximum output power can reach 24dBm
6. Support fixed gain or adjustable gain
7. Support WEB and SNMP network management functions
3. Suitable for DWDM system
4. Support L-band amplifier
5. The maximum output power can reach 24dBm
6. Support fixed gain or adjustable gain
7. Support WEB and SNMP network management functions
Parameters
Parameter | Min | Ty | Max | Unit | ||
Wavelength | C-band | 1528 | ------ | 1568 | nm | |
L-band | 1572 | ------ | 1603 | nm | ||
Output power | ------ | ------ | 24 | dBm | ||
Input power | -35 | ------ | +10 | dBm | ||
Adjustable Gain Range | ------ | 10 | 15 | dB | ||
noise figure | ------ | ------ | 6 | dB | ||
Output power stability | ------ | ±0.05 | ±0.1 | dB | ||
DWDM | ------ | 1.0 | ----- | dB | ||
Power consumption | ------ | ------ | 20 | W | ||
International market: Our partner
Company profile and factory
We are the manufacturer about edfa fiber amplifier in China and our company has long focused on the innovation and engineering of light amplification technology, optical fiber transmission technology, and optical fiber detection technology. What we have achieved:
1. Independently developed aerospace-grade optical fiber amplifier equipped with Tiangong-2
2. Cooperative supplier of many leading enterprises
3. Obtained special support for major instruments from the Ministry of Science and Technology
4. EYDFA achieved the largest shipment in China and launched a series of optical fiber communication subsystems.
1. Independently developed aerospace-grade optical fiber amplifier equipped with Tiangong-2
2. Cooperative supplier of many leading enterprises
3. Obtained special support for major instruments from the Ministry of Science and Technology
4. EYDFA achieved the largest shipment in China and launched a series of optical fiber communication subsystems.
5. Revolutionary breakthroughs have been made in technologies such as high-speed scanning light sources and pulse energy detection
6. The first supplier in China to develop commercial EYDFA products.
