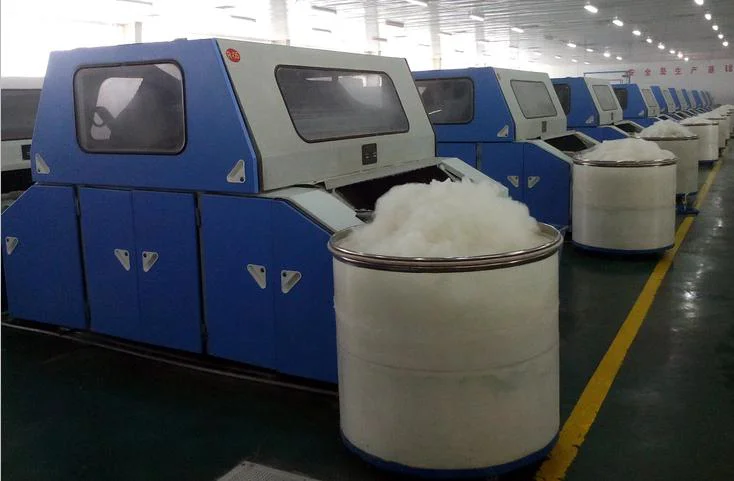

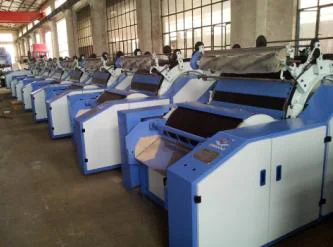

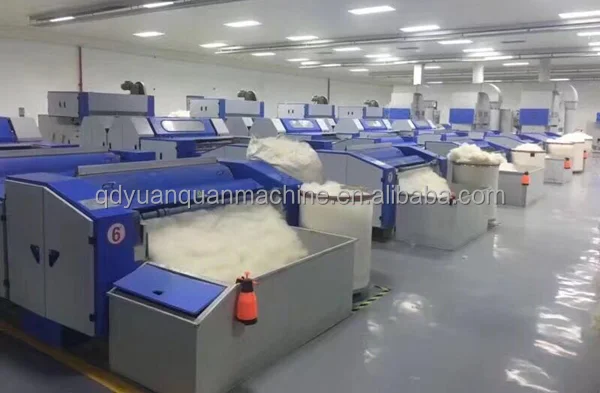

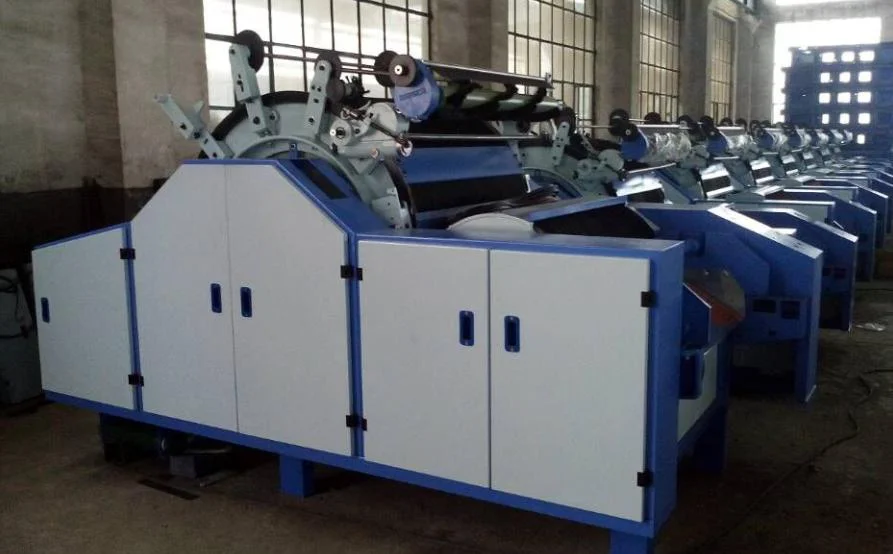

Mongolia most Popular fine man made A186 textile/wool carding /dehaired machine

Product Overview

Description

              Mongolia fine  man made  ----A186 textile/wool

                                     carding machine

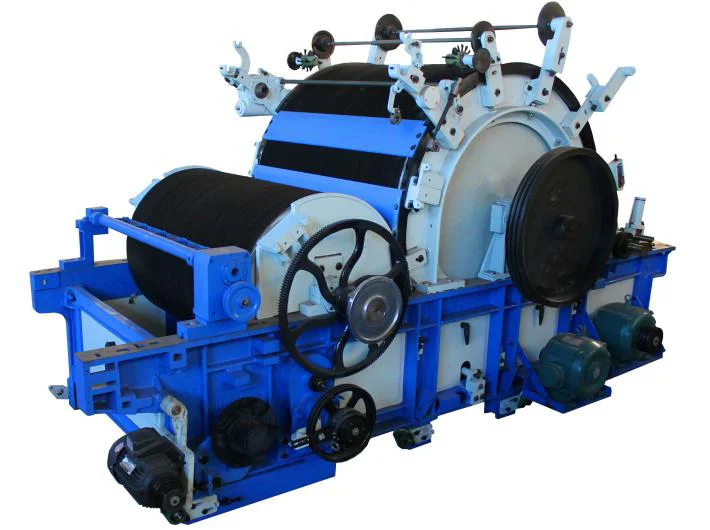

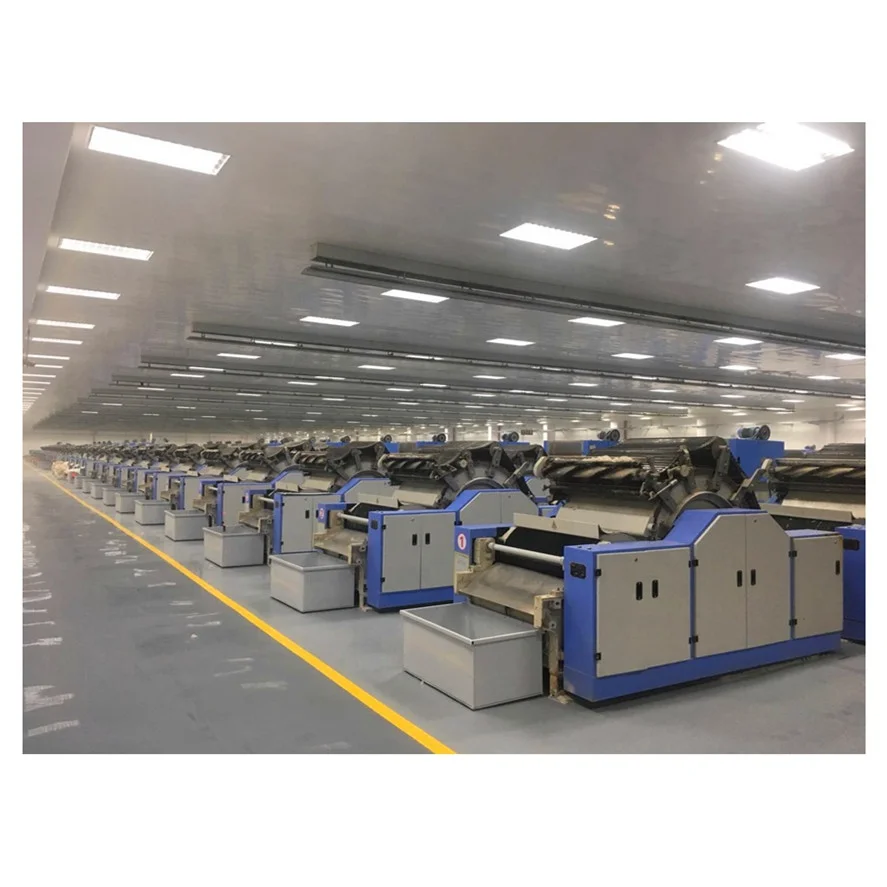

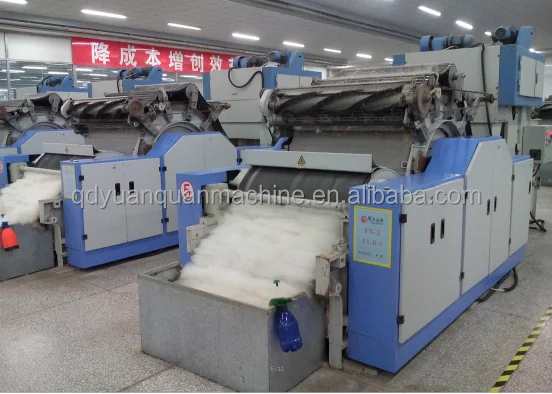

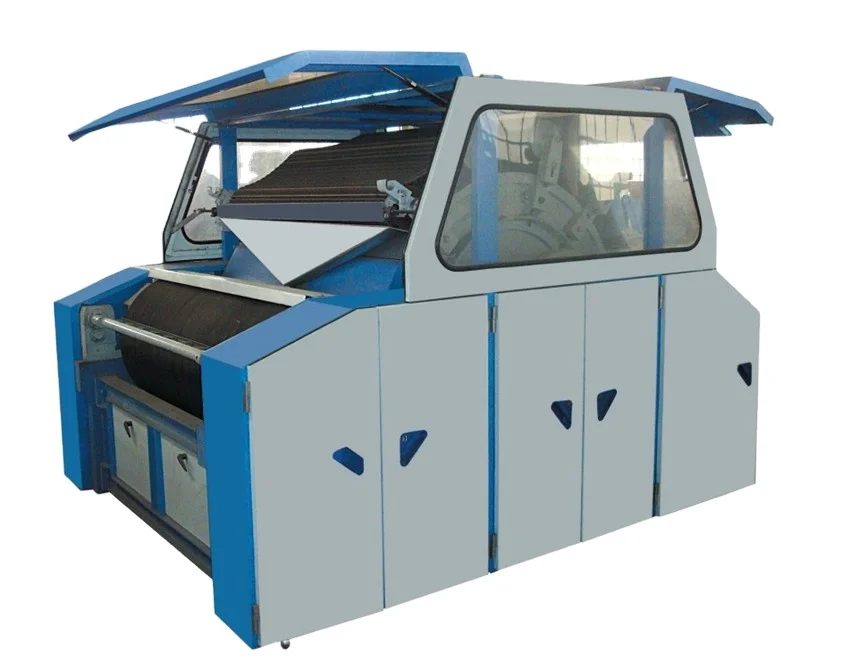

     Cashmere Dehairing Machine is suitable for cashmere, camel, yak and other raw materials. Main role is to open the wool, remove the dust, remove coarse wool to make qualified cashmere wool.

• Cylinder transmission using centrifugal friction clutch and v-belt for driving ,with reliable structure ,smooth start ,the motor sit on the rack ,no need of anchor bolts.


• Randolph transmission using electromagnetic clutch, electromagnetic switch outside the shield , operating easier safer and more effective then before.


• The bottom is 6mm closer then before ,reduce the loss of the short velvet


• the board is 42mm width ,reduce the loss of fiber


• Feed roller using spring-loaded , more convenience and feeding uniform.

         Specifications and technical parameters





Name	Cashmere carding machinery
Model number	A186
Machine width	1020mm
Dimensions(LWH)	3300mm*1800mm*1800mm
Cylinder working speed	180-210r\\min
Randolph working speed	10-12r\\min
Licker working speed	500-600r\\min
The chooper frequency	1200\\min
Cover root number	2-4r\\min
The main motor	YQ-DJ-2.8-960(2.8kw 960r/min)
Weight	4100Kg
Output	5-6Kg\\h
Fiber loss	<2%











.reply your inquiry in 24 working hours.

.Experienced staffs answer all your questions in profession and fluent English.

 Engineers available for overseas service according to request.

.Customized design is available OEM&ODM are welcome.

. Prominent and unique solution can be provided to our customer by your our well-trained and professional engineers and staffs.

.Special discount and protection of sales area provided to you distributor.

.Do the best of textile machinery such production like carding machine,opening machine,recycling machine  in China and we have our own raw material processing workshop,it has the absolute competitive advandage on price.



      Look forward to cooperating with you!

      TEL:0532-83130298
