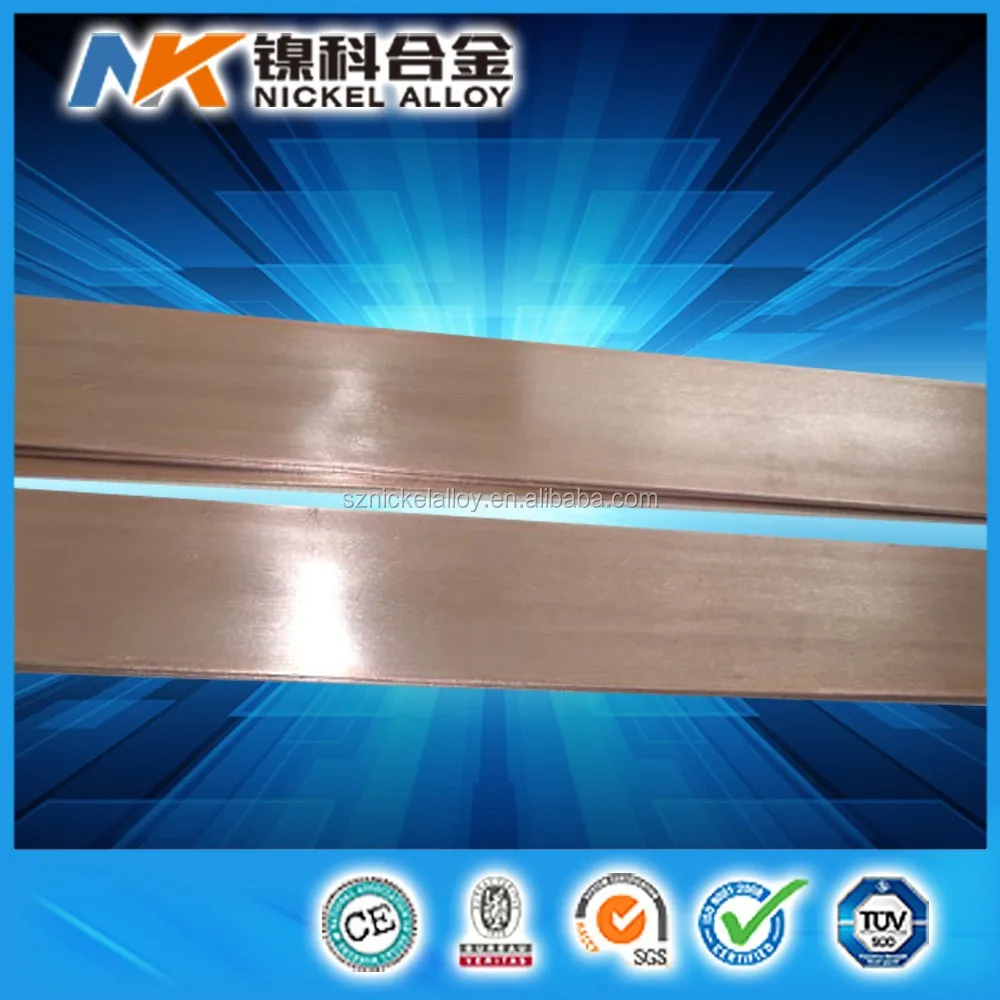

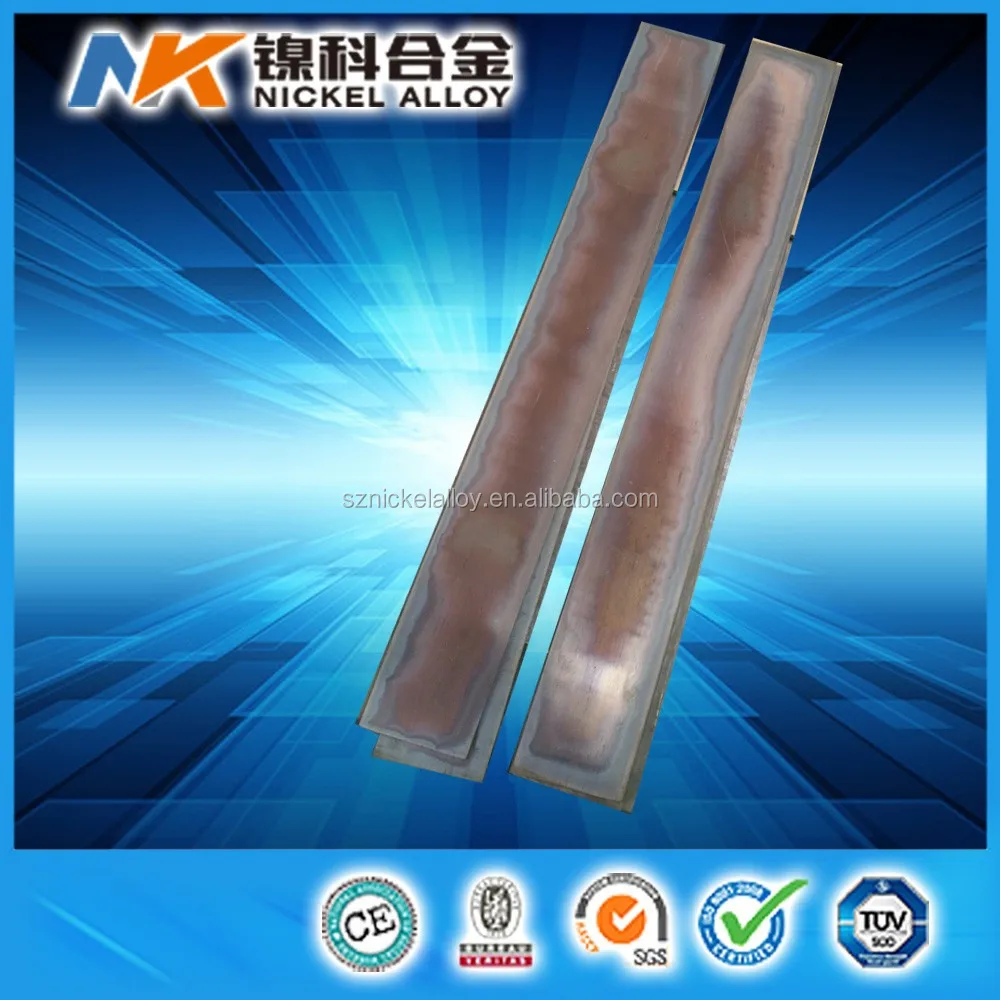

manganin sheet/plate for sale

Product Overview

Description



manganin sheet/plate

CuNi resistance Alloy
Very good resistance to corrosion
Very good malleability
Very good solder ability



                                                manganin sheet/plate for sale



Manganin is the electric resistance alloy with the copper nickel as the essential component. It has the low resistance temperature coefficient, wide working temperature scope (500 below), good machining property,anti-corrosiveand easy braze welding. Used in manufacturing regenerator's variable resistor and the strain resistor.



Manganin is a trademarked name for an alloy of typically 86% copper, 12% manganese, and 2% nickel.



Main chemical composition



Alloy type	Cu	Mn	Ni
6J8	rest	8-10	/
6J12	rest	11-13	2-3
6J13	rest	11-13	2-5



Physical Characteristics (Reference Values)



Density g/cm3	Thermal conductivity (KJ/m.h°C)	Tesile strength (N/mm2)Soft	Elongation %	Tesile strength (N/mm2) Hard
8.4	40	390-535	6~15	≥585



Manganin Size Available:



a) Wire       φ8.00~0.02

b) Ribbon  t=2.90~0.05 w=40~0.4

c) Plate      1.0t×100w×800L

d) Foil         t=0.40~0.02 w=120~5





Manganin Sheet Characteristics





Ingredient			Nickel	Copper	Manganese	Iron
Content			2-5	Remainder	11-13	≤0.15
Skin material specification		Thick	≥0.1mm
		Width	According to customer demand formulation
Silk material specification			≥0.5mm
Average resistance temperature coefficient			040×1061
Tensile strength			≥390Mpa
Elongation ratio			6--15
To copper thermo-electromotive force			≤2uV/
Electronic resistivity			0.44±0.04uΩ.m
Characteristic  and useage	It is the electric resistance alloy with the copper, manganese, nickel as the essential component. It is a superior precision resistor material with the characteristics of high electronic resistivity, very small resistance temperature coefficient, low Thermal EMF vs. Copper E  and  long-term stability. It is mainly applied in manufacturing heater resistances and resistance elements of standard resistor, precision instrument and so on.



Manganin Applications:



a) It is used for making wire wound precision resistance



b) Resistance boxes



c) Shunts for electrical measuring instruments



Manganin is used in the manufacture of resistors, particularly ammeter shunts, because of its virtually zero temperature coefficient of resistance value and long term stability. Several Manganin resistors served as the legal standard for the ohm in the United States from 1901 to 1990. Manganin wire is also used as an electrical conductor in cryogenic systems, minimizing heat transfer between points which need electrical connections.

Manganin is also used in gauges for studies of high-pressure shock waves (such as those generated from the detonation of explosives) because it has low strain sensitivity but high hydrostatic pressure sensitivity.





















Q1.Do you attend exhibition every year?



A .Yes



Q2.Is there any discount of the nickel wire?



A.  Yes. Bigger quantity will get lower discount.



Q3.Information needed if I want a quotation?



A  Name, Standard, Material Grade(Chemical Composition), Size Quantity, Weight.



Q4. Can we visit your company/factory before place the order?



A. Yes. Welcome anytime



Q5: How does your factory do regarding quality control?



A. Quality is priority. We always attach great importance to quality controlling from beginning to end.
