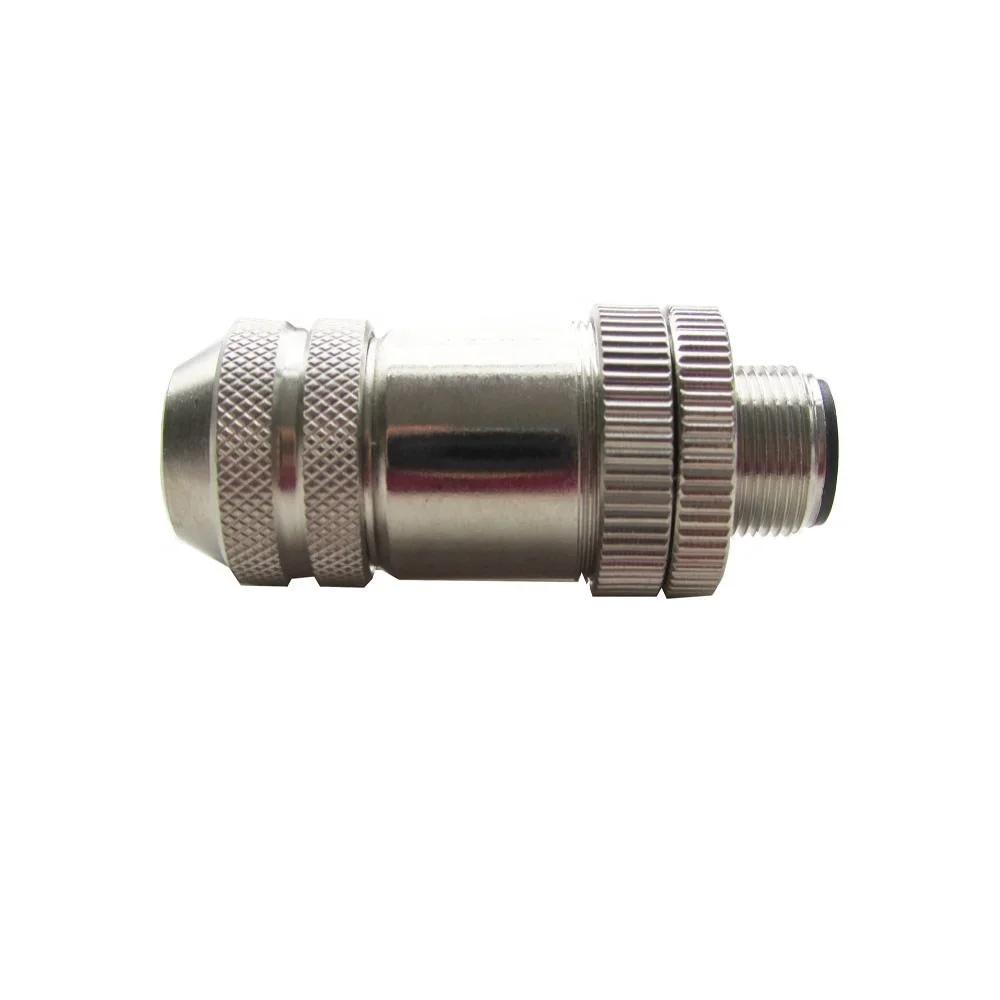

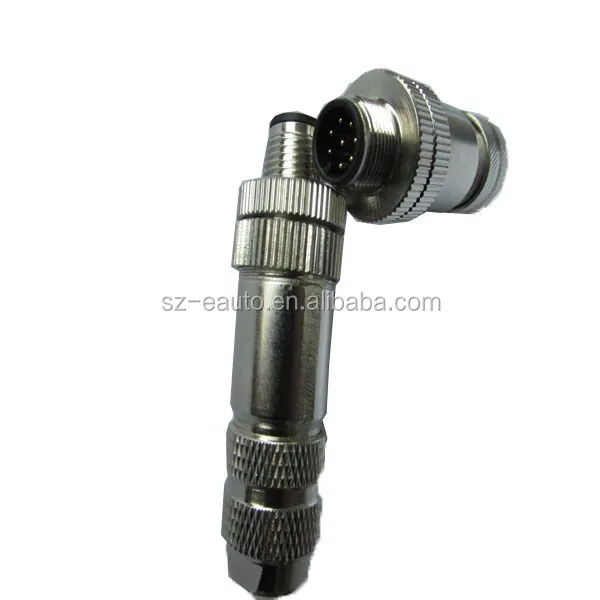

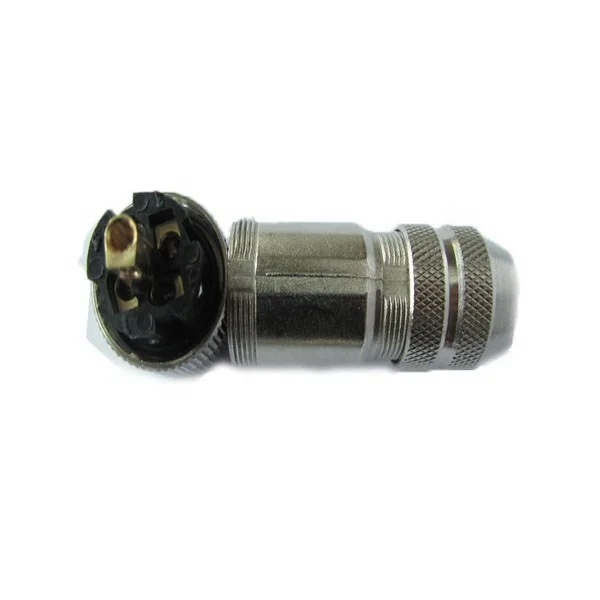

m 12 connector screw cable connector,high voltage connector
- Category: >>>
- Supplier: Shenzhen Element Automation Co. Ltd.
Share on (60238350491):
Product Overview
Description
| Item name | field wireable m12 8 pin connector | ||||
| Number of contacts | 3 | 4 | 5 | 8 | 12 |
| Connector locking system | screw | ||||
| Termination | screw | ||||
| Degree of protection | IP67 | ||||
| Mechanical operation | >100 mating cycles | ||||
| Upper temperature | ~+80℃ | ||||
| Lower temperature | ~-25℃ | ||||
| Rated voltage | 250V | 250V | 125V | 60V | 30V |
| Rated impulse voltage | 2500V | 2500V | 1500V | 800V | 500V |
| Pollution degree | 3 | ||||
| Overvoltage categorie | Ⅱ | ||||
| Material group | I | ||||
| Rated current(40℃) | 4A | 4A | 4A | 2A | 1.5A |
| Contact resistance | ≤3mΩ | ||||
| Material of contact | Brass | ||||
| Contact plating | Gold | ||||
| Material of contact body | PA | ||||
| Material of housing | Brass nickel plated
| ||||
