Telikou intercom broadcast belt pack for theatre stage

Product Overview

Description

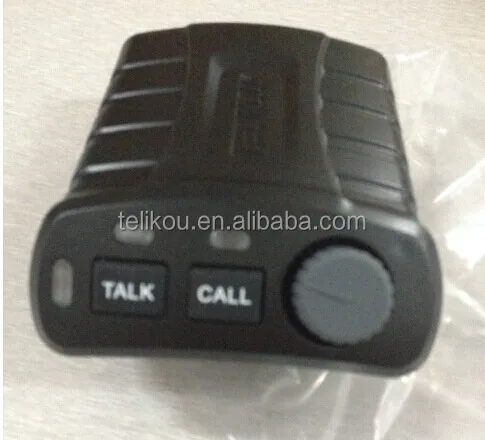

  Telikou Long distance wired intercom belt pack



BK101is TELIKOU new design belt pack with plastic case. It can work with any TELIKOU 2wire Intercom station. This belt pack adopts wired connection. It has stable and reliable performance, flexible configuration, fullduplex communication, clear and loud communication sound, easy operation, and strongnoise resistance.



Quick start:



1. Connect BK-101 belt pack to a 2-wire intercom main station or belt pack by XLR-3 cable. If belt pack receives DC power, the red Power LED will light.



2. Turn volume control knob to the end by anticlockwise rotation, then plug in the headset.



3. Double click ‘TALK’ button quickly will latch the microphone. The green indicator is ON.



4. Adjust sidetone (Sidetone adjustment is next to the beltclip) and volume level; make sure the voice level which you heard from earphone is minimum.



5. Press ‘CALL’ button send a call signal to main station or other belt pack.



6. When the communication is finished, click ‘TALK’ button to turn off the microphone

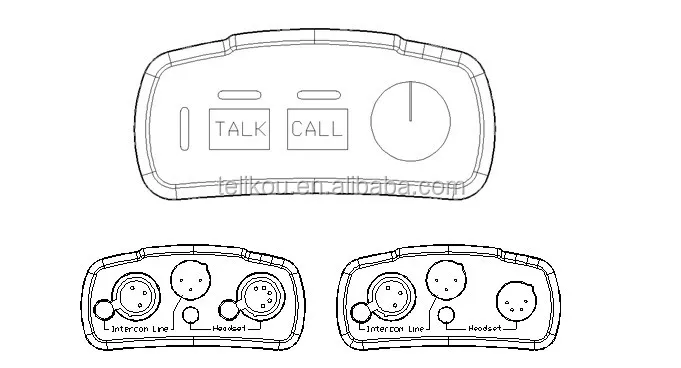

Basic operation

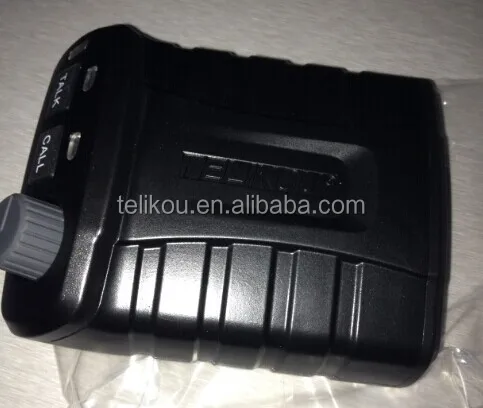

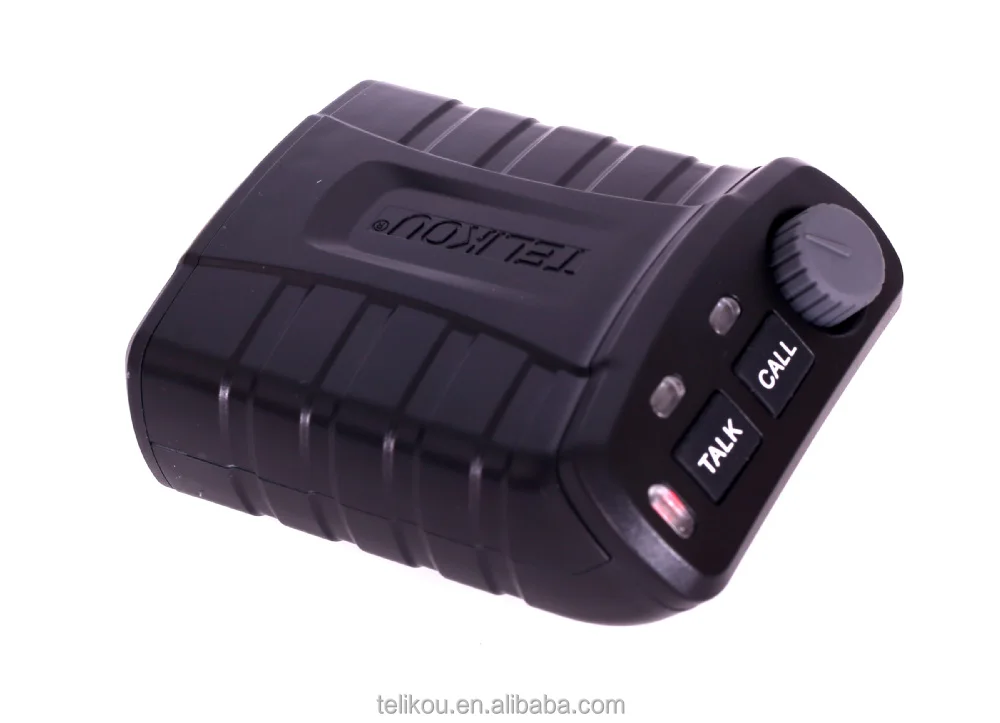

1. TALK Button

 TALK button turns on or off the microphone of headset which plugged in the bottom of belt

 pack.  Green indication LED.

 TALK button is an electronic button. It supports RMK function.

 Double click latches the TALK button. Hold the button is PTT mode.

2. CALL Button

 Pressing call button will send a call signal to intercom system. And red LED indicator above will light.

3. Volume Control

 This control is used to adjust the volume level which heard from connected headset.

 4. Power LED

 A Red LED lights if BK-101 is powered.

 5. TALK LED

 A green LED indicator is controlled by TALK button..

 6. Call LED

 A red LED indicates a call signal is sent or received.

 7. Headset connector

 XLR-4M/5F / 3.5mm connector

 Pin out configuration as follow:

 Pin 1--Head Microphone common

 Pin 2--Head Microphone hot

 Pin 3--Earphone common

 Pin 4--Earphone hot

 Pin 5--Null

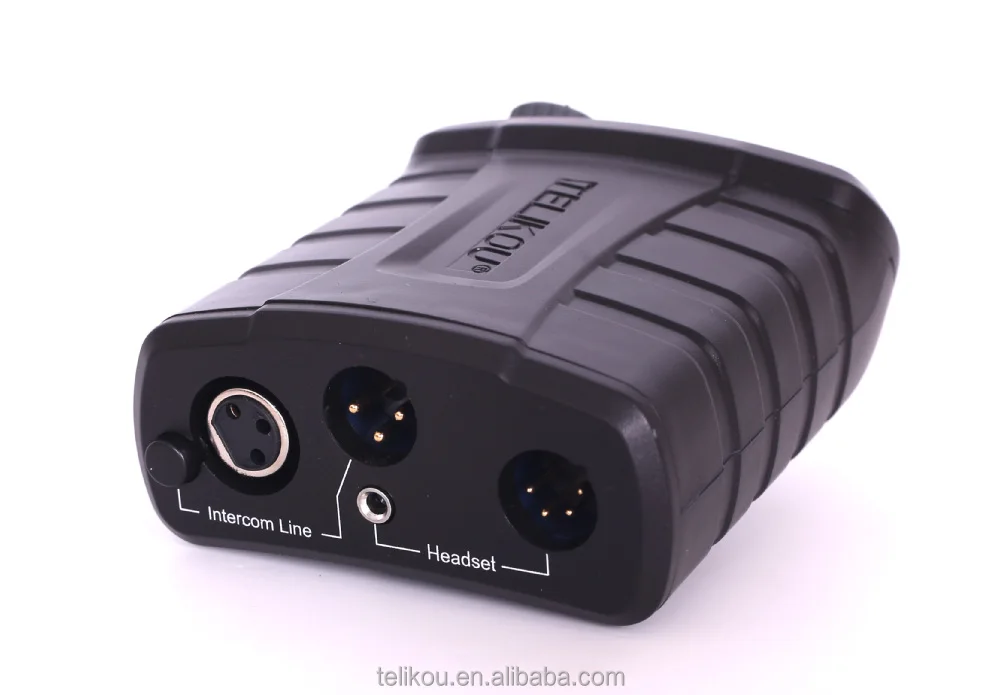

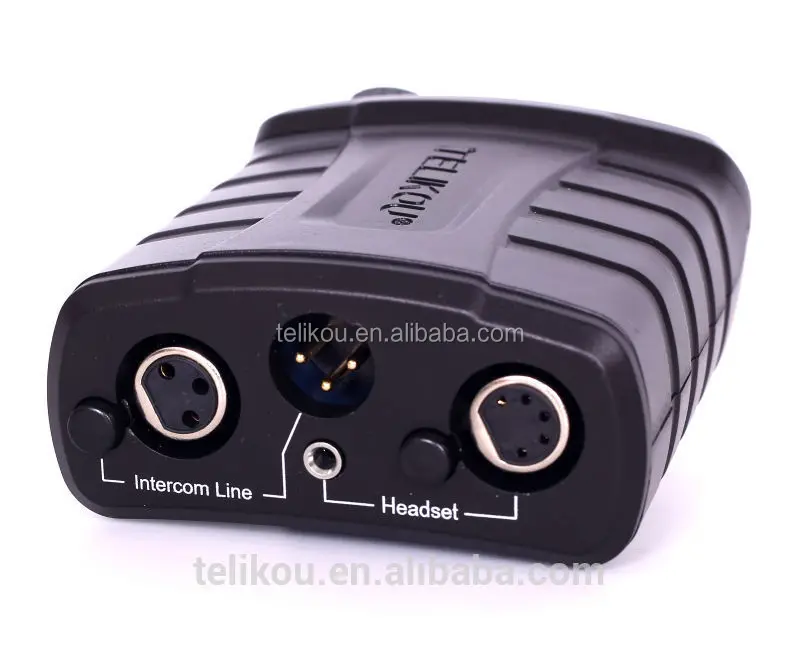

 8. Intercom cable connectors

 A pair of internal parallel connected XLR-3 connectors is set for loop through connection of the intercom station.

 Pin out configuration as follow:

 Pin 1--Common

 Pin 2--DC supply(15-30V)

 Pin 3--Audio signal











 Packing:

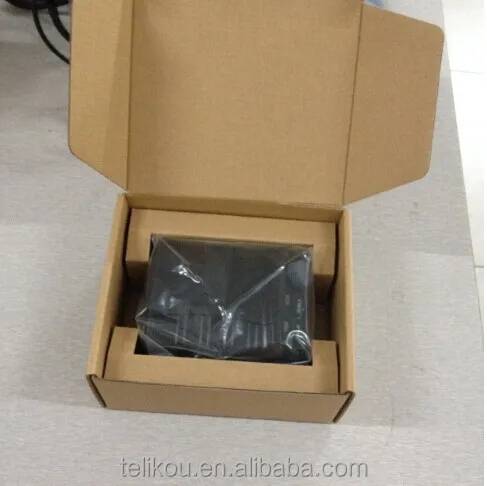

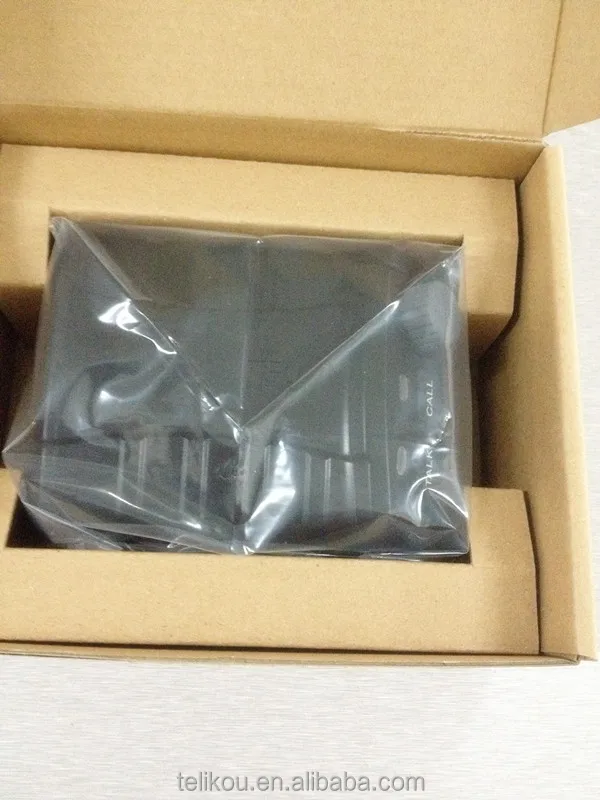

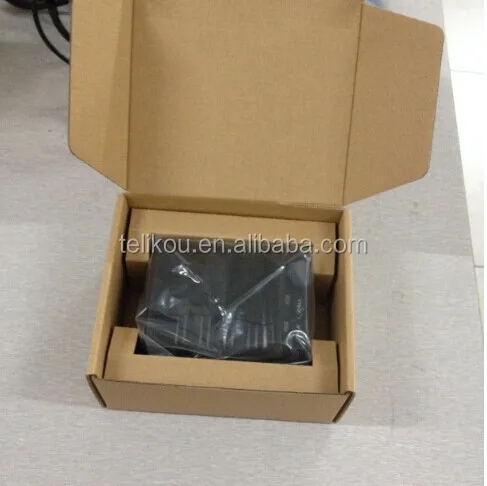

 BK-101 wired intercom beltpack will be packed with standard carton packing.



Shipping:



The goods can be shipped to your side by Fedex, TNT, DHL or any other shipping company available.

















1)any kind of express you want

2)packing as customer's requirement
3)reasonable price with high quality
4)OEM is welcome
5) a trial order or samle orders are also welcomed
7)Excellent after sale service



Payment
You can pay us through T/T, paypal, western union
Price term: FOB beijing
Full payment should be made before we send goods to you





 TELIKOU Technologies Co., LTD established in 2002.

 It is experienced in providing cost-effective and professional solutions of audio, video  equipments and ODM.

 Products have been used widely all over the world.

 TELIKOU Technologies Co., LTD has developed a variety of products,

 like: Intercom / Talk Back System (TBS) Teleprompter LED Light Audio Monitor
