♥ Tips:We also can produce the machine as your requirments .

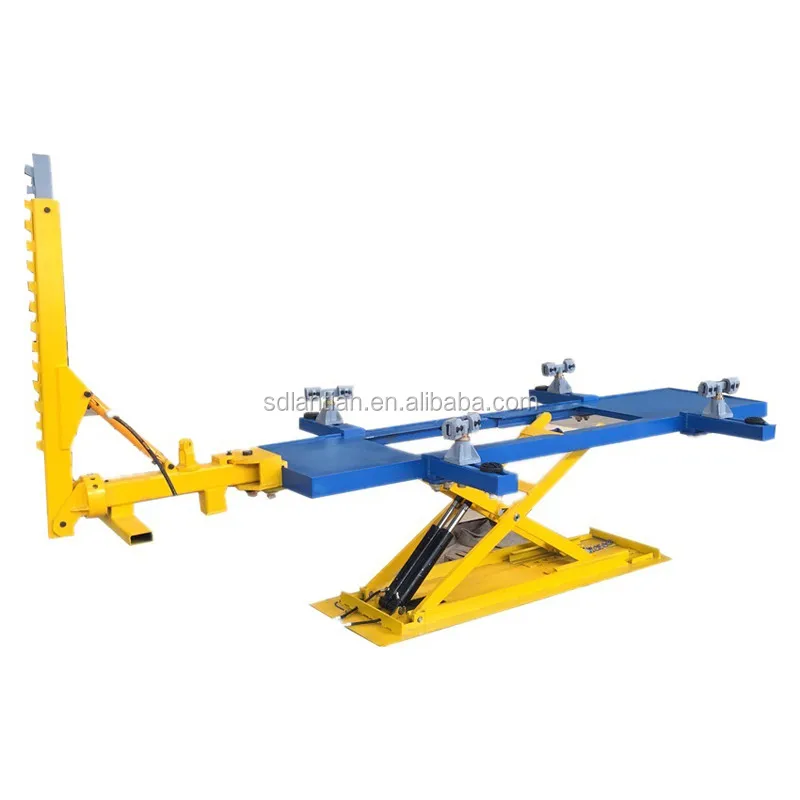

FM500 (Simply style)
A
B
C
Working platform length
11'/3.3m
12'/3.6m
13'/3.9m
Working platform width
2'11''/0.9m
2'11''/0.9m
2'11''/0.9m
Working platform height
5-47''/0.12-1.2m
5-47''/0.12-1.2m
5-47''/0.12-1.2m
Max working pressure of hydraulic
70MPa(10000psi)
70MPa(10000psi)
70MPa(10000psi)
Max lifting force of tower cylinder
95KN
95KN
95KN
Pulling range of the tower
360°
360°
360°
The pressure of the air source
0.8MPa
0.8MPa
0.8MPa
Max lifting weight
3000kg
3000kg
3000kg
Equipment gross weight
1600kg
1700kg
1800kg
Power unit voltage/Electric pump power
220V/ 2.2kw
220V/ 2.2kw
220V/ 2.2kw
Features:
No notice for changed physical object ang parameters,etc.
1. The Dataliner U3 Auto Body Collision Repair Systems is designed for Europe and North America. Its features are small size, big pulling force, convenient drive-on and drive-off, flexible operation and high efficiency.
2. The platform is made by Manganese plate, it is with high strength and good rigidity.
3. With the strong universal towers, it is very easy to pull the cars at any angle as the towers are easily to move and fixed at any point of the platform.
4. Lifting and lowering structure is convenient for platform height adjustment ,which satisfies the needs of various repairing height.
5. Hydraulic system with good design is powerful and gives it a long useful life and low failture rate.
6. High quality chain (T8) and forged sheet metal tools (45#) are easy and convenient to operate with long service life.
7. The height of the principal clamps is adjustable and this helps to orientate and clamp the car fast, exactly and firmly
8. Appropriate for operating maintenance of medium or small cars,especially for auto body shop.
Our Services
1. OEM ODM service.
2. Customized service.
3. One year quality warrant service, during the period spare part supplied free if you pay for shipping.
4.Professional team supply service for life long time.
Company Information
Shandong Lantian Huaer Environmental Protection Equipment Co.,Ltdis professional auto maintenance equipment manufacture since 2000with brand “BLUESKY”, in Chinese Lantian means Bluesky.
Our factory covers an area of more than 2,500 squares metters and with our up-today manufacturing facilities, high tech industrial, product developing manufacturing sales and perfect after-service with total capital of more than ten millions.
For many years our copany have been awarded as”Enterprise with high reputation” ”Enterpris with high credit in quality” and “China national grade AAA enterprise” ....etc. Besides, we have passed ISO9001, authenticated by 2000 international quality control system.
