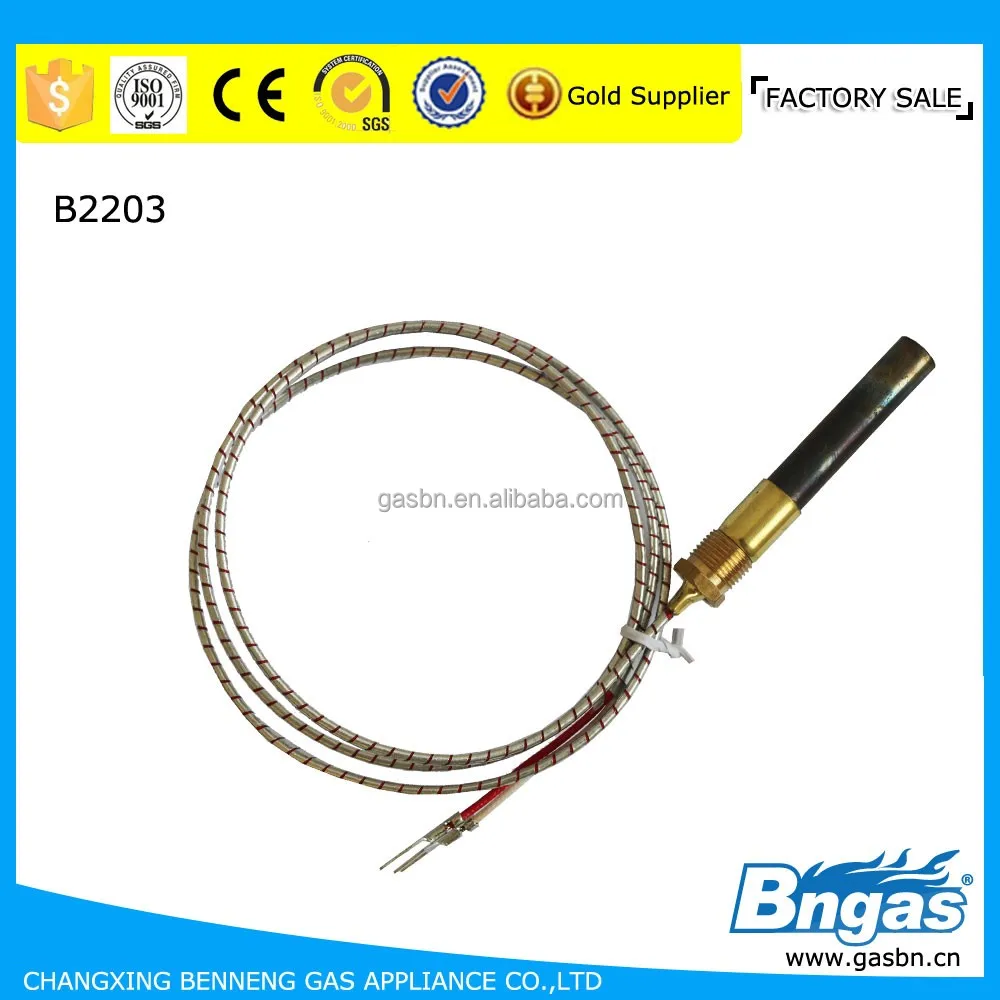

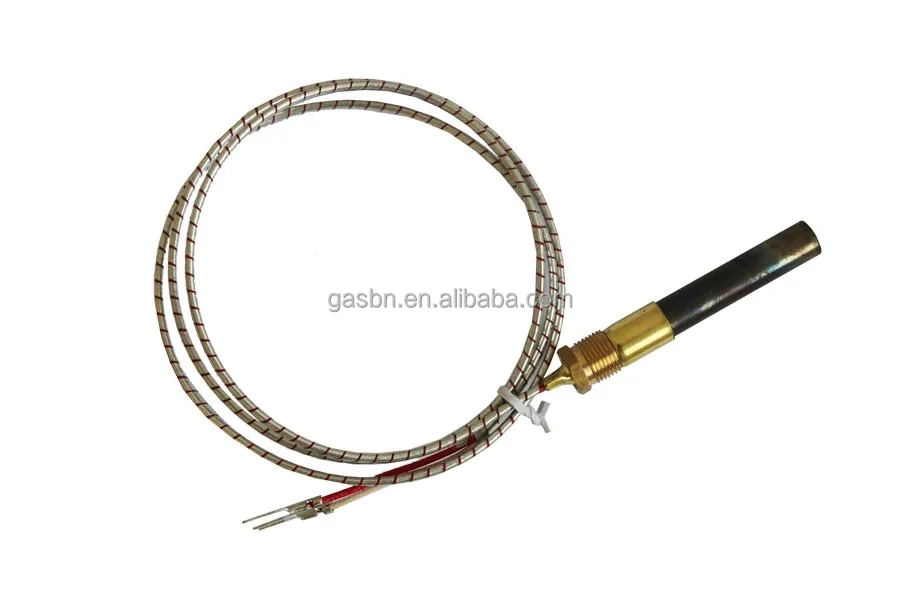

Gas oven thermopile pilot millivolt generator with armoured cable
- Category: Kitchen Appliance Parts >>>
- Supplier: Changxing Benneng Gas Appliance Co. Ltd.
Share on (60238517111):
Product Overview
Description
Product Description
Description:
Thermocouple is a part that is working from thermo energy converse into electrical energy. It mainly functions as a provider of
continuous electrical energy for magnet. It will stop providing electrical energy for magnet when the flame is put out by external
factors, then the magnet acts so that the gas valve is closed, which prevent the danger from gas leakage.
Thermocouple is a part that is working from thermo energy converse into electrical energy. It mainly functions as a provider of
continuous electrical energy for magnet. It will stop providing electrical energy for magnet when the flame is put out by external
factors, then the magnet acts so that the gas valve is closed, which prevent the danger from gas leakage.
Technical Characteristics
1. Type of connection to magnet unit: Nut, Coaxial, Faston
2. Lengths: 170-1850mm
3. Maximum temperature (head): Depending on the head type, up to 700°C maximum.
4. E.M.F. in open circult: ≥30mV(Normal) ≥16mv(Fast action)
5. Inner resistance: 8.5+0.22*L(mΩ)
1. Type of connection to magnet unit: Nut, Coaxial, Faston
2. Lengths: 170-1850mm
3. Maximum temperature (head): Depending on the head type, up to 700°C maximum.
4. E.M.F. in open circult: ≥30mV(Normal) ≥16mv(Fast action)
5. Inner resistance: 8.5+0.22*L(mΩ)
Name: | Gas oven thermopile pilot millivolt generator with armoured cable | Port | Shanghai | |||
Model | B2203 | Place of origin | Zhejiang, China | |||
Type | Thermocouple | Thermocouple length | Customized | |||
Material | Cooper(thermocouple head:80%Ni,20%Cr) Cable-Silicone, Cooper, Teflon | Tip | M8x1,M9x1,M10x1,11/32-32,4.8x0.5,6.3x0.8 | |||
Gas source | NG/LPG | Application | Gas heater, gas water heater, gas grill, gas stove, gas cooker | |||
Voltage | Potential Voltage:≥30mv Work with the electromagnetic valve:≥12mv | Packing | 720 per carton with standard carton | |||
Fixing method | Screwed or Stucked | Delivery time | 30 days upon official order | |||
MOQ | 2000 PCS | Certificate | CE | |||
Supply ability | 50000 PCS / Month | Feature | Eco-friendly | |||
We can design and manufacture as per customers’ requirements. Feel free contact us for any specific requirements, also for pictures, drawings and samples of our products. We will try our best to meet your requirements. | ||||||
Product Series
Company Information
Changxing Benneng Gas Appliance Co.,Ltd is specialized in desgining and manufacturing of gas appliance accessories, including Safety Combustion System and Safety Ignition System.
Our products are Gas burner, ODS, Pilot burner, Thermocouple, Igniter, Electrode and Nozzle. They are mainly used in gas grill, gas range, gas oven, gas heater, gas fireplace, gas refrigerator and other related gas appliance.
The plant covers an area of 12 thousand square meters and has a number of highly qualified staff. We are good at exploring and design new models for customers to meet their special specification requirements. Since we have been designing and owning production experience for several years, now our products are exported to Europe, America, Middle East, Southeast Asia and acquire consistent high praise.
Our company is near to Shanghai, Hangzhou and Nanjing. Welcome to visit our factory and look forward to cooperate with you.
Company philosophy: Be honest to customers, be kind to staff and be outstanding in products.
Our products are Gas burner, ODS, Pilot burner, Thermocouple, Igniter, Electrode and Nozzle. They are mainly used in gas grill, gas range, gas oven, gas heater, gas fireplace, gas refrigerator and other related gas appliance.
The plant covers an area of 12 thousand square meters and has a number of highly qualified staff. We are good at exploring and design new models for customers to meet their special specification requirements. Since we have been designing and owning production experience for several years, now our products are exported to Europe, America, Middle East, Southeast Asia and acquire consistent high praise.
Our company is near to Shanghai, Hangzhou and Nanjing. Welcome to visit our factory and look forward to cooperate with you.
Company philosophy: Be honest to customers, be kind to staff and be outstanding in products.
Production Process
Pickaging&Shipping
WHY CHOOSE US
1.Provide multilingual communication
2.Effective communication’
3.Lower MOQ with competitive price
4.OEM & ODM service
5.Quality assurance contract
6.Confidentiality agreement
7.Professional technology
8.Professional after-sales service
2.Effective communication’
3.Lower MOQ with competitive price
4.OEM & ODM service
5.Quality assurance contract
6.Confidentiality agreement
7.Professional technology
8.Professional after-sales service
