1700c High Temperature Laboratory Stove
- Category: >>>
- Supplier: Dengfeng City Jinyu Electric Heating Material Co. Ltd.
Share on (60238659997):
Product Overview
Description

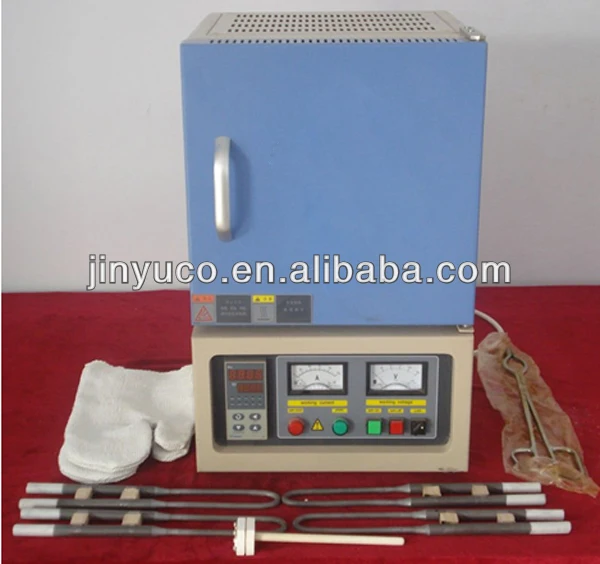

1700c High Temperature Laboratory Stove
A Laboratory Stove Features:
1 Heat up fast, 20°C /min.

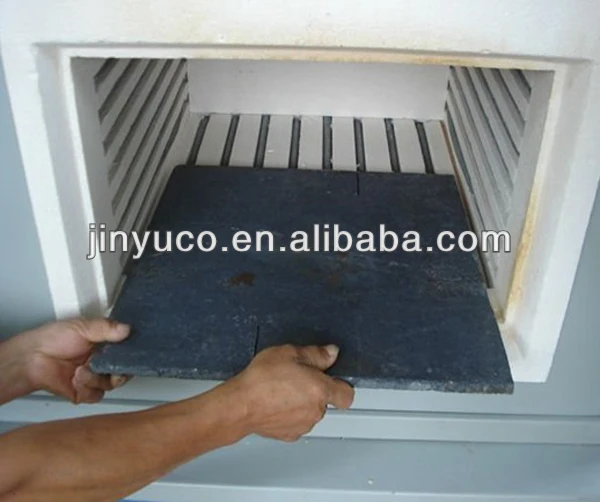

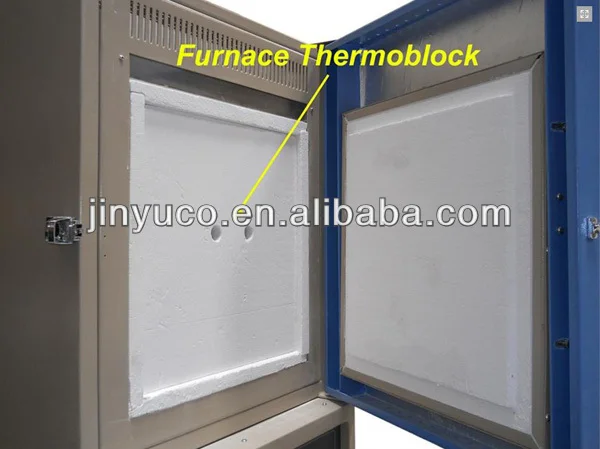

2 Alumina ceramic lining, light in weight,
3 The heat preservation effect is good, save power.
4 30 period of programmable automatic control of heating process, high degree of automation.
B Laboratory Stove Main Performance Indexes:
Inside Chamber Size | 300 x 200 x 200 mm (12"x8"x8", 8 Liter) |
Working Temperature | 1600.C ( continuous ) |
Max Temperature | 1700.C ( < 3 hrs) |

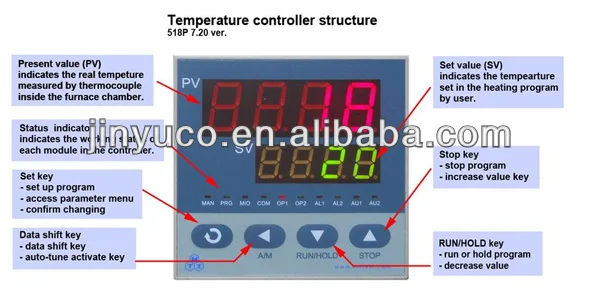

Temperature Control | 30 steps programmable and PID automatic control |
Heating Rate | 0~10.C / min (suggestion: < 10.C) |
Temperature Accuracy | +/- 1.C |

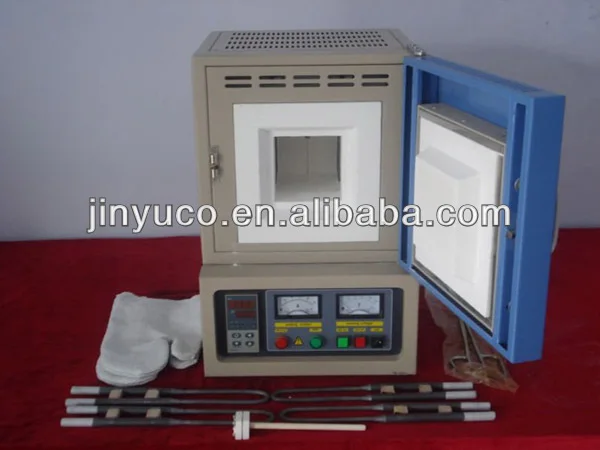

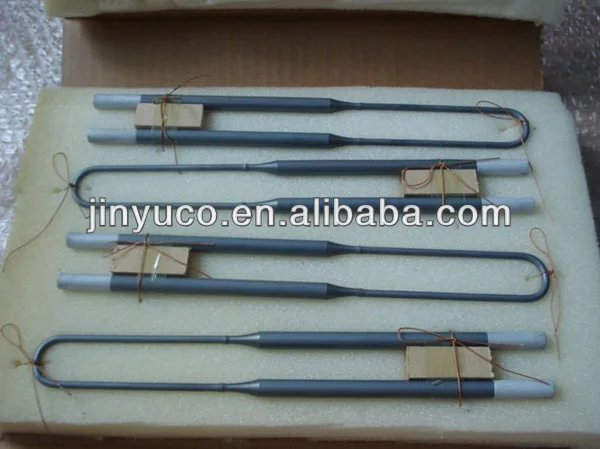

Heating Element | MoSi2 heating elements |
Working Voltage | AC 220V Single Phase 60/50 Hz (or according to your requirement) |
Max. Power | 8KW |
Outside Size | 550 x 540 x 820 mm |
Net Weight | 120 Kg |
C Laboratory Stove Application :
1 Chemical analysis and test;
2 Decomposition and synthesis of matter
3 Super hardware material sintering;
D Laboratory Stove Corresponding List for Model and Power:
Model | Chamber size(WxHXYmm) | Max. Temperature |
JY-1700M | 150x150x150mm (6"x6"x6") | 1700.C |
JY-1700M | 150x150x200mm (6"x6"x8") | 1700.C |
JY-1700M | 200x200x200mm (8"x8"x8") | 1700.C |
JY-1700M | 200x200x300mm (8"x8"x12") | 1700.C |
JY-1700M | 250x250x300mm (10"x10"x12") | 1700.C |
JY-1700M | 300x300x400mm (12"x12"x16") | 1700.C |
JY-1700M | 350x350x400mm (14"x14"x16") | 1700.C |
JY-1700M | 400x400x400mm (16"x16"x16") | 1700.C |
JY-1700M | 500x500x500mm (20"x20"x20") | 1700.C |
Packaging & Shipping

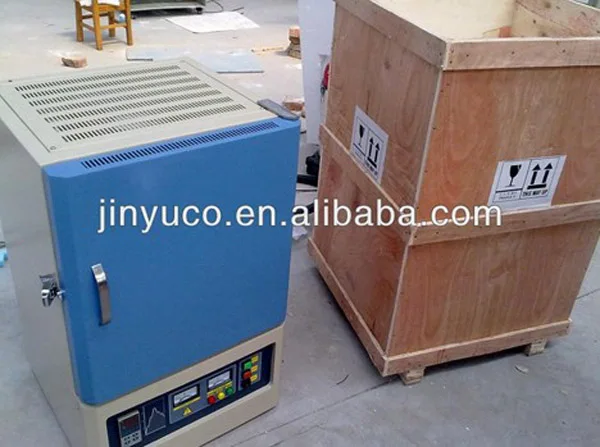

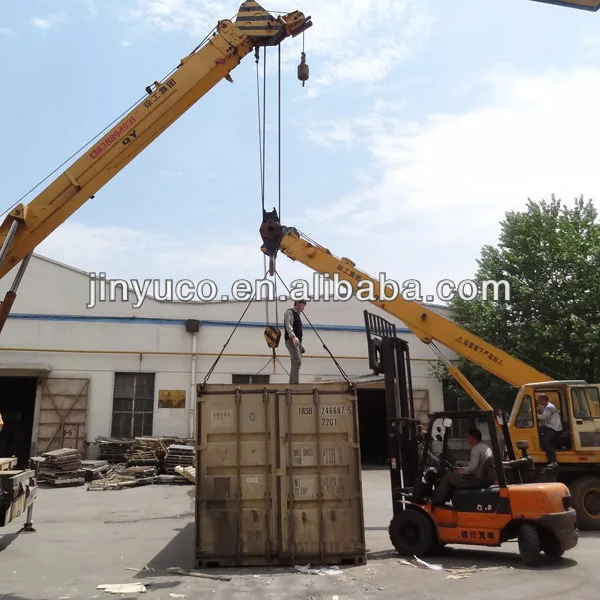

E Laboratory Stove Packing and shipping
The muffle furnace is packed in export standard wooden case outside,lined with sponge and foam.
It can be shipped by air,by sea,by land or by express delivery like DHL,Fedex,T/T,EMS an so on.
