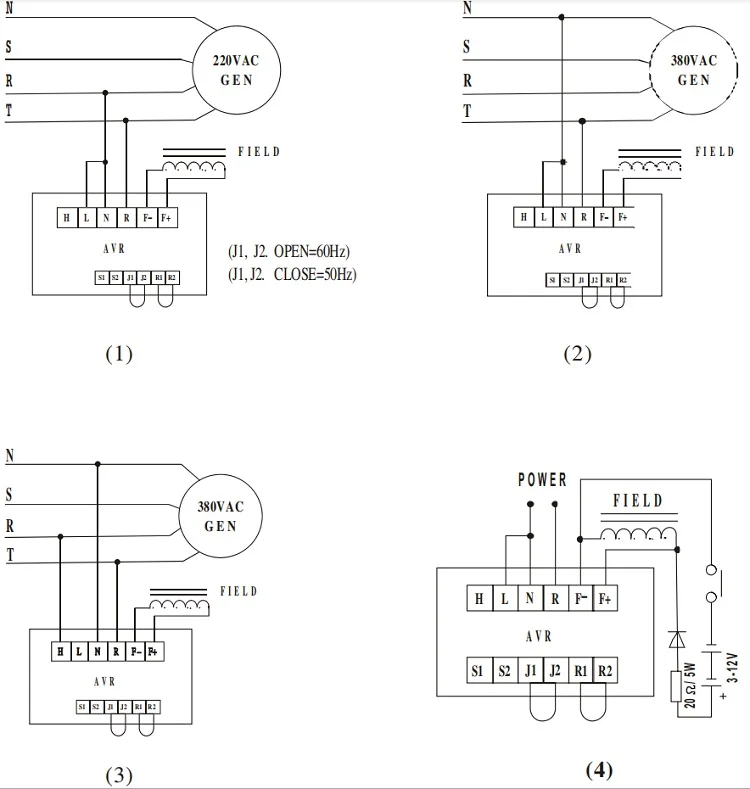

Automatic Voltage Regulator Avr GAVR-20A Generator Avr Circuit Diagram





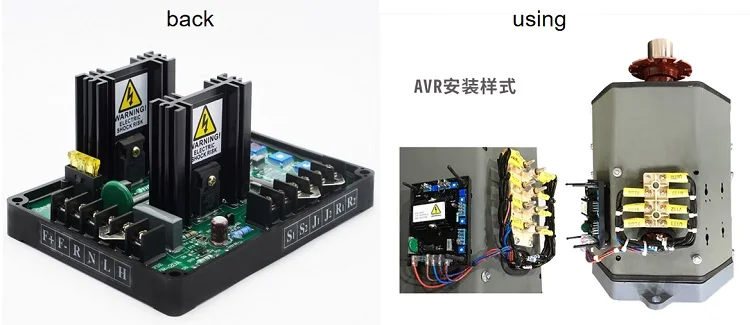

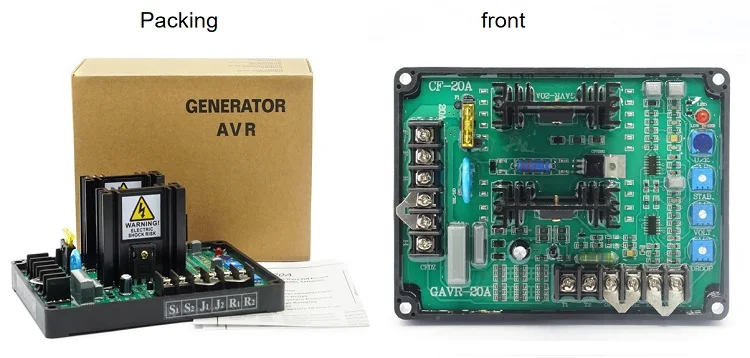

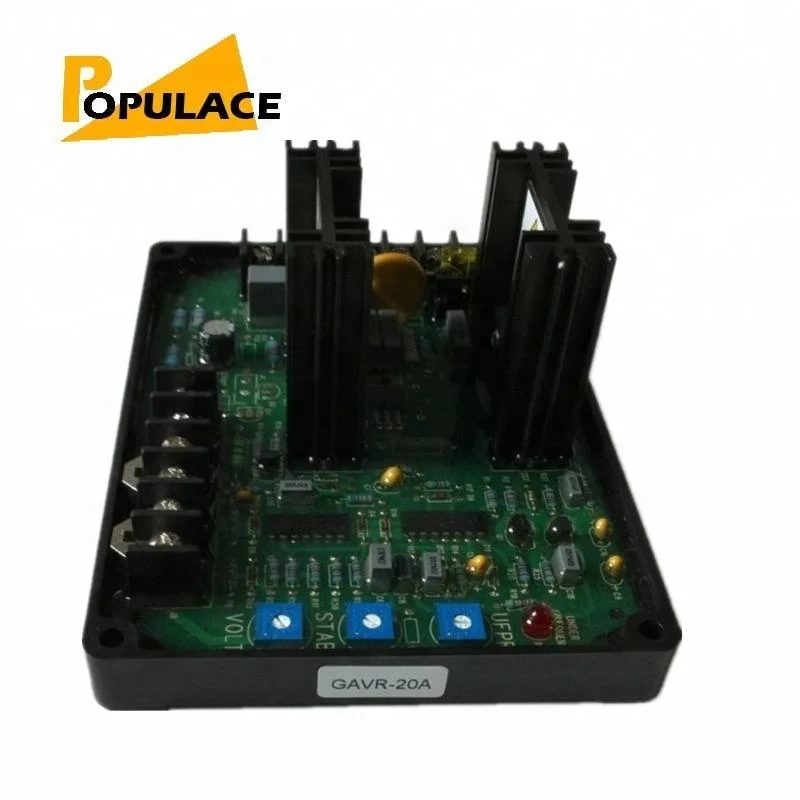

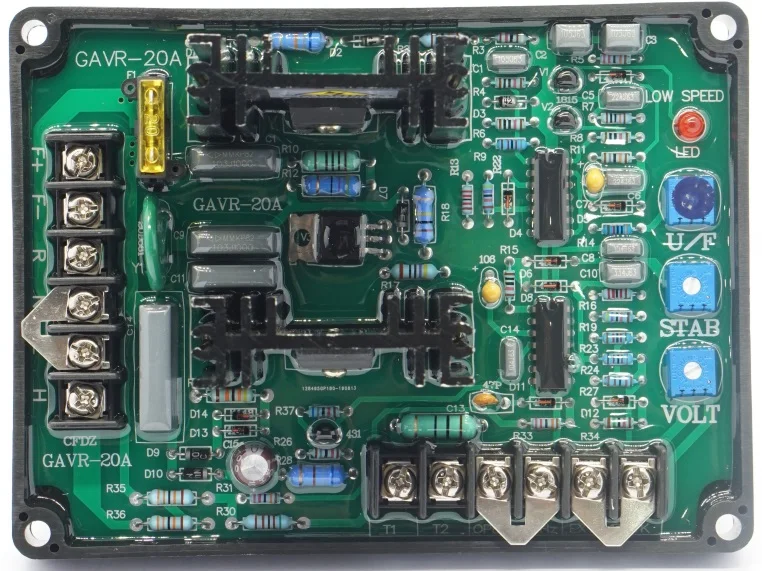

Description:

GAVR-20A is Universal 20 Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brushless generator.



*Sensing Input Voltage   220/400VAC,1phase 2wire



*Power Input Voltage 180~240VAC, 1phase 2wire



*Output     Voltage   Max.90VDC@240VAC input





* Current Continuous 6A



* Intermittent 15A for 10SEE



*Resistance Min.10Ω Max 100Ω



*Voltage Build-up   esidualvolts at AVR teminal >5VAC



*External Volts Adjustment +/-7%with 1KΩ 1watt trimmer



*Unit Power Dissipation   Max.8Watt



*Under Frequency Protection 60Hz system presets knee point at 57Hz



*(Factory Settings)         50Hz system presets knee point at 47Hz

Tech data:





Model	GAVR-20A
Sensing Input Voltage	220/400VAC,1phase 2wire
Power Input Voltage	180~240VAC, 1phase 2wire
Output	Voltage   Max.90VDC@240VAC input
	Current Continuous 6A
	Intermittent 15A for 10SEE
	Resistance Min.10Ω Max 100Ω
Voltage Build-up	esidualvolts at AVR teminal >5VAC
External Volts Adjustment	+/-7%with 1KΩ 1watt trimmer
Unit Power Dissipation	Max.8Watt
Under Frequency Protection	60Hz system presets knee point at 57Hz
Factory Settings	50Hz system presets knee point at 47Hz
