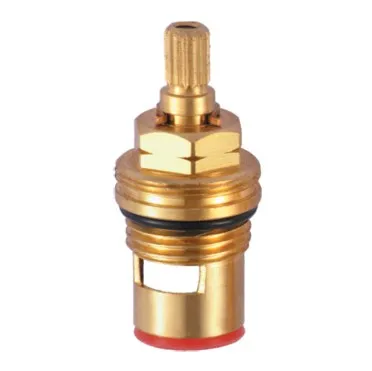

cw617n Brass faucet VALVE CORE CERAMIC CARTRIDGE
- Category: Faucet Accessories >>>
- Supplier: Ningbo Fenghua Jintong Sanitary Ware Co. Ltd. [Zhejiang China]Ningbo
Share on (60239398267):
Product Overview
Description
Product Description
1.High-tech prove high quality
2.Varied design
3. rich OEM experience
4.Strict administation
5.Reliable raw material
Technical data: |
Max.temperature:90°C |
Max.turn angle :90° |
Lever tongue test:0.3-0.4n.m(static pressure is zero ) |
Noise test;Max20 db at 3 bar(with noise reducer ) |
Working pressure :Max 1.2MPa |
Lever break tonque:15Nm |
Sealing test :0.8Mpa (fully tested one by one ) |
Max pressure :water static pressure max3Mpa |
Life test:According to the En 817,Gb18145-2011 standard>300,000cycles, |
According to the ASME A112,18.1-2011 standard>500,000cycles |
Ceramic disc;Hardness>1150HVS |
Flatness:0.6um |
Roughness:Ra0.25um |
Porosity:60-80% |
