Fully automatic rubber vulcanizing hydraulic press / plastic moulding machine

Product Overview

Description

    Fully automatic rubber vulcanizing hydraulic press / plastic                                                    moulding machine









The curing press mainly works for clampdown the rubber ,which can be used as normal hydraulic machine .



1.Material of steel plate:

We use hight quality carbon steel Q-235(produce by Jigang Group Co.,Ltd which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel



2.Weldment of frame : world technique

Welded together as a whole part,Stewing fire treatment after weldment.

(Carbon dioxide gas shielded welding,alloyed welding wire).

Submerged arc welding, VSR treatment after weldment.



3.Piston:

The material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.



4.Heating way&precision temperature control:

Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity)   range of temperature:0-300°C   (can be adjustment if you need 400 °C ,we can do it )

Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C

Also we can produce the machine with water cooling system.



5.Hydraulic system: (PLC control)

The professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.

We use OMRON,SIMENS CHNT , SCHNEIDER ect brand electric parts.

6.There are more advanced technical information as our core patents,and not showed in the description,please send email to us.

Parameters/version	XLB350*350*2	XLB400*400*2	XLB500*500*2	XLB600*600*2/4	XLB750*850*2	XLB1000*1000*2
Mould closing force	0.25MN	0.5MN	0.8MN	1.0MN	1.6MN	2.5MN
Hot plate spacing	125mm	125mm	125mm	125mm	125mm	200mm
Hot plate layer	2	2	2	2/4	2	2
Plunger stroke	250mm	250mm	250mm	250/500mm	250mm	400mm
Heating way	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/Stream	Electricity/stream
Main motor power	2.2kw	2.2kw	2.2kw	2.2kw	3kw	5.5kw
The thermal power	2.4kw/board	3kw/board	3kw	7.5kw/board	9kw/board	10.8kw/board
Size(L*W*H)mm	1450*400*1350	1600*400*1440	1450*690*1818	1880*780*1660	2100*1010*1900	2400*960*2500
Weight(kg)	1200	1500	1700	2500/3100	3560/4300	8300

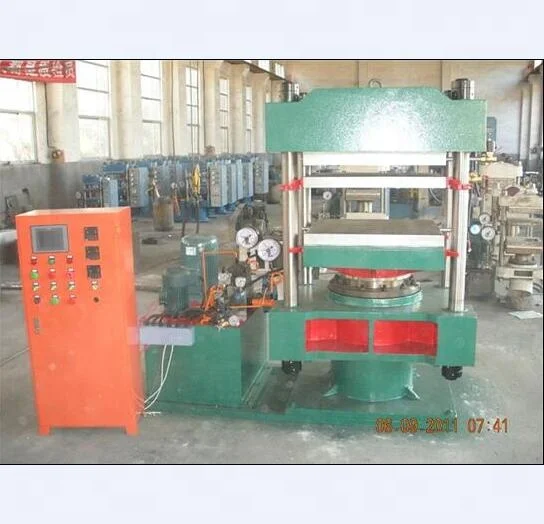

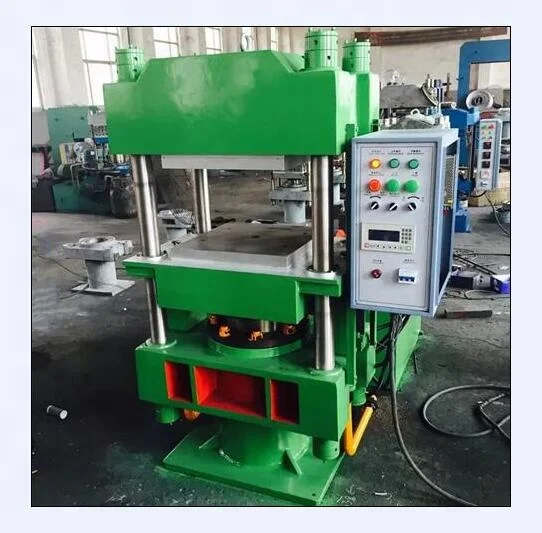

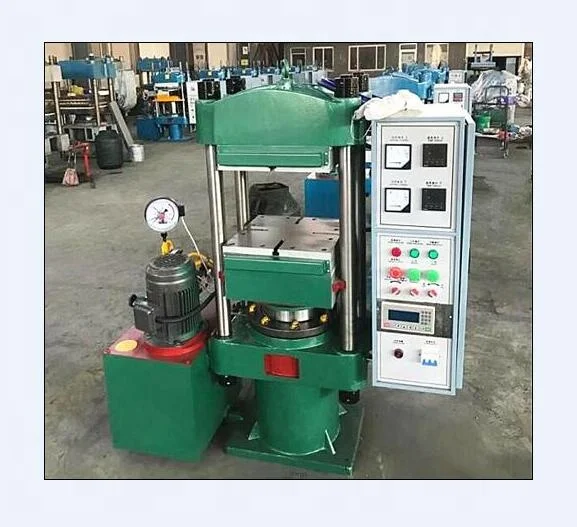

Column structure rubber vulcanizing press

Our packing way :Export standard (wooden package )  or according to your requirement .



Our Services :

1. We will design,manufacture,install and test the machines according to  customers' requirement .Relevant personnel  training for customers,ensure that customers fully grasp the use and maintenance of technology.



2 .Our service department  listen to customers' feedback at any time and provide spare parts timely.



Welcome to visit our factory and we can show you the machine in working condition:



If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
