Product Overview
Description

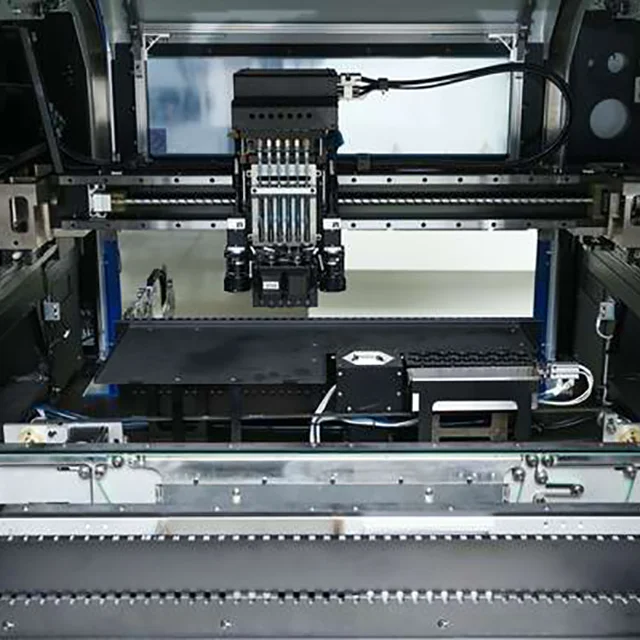

M606 Pick And Place Machine
Advantage:
Using low noise precision screw structure, performance stability and high accuracy.
Greatly improve the productivity of placement with kilomega with six cameras in the flying camera.
Applying 220v servo motor the total rated power is 1.5kw, being the lowest power and the smallest size among the same class component placer
Greatly increase the stability and reliability, improve cable durability, further reduce the failure rate of wire by using 50 million high flexible lines
The energy consumption is reduced by more than 50% compared to the same class foreign placer. The scope of application is wide, More compatibility, The precise stability is synchronized with international leading level.
Parts brand
Name | Brand | Mark |
X,Y ball screw | Japan NSK/THK | Precise |
X,Y,Z Linear Guides | Japan NSK/THK | Precise |
Z-axis ball splines | Japan NB/THK | Precise |
All bearings | Japan NSK/THK | Precise |
Servo motor | Japan Panasonic)Panasonic | Precise |
Pneumatic components | Japan CKD,SMC,U.S.A MAC | Precise |
Electrical components | France(Schneider) | Precise |
Specification:
Model | M606 |
Alignment | Stage vision + Fly vision |
Number of Spindles | 6 Nozzles * 1 Head |
Placement Speed | 22,000CPH (IPC9850 CPH15000 Optimum) |
Placement Accuracy | ±50µm@µ+3σ/chip, ±50µm@µ+3σ/QFP |
Component Range | 0402˜30*25mm SOP/QFP (H15mm) |
PCB Dimension | Min:50(W)*50(L) mm |
(Option):300(W)*600(L) mm | |
320(W)*1200(L) mm | |
Thickness 0.38~4.2 mm | |
Feeder Base | 32pcs 8mm |
Power supply / Pressure | AC 220V / 0.5±0.5Mpa |
Rated Power | 1.5KW |
Weight | 1500kg |
External Dimension | 1272(L)* 1260(W)*1450(H) mm |
Company Information
GrandSeed is mainly specialize in electronic automatic equipment including wave soldering machine, reflow oven, LED mounter, automatic printer along with variety of electronic production lines such as assembly line, aging line, transmission line and it’s associated equipment.
GrandSeed is aim to provide Chinese made automatic equipment and solutions to the entire world. As we have built close relationship with corresponding manufactures from upstream to downstream of the industry, one-stop solutions are able to be provided to fulfill customer needs. “Professional produces Reliable” it is our faith that is leading us to be extraordinary.
Grandseed headquater in Shenzhen

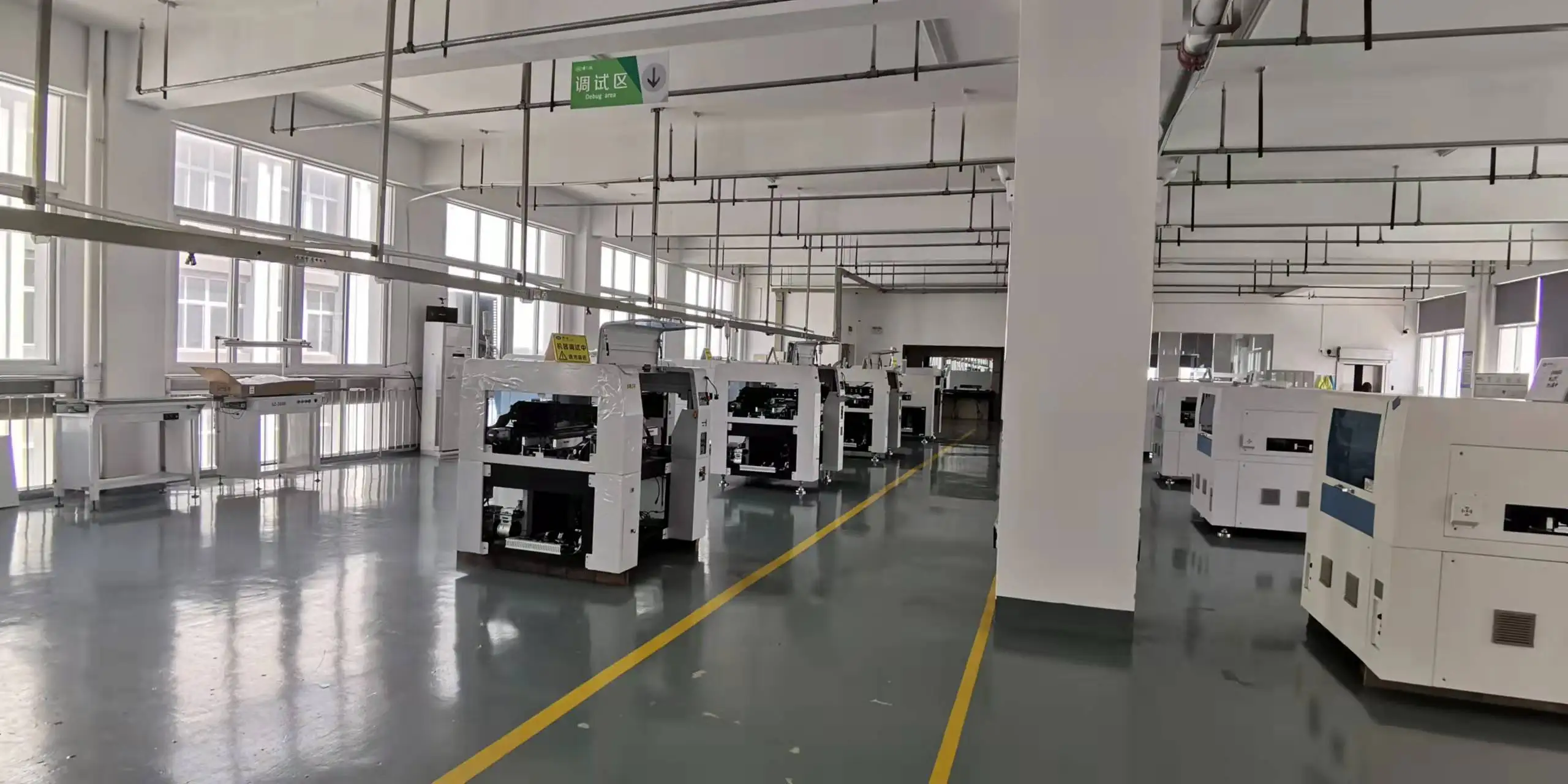

Grandseed Factory in Anhui province
Exihibition
Every year,our company attend intelligent equipment exihibition so many times,such Guangzhou Frankfurt, Munich Electronics Show ,Canton Fair and so on,which has attracted so many new and old customers.
