K13 250 Six Stepped Jaws Chuck Self centering Lathe Chuck

Product Overview

Description

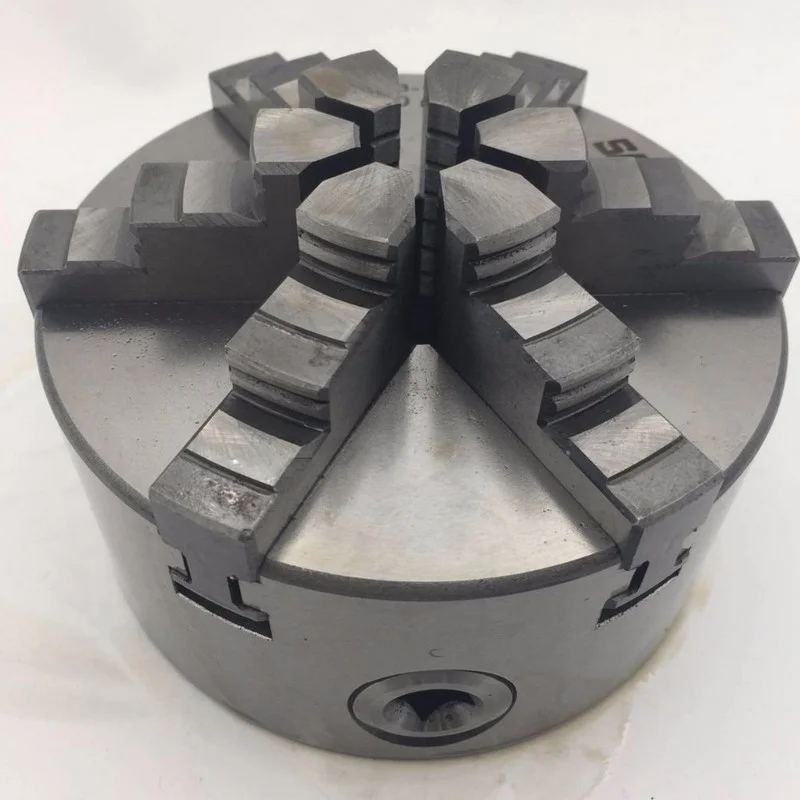

SANOU K13-250 Six stepped jaws chuck self-centering lathe chuck

Specification:

Brand :Sanou

Model: K13-250

Dynamic type:Manual

Chuck Material: Nodular Cast Iron

JawsMaterial:Hardened Steel

Chuck Diameter:250mm

Jaw:6 Jaw

Clamping Range :6-110mm

Hold tight size range:80-250mm

High precision:0.05mm

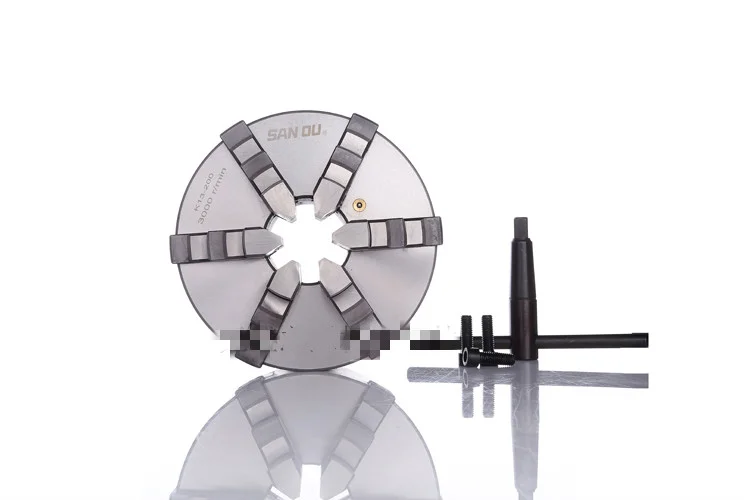

Packing Include:

1 x Self-Centering Chuck
1 x safety chuck key

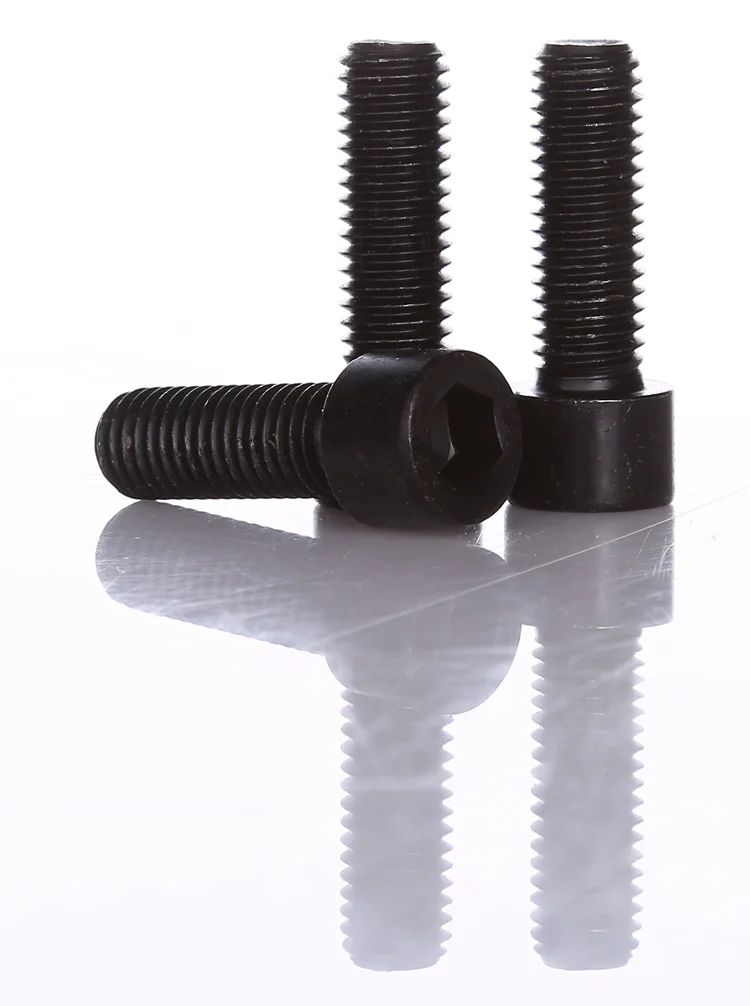

3 x mounting bolts

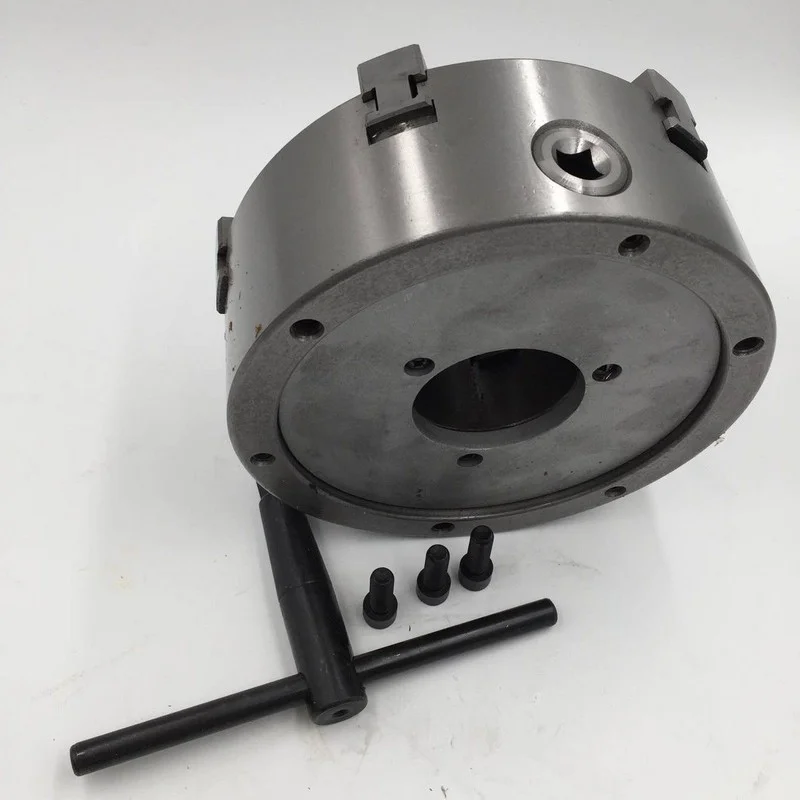

1. short cylindrical center mounting.


2. K13 chucks are matched with stepped jaws.


3. K13-II chucks are matched with sloped jaws.


4. Suitable for clampong and machining the thin-walled somponents.


5. Especially suitable for maching all kinds of cutting tools with handles.


6.
