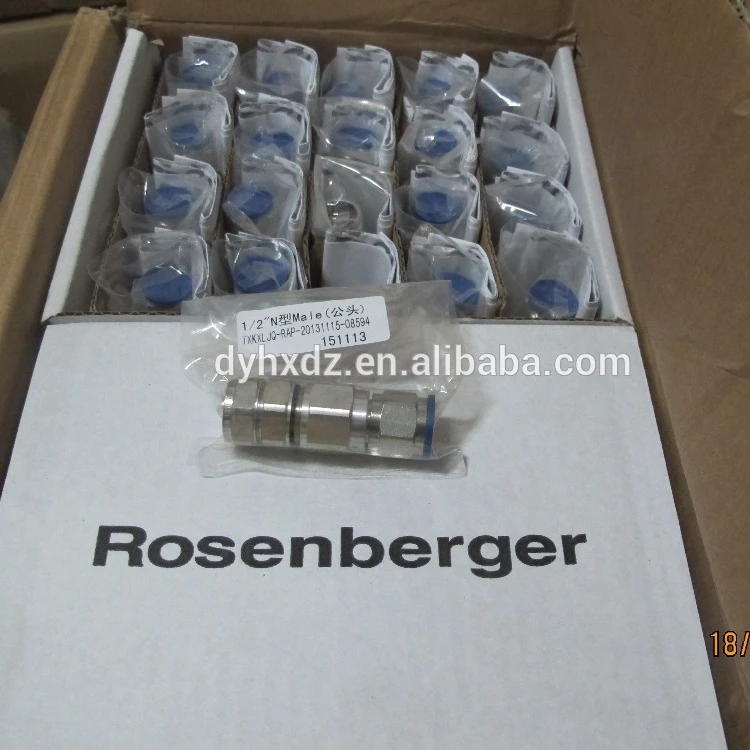

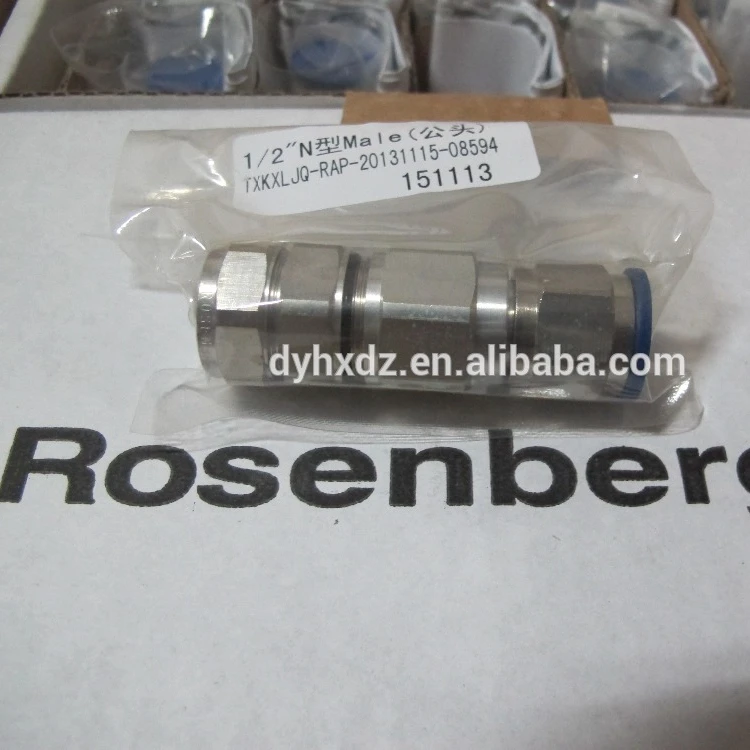

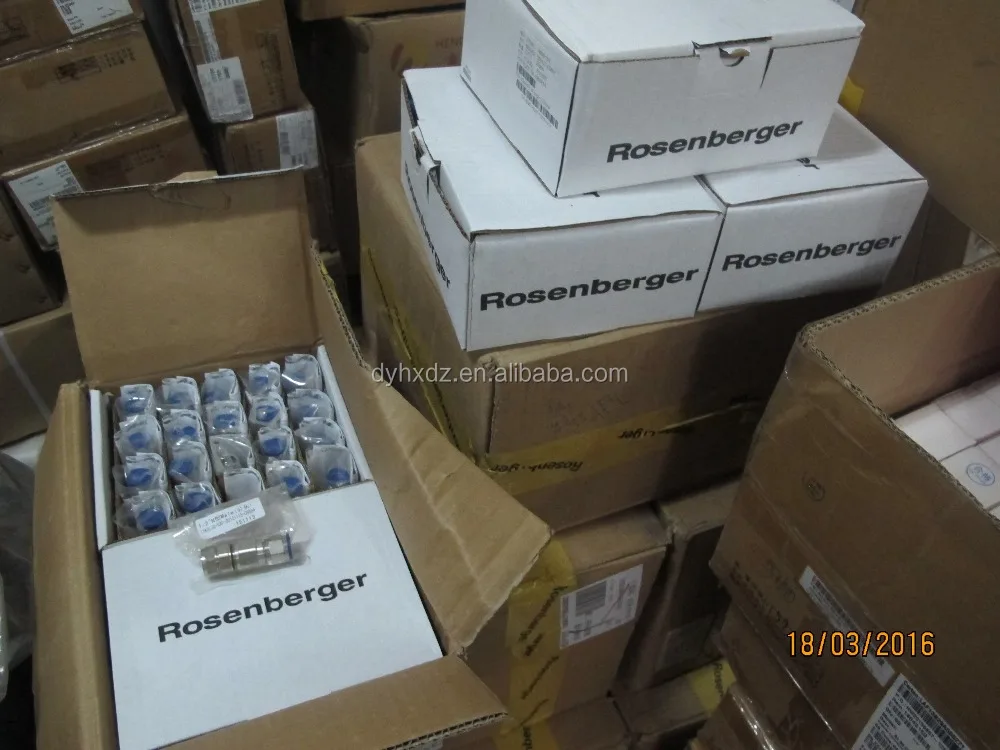

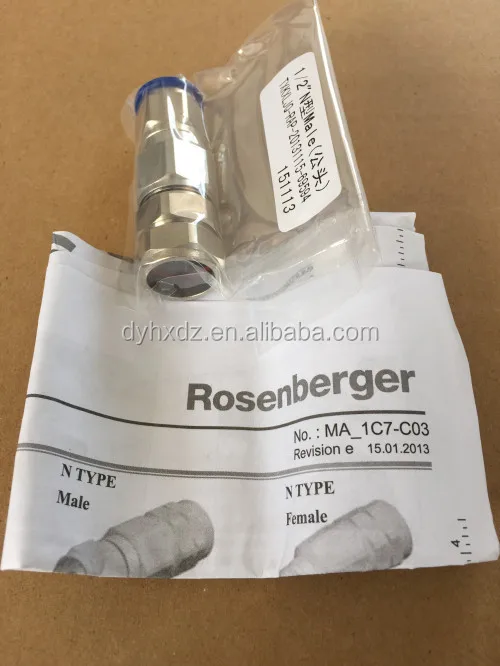

53s1c7 c03n1 1/2' N type male Rosenberger connector

Product Overview

Description

Rosenberger 1/2'' N type male connector

53S1C7-C03N1





Rosenberg 1/2'' N type male connector

Electrical
Impedance	50 Ω
Frequency Range	0 - 11 GHz
Voltage Rating	1,500 volts peak
VSWR	MIL-C-39012 straight connectors: 1.3 max 0-11 GHz MIL-C-39012 right angle connectors: 1.35 max 0-11 GHz
Dielectric Withstanding Voltage	2,500 volts rms
Insulation Resistance	5,000 MΩ minimum
Center Contact Resistance	1.0 mΩ
Outer Contact Resistance	0.2 mΩ
RF Leakage	-90 dB minimum at 3 GHz
Insertion Loss	.15 dB maximum at 10 GHz
Mechanical
Mating	5/8-24 threaded coupling
Braid or Jacket Cable Affixment	All crimps: hex braid crimp Clamps: screw-thread nut and braid clamp
Center Conductor Cable Affixment	Crimp: crimp or solder All others: solder only
Captivated Contact	All crimps unless specified otherwise
Cable Retention	Crimps: 60-120 lbs Clamps: 30-70 lbs
Material
Male Contacts	Brass, silver or gold plated
Female Contacts	Phosphorous bronze or beryllium copper, silver or gold plated
Other Metal Parts	Brass with ASTROplate® finish; M39012 has silver finish
Insulators	TFE, copolymer of styrene or glass-TFE (hermetic seal)
Weatherproof Gaskets	Silicone rubber of synthetic rubber
Crimp Ferrule	Copper
Environmental
Temperature Range	TFE: -65°C to +165°C
Weatherproof	All series N with gaskets are weatherproof
Hermetic Seals	Pass helium leak test of 2x10-8 cc/sec
Pressurized Shock	Compression seal MIL-STD-202, method 213
Vibration	MIL-STD-202, method 204, test condition B
Moisture Resistance	MIL-STD-202, method 106
Corrosion	MIL-STD-202, method 101, test condition B
Temperature Cycling	MIL-STD-202, method 102, test condition C
Altitude	MIL-STD-202, method 105, test condition C
Military
MIL-C-39012 MIL-A-55339	Where applicable
