High performance 3Y engine for Toyota hiace/Hilux
- Category: Engine Assembly >>>
- Supplier: Shenyang,R&Z,Power,Machinery,And,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification of 3Y engine
Line | Item | Specifications and Description |
1 | Model | Toyota 3Y |
2 | Type | 4 stroke, water cooling, inline, wedge shape combustion chamber |
3 | Cylinders | 4 |
4 | Bore | 91 mm |
5 | Stroke | 86 mm |
6 | Displacement | 2.237 L |
7 | Power / RPM | 68 kw / 4,200-4,600 rpm |
8 | Idle speed | 750 ± 50 rpm |
9 | Max. torque/RPM | 177 N.m / 2,800-3,200 rpm |
10 | Fuel supply | Carburetor |
11 | Fuel | RON 90 (GB484) |
12 | Min. fuel consumption | ≤ 295 g / kw.h |
13 | Oil | SE 10 W-30 or SE 15 W-40 (GB11121) |
14 | Oil consumption | ≤ 0.8 % |
15 | Piston average speed | 13.19 m / s |
16 | Crankshaft rotation (facing to flywheel) | anticlockwise |
17 | Compression ratio | 8.8 |
18 | Weight vs. power | 2.25 kg / kw |
19 | Average efficient pressure | 793 kPa |
20 | Power vs. displacement | 30.4 kw / l |
21 | Ignition order | 1-3-4 -2 |
22 | Distributing | |
Intake in advance | 12 ° | |
Intake in lag | 48 ° | |
Exhaust in advance | 54 ° | |
Exhaust in lag | 10 ° | |
23 | Cooling | Centrifugal water pumped cycling |
24 | Lubricating | Pressed and splashed |
25 | Starting | Electric starter |
Pictures of 3Y engine
Features
1. High efficiency and low emission
2. Low fuel consumption
3. Easy and fast starting
4. Convenient operation
5. Endure the hard work

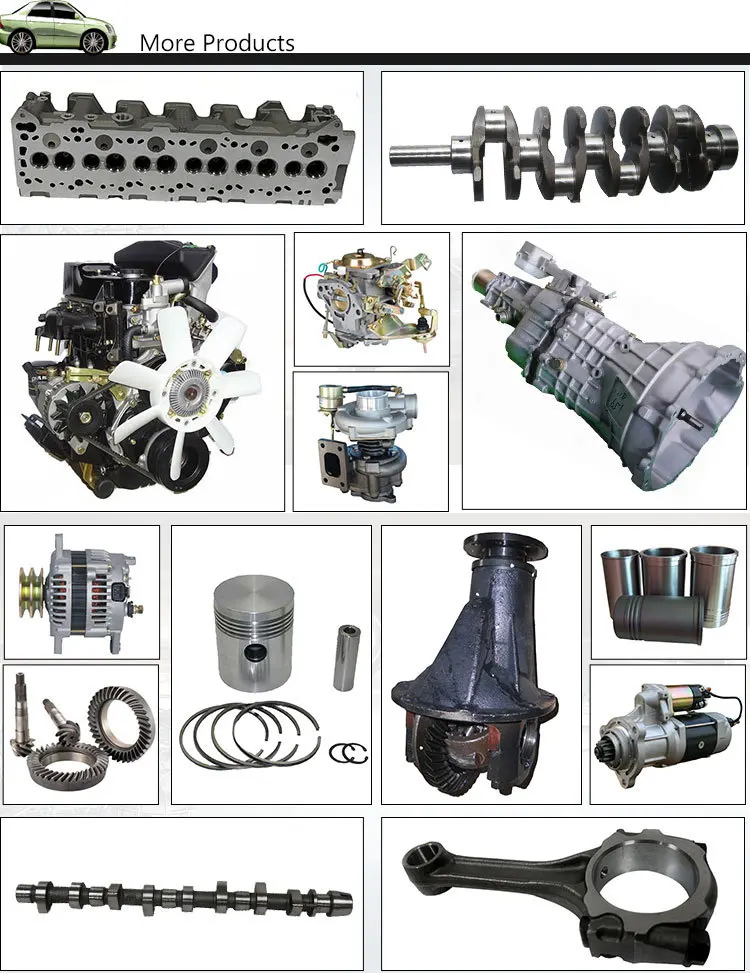

R&Z Parts Supply Other Related Engines As Follows:
Toyota 2Y/3Y/4Y/B3/2RZ/3RZ/Isuzu 4BD1/4BD1T/6BD1/6BD1T/4JB1/4JB1T/4HE1T/4HF1
Nissan QD32T/QD32TI/Suzuki F8A/F8B/F10A/G13B/ Deutz F2L912/F3L912/ F4L912/ F4L912T/F4L913/
F6L912/F6L912T/ F6L913/ BF4L913 /BF6L913/Cummins 4BT/4BTA/6BT/6BTA/6CT/6CTA/NT855/
Perkins 1004-4/1004-4T/1006-6/1006-6T/Iveco 8140 SERIES 2.5L/2.8L Etc
R&Z Supply all kinds of engines for Light Duty Trucks, Pick Up, BUS, MPV, Heavy Duty Trucks Etc.

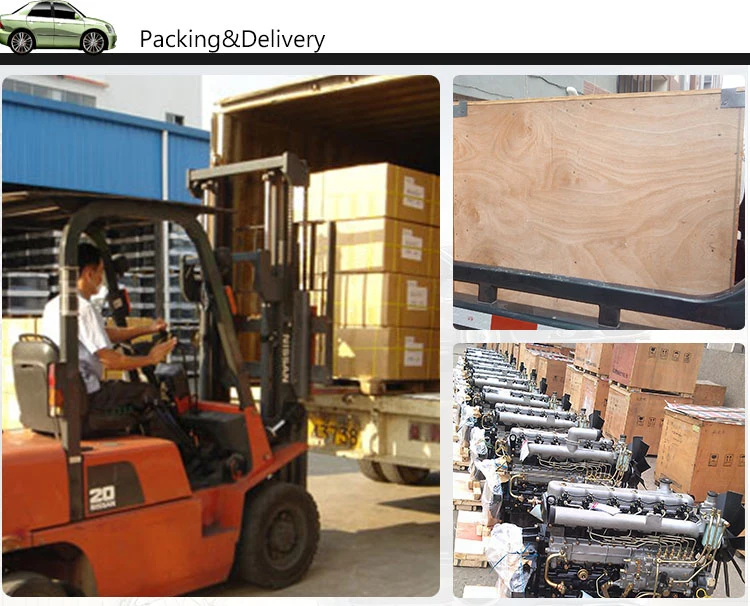

Packaging & Shipping
Our products are packed in wooden box with iron sheet support in every edge, with polywood lock at the bottom and another cover at the top. We care all the details and guarantee all the goods arrived safely.
Company Information
Shenyang R&Z Power Machinery and Equipment Co., Ltd. as a leading manufacturer and supplier in China, which specializes in Electric vehicle and Auto Parts such as engine assembly, transmission assembly, cylinder head, camshaft, crankshaft etc. which are sold to Europe, North America ,South America, Africa ,South-East Asia and the Middle East market. And our products are well satisfied and praised by our oversea customers.
To ensure you the best products, all of the production procedures are carried out by our well-trained workers and closely monitored by experienced supervisors. We have Q.C. Inspections after each stage of production, plus a final Q.C. inspection before packaging.
We aim to be a top class supplier for worldwide OEM and Aftermarket! Warmly welcome customers all over the world to establish business relations with us on the bases of mutual benefit.
1. Modern automatic workshops, advanced production lines and professional knowledge of assembly.
2. Strict IQC system ensure every spare parts are qualified.
3. In every step, senior engineer provide technical support to eliminate all detailed questions.
Our Services
Pre-sale
1) Communicate by Web services, Phone, Email, Whatsapp etc.
2) 7 days*24hours Hot-line & Email Service.
3) Your inquiry related to our products will be replied within 24 hours.
4) Well-trained and experienced staff will answer all your questions in fluent English.
Payment and delivery
Payment Term by T/T, L/C, Paypal, Western Union etc.
Real-time shipment tracking.
Warranty
If quality & assembling problem caused troubles, we take responsible on spare parts and all service fees.
If misuse or human factors caused the trouble, users shall take responsible on spare parts and all service fees.
FAQ
Q: MOQ
A:1 Unit
Q: Delivery Time
A:7-15days
Q: Payment Terms
A:30% deposit T/T, 70% T/T before shipment or L/C at sight
Q: Logo
A: We can make customers own logo in the engine for free.
Q: Package and Loading qty
A: Wooden Package, Loading qty : as the container's size
Q: Shipment
A: We can help customer to arrange shipment and keep goods safely.
We sincerely welcome all of you come to visit our company and discuss cooperation matters.
Welcome your inquiry and any suggestion. We are moving with you because of your support !
