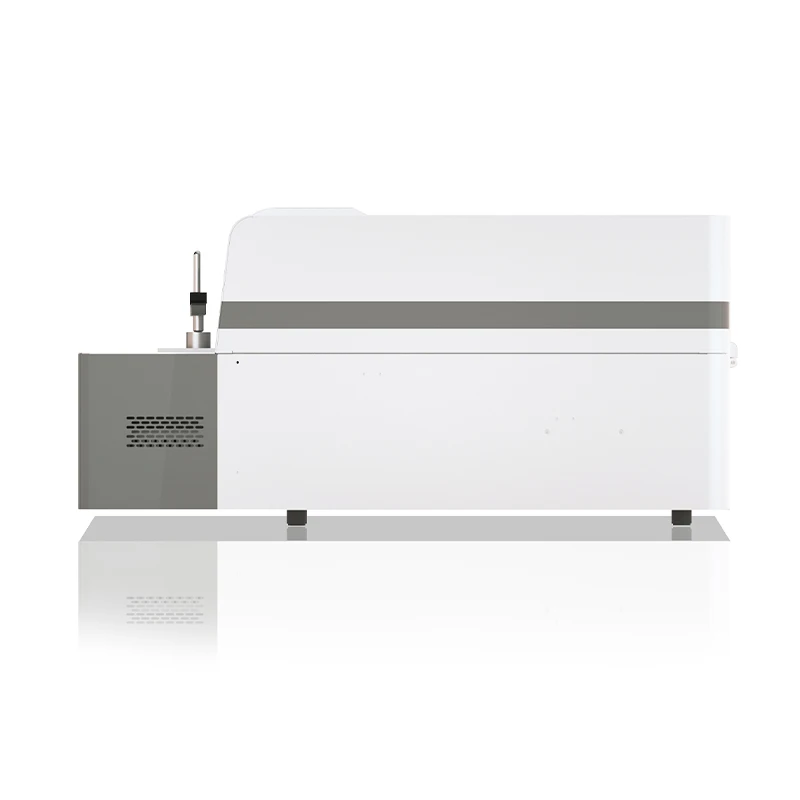

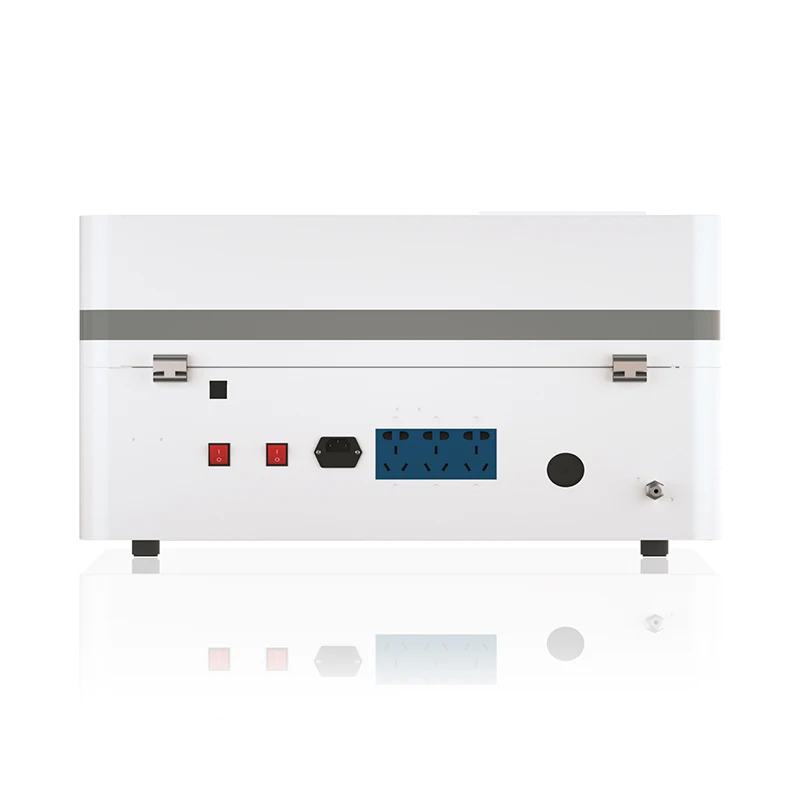

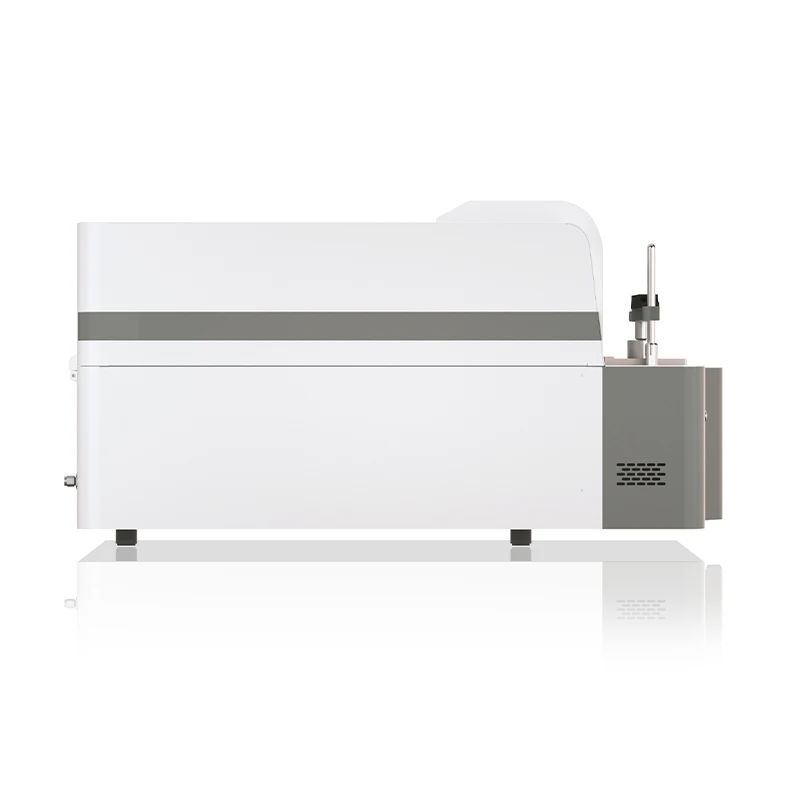

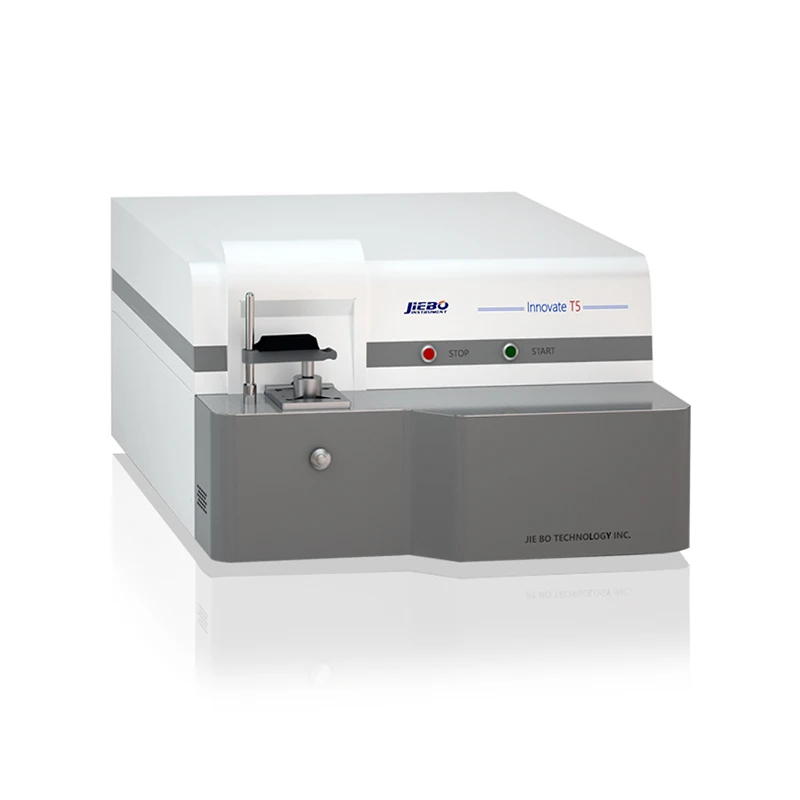

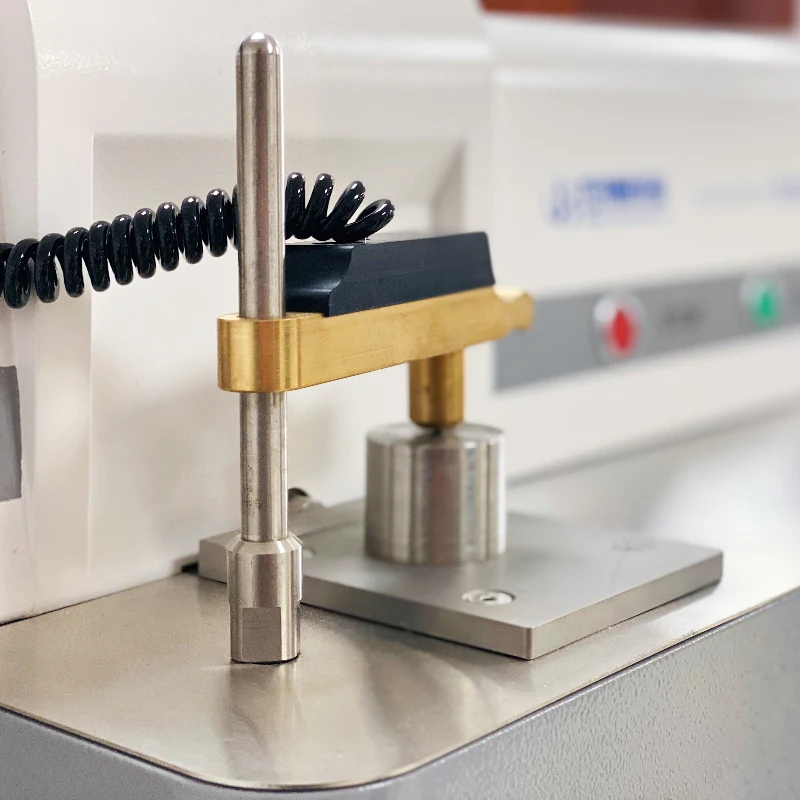

High Accuracy Innovate T5 Optical Emission Spectrometer for Metal Price

Innovate T5 full spectrum direct reading spectrometer adopts international standard design and manufacturing technology. It uses the most advanced CMOS signal acquisition components from Japan Hamamatsu Corp. The design of vacuum chamber and full digital excitation light source which is synchronized with the international spectrometer technology. The CMOS spectrometer is not only contain the full spectrum characteristics of CCD spectrometer but also the extremely low detection limit for non-metallic elements such as C, S, P, B, As etc. The design of whole machine is reasonable. The operation is simple and easy to learn. The test result is stable and accuracy.

Applications:

It is widely used in the metallurgy, casting, machinery, scientific research, commodity inspection, automotive, petrochemical, shipbuilding, power, aviation, nuclear power, metal and non-ferrous smelting, processing and recycling industries.

Detection Matrix:

iron based, copper based, aluminum based, nickel based, cobalt based, magnesium based, titanium based, zinc based, lead based, tin based, silver based.

Optical system: Patrick type Runge rowland full spectrum optical vacuum system

Wavelength Range:120~800nm

Focal Length:401mm

Detector: High performance CMOS Array

Optical Type:digital light source,high performance pre-combustion technology.

Discharge Frequency :100-1000Hz

Discharge Current:Max 500A

Working power:220VAC 50/60Hz

Overall Dimension:L780*W565*H360mm

Net Weight:80kg

Analysis Time: 20 seconds.

Electrode: tungsten material jet electrode

Analysis gap: Vacuum software automatic control, monitoring
